Sound absorber rectangular air duct RSKI 100/1500
Source photo:
Maico
(fig. might be different or similar)

Sound absorber rectangular air duct RSKI 100/1500

EAN/GTIN: 4012799732518
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: RSKI 100/1500
Manufact.-SKU: 0073.0251
Customs tariff no.: 84879090
Similar top items: Show now & compare
2.735,52 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pipe silencer length 1500, NW 1000 RSKI 100/1500 material other, nominal width duct 1000mm, nominal height duct 1500mm, length 1500mm, connection 1 other, connection 2 other, link thickness 50mm, attenuation 63 Hz 4dB, attenuation 125 Hz 8dB, attenuation 250 Hz 14dB, Attenuation 500 Hz 20dB, Attenuation 1000 Hz 24dB, Attenuation 2000 Hz 21dB, Attenuation 4000 Hz 14dB, Attenuation 8000 Hz 10dB, Processing backdrops other, Max. medium temperature (continuous operation) 150°C, Cylindrical pipe silencer for ventilation systems Attachments. Version with backdrop for greater noise reduction. The interior of the silencer is made of perforated sheet metal. Operating temperature between -40 °C and +150 °C.Item: RSKI 100/1500, installation location: fan, material: steel, galvanized, color: silver, weight: 180 kg, weight with packaging: 180 kg, width: 1200 mm, Height: 1200 mm, Depth: 1500 mm, Width with packaging: 1200 mm, Height with packaging: 1200 mm, Depth with packaging: 1500 mm

More product images:

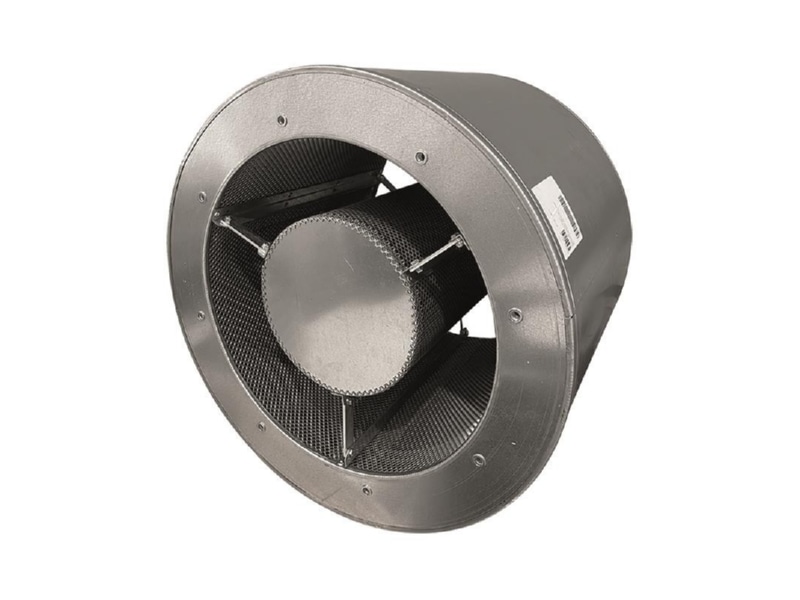

Product image 1 Maico RSKI 100 1500 Sound absorber rectangular air duct
Product image 1

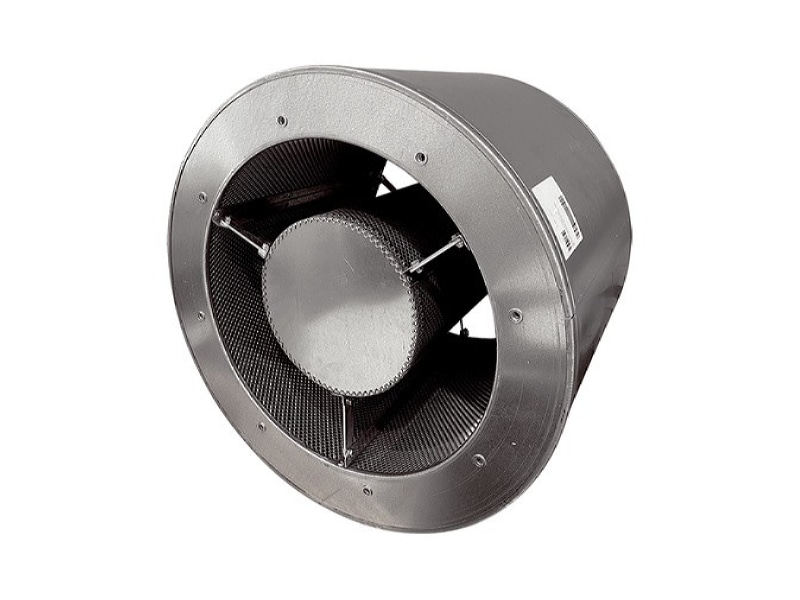

Product image 2 Maico RSKI 100 1500 Sound absorber rectangular air duct
Product image 2

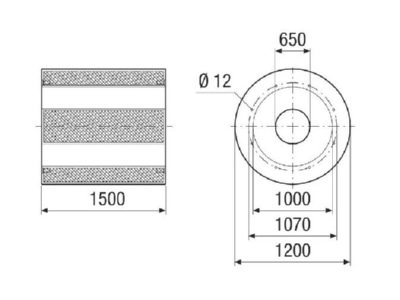

Dimensional drawing Maico RSKI 100 1500 Sound absorber rectangular air duct
Dimensional drawing
