Sound absorber rectangular air duct RSI 90/1500
Source photo:
Maico
(fig. might be different or similar)

Sound absorber rectangular air duct RSI 90/1500

EAN/GTIN: 4012799731078
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: RSI 90/1500
Manufact.-SKU: 0073.0107
Customs tariff no.: 84879090
Similar top items: Show now & compare
1.799,73 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pipe silencer NW 900, length 1500 RSI 90/1500 material other, nominal width duct 900mm, nominal height duct 1350mm, length 1350mm, connection 1 other, connection 2 other, link thickness 50mm, attenuation 63 Hz 2dB, attenuation 125 Hz 3dB, attenuation 250 Hz 7dB , Attenuation 500 Hz 13dB, Attenuation 1000 Hz 8dB, Attenuation 2000 Hz 6dB, Attenuation 4000 Hz 5dB, Attenuation 8000 Hz 4dB, Processing of other backdrops, Max. medium temperature (continuous operation) 150°C, Cylindrical pipe silencer for ventilation systems. Execution without a backdrop does not result in any additional losses. The interior of the silencer is made of perforated sheet metal. Operating temperature between -40 °C and +150 °C.Article: RSI 90/1500, installation location: fan, material: steel, galvanized, color: silver, weight: 94 kg, weight with packaging: 94 kg, width: 1100 mm, Height: 1100 mm, Depth: 1350 mm, Width with packaging: 1100 mm, Height with packaging: 1100 mm, Depth with packaging: 1350 mm

More product images:

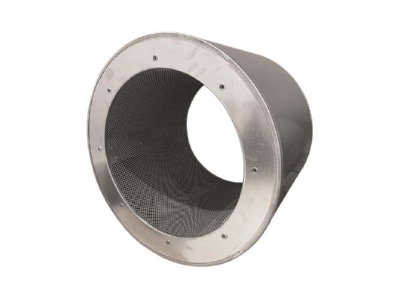

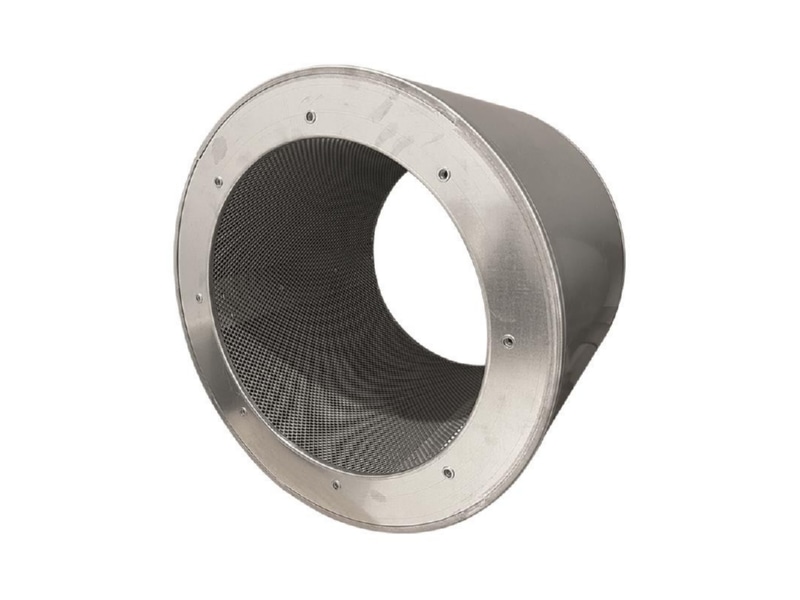

Product image 1 Maico RSI 90 1500 Sound absorber rectangular air duct
Product image 1

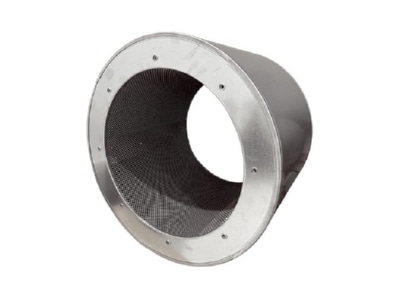

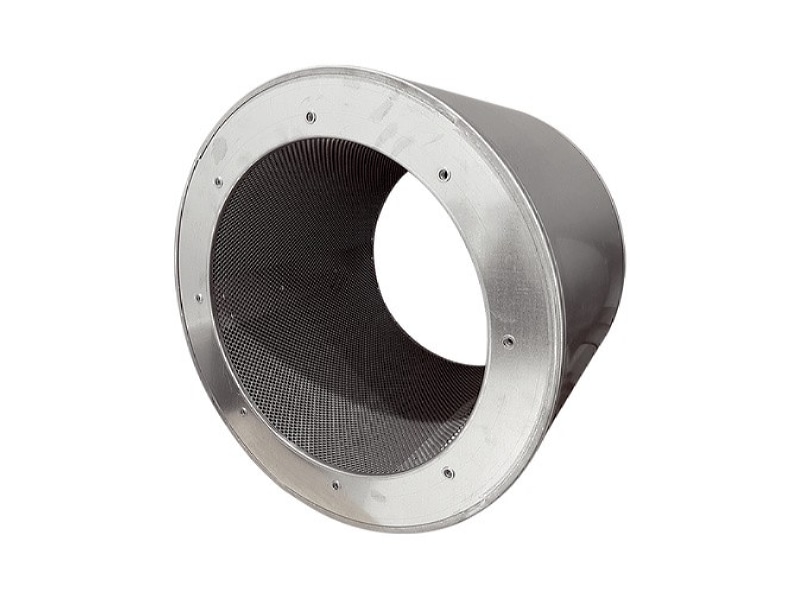

Product image 2 Maico RSI 90 1500 Sound absorber rectangular air duct
Product image 2

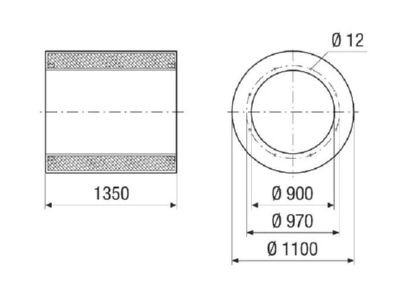

Dimensional drawing Maico RSI 90 1500 Sound absorber rectangular air duct
Dimensional drawing
