Sound absorber rectangular air duct RSI 71/1000
Source photo:
Maico
(fig. might be different or similar)

Sound absorber rectangular air duct RSI 71/1000

EAN/GTIN: 4012799731009
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: RSI 71/1000
Manufact.-SKU: 0073.0100
Customs tariff no.: 84879090
Similar top items: Show now & compare
1.081,13 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pipe silencer NW 710, length 1000 RSI 71/1000 material other, nominal width duct 710mm, nominal height duct 710mm, length 710mm, connection 1 other, connection 2 other, link thickness 50mm, attenuation 63 Hz 1dB, attenuation 125 Hz 1dB, attenuation 250 Hz 5dB, Attenuation 500 Hz 12dB, Attenuation 1000 Hz 9dB, Attenuation 2000 Hz 7dB, Attenuation 4000 Hz 5dB, Attenuation 8000 Hz 5dB, Processing of other backdrops, Max. medium temperature (continuous operation) 150°C, Cylindrical pipe silencer for ventilation systems. Execution without a backdrop does not result in any additional losses. The interior of the silencer is made of perforated sheet metal. Operating temperature between -40 °C and +150 °C.Article: RSI 71/1000, installation location: fan, material: steel, galvanized, color: silver, weight: 35 kg, weight with packaging: 35 kg, width: 870 mm, Height: 870 mm, Depth: 710 mm, Width with packaging: 870 mm, Height with packaging: 870 mm, Depth with packaging: 710 mm

More product images:

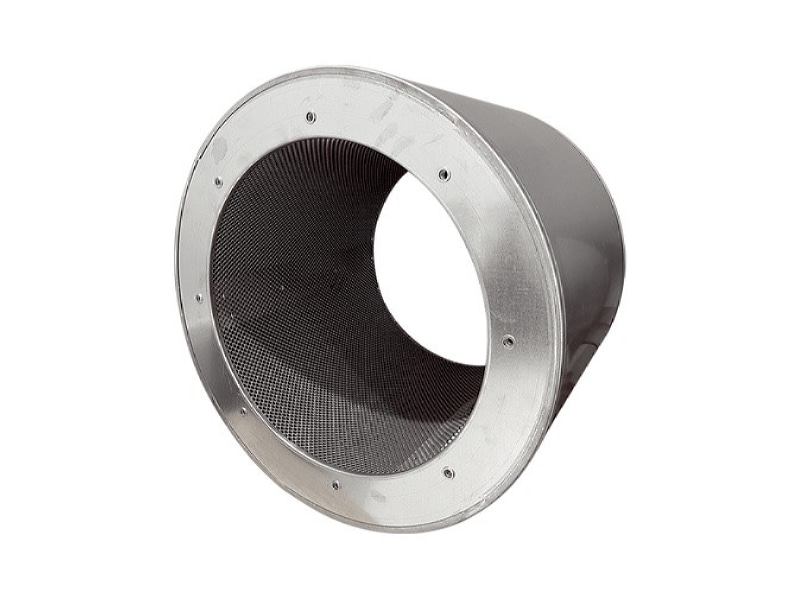

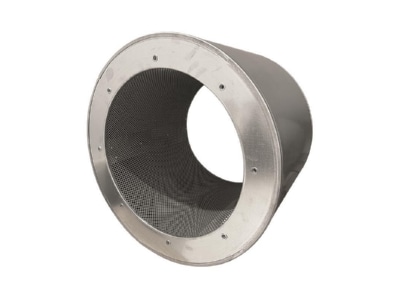

Product image 1 Maico RSI 71 1000 Sound absorber rectangular air duct
Product image 1

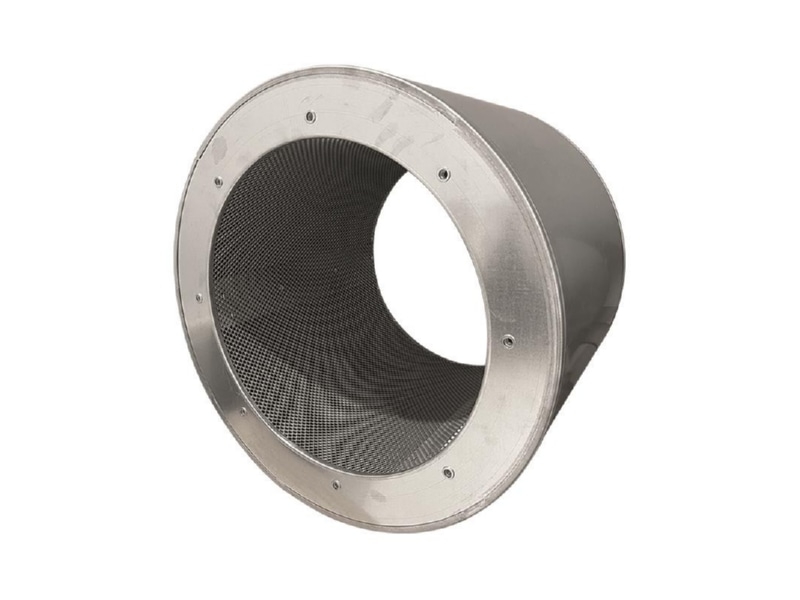

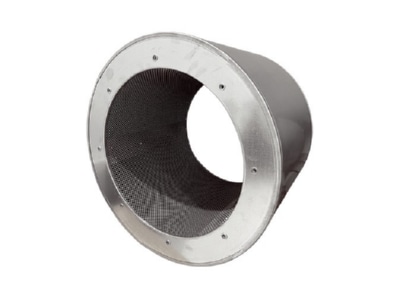

Product image 2 Maico RSI 71 1000 Sound absorber rectangular air duct
Product image 2

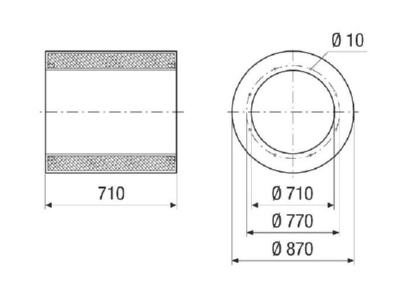

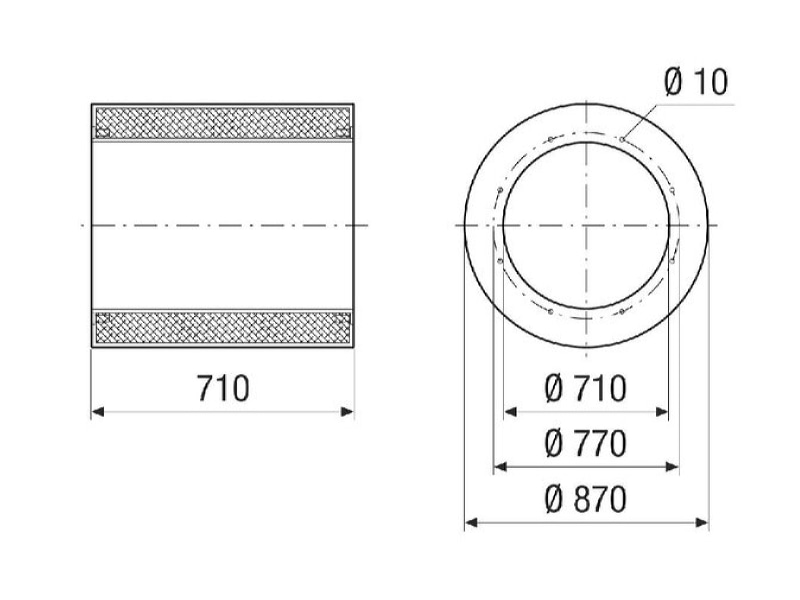

Dimensional drawing Maico RSI 71 1000 Sound absorber rectangular air duct
Dimensional drawing
