Sound absorber rectangular air duct RSI 112/1000
Source photo:
Maico
(fig. might be different or similar)

Sound absorber rectangular air duct RSI 112/1000

EAN/GTIN: 4012799732440
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: RSI 112/1000
Manufact.-SKU: 0073.0244
Customs tariff no.: 84879090
Similar top items: Show now & compare
1.475,15 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pipe silencer NW 1120, length 1120 RSI 112/1000 material other, nominal width duct 1120mm, nominal height duct 1120mm, length 1120mm, connection 1 other, connection 2 other, link thickness 50mm, attenuation 63 Hz 2dB, attenuation 125 Hz 3dB, attenuation 250 Hz 9dB, Attenuation 500 Hz 13dB, Attenuation 1000 Hz 7dB, Attenuation 2000 Hz 5dB, Attenuation 4000 Hz 4dB, Attenuation 8000 Hz 3dB, Processing of other backdrops, Max. medium temperature (continuous operation) 150°C, Cylindrical pipe silencer for ventilation systems. Execution without a backdrop does not result in any additional losses. The interior of the silencer is made of perforated sheet metal. Operating temperature between -40 °C and +150 °C.Article: RSI 112/1000, installation location: fan, material: steel, galvanized, color: silver, weight: 130 kg, weight with packaging: 130 kg, width: 1320 mm, Height: 1320 mm, Depth: 1120 mm, Width with packaging: 1320 mm, Height with packaging: 1320 mm, Depth with packaging: 1120 mm

More product images:

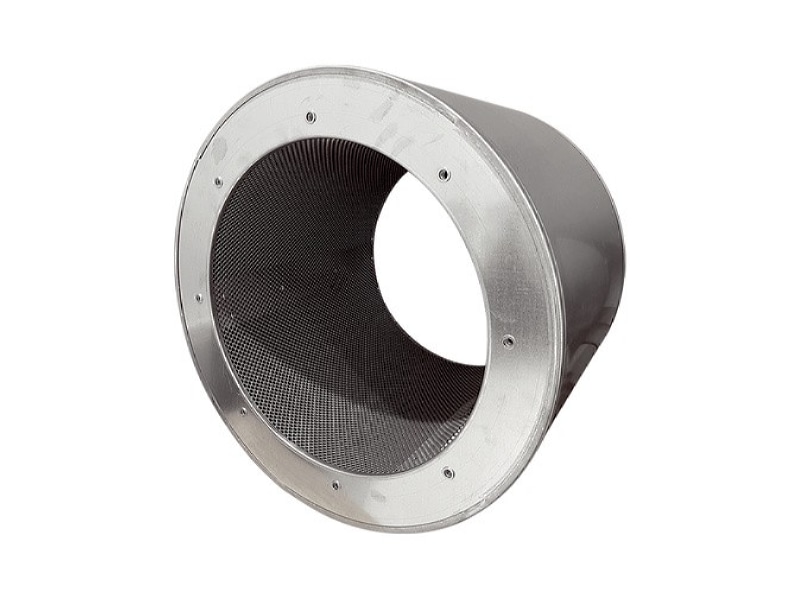

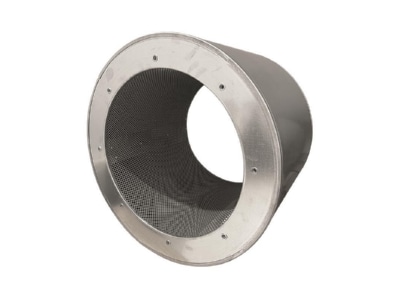

Product image 1 Maico RSI 112 1000 Sound absorber rectangular air duct
Product image 1

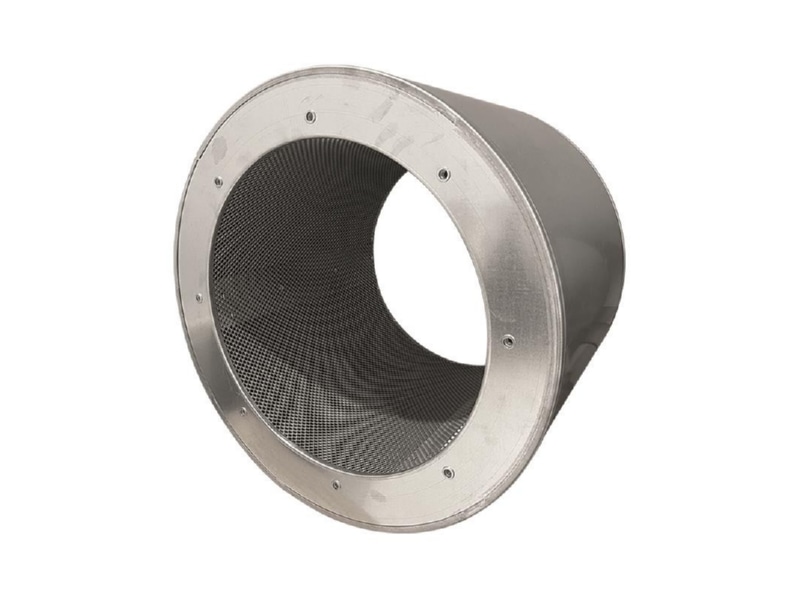

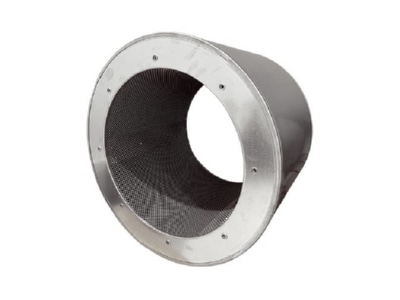

Product image 2 Maico RSI 112 1000 Sound absorber rectangular air duct
Product image 2

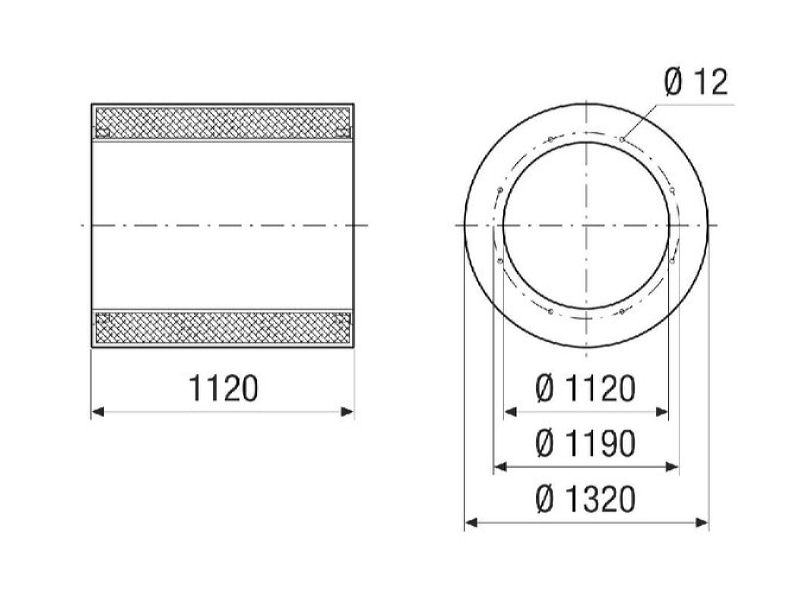

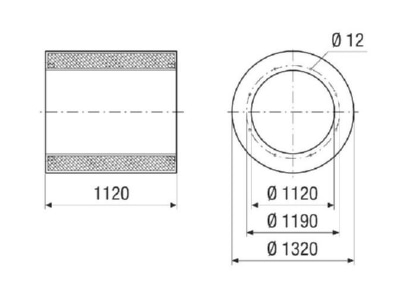

Dimensional drawing Maico RSI 112 1000 Sound absorber rectangular air duct
Dimensional drawing
