Sound absorber, around air duct RSR 10-1
Source photo:
Maico
(fig. might be different or similar)

Sound absorber, around air duct RSR 10-1

EAN/GTIN: 4012799925927
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: RSR 10-1
Manufact.-SKU: 0092.0592
Customs tariff no.: 76169990
Similar top items: Show now & compare
75,90 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Pipe silencer length 1000, DN 100 RSR 10-1 Material inner tube aluminum, material outer tube aluminum, pipe silencer for ventilation systems. With sound-absorbing packing made of synthetic resin-bonded glass fibers. Non-flammable according to DIN 4102 Class A1. Insertion loss measured according to DIN 45646. With lip seal. Temperature resistant up to +70 °C. RSR...: With 25 mm thick sound-absorbing packing. RSR.../50: With 50 mm thick sound-absorbing packing.Item: RSR 10-1, version: 25 mm sound-absorbing packing, installation location: fan, material: aluminum, color: silver, weight: 0.9 kg, weight with packaging: 1 .27 kg, connection diameter: 100 mm, suitable for nominal width: 100 mm, width: 160 mm, height: 160 mm, depth: 1000 mm, width with packaging: 165 mm, height with packaging: 165 mm, depth with packaging: 1175 mm, insertion loss at 63 Hz: 1 dB, insertion loss at 125 Hz: 5 dB, insertion loss at 250 Hz: 8 dB, insertion loss at 500 Hz: 18 dB, insertion loss at 1 kHz: 35 dB, insertion loss at 2kHz: 58dB, Insertion loss at 4 kHz: 33 dB, insertion loss at 8 kHz: 27 dB, sound insulation: yes

More product images:

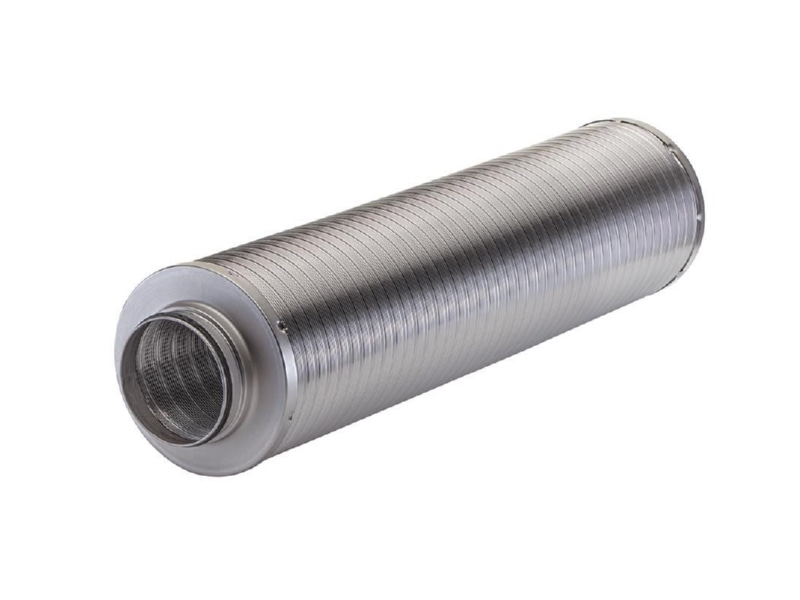

Product image 1 Maico RSR 10 1 Sound absorber  around air duct
Product image 1
Product image 2 Maico RSR 10 1 Sound absorber  around air duct
Product image 2

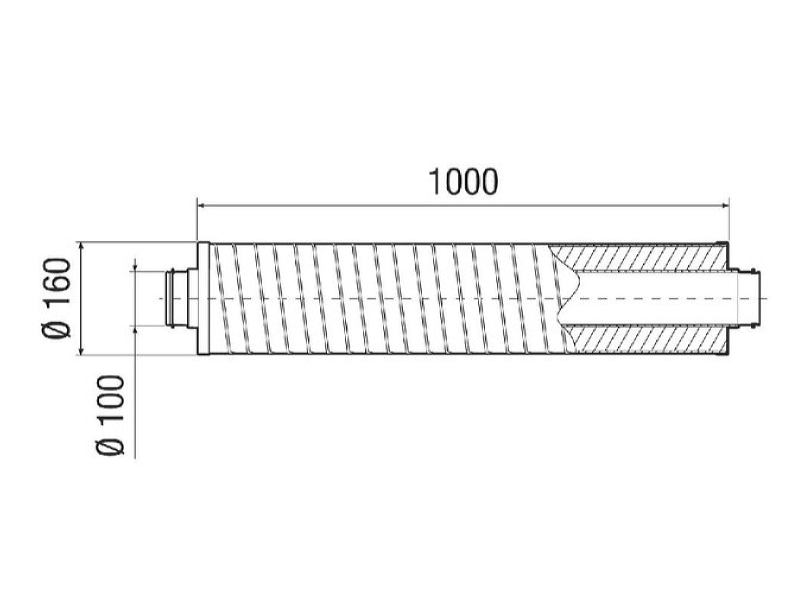

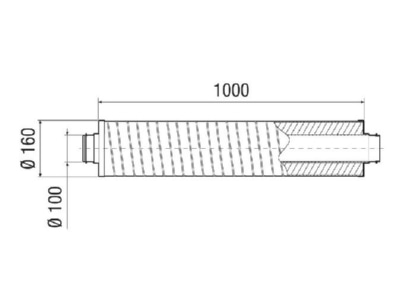

Dimensional drawing Maico RSR 10 1 Sound absorber  around air duct
Dimensional drawing
