Peripheral supply and exhaust device PPB 30 O
Source photo:
Maico
(fig. might be different or similar)

Peripheral supply and exhaust device PPB 30 O

EAN/GTIN: 4012799952459
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: PPB 30 O
Manufact.-SKU: 0095.0245
Customs tariff no.: 84145925
Similar top items: Show now & compare
601,31 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Final assembly set, object version PPB 30 O, energy efficiency class = B, energy efficiency class spectrum = A + to G, type of ventilation = decentralized supply and exhaust air, heat recovery via = other, heat source = outside air, nominal power = 2.5 W, degree of heat provision = 73% , With hot water preparation = no, With heating = no, With remote control = no, Air connection diameter = 160 mm, Height = 275 mm, Width = 275 mm, Depth = 410 mm, Weight = 4.626 kg, Volume flow = 26 m³ / h, With water air heater = no, with additional heating = no, extension of the inner fluid channel. Required accessories for the final assembly sets PPB 30 K and PPB 30 O with a wall thickness greater than 500 mm. The extension set can only be used in conjunction with the long body shell PP 45 RHL. Scope of delivery: Extension sleeve 500 mm long, Ø 90 mm, 1 centering ring Article: PPB 30 VS, installation location: wall, material: plastic, weight: 0.6 kg, nominal width: 90 mm, length: 500 mm, width: 151 mm, height: 151 mm, depth: 500 mm, ambient temperature: 40 ° C, degree of heat provision: 84.3%

More product images:

Product image 1 Maico PPB 30 O Peripheral supply and exhaust device
Product image 1

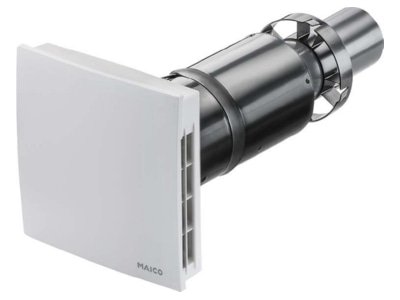

Product image 2 Maico PPB 30 O Peripheral supply and exhaust device
Product image 2
Circuit diagram Maico PPB 30 O Peripheral supply and exhaust device
Circuit diagram

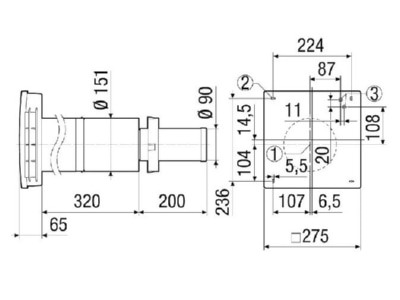

Dimensional drawing Maico PPB 30 O Peripheral supply and exhaust device
Dimensional drawing
