Peripheral supply and exhaust device PPB 30 K
Source photo:
Maico
(fig. might be different or similar)

Peripheral supply and exhaust device PPB 30 K

EAN/GTIN: 4012799952466
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: PPB 30 K
Manufact.-SKU: 0095.0246
Customs tariff no.: 84145925
Similar top items: Show now & compare
703,52 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
12 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Final assembly set comfort version PPB 30 K, energy efficiency class = A, energy efficiency class spectrum = A + to G, type of ventilation = decentralized supply and exhaust air, heat recovery via = other, heat source = outside air, nominal power = 2.5 W, degree of heat provision = 73% , With hot water preparation = no, With heating = no, With remote control = no, Air connection diameter = 160 mm, Height = 275 mm, Width = 275 mm, Depth = 410 mm, Weight = 4.69 kg, Volume flow = 26 m³ / h, With water air heater = no, with additional heating = no, final assembly sets for the PushPull Balanced PPB 30 single room ventilation unit with two fans, two ceramic heat exchangers, inner cover and two integrated filters (G3), so that the air is filtered in both directions. Versions: PPB 30 O object version, PPB 30 K comfort version with integrated humidity sensor and the possibility of volume flow compensation by PP 45 devices, PPB 30 RC radio version with integrated radio board including humidity sensor and the option of volume flow compensation by PP 45 devices, we recommend these devices in exhaust air rooms (Toilet, bathroom, kitchen). This is easily possible thanks to the device protection class IP X4. Required accessories: body shell PP 45 RHK or PP 45 RHL, outer cover PPB 30 AK, PPB 30 AE, PPB 30 AW or PPB 30 AS, room air control RLS 45 K or RLS 45 O. With a room air control RLS 45 K or RLS 45 O you can Build a wired ventilation system from PPB 30 and PP 45 devices. The maximum number of fans used is 6. Different combinations are possible, e.g. 2 x PP 45 K / O + 1 x PPB 30 K + 1 x RLS 45 K or 3 x PPB 30 K + 1 x RLS 45 K. One combination of PPB 30 K and RLS 45 O is not permitted. DS 45 RC: With the radio switch DS 45 RC you can build a radio controlled ventilation system from PPB 30 RC and PP 45 RC devices, e.g. 4 x PP 45 RC + 1 x PPB 30 RC + 1 x DS 45 RC. PP 45 EO: If the RLS 45 K room air control is expanded with PP 45 EO, the wired devices can be combined with radio devices, e.g. 4x PP 45 K / O + 1 x PPB 30 RC + 1 x RLS 45 K + 1 x PP 45 EO. Optional accessories: Extension set PPB 30 VS, wall block PP 45 MB, compensation frame PPB 30 ARE and PPB 30 ARW, mounting plate PPB 30 ARE BB and PPB 30 ARW BB for compensation frame, humidity sensor PP 45 HYI and PP 45 HY, CO2 sensor PP 45 CO2 , VOC sensor PP 45 VOC, air filter, replacement PPB 30 G3, The room air controls RLS 45 K and RLS 45 O can be expanded with the internal humidity sensor PP 45 HYI or with the external sensors PP45 HY, PP 45 CO2 and PP 45 VOC. The devices achieve energy efficiency class A. The room air controls RLS 45 K and RLS 45 O can be operated in 5 ventilation levels 5/12/18/22/26 m3 / h and 2 operating modes permanent ventilation with heat recovery, cross ventilation without heat recovery and automatic operation. In addition, the RLS 45 K room air control offers the option of using the commissioning software to easily configure the device using a PC / laptop (Windows). The settings can be saved as profiles and transferred to other controls. Functions: The recommended combination option is 2 x or 4 x PP 45 O / K + 1 x PPB 30 K + 1 x RLS 45 K. The recommended combination option for radio-controlled system is 2 x or 4 x PP 45 RC + 1 or 2 x PPB 30 RC + 1 x DS 45 RC. In this case, the PPB 30 K / RC device can be operated in two different operating modes. In car mode, the device works completely independently depending on the humidity value from the integrated sensor. In auto mode, the RLS 45 K room air control or the DS 45 RC radio switch only executes the commands External Off and ventilation level 0. In system operation, the device works completely according to the specifications of the RLS 45 K room air control or DS 45 RC radio switch. The device decouples from the system and starts dehumidification only in the event of a moisture load (limit value adjustable). The automatic dehumidification can be set as intensive ventilation mode (level 5 with heat recovery) or as exhaust air mode (45m3 / h without heat recovery). In the event of an odor load, intensive ventilation mode (level 5 with heat recovery) or exhaust air mode (45m3 / h without heat recovery) can also be triggered manually with a button / switch. The duration of this function is adjustable (factory setting = 10 min). In the case of exhaust air operation from the PPB 30 K or PPB 30 RC, the PP 45 devices connected to the RLS 45 K room air control or taught in at the DS 45 RC radio switch ensure the necessary supply air. It is not possible to combine PPB 30 K and exhaust air devices (e.g. ER / ECA) on an RLS 45 K room air control. A low cost solution for the bathroom could be the combination of 1 x PPB 30 O + 1 x RLS 45 O. (Attention: The room air control has protection class IP 00). The exhaust air operation of 45 m3 / h (without heat recovery and without volume flow compensation) can also be realized. Heat exchangers: With the high-performance heat exchangers and the highly efficient EC fans, the devices achieve a degree of heat supply of 73% for the reference volume flow according to EN 13141-8. Installation instructions: Installation takes place in 2 steps: Installation of the body shell PP 45 RHK (DN 160) or RHL (DN 160) as well as an outer cover in a core hole DN 160 with an inclination of 1-2%. We recommend drilling the core with DN 182 and aligning the inclination of the sleeve using the styrofoam wedges provided. The shell is protected against contamination by plaster protection covers. Then the final assembly set is integrated. No pipe laying necessary and no adjustment of the system necessary. Electrical connection: The device is delivered ready for use. Electrical connection is made using a plug connection. Connection to room air control RLS 45 K or RLS 45 O via pluggable control lines. The 12 VDC power line of the RLS 45 K / RLS 45 O room air control to the device is also the control line. The PPB30 RC is connected directly to 230V. ATTENTION: Check the area of ??application (protection zone) of the device. Condensate drain: The condensate is drained off via an integrated condensate drain in the outer cover.Article: PPB 30 K, delivery volume: 5 m3 / h / 12 m3 / h / 18 m3 / h / 22 m3 / h / 26 m3 / h, energy efficiency class: A, rated voltage: 12 V DC, SPI value according to DIN EN 13141-8: 0.19 Wh / m3, maximum power consumption: 1.7 W / 2.5 W / 3.4 W / 4.4 W / 5, 3 W, protection rating: IP X4, installation position: horizontal, system type: decentralized, material housing: plastic, material heat exchanger: ceramic, color: traffic white, similar to RAL 9016, weight: 4.69 kg, filter type: external and exhaust air filter, filter class: G3 / G3, connection diameter: 160 mm, width: 275 mm, height: 275 mm, depth: 410 mm, necessary wall opening: 162 to 182 mm, wall thickness: 320 mm / 500 mm, degree of heat supply for the reference volume flow according to DIN EN 13141-8: 73.3%, necessary room air control: RLS 45 K, sound pressure level: 23 dB (A) / 35 dB (A) / 43 dB (A) / 48 dB (A) / 51 dB (A) / distance 1 m, free field conditions, Rated max. Element standard sound level difference Dn, w: 37 dB, type of ventilation: decentralized supply and exhaust air, heat recovery via: other, degree of heat provision: 73.3%

More product images:

Product image 1 Maico PPB 30 K Peripheral supply and exhaust device
Product image 1

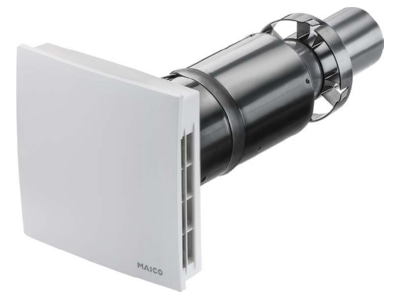

Product image 2 Maico PPB 30 K Peripheral supply and exhaust device
Product image 2
Circuit diagram Maico PPB 30 K Peripheral supply and exhaust device
Circuit diagram

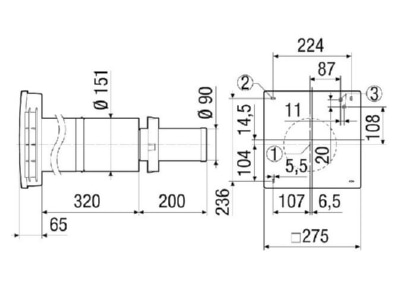

Dimensional drawing Maico PPB 30 K Peripheral supply and exhaust device
Dimensional drawing
