Duct mounted ventilator 9800m³/h 1,95kW DSK 50 EC
Source photo:
Maico
(fig. might be different or similar)

Duct mounted ventilator 9800m³/h 1,95kW DSK 50 EC

EAN/GTIN: 4012799868095
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: DSK 50 EC
Manufact.-SKU: 0086.0809
Customs tariff no.: 84145995
Similar top items: Show now & compare
5.512,66 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Mains frequency 50Hz, Rated voltage 400V, Material housing Steel plate, Flow rate 4950m³/h, Nominal power 1,95kW, Degree of protection (IP) IP54, Direction Radial, Weight 82500g, Width of duct 880mm, Height of duct 540mm, Air handling temperature -20 ... -25°C

More product images:

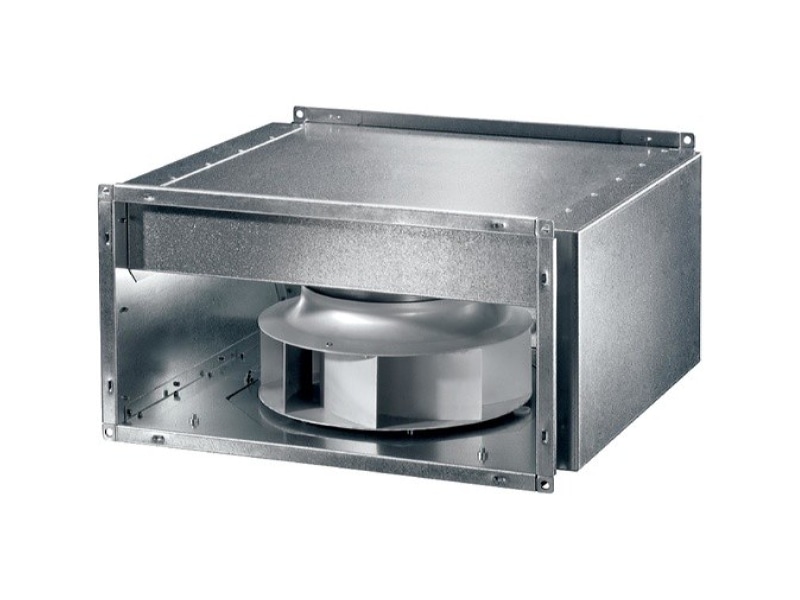

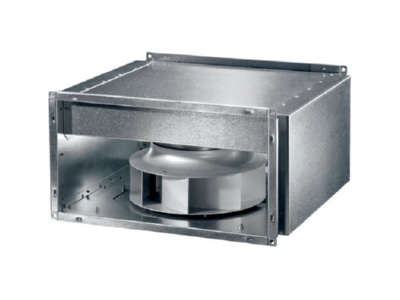

Product image 1 Maico DSK 50 EC Duct mounted ventilator 9800m  h 1 95kW
Product image 1

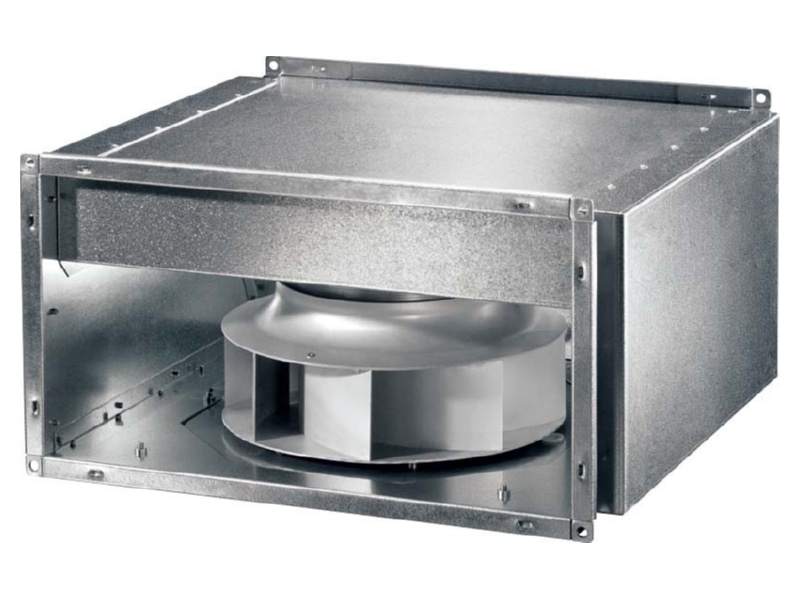

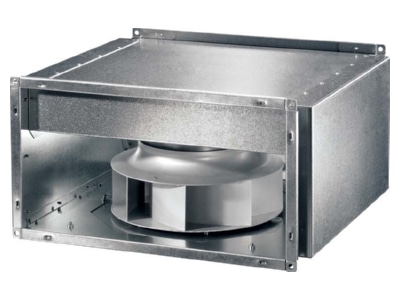

Product image 2 Maico DSK 50 EC Duct mounted ventilator 9800m  h 1 95kW
Product image 2

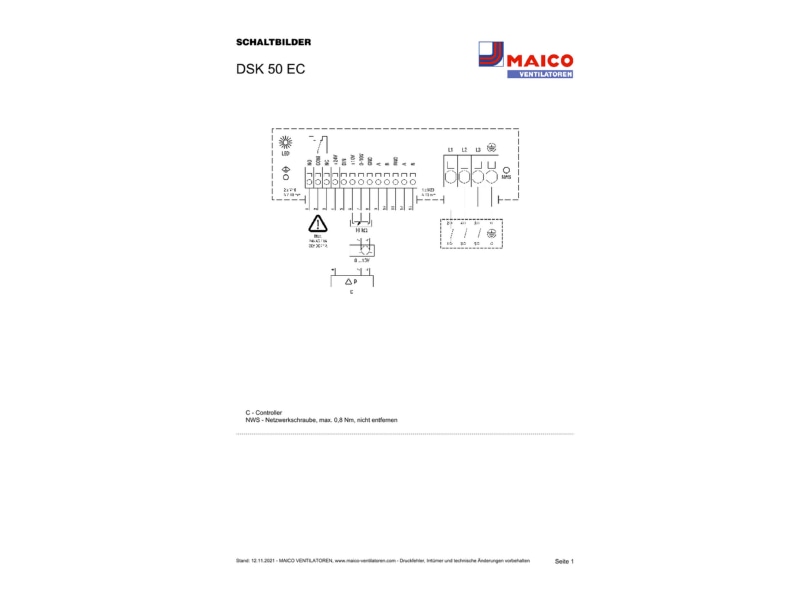

Circuit diagram Maico DSK 50 EC Duct mounted ventilator 9800m  h 1 95kW
Circuit diagram

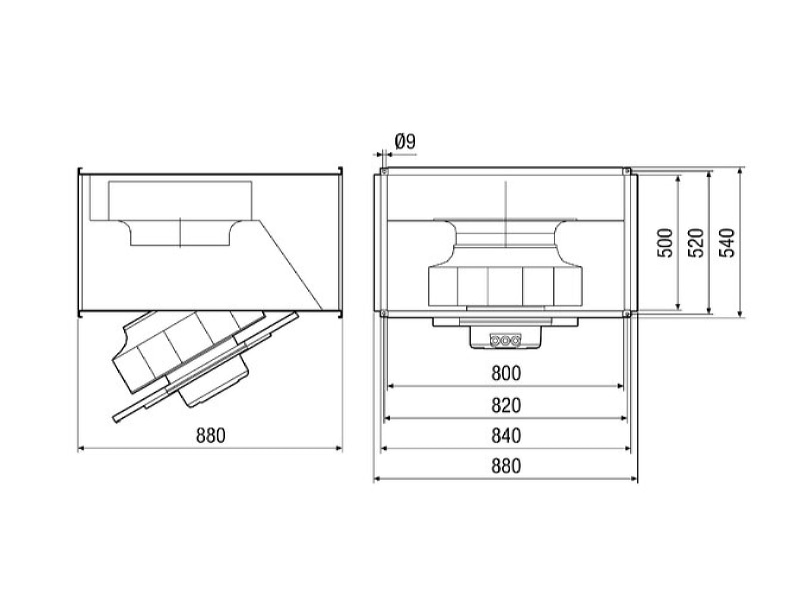

Dimensional drawing Maico DSK 50 EC Duct mounted ventilator 9800m  h 1 95kW
Dimensional drawing
