EIB/KNX Universal Actuator 16-fold, 8SU MDRC, 16A, 100µF, 15EVG, 230VAC, AKU-1616.03

EAN/GTIN: 4251916130466
WEEE: DE 14025511
Manufacturer: MDT
Manufacturer no.: AKU-1616.03
Customs tariff no.: 85371091
Similar top items: Show now & compare
304,68 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

KNX Universal Actuator 16-fold, 8SU MDRC, 16 A, 230 V AC, 100 µF, 15 ECG. Compact design with bistable relays. Current max. 16 A with ohmic load, 100 µF / 15 ECG. With sun position calculation / shading. Comprehensive function extension. Can be used as Switch Actuator (max. 16-fold) or Shutter Actuator (max. 8-fold). Mixed applications of Switch- and Shutter Actuator possible. Heating control with PWM 0-100 %. Push Button and LED indicator for each channel. Practical ventilation function (window open/tilted). Automatic shading / slat tracking with sun position calculation. Time functions (switch-on/-off delay, staircase light function). Status response (active/passive) for each channel. Logical linking of binary data, 8 scenes per channel. Central switching functions and block functions. Operation mode blind/shutter adjustable. Running, pause and step time freely adjustable. Adjustable behavior in case of bus voltage failure/return. 4 mm² / 2x2,5 mm² connection terminals. Separate L-connections.

More product images:

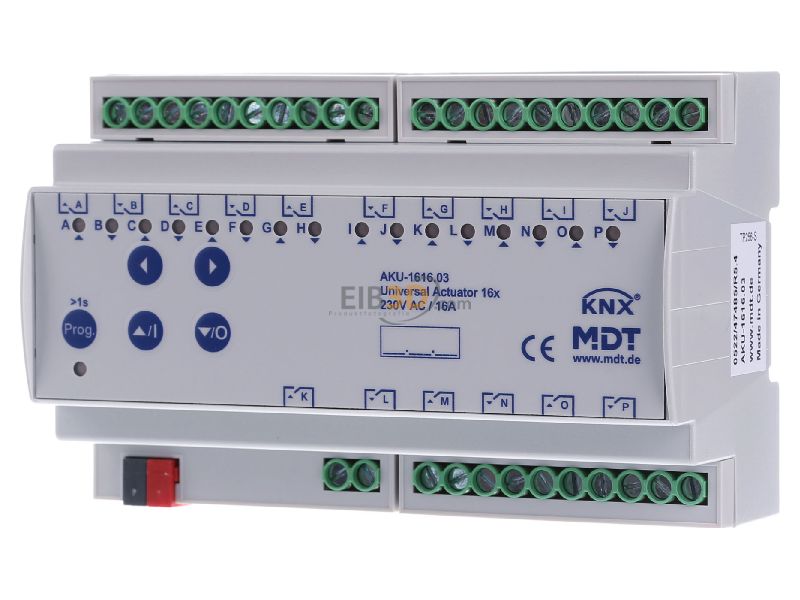

Front view MDT AKU-1616.03 EIB/KNX Universal Actuator 16-fold, 8SU MDRC, 16A, 100µF, 15EVG, 230VAC,
Front view

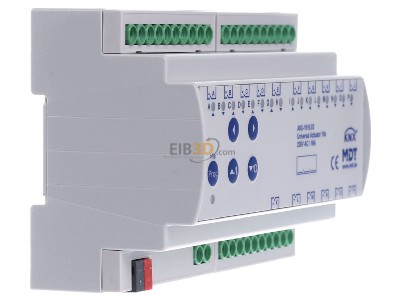

View on the left MDT AKU-1616.03 EIB/KNX Universal Actuator 16-fold, 8SU MDRC, 16A, 100µF, 15EVG, 230VAC,
View on the left

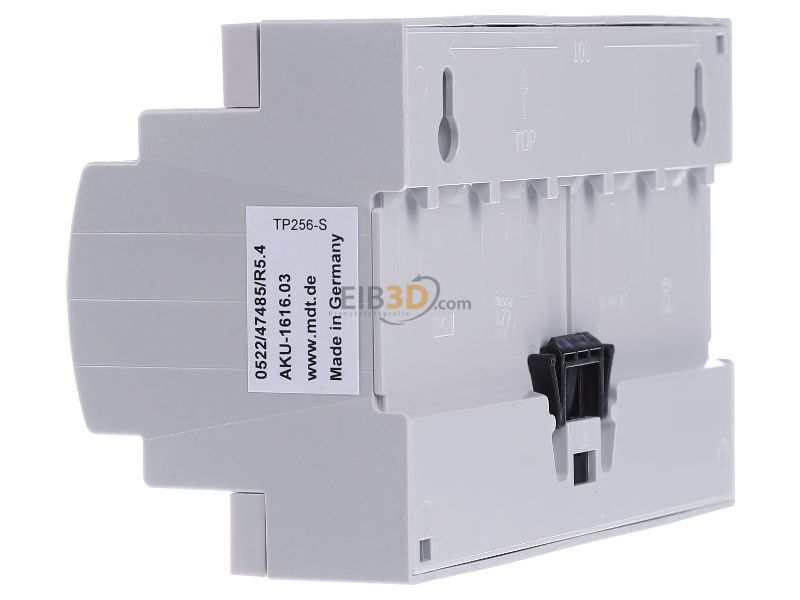

View on the right MDT AKU-1616.03 EIB/KNX Universal Actuator 16-fold, 8SU MDRC, 16A, 100µF, 15EVG, 230VAC,
View on the right

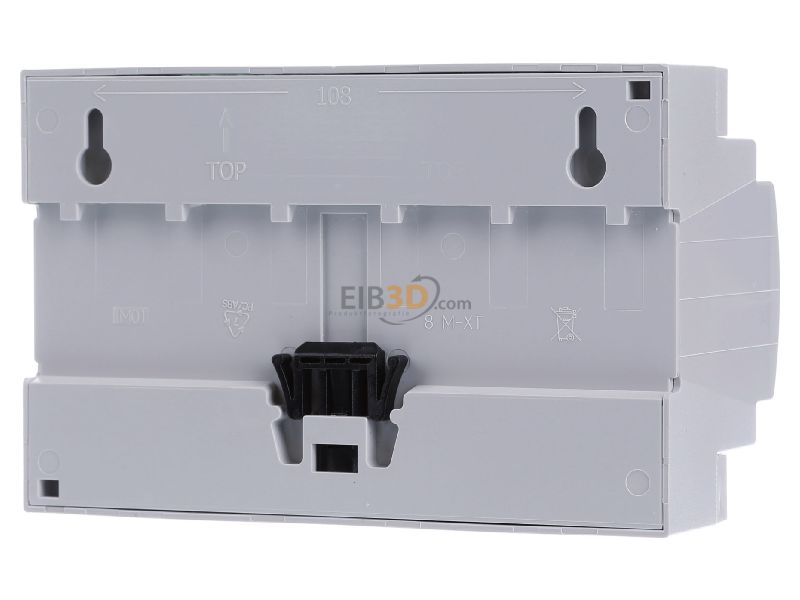

Back view MDT AKU-1616.03 EIB/KNX Universal Actuator 16-fold, 8SU MDRC, 16A, 100µF, 15EVG, 230VAC,
Back view

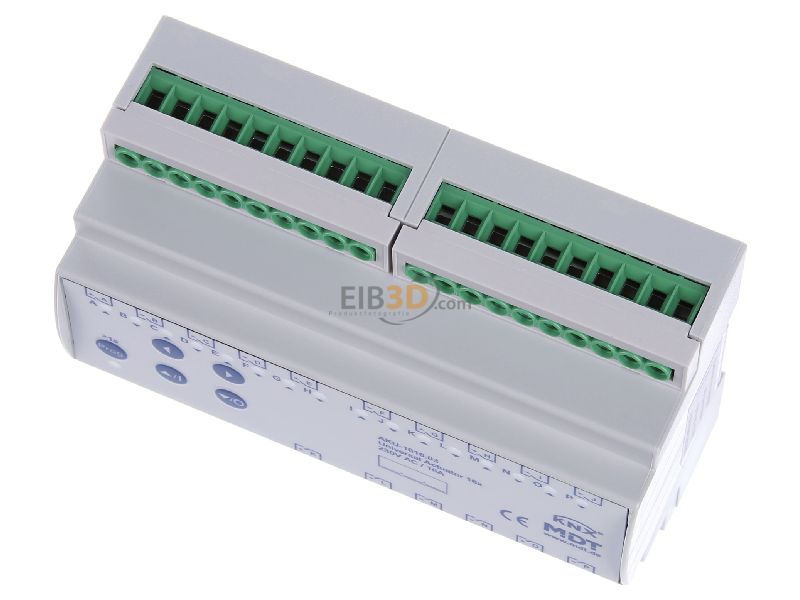

View up front MDT AKU-1616.03 EIB/KNX Universal Actuator 16-fold, 8SU MDRC, 16A, 100µF, 15EVG, 230VAC,
View up front

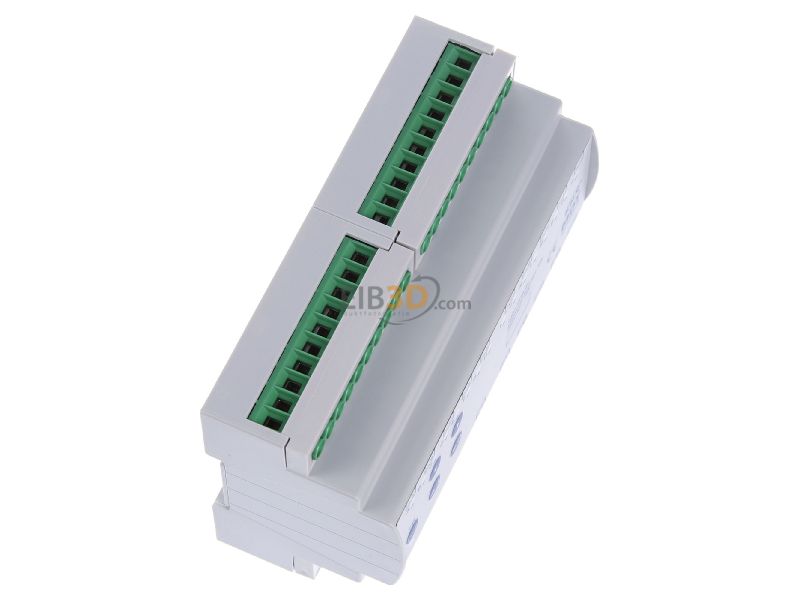

View top left MDT AKU-1616.03 EIB/KNX Universal Actuator 16-fold, 8SU MDRC, 16A, 100µF, 15EVG, 230VAC,
View top left

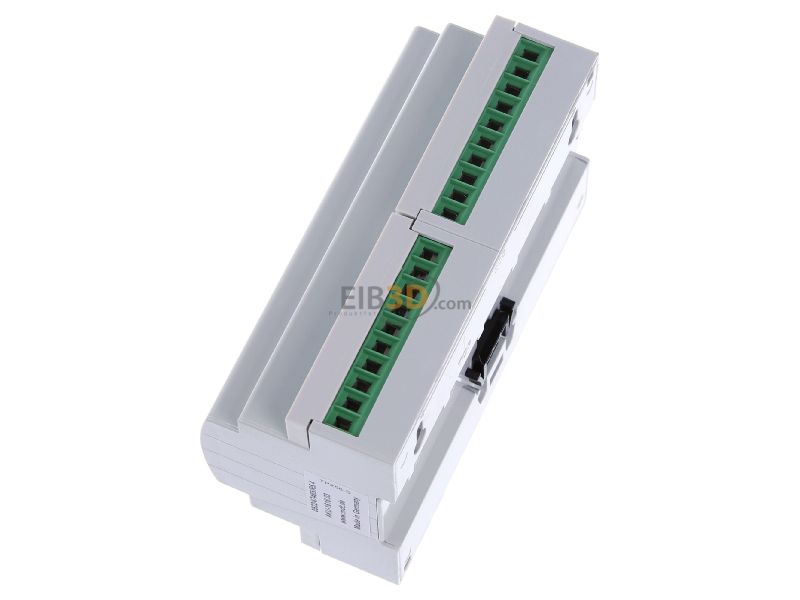

View top right MDT AKU-1616.03 EIB/KNX Universal Actuator 16-fold, 8SU MDRC, 16A, 100µF, 15EVG, 230VAC,
View top right

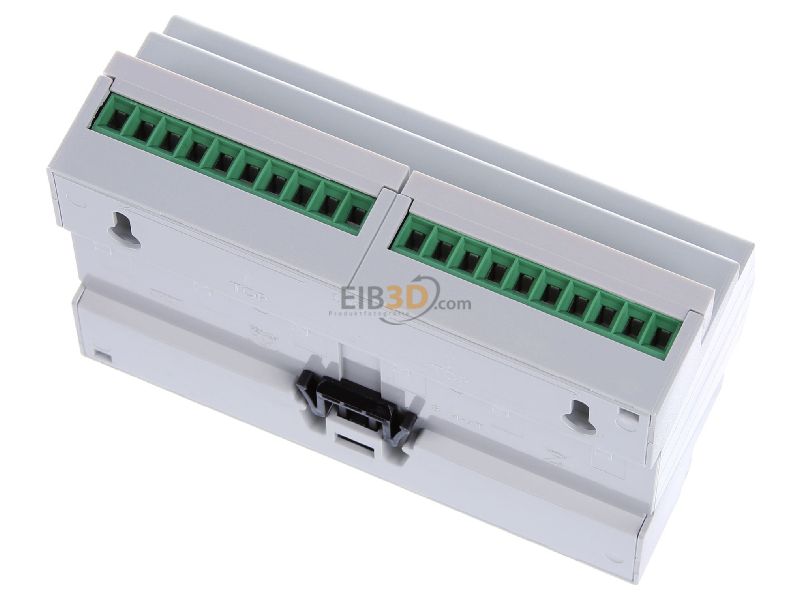

Top rear view MDT AKU-1616.03 EIB/KNX Universal Actuator 16-fold, 8SU MDRC, 16A, 100µF, 15EVG, 230VAC,
Top rear view
