EIB/KNX Switch Actuator 16-fold, 16A, 230VAC, C-load, 140µF - AKS-1616.03

EAN/GTIN: 4251916130367
WEEE: DE 14025511
Manufacturer: MDT
Manufacturer no.: AKS-1616.03
Customs tariff no.: 85371091
Similar top items: Show now & compare
323,28 €
Select local currency
Price incl. tax. 19,00%
plus shipping
Delivery time:
1-2 days [DE] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

KNX Switch Actuator 16-fold, 8SU MDRC, 16 A, 230 V AC, C-load, standard, 140 µF. Switch Actuator with bistable relays. Current max. 16 A, capacitive load max. 140 µF. Space saving design. Saves up to 30% space. Comprehensive function extension. Lockable manual operation and LED indicator for each channel. NO and NC contact operation. Status response at manually operation. Time functions (switch-on/-off delay, staircase light functions). Extended logical and scene functions for each channel. Extended status functions (inverted, cyclic, at block). Treshold switch (Byte/2 Byte/2 Byte float). Hour meter for switching. Priority/forced operation with automatic release time. Separate power supply terminals for each channel. Power supply via KNX bus. Quick application download (long frame support for ETS5).

More product images:

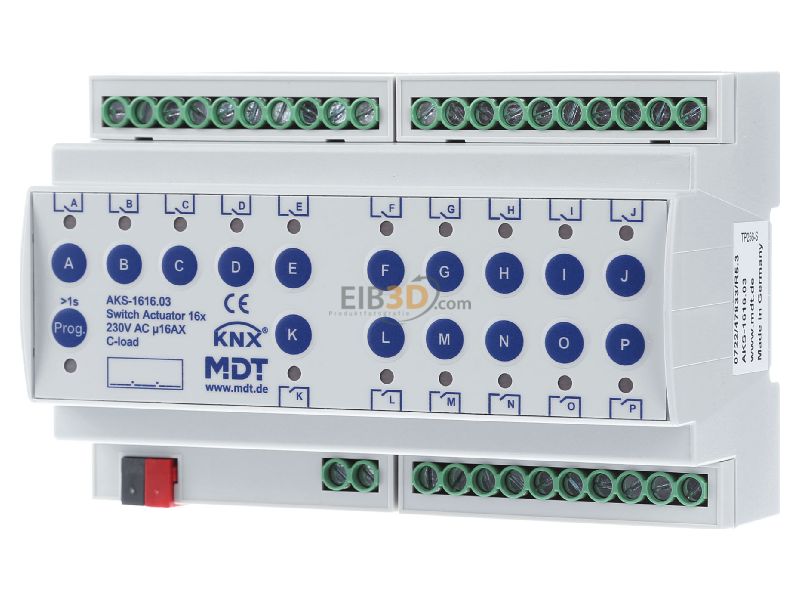

Front view MDT AKS-1616.03 EIB/KNX Switch Actuator 16-fold, 16A, 230VAC, C-load, 140µF -
Front view

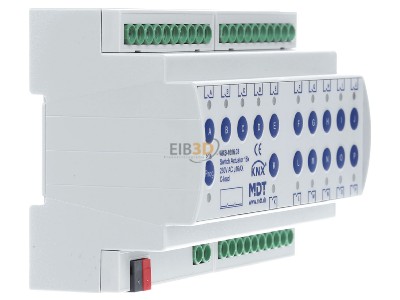

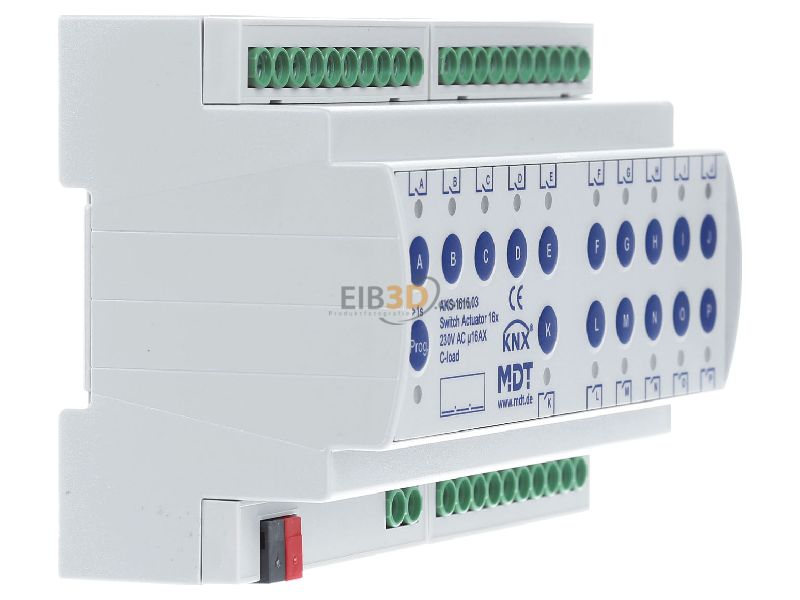

View on the left MDT AKS-1616.03 EIB/KNX Switch Actuator 16-fold, 16A, 230VAC, C-load, 140µF -
View on the left

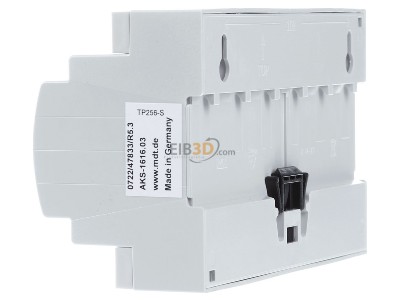

View on the right MDT AKS-1616.03 EIB/KNX Switch Actuator 16-fold, 16A, 230VAC, C-load, 140µF -
View on the right

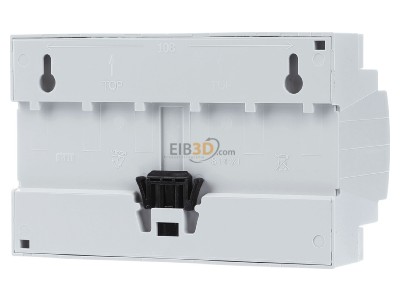

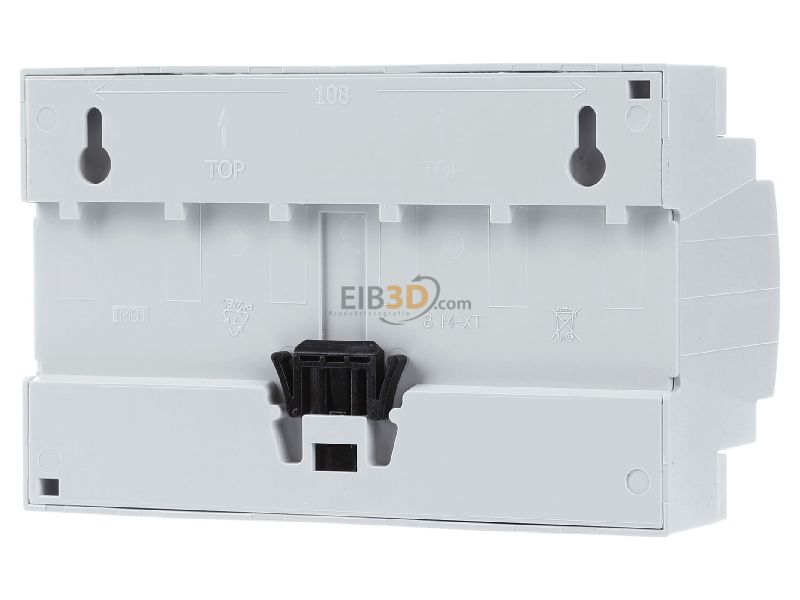

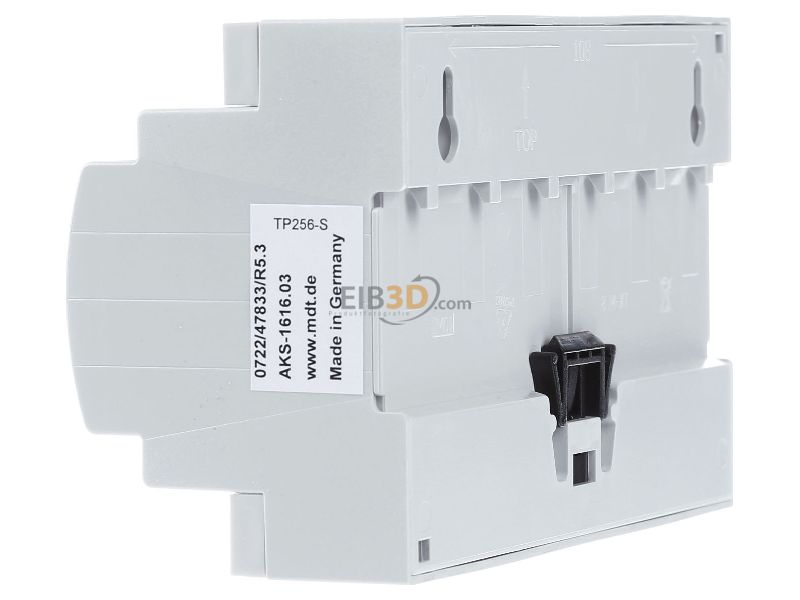

Back view MDT AKS-1616.03 EIB/KNX Switch Actuator 16-fold, 16A, 230VAC, C-load, 140µF -
Back view

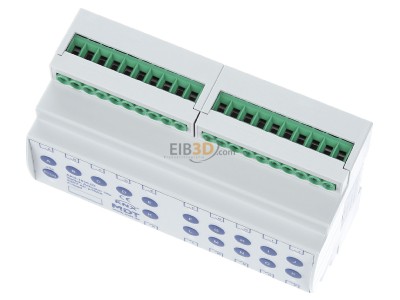

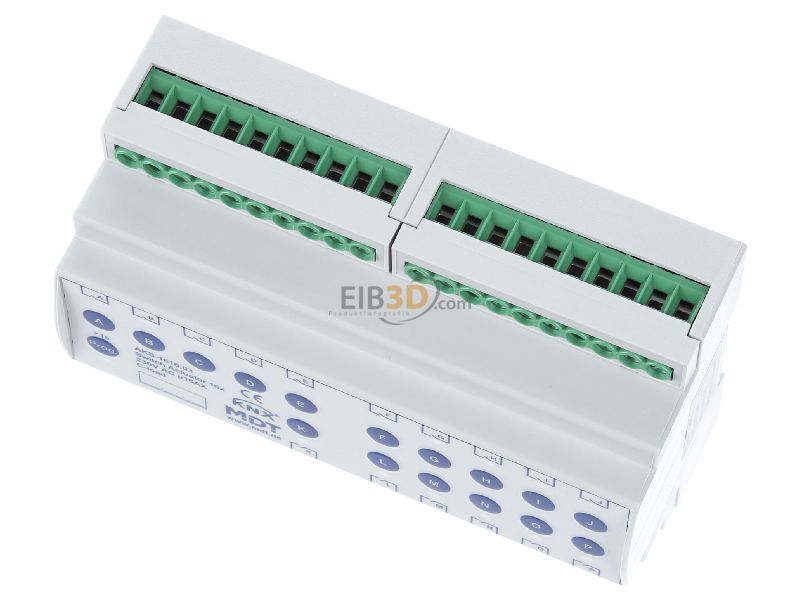

View up front MDT AKS-1616.03 EIB/KNX Switch Actuator 16-fold, 16A, 230VAC, C-load, 140µF -
View up front
View top left MDT AKS-1616.03 EIB/KNX Switch Actuator 16-fold, 16A, 230VAC, C-load, 140µF -
View top left

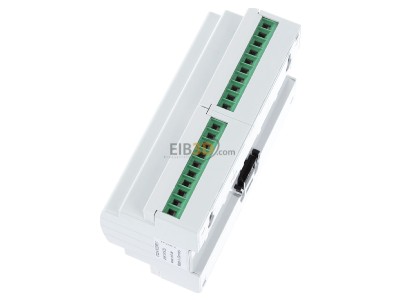

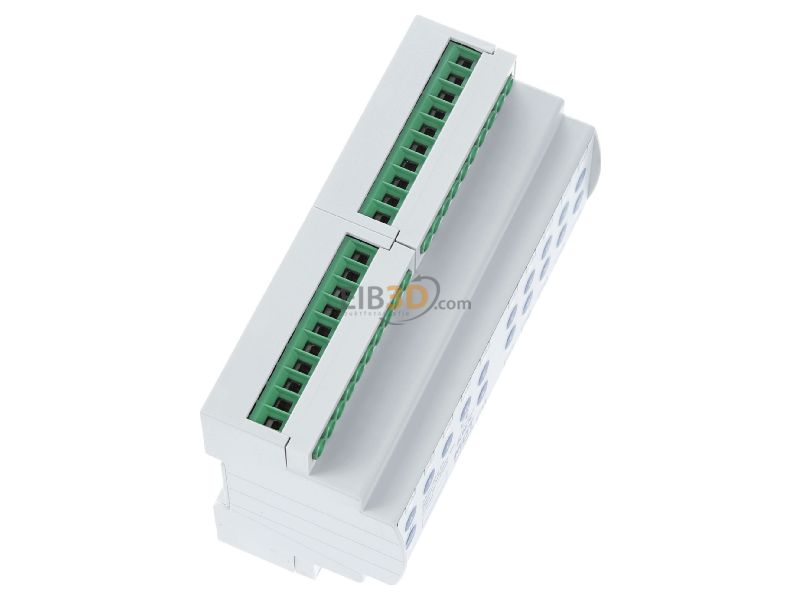

View top right MDT AKS-1616.03 EIB/KNX Switch Actuator 16-fold, 16A, 230VAC, C-load, 140µF -
View top right

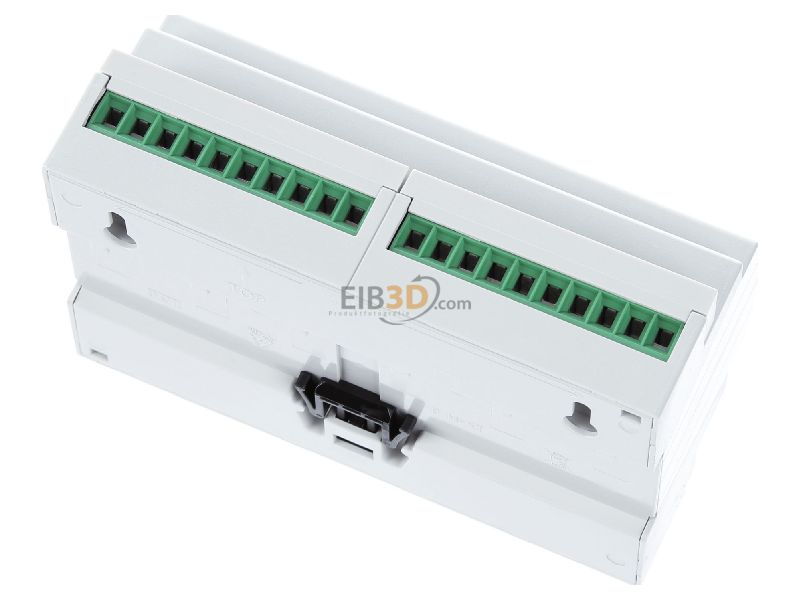

Top rear view MDT AKS-1616.03 EIB/KNX Switch Actuator 16-fold, 16A, 230VAC, C-load, 140µF -
Top rear view
