EIB/KNX Switch Actuator 1-fold, flush mounted, 16A, 70µ, 10ECG, 230VAC, Compact, AKK-01UP.03

EAN/GTIN: 4251916130190
WEEE: DE 14025511
Manufacturer: MDT
Manufacturer no.: AKK-01UP.03
Customs tariff no.: 85371091
Similar top items: Show now & compare
65,43 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

KNX Switch Actuator 1-fold, flush mounted, 16 A, 70 µF, 10 ECG, 230 V AC, Compact. Flush mounted Switch Actuator with bistable relays. Current max. 16 A with ohmic load, 70 µF / 10 ECG. Function extension. NO and NC contact operation. Time functions (switch-on/switch-off delay). Extensive staircase light and impulse functions. Status response (active/passive) for each channel. Logical linking of binary data. Extendend scene functions for each channel. Central switching functions and block functions. Adjustable behaviour in case of bus voltage failure or return. Flush mounted in an installation box. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. Quick application download (long frame support for ETS5).

More product images:

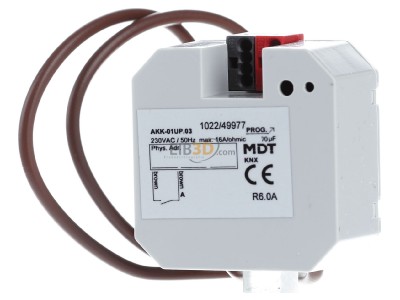

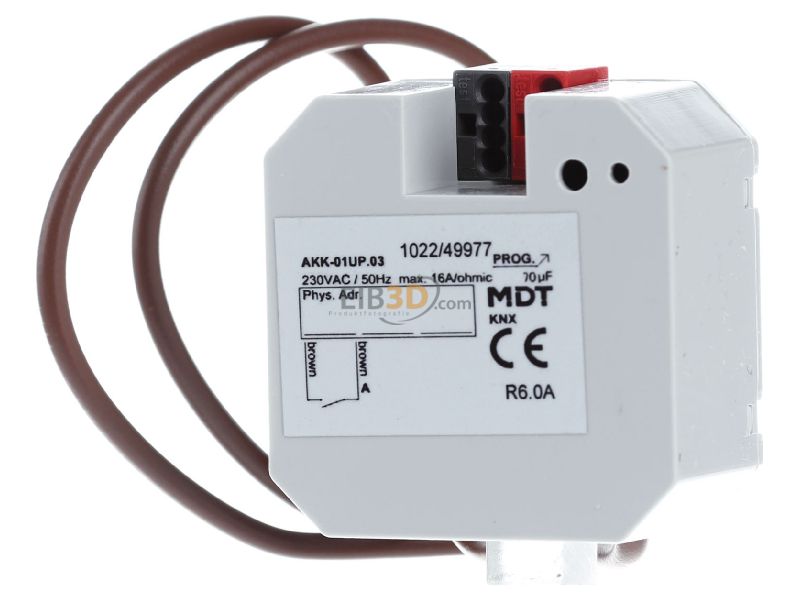

Front view MDT AKK-01UP.03 EIB/KNX Switch Actuator 1-fold, flush mounted, 16A, 70µ, 10ECG, 230VAC, Compact,
Front view

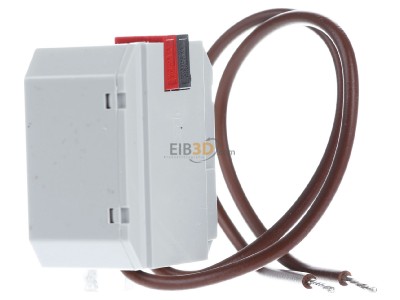

View on the left MDT AKK-01UP.03 EIB/KNX Switch Actuator 1-fold, flush mounted, 16A, 70µ, 10ECG, 230VAC, Compact,
View on the left

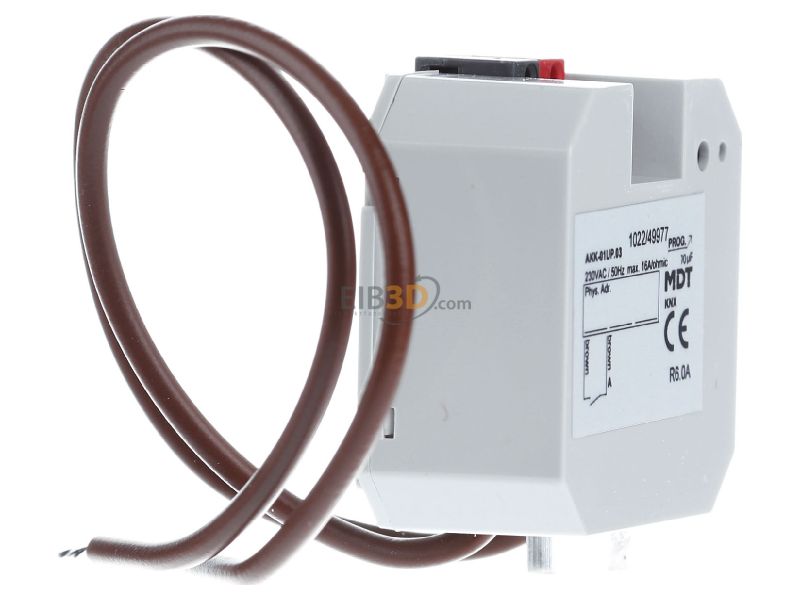

View on the right MDT AKK-01UP.03 EIB/KNX Switch Actuator 1-fold, flush mounted, 16A, 70µ, 10ECG, 230VAC, Compact,
View on the right

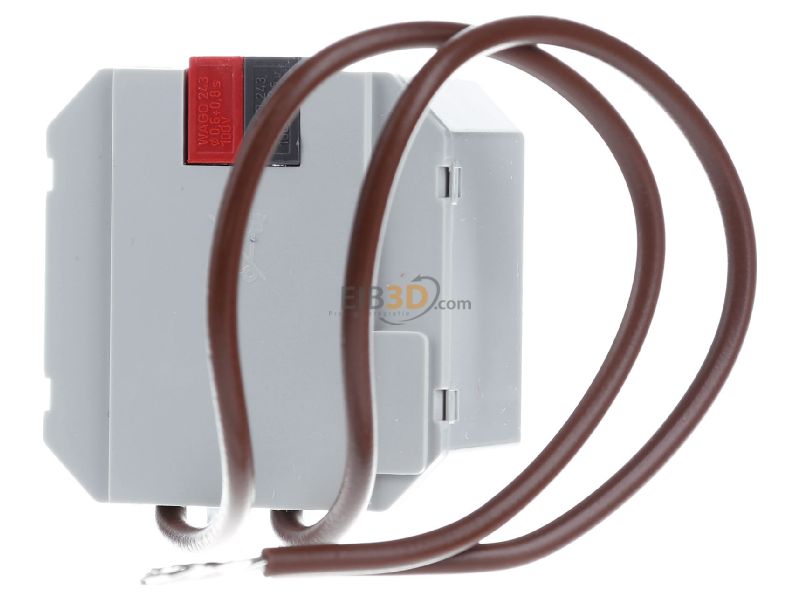

Back view MDT AKK-01UP.03 EIB/KNX Switch Actuator 1-fold, flush mounted, 16A, 70µ, 10ECG, 230VAC, Compact,
Back view

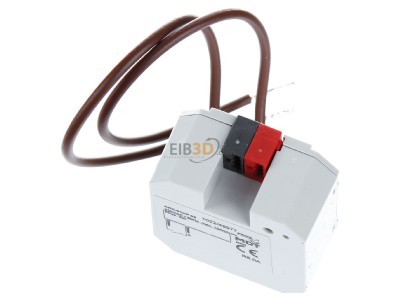

View up front MDT AKK-01UP.03 EIB/KNX Switch Actuator 1-fold, flush mounted, 16A, 70µ, 10ECG, 230VAC, Compact,
View up front

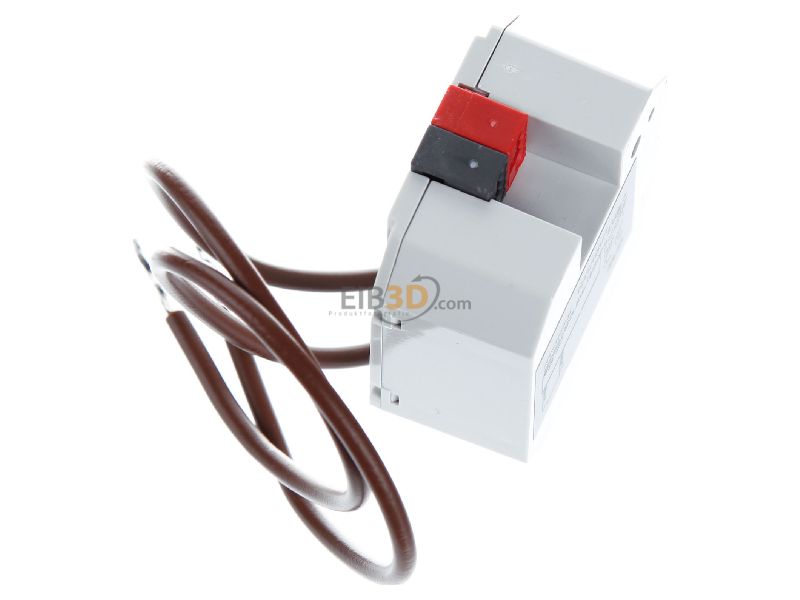

View top left MDT AKK-01UP.03 EIB/KNX Switch Actuator 1-fold, flush mounted, 16A, 70µ, 10ECG, 230VAC, Compact,
View top left
View top right MDT AKK-01UP.03 EIB/KNX Switch Actuator 1-fold, flush mounted, 16A, 70µ, 10ECG, 230VAC, Compact,
View top right

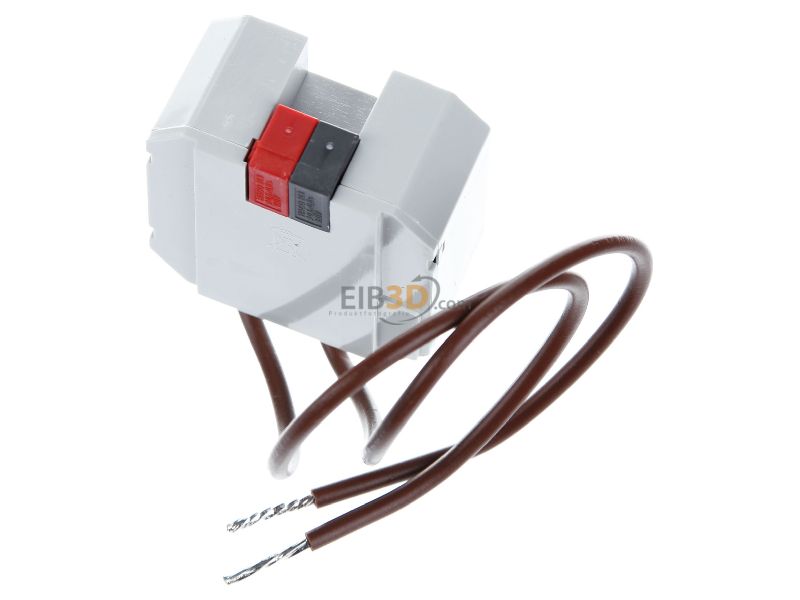

Top rear view MDT AKK-01UP.03 EIB/KNX Switch Actuator 1-fold, flush mounted, 16A, 70µ, 10ECG, 230VAC, Compact,
Top rear view
