EIB/KNX Dimming Actuator 4-fold, 6SU MDRC, 250W, 230VAC, measurement - AKD-0401.02

EAN/GTIN: 4251916130053
WEEE: DE 14025511
Manufacturer: MDT
Manufacturer no.: AKD-0401.02
Customs tariff no.: 85389091
Similar top items: Show now & compare
302,75 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] Central warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

KNX Dimming Actuator 4-fold, 6SU MDRC, 250 W, 230 V AC, with active power measurement. Dimming Actuator 4-fold, 6SU MDRC, 250 W, 230 V AC with active power measurement, for switching and dimming. Nominal power output 4 x 250 W, 1 x 500 W + 2 x 250 W or 2 x 500 W. Optimized for dimmable LED lights > 2 W. For HV- Halogen lights and NV- Halogen lights with transformer/EVG. Operation in leading-edge or trailing-edge selectable. Active power measurement. Integrated diagnostic function with plain text message. Overcurrent-/short circuit- and temperature protection with message. Time functions (switch-on/switch-off delay, staircase light function). Automatic time dependent dimming. Softstart, global and individual dimming speed. Day/Night function. Parallel operation of 2 channels with 500 W total power output. Push Button and LED indicator for each channel. Separate L-/N connections for each channel (different phases possible L1, L2, L3).

More product images:

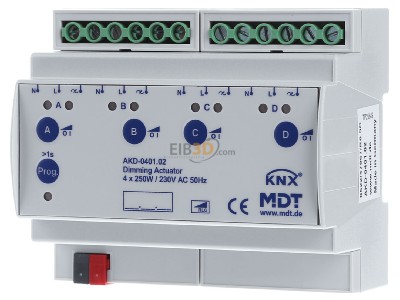

Front view MDT AKD-0401.02 EIB/KNX Dimming Actuator 4-fold, 6SU MDRC, 250W, 230VAC, measurement -
Front view

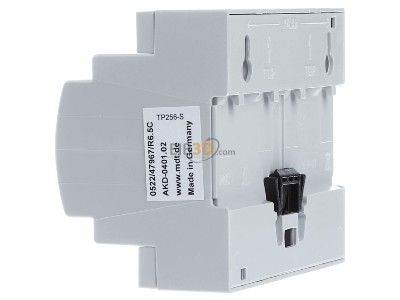

View on the left MDT AKD-0401.02 EIB/KNX Dimming Actuator 4-fold, 6SU MDRC, 250W, 230VAC, measurement -
View on the left

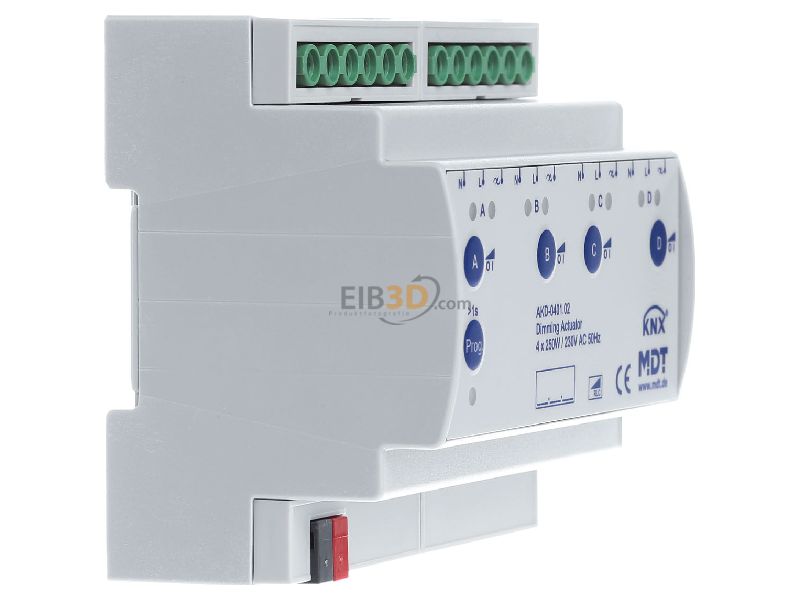

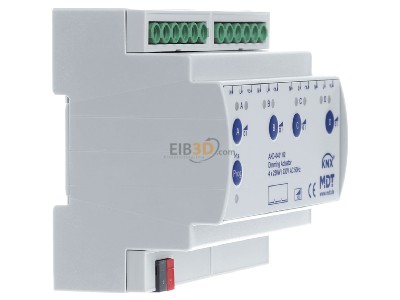

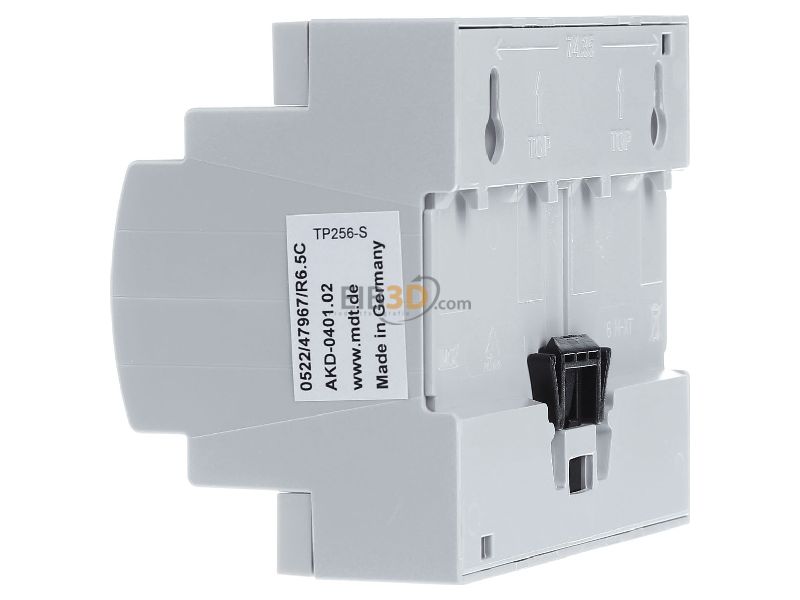

View on the right MDT AKD-0401.02 EIB/KNX Dimming Actuator 4-fold, 6SU MDRC, 250W, 230VAC, measurement -
View on the right

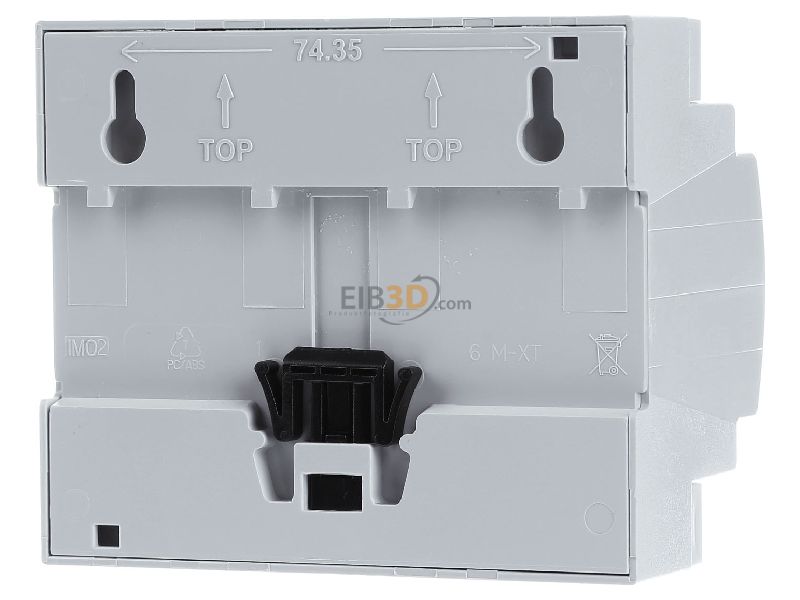

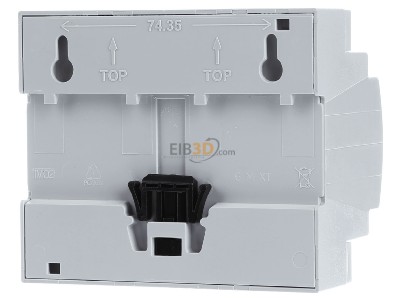

Back view MDT AKD-0401.02 EIB/KNX Dimming Actuator 4-fold, 6SU MDRC, 250W, 230VAC, measurement -
Back view

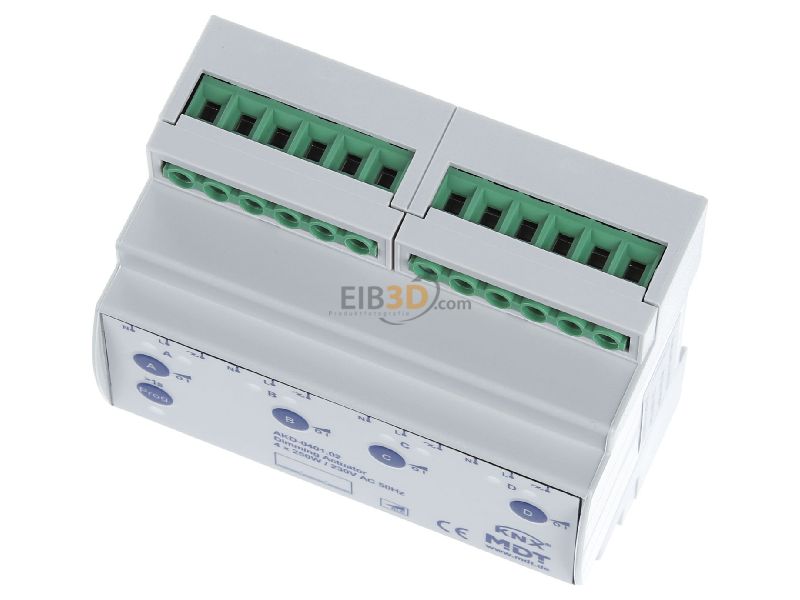

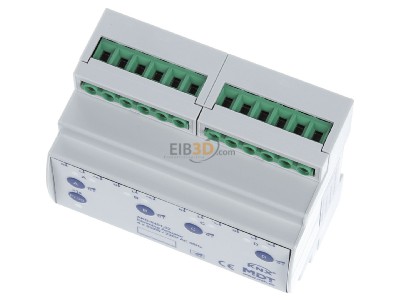

View up front MDT AKD-0401.02 EIB/KNX Dimming Actuator 4-fold, 6SU MDRC, 250W, 230VAC, measurement -
View up front

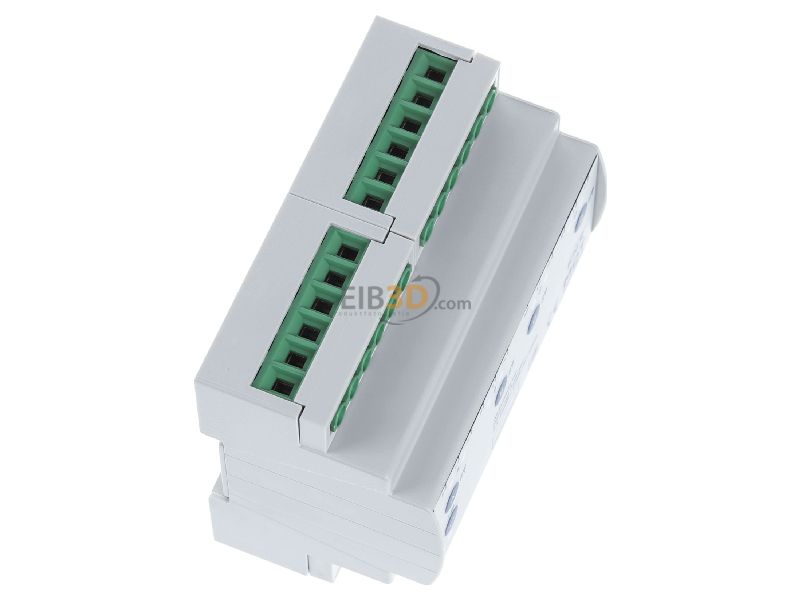

View top left MDT AKD-0401.02 EIB/KNX Dimming Actuator 4-fold, 6SU MDRC, 250W, 230VAC, measurement -
View top left

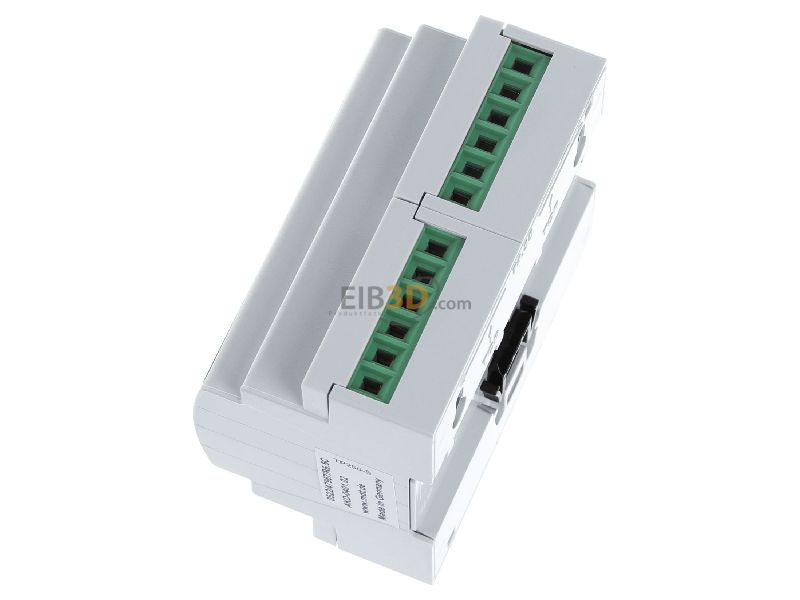

View top right MDT AKD-0401.02 EIB/KNX Dimming Actuator 4-fold, 6SU MDRC, 250W, 230VAC, measurement -
View top right

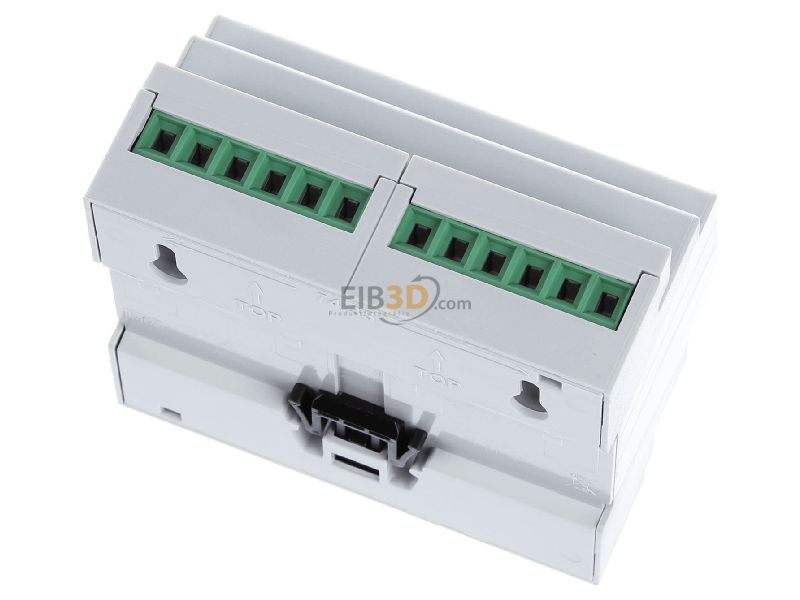

Top rear view MDT AKD-0401.02 EIB/KNX Dimming Actuator 4-fold, 6SU MDRC, 250W, 230VAC, measurement -
Top rear view
