Luminaire for streets and places 490140120008
Source photo:
Lichtline
(fig. might be different or similar)

Luminaire for streets and places 490140120008

EAN/GTIN: 4260374013389
WEEE: DE 74965115
Manufacturer: Lichtline
Manufacturer no.: 490140120008
Customs tariff no.: 94054239
Similar top items: Show now & compare
480,34 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Luminaire for streets and places Energy efficiency class of the light source not relevant, Lamp type LED exchangeable, Mounting method Post top/side entry, With light source, Material housing Aluminium, Surface protection Powder coating, Colour housing Grey, Material cover Plastic, transparent, Voltage type AC/DC, Nominal voltage 220 ... 240V, Nominal current 500 ... 500mA, LED nominal current at constant current 2800 ... 2800mA, Type of control gear LED operating device current-controlled, With control gear, Exchangeable control gear, No dim function, Light distributor Diffuser lens/optic/panel, Colour consistency (McAdam ellipse) SDCM5, Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 20%, Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) 5%, Rated life time L80/B10 at 25 °C 50000h, Degree of protection (IP) IP66, Suitable for spigot size 42 ... 60mm, Impact strength IK10, Protection class I, Luminaire with limited surface temperature, sign ´´D“, Rated ambient temperature according to IEC62722-2-1 -30 ... 50°C, Max. system power 114W, Rated luminous flux according to IEC 62722-2-1 15500lm, Luminaire efficacy 136lm/W, Colour of light White, Colour temperature 4000 ... 4000K, Colour rendering index CRI 70-79, Power factor 0,95, Width 352mm, Height/depth 167mm, Length 763mm, Type of wiring Suitable for through wiring, Number of poles 3, Conductor cross section 2,5mm², Connection type Push-in clamp

More product images:

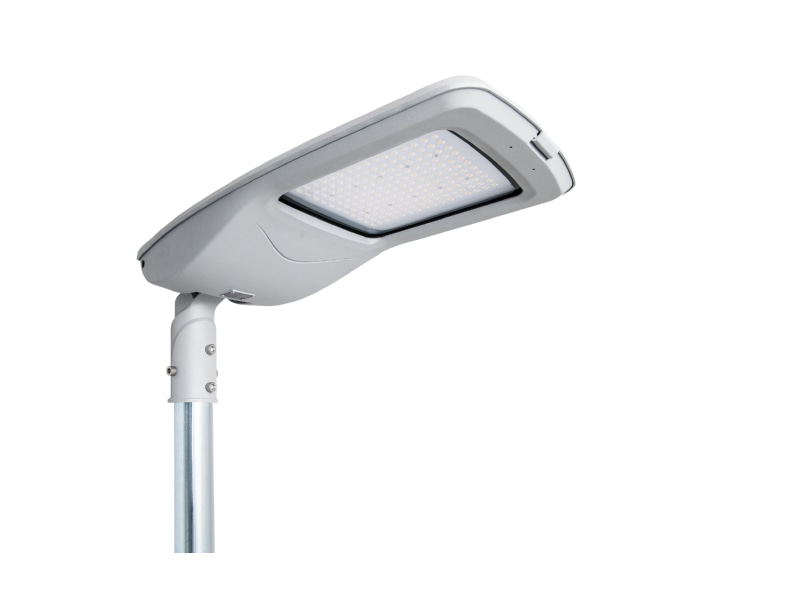

Product image Lichtline 490140120008 Luminaire for streets and places
Product image

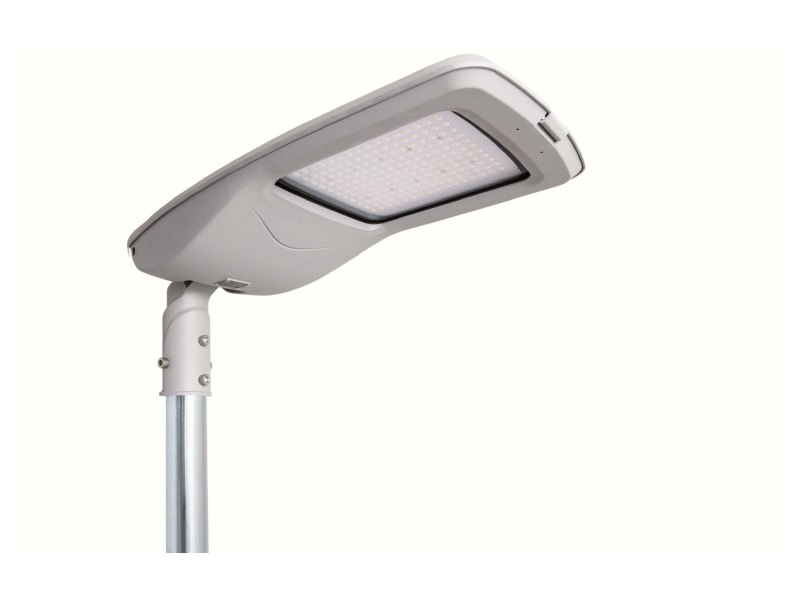

Detailed view Lichtline 490140120008 Luminaire for streets and places
Detailed view
