High bay luminaire IP23 LBFLEX1200P73W840W
Source photo:
LEDVANCE
(fig. might be different or similar)

High bay luminaire IP23 LBFLEX1200P73W840W

EAN/GTIN: 4058075676107
WEEE: DE 30638372
Manufacturer: LEDVANCE
Manufacturer no.: LBFLEX1200P73W840W
Manufact.-SKU: 4058075676107
Customs tariff no.: 94051190
Similar top items: Show now & compare
160,69 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

LED light 840 LBFLEX1200P73W840W Bulb LED not replaceable, With bulb, Suitable for number of bulbs 0, Socket without, Housing color white, Voltage type AC, Rated voltage 220 ... 240V, Rated current 320 ... 320mA, LED rated current at constant current 320 ... 320mA, with control gear, without dimming function, light distributor diffuser lens/optics/panel, light distribution symmetrical, reflector without, material of the reflector without reflector, rated service life L70/B50 at 25 °C 100,000h, rated service life L90/B10 at 25 °C 83,000h, protection class (IP) IP23, impact resistance IK08, protection class I, rated ambient temperature according to IEC62722-2-1 -25 ... 50°C, glow wire test according to IEC 60695-2-11 650 °C - 30 s, max. system power 73W, rated luminous flux according to IEC 62722-2-1 11315lm, luminaire luminous efficacy 155lm/W, light color white, color temperature 4000 ... 4000K, color rendering index CRI 80-89, power factor 0.9, color temperature adjustable no, beam angle adjustable no, luminous flux adjustable no, width 115mm, height/ Depth 65mm, length 1236mm, type of wiring suitable for through-wiring, number of poles 5, max. number of lights circuit breaker B16 17, max. number of lights circuit breaker C16 22, low-bay lights with attractive linear design, up to 155 lm/W. Product features: Different luminous fluxes and opening angles for mounting heights from ~ 4 m to ~ 10 m in 4000 K. Through-wiring cable already installed. Long service life (L80/B10): up to 100,000 h. High color consistency: = 3 SDCM. Product advantages: Economical thanks to high luminaire luminous efficacy of up to 155 lm/W. Simple and quick installation thanks to a connection box with 5 and 7-pole, tool-free connection terminal. Modern and robust design. Areas of application: Replacement for lights with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industrial and warehouse areas. Discounters, supermarkets. Technical equipment: Suspension set available as a separate accessory.

More product images:

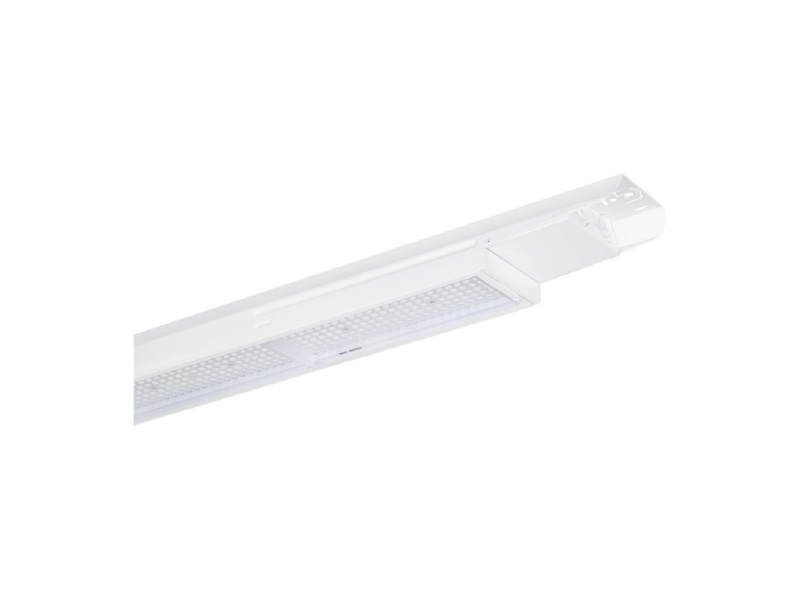

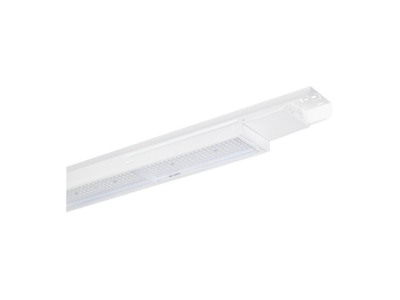

Product image Ledvance LBFLEX1200P73W840W High bay luminaire IP23
Product image

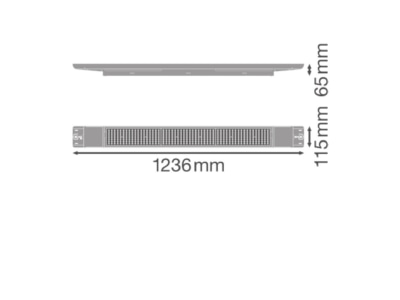

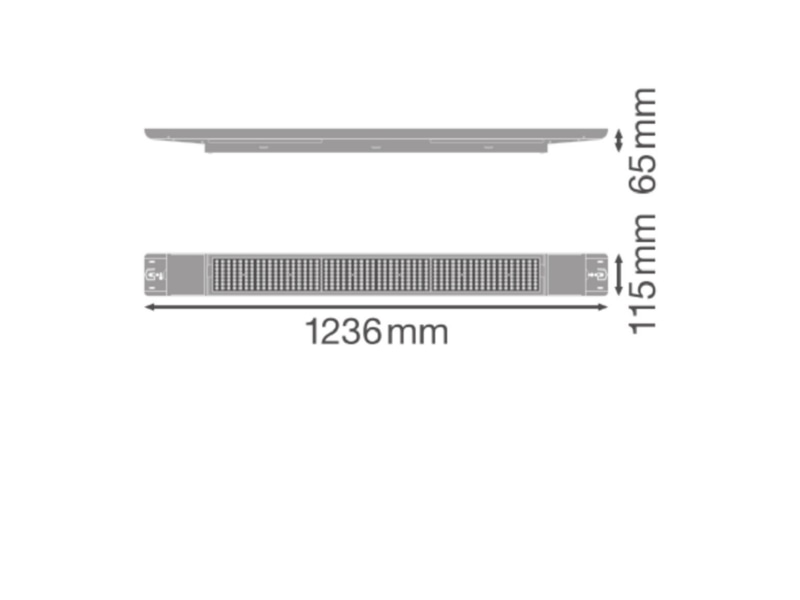

Dimensional drawing Ledvance LBFLEX1200P73W840W High bay luminaire IP23
Dimensional drawing

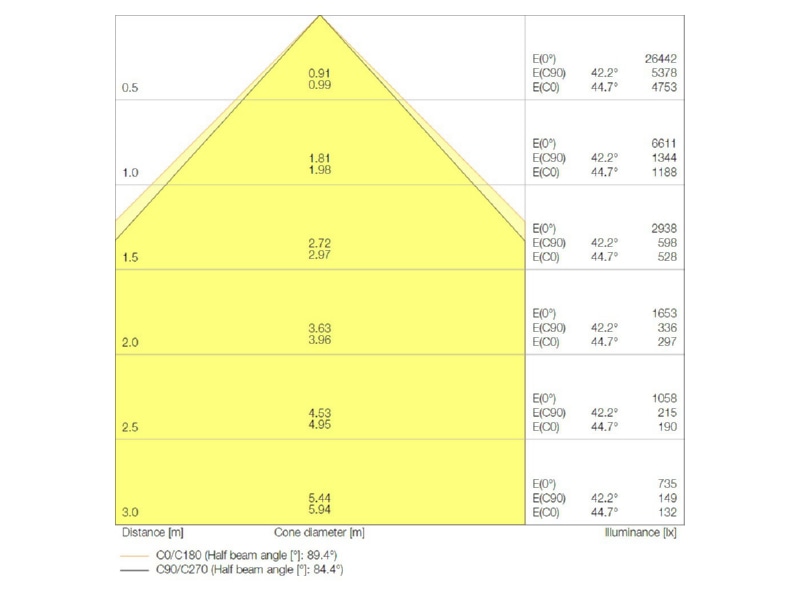

Cone diagram Ledvance LBFLEX1200P73W840W High bay luminaire IP23
Cone diagram
