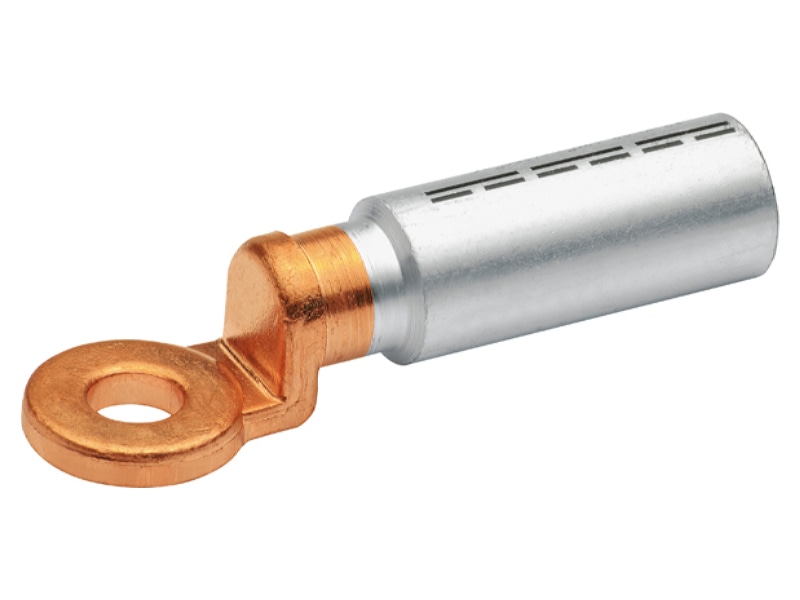

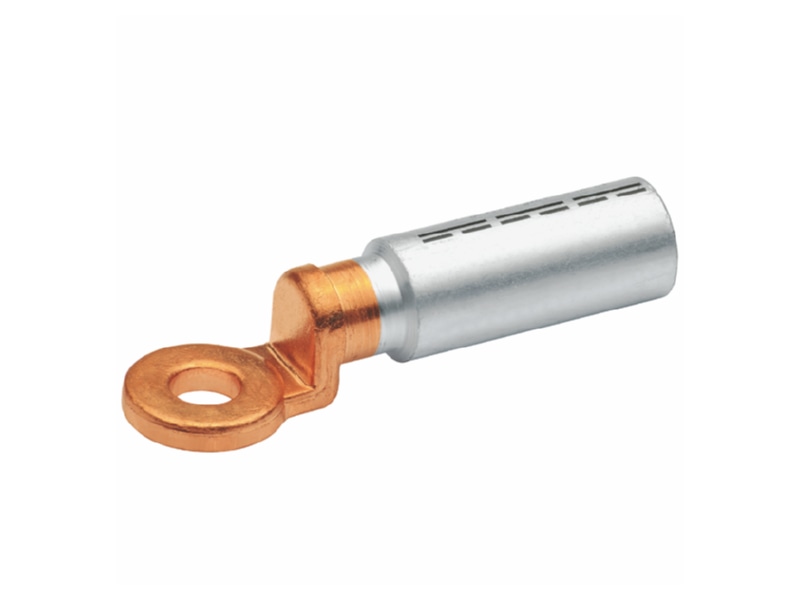

Cable lug for alu-conductors 400mm² M16 374R16
Source photo:
Klauke
(fig. might be different or similar)

Cable lug for alu-conductors 400mm² M16 374R16

EAN/GTIN: 4059577007505
WEEE: DE 81929377
Manufacturer: Klauke
Manufacturer no.: 374R16
Customs tariff no.: 85359000
Similar top items: Show now & compare
45,25 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Compression cable lug 374R16 cross-sectional shape round/sector-shaped, nominal cross-section aluminum, RM/SM 400 ... 400mm², connection thread size (metric) 16, material aluminum/copper, longitudinally sealed, code number 38, number of fastening holes 1, sleeve shape long, color other, tube dimensions according to DIN 46329 For strain-relieved connections of aluminum conductors according to DIN EN 60228 and aluminum ropes according to DIN EN 50182. For screwing aluminum connections to copper rails in damp rooms. With code number for clear tool assignment. Filled with contact grease for optimal pressing properties. Longitudinal sealed design with oil stop and solid copper screw-on bracket. For depressed sector managers. With pressing markings for correct pressing. Precise end machining for easy cable entry. Blank, material E-Al. Cu according to EN 13600.
