Source photo: www.EIB3D.com

Photovoltaics roof-/facade fastener 2003144

EAN/GTIN: 4251786213030
WEEE: DE 96427492
Manufacturer: K2 Systems
Manufacturer no.: 2003144
Customs tariff no.: 76109090
Similar top items: Show now & compare
11,57 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

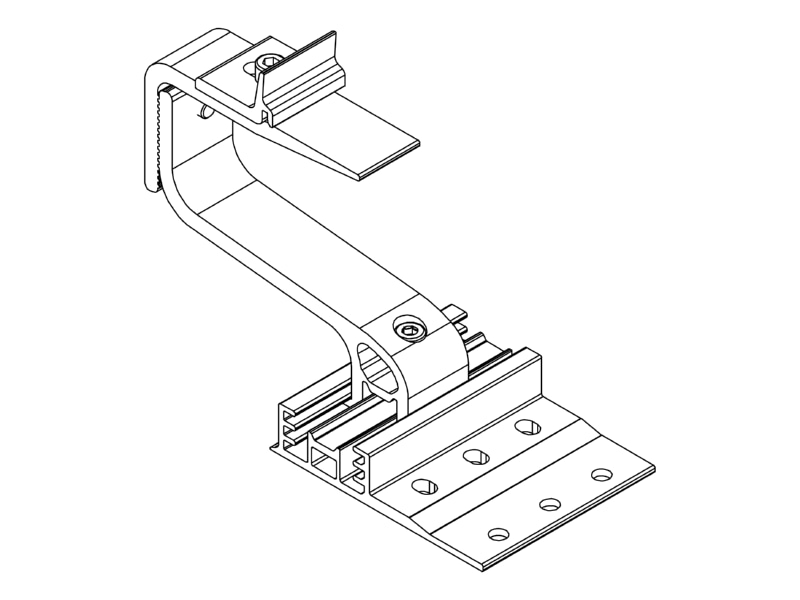

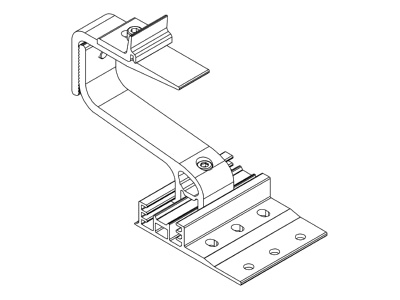

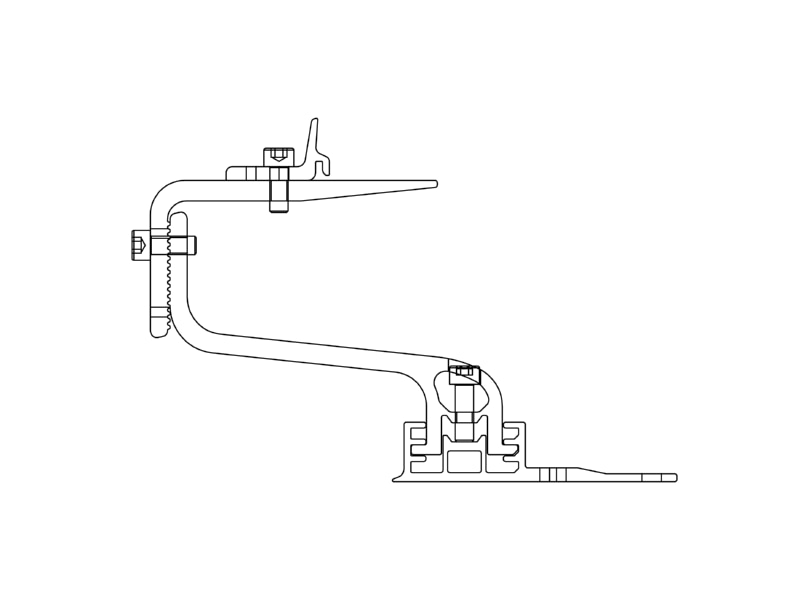

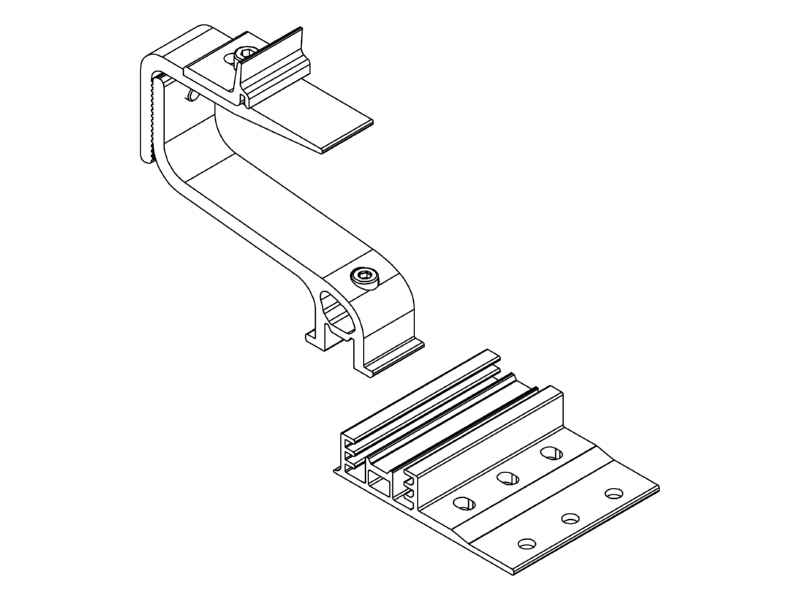

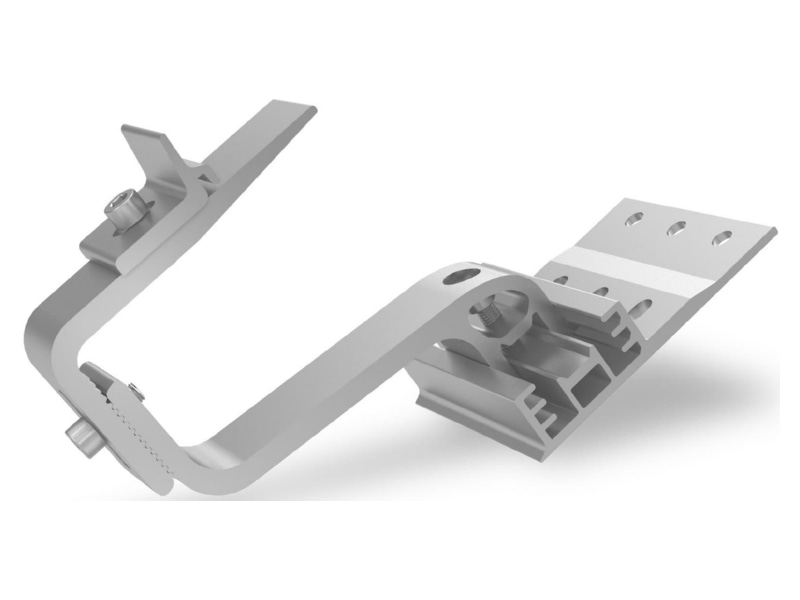

Roof hook CrossHook 4S 2003144 Material aluminium, surface protection untreated, suitable for pitched roof fastening, roofing roof tile, with fastening material, with mounting plate, width of fastening plate 100mm, length of fastening plate 124mm, height of fastening plate 25.9mm, width of the hook 35mm, material thickness of hook 8.5mm, adjustable, Roof penetration necessary, screw anchoring, roof hook with 3-fold height adjustment in the base plate (40,47,54 mm) and 30 mm adjustability on the bracket. Total height adjustability: 120.5mm - 165.1mm. For narrow rafters from 36 mm. With pre-assembled Climber 36/50 and cylinder head screw. For attaching the K2 SingleRail and CrossRail mounting rail. Material: aluminum EN AW-6063 T66, stainless steel A2

More product images:

Front view K2 Systems 2003144 Photovoltaics roof-/facade fastener
Front view
View on the left K2 Systems 2003144 Photovoltaics roof-/facade fastener
View on the left
View on the right K2 Systems 2003144 Photovoltaics roof-/facade fastener
View on the right
Back view K2 Systems 2003144 Photovoltaics roof-/facade fastener
Back view
View up front K2 Systems 2003144 Photovoltaics roof-/facade fastener
View up front
View top left K2 Systems 2003144 Photovoltaics roof-/facade fastener
View top left
View top right K2 Systems 2003144 Photovoltaics roof-/facade fastener
View top right
Top rear view K2 Systems 2003144 Photovoltaics roof-/facade fastener
Top rear view
