Photovoltaics roof-/facade fastener 2002651

EAN/GTIN: 4251786210213
WEEE: DE 96427492
Manufacturer: K2 Systems
Manufacturer no.: 2002651
Customs tariff no.: 73269060
Similar top items: Show now & compare
11,45 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

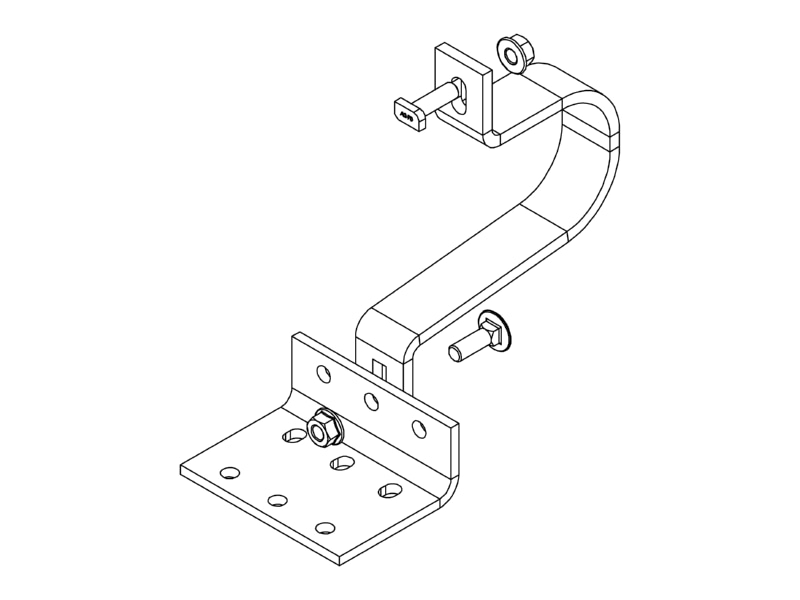

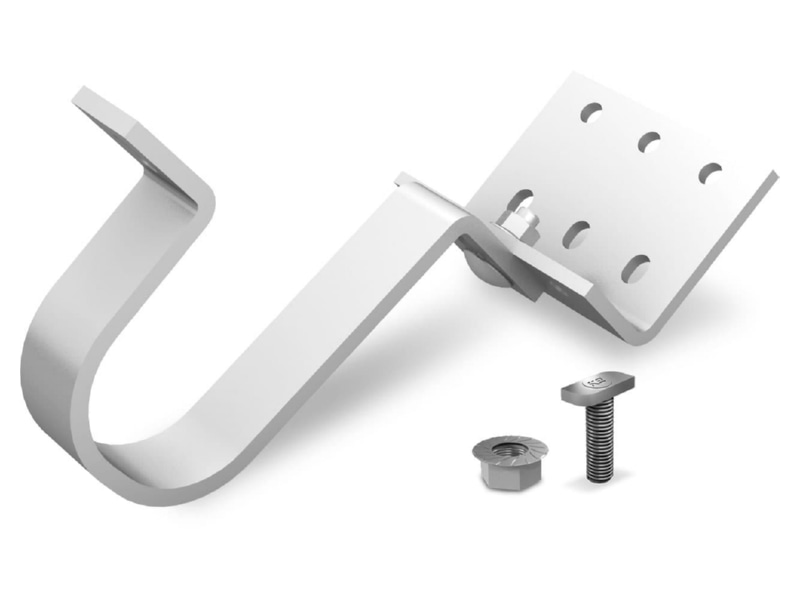

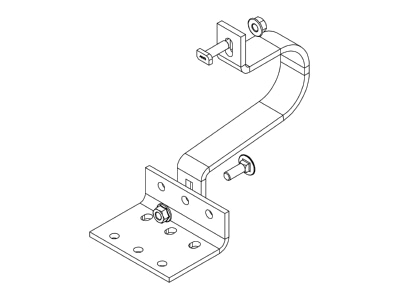

Roof hook SingleHook Vario Set 2002651 Material stainless steel, surface protection other, suitable for pitched roof fastening, roofing roof tile, with fastening material, with mounting plate, width of fastening plate 100mm, length of fastening plate 75mm, height of fastening plate 6mm, width of the hook 30mm, material thickness of hook 6mm, adjustable, roof penetration required , screw anchoring, 2-way height-adjustable roof hook for attaching the K2 system components to roofs with tiled roofing. Bracket with elongated hole for mounting and height adjustment of the SingleRail. For different battens Continuous height adjustment of the bracket on the base plate. Includes hammer head screw and locking nut for SingleRail assembly. Material: stainless steel

More product images:

Front view K2 Systems 2002651 Photovoltaics roof-/facade fastener
Front view
View on the left K2 Systems 2002651 Photovoltaics roof-/facade fastener
View on the left
View on the right K2 Systems 2002651 Photovoltaics roof-/facade fastener
View on the right
Back view K2 Systems 2002651 Photovoltaics roof-/facade fastener
Back view
View up front K2 Systems 2002651 Photovoltaics roof-/facade fastener
View up front
View top left K2 Systems 2002651 Photovoltaics roof-/facade fastener
View top left
View top right K2 Systems 2002651 Photovoltaics roof-/facade fastener
View top right
Top rear view K2 Systems 2002651 Photovoltaics roof-/facade fastener
Top rear view
