Ventilator housing for inlying bathrooms ELS-GAP

EAN/GTIN: 4010184081272
WEEE: DE 31687255
Manufacturer: Helios
Manufacturer no.: ELS-GAP
Manufact.-SKU: 08127
Customs tariff no.: 84149000
Similar top items: Show now & compare
63,28 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

AP housing without fire protection ELS-GAP, material of the housing = plastic, color = white, connection diameter = 80 mm, with fire protection barrier = no, installation dimension height = 254 mm, installation dimension width = 254 mm, installation dimension depth = 115 mm, surface-mounted housing (without fire protection) to accommodate an ELS fan insert. Flat design for mounting in any position on the ceiling and wall. In combination with the ELS-D fire protection ceiling bulkhead (installed in the main line), the relevant fire protection regulations are met. Back outlet (DN 80mm) with maintenance-free, airtight return air damper. Convenient electrical connection thanks to removable plug connection. Housing made of impact-resistant plastic, fire class B2, alpine white. Discharge nozzle with reversible return air damper can be positioned offset by 90 °. Installation in any position also possible in room corners. Dimensions: W / H / D 250x250x130mm. General building inspectorate approval DIBt No. Z-51.1-193.

More product images:

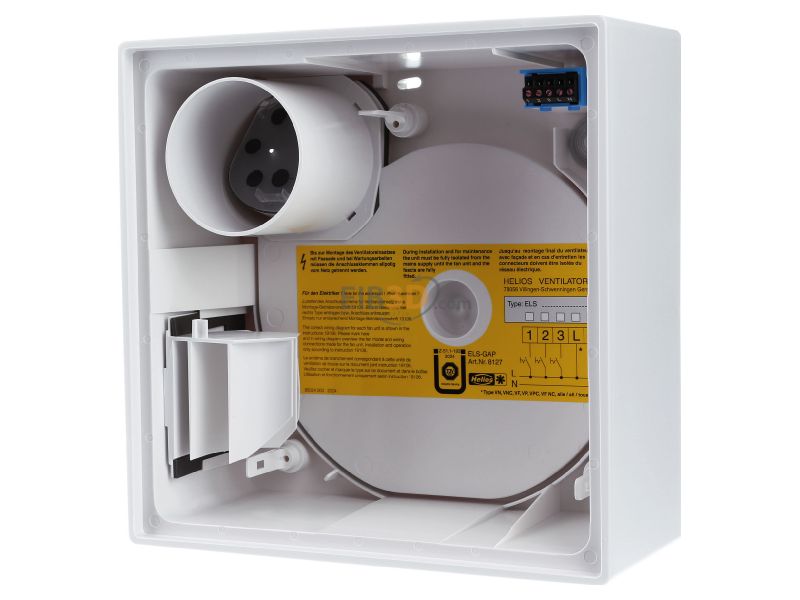

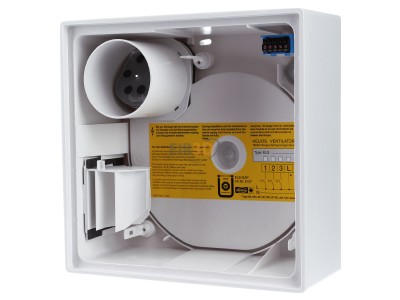

Front view Helios ELS-GAP Ventilator housing for inlying bathrooms
Front view

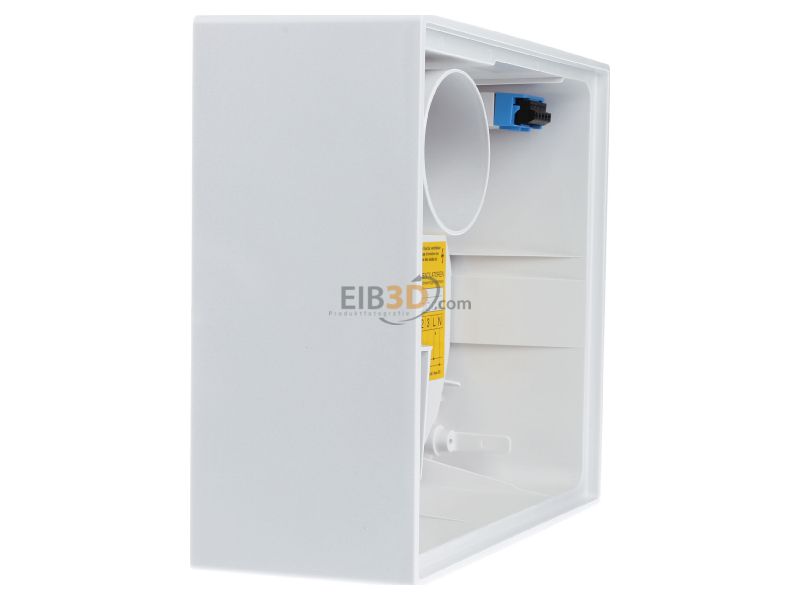

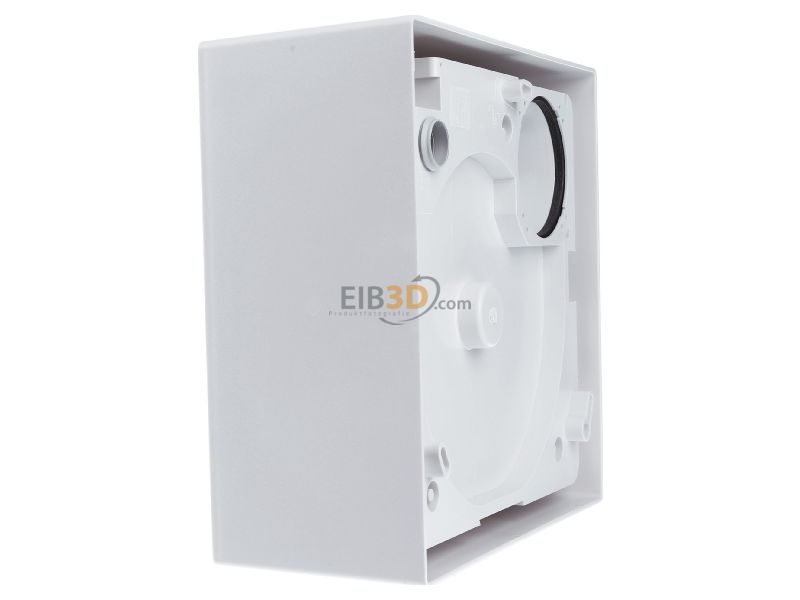

View on the left Helios ELS-GAP Ventilator housing for inlying bathrooms
View on the left

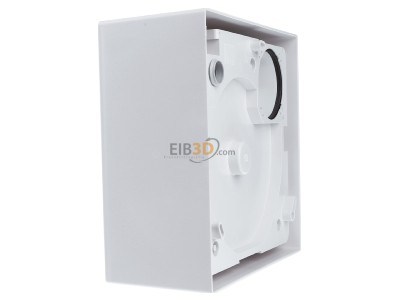

View on the right Helios ELS-GAP Ventilator housing for inlying bathrooms
View on the right

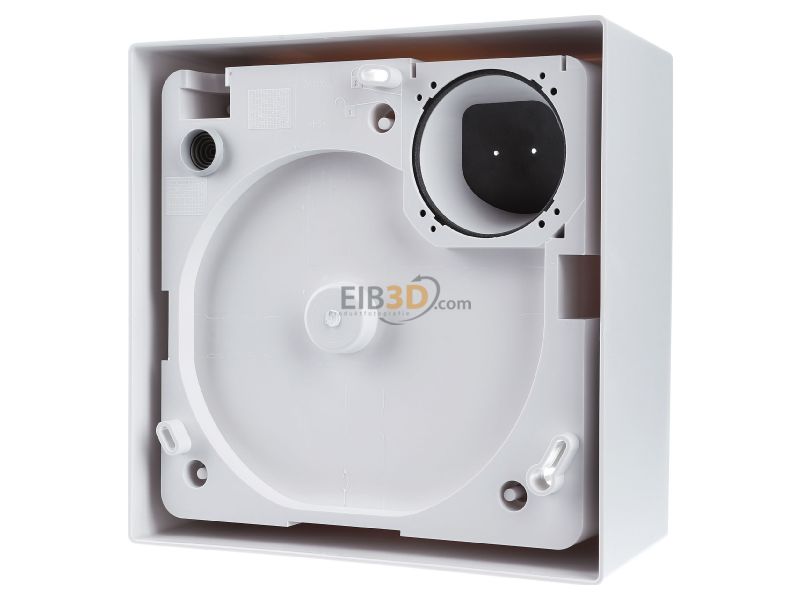

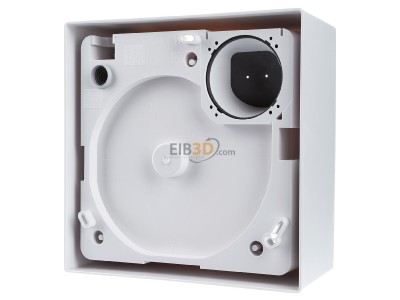

Back view Helios ELS-GAP Ventilator housing for inlying bathrooms
Back view

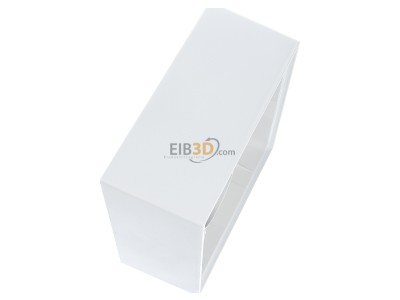

View up front Helios ELS-GAP Ventilator housing for inlying bathrooms
View up front

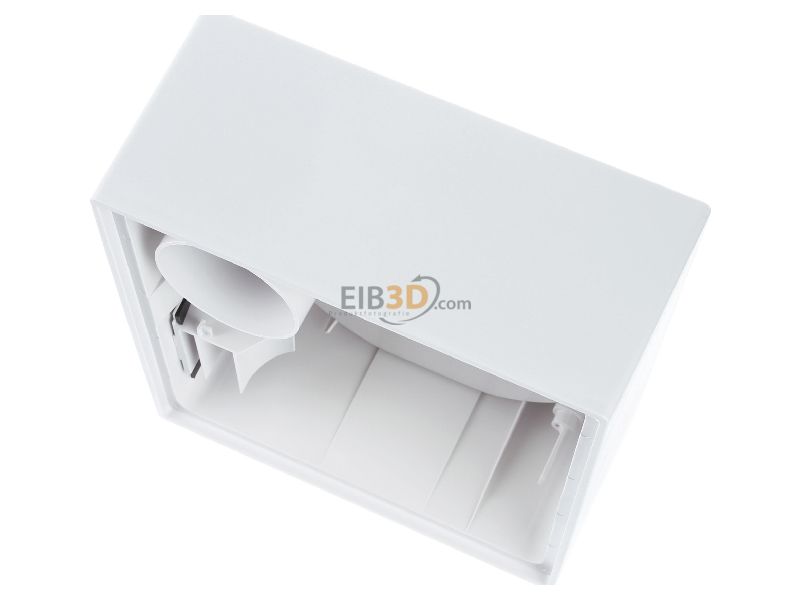

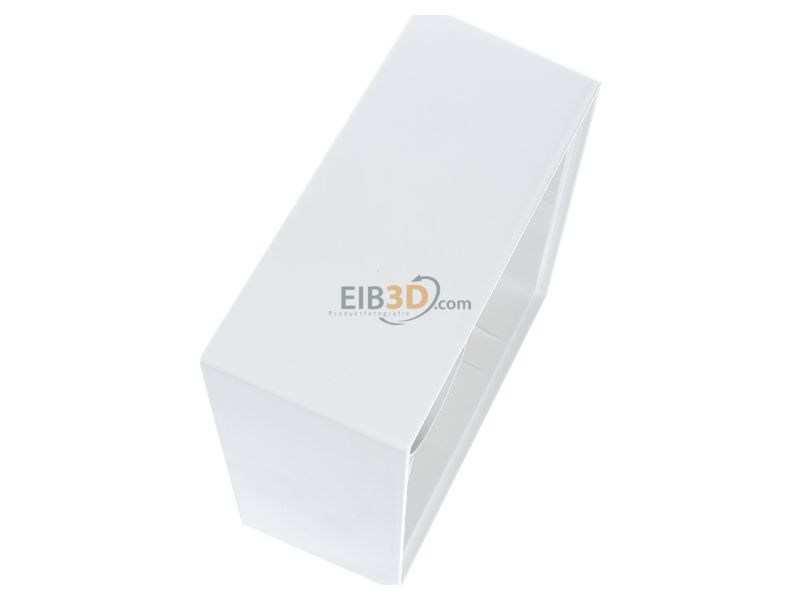

View top left Helios ELS-GAP Ventilator housing for inlying bathrooms
View top left

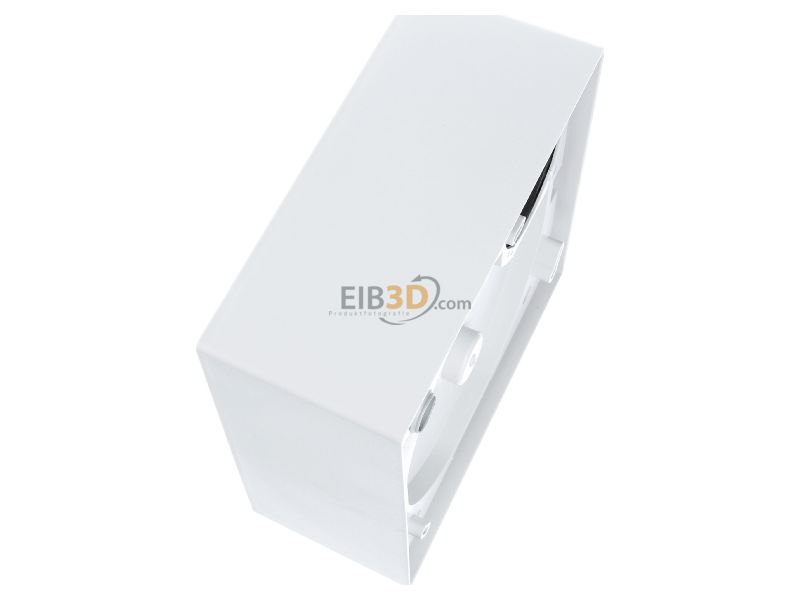

View top right Helios ELS-GAP Ventilator housing for inlying bathrooms
View top right

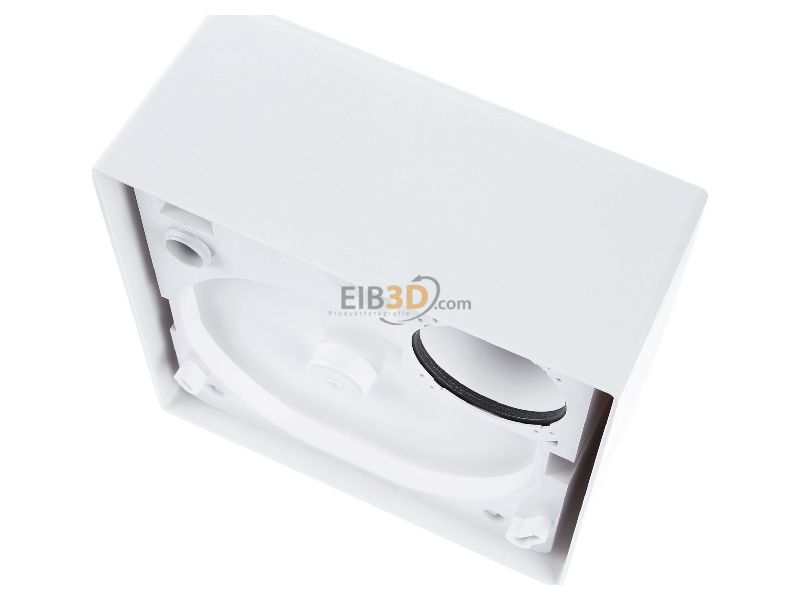

Top rear view Helios ELS-GAP Ventilator housing for inlying bathrooms
Top rear view
