Pin insert for connector 64p 09 21 064 3001

EAN/GTIN: 5713140040748
WEEE: DE 19469086
Manufacturer: Harting
Manufacturer no.: 09 21 064 3001
Customs tariff no.: 85389099
Similar top items: Show now & compare
12,75 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pin insert for connector 64p Contact insert without contacts, Contact type Pin, Number of poles 64, Material connector of connector insert Thermoplastic, Rated current In 10A, Operation temperature -40 ... 125°C, Rated voltage 250V, Rated surge voltage 4kV, Pollution degree 3, Type of electric connection Crimp connection, Connectable conductor cross section fine-strand without cable end sleeve 0,14 ... 2,5mm², Connectable conductor cross section multi-wired 0,14 ... 2,5mm², Material of contact surface Other, Material contact Other, Inflammability class of insulation material acc. with UL94 V0, With protective conductor, Min. number of insertion cycles 500

More product images:

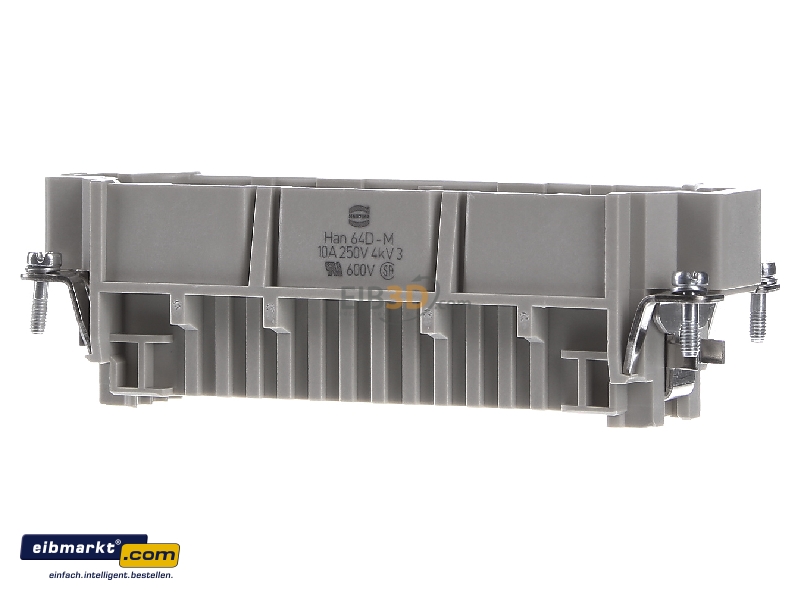

Front view Harting 09 21 064 3001 Pin insert for connector 64p
Front view

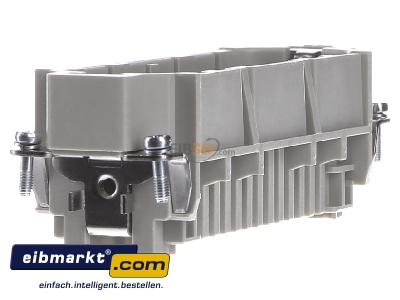

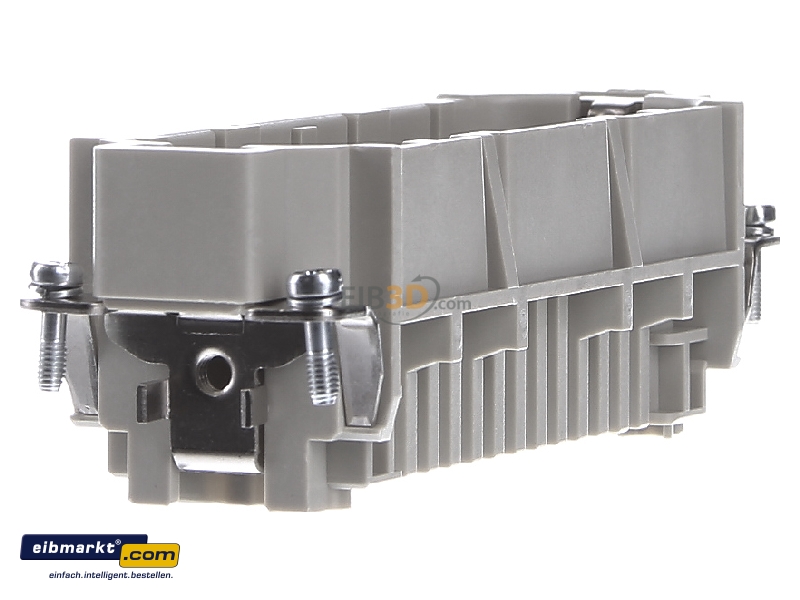

View on the left Harting 09 21 064 3001 Pin insert for connector 64p
View on the left

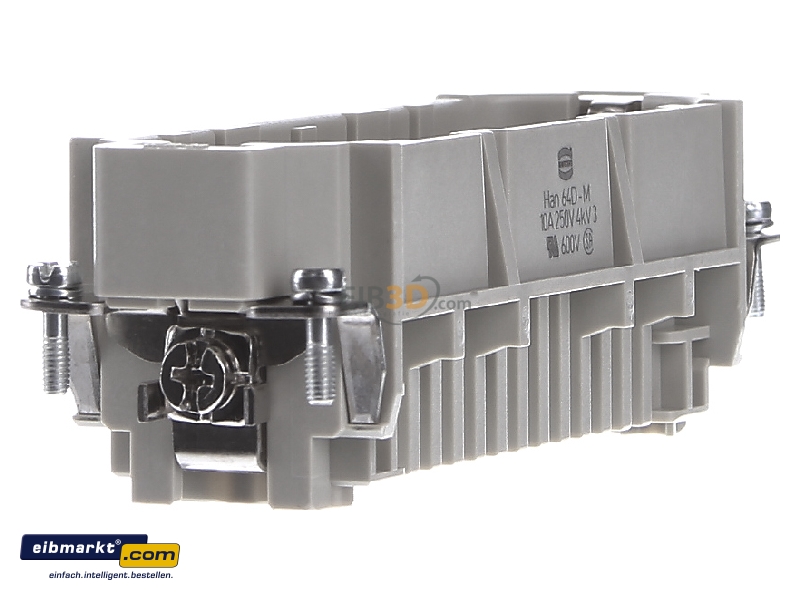

View on the right Harting 09 21 064 3001 Pin insert for connector 64p
View on the right

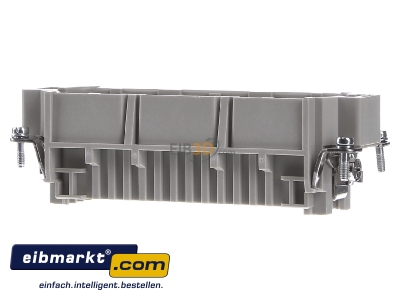

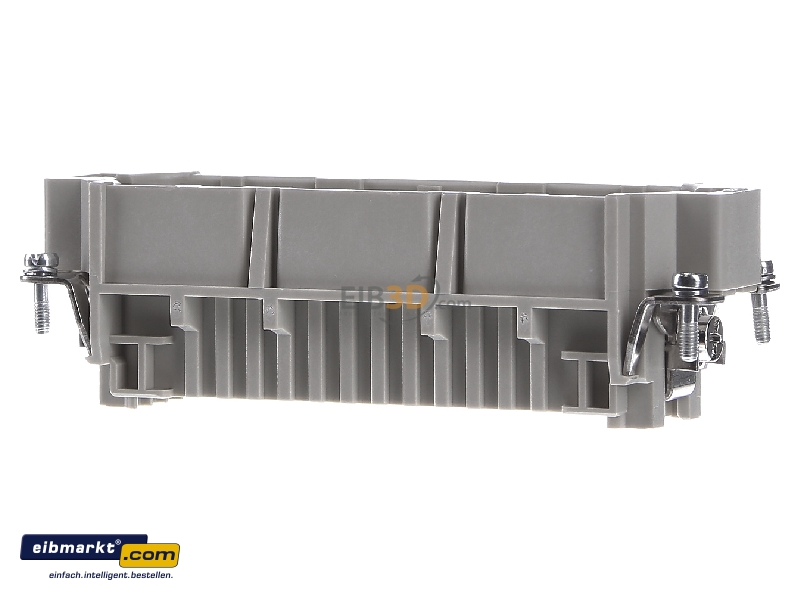

Back view Harting 09 21 064 3001 Pin insert for connector 64p
Back view

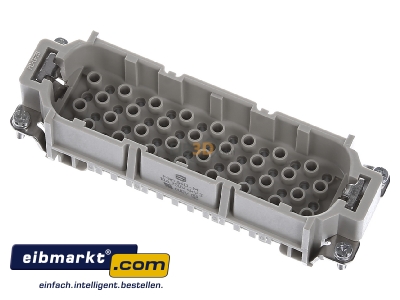

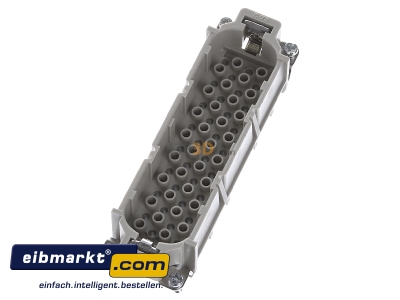

View up front Harting 09 21 064 3001 Pin insert for connector 64p
View up front

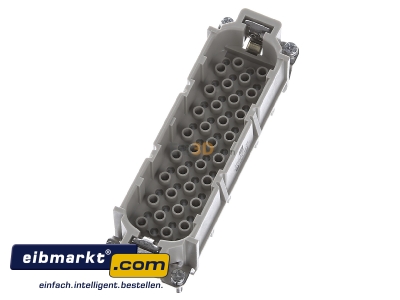

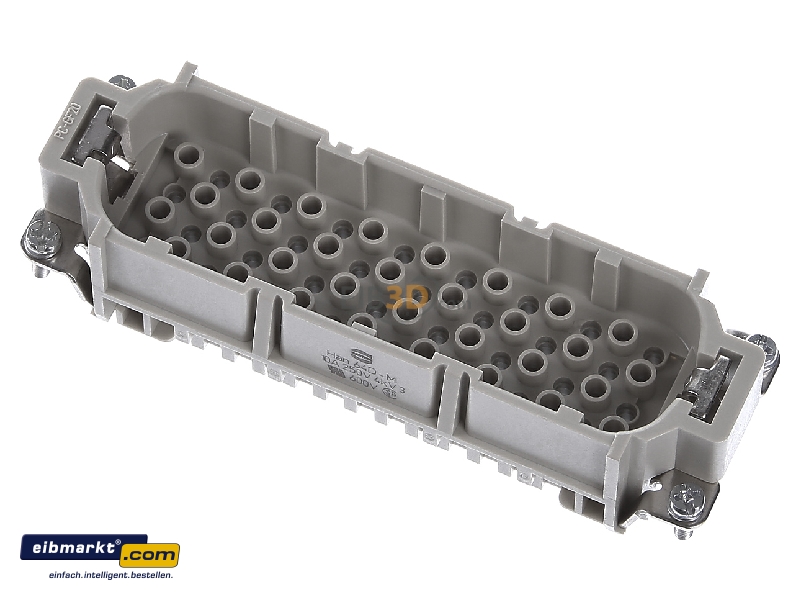

View top left Harting 09 21 064 3001 Pin insert for connector 64p
View top left

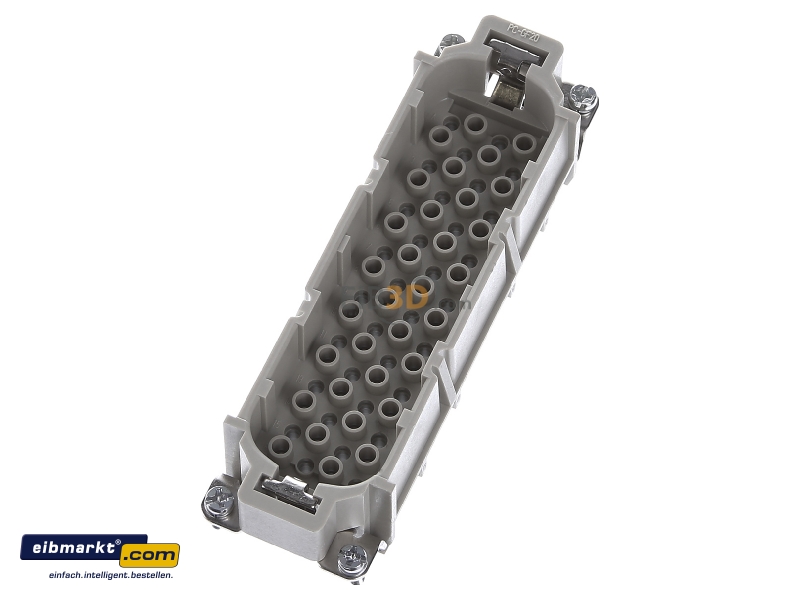

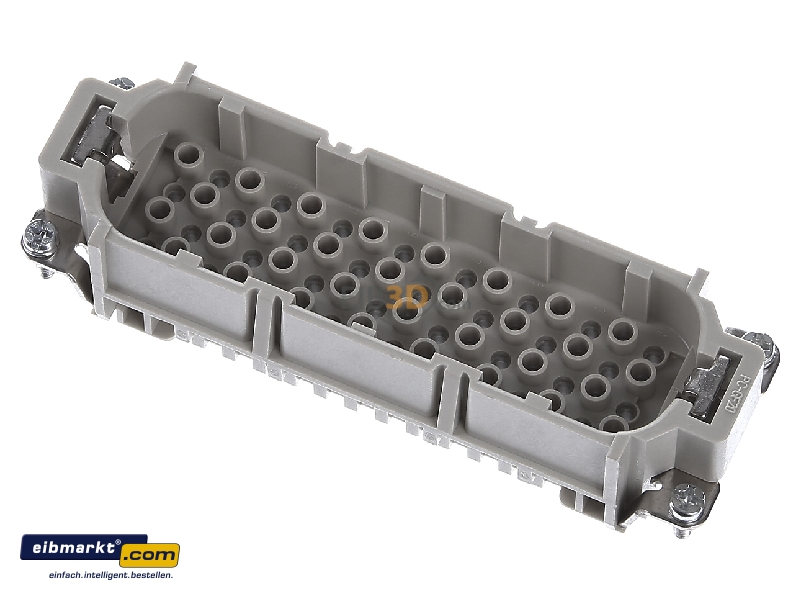

View top right Harting 09 21 064 3001 Pin insert for connector 64p
View top right
Top rear view Harting 09 21 064 3001 Pin insert for connector 64p
Top rear view

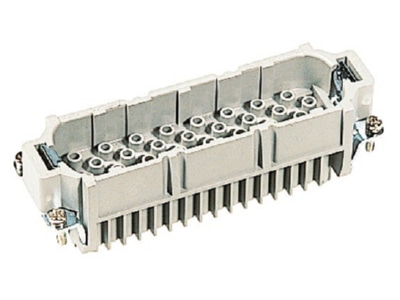

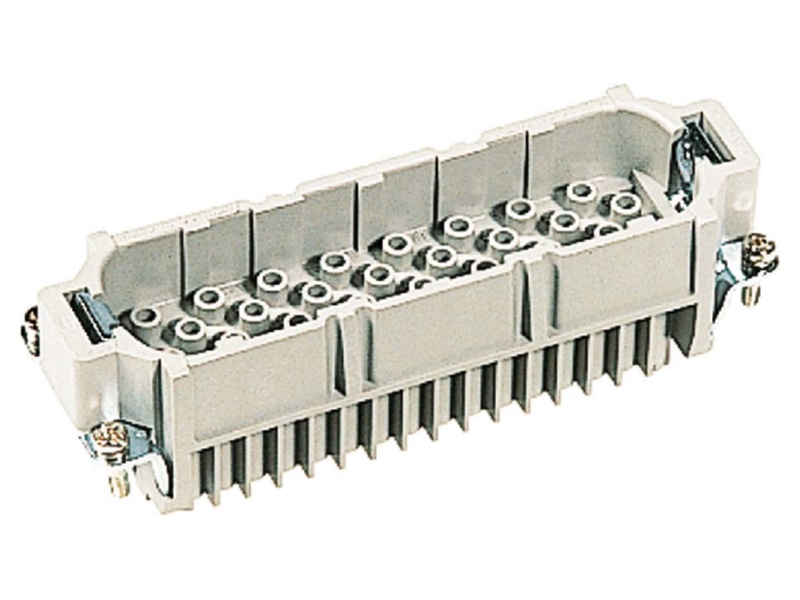

Product image 1 Harting 09 21 064 3001 Pin insert for connector 64p
Product image 1

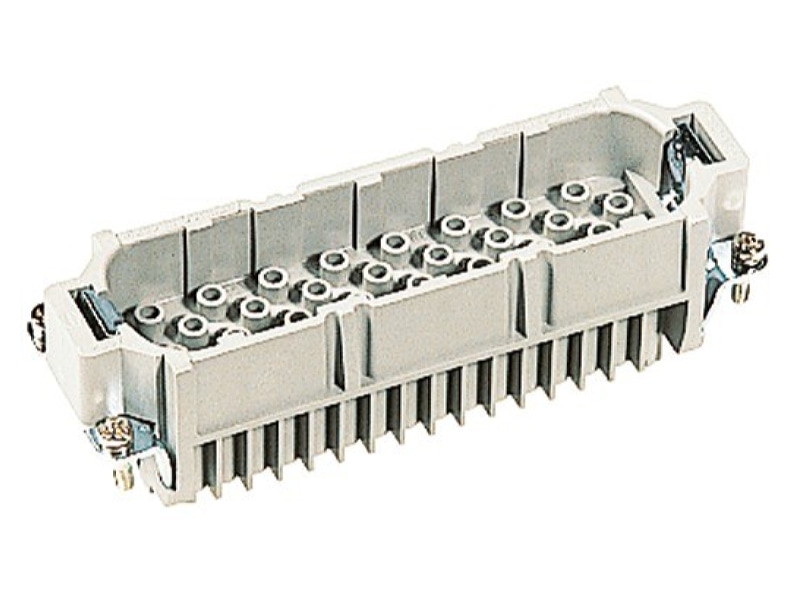

Product image 2 Harting 09 21 064 3001 Pin insert for connector 64p
Product image 2
