Pin insert for connector 10p 09 33 010 2602
Source photo:
Harting
(fig. might be different or similar)

Pin insert for connector 10p 09 33 010 2602

EAN/GTIN: 5713140051027
WEEE: DE 19469086
Manufacturer: Harting
Manufacturer no.: 09 33 010 2602
Customs tariff no.: 85366990
Similar top items: Show now & compare
6,62 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pin insert for connector 10p Contact insert without contacts, Contact type Pin, Number of poles 10, Material connector of connector insert Thermoplastic, Rated current In 16A, Operation temperature -40 ... 125°C, Rated voltage 500V, Rated surge voltage 6kV, Pollution degree 3, Type of electric connection Crimp connection, Connectable conductor cross section fine-strand without cable end sleeve 0,14 ... 4mm², Connectable conductor cross section multi-wired 0,14 ... 4mm², Material of contact surface Other, Material contact Other, Inflammability class of insulation material acc. with UL94 Other, With protective conductor, Min. number of insertion cycles 500

More product images:

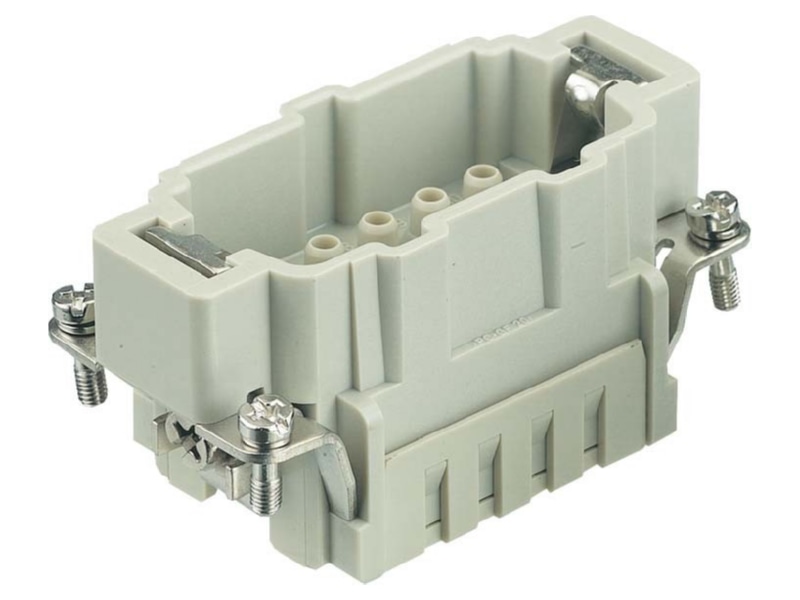

Product image 1 Harting 09 33 010 2602 Pin insert for connector 10p
Product image 1

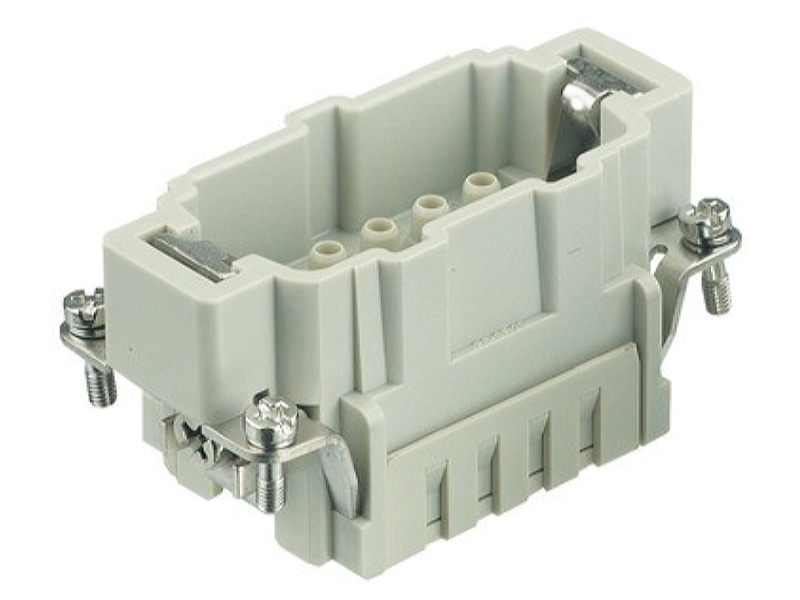

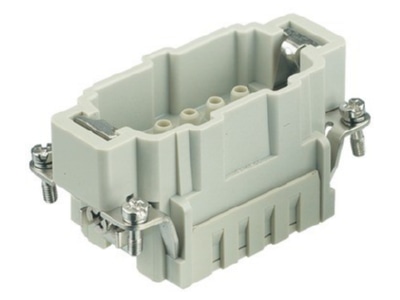

Product image 2 Harting 09 33 010 2602 Pin insert for connector 10p
Product image 2
