Socket insert for connector 2p 09 12 002 2753

EAN/GTIN: 5713140016644
WEEE: DE 19469086
Manufacturer: Harting
Manufacturer no.: 09 12 002 2753
Customs tariff no.: 85366990
Similar top items: Show now & compare
28,41 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Socket insert for connector 2p Contact type Socket, Number of poles 2, Material connector of connector insert Thermoplastic, Rated current In 40A, Ambient temperature -40 ... 125°C, Operation temperature -40 ... 125°C, Rated voltage 400V, Rated surge voltage 6kV, Pollution degree 3, Type of electric connection Axial screw connection, Connectable conductor cross section fine-strand without cable end sleeve 2,5 ... 6mm², Connectable conductor cross section multi-wired 2,5 ... 6mm², Material of contact surface Silver, Material contact Other copper alloys, Inflammability class of insulation material acc. with UL94 V0, With protective conductor, Min. number of insertion cycles 500

More product images:

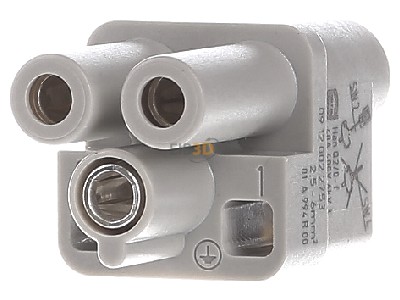

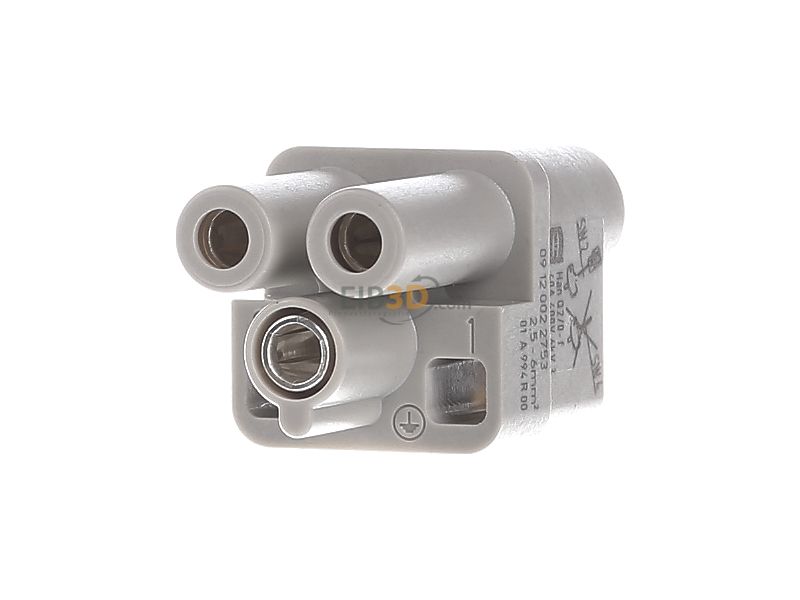

Front view Harting 09 12 002 2753 Socket insert for connector 2p
Front view

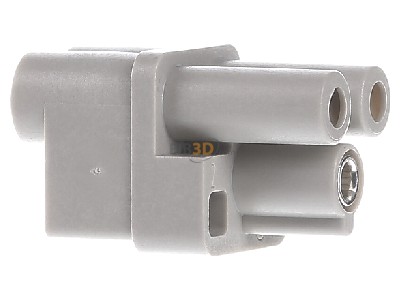

View on the left Harting 09 12 002 2753 Socket insert for connector 2p
View on the left

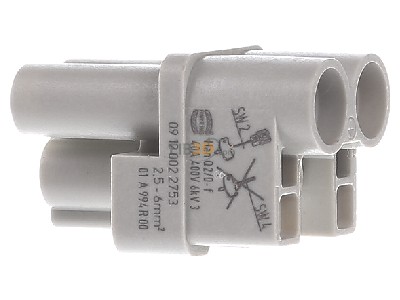

View on the right Harting 09 12 002 2753 Socket insert for connector 2p
View on the right

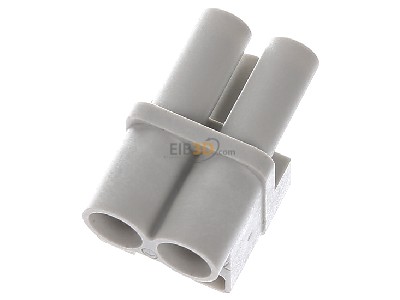

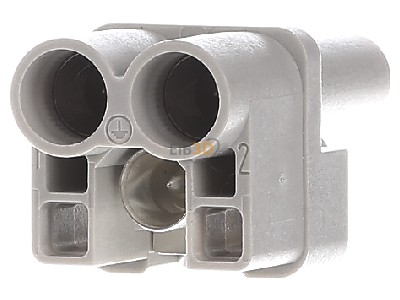

Back view Harting 09 12 002 2753 Socket insert for connector 2p
Back view
View up front Harting 09 12 002 2753 Socket insert for connector 2p
View up front
View top left Harting 09 12 002 2753 Socket insert for connector 2p
View top left

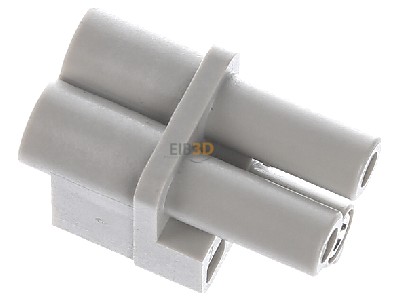

View top right Harting 09 12 002 2753 Socket insert for connector 2p
View top right

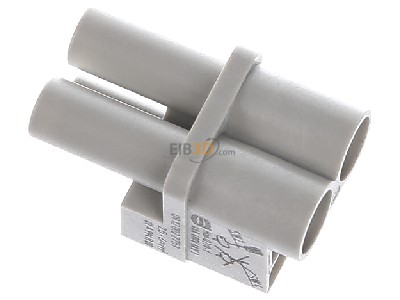

Top rear view Harting 09 12 002 2753 Socket insert for connector 2p
Top rear view
Product image 1 Harting 09 12 002 2753 Socket insert for connector 2p
Product image 1
Product image 2 Harting 09 12 002 2753 Socket insert for connector 2p
Product image 2
