Socket insert for connector 6p 09 38 012 2751
Source photo:
Harting
(fig. might be different or similar)

Socket insert for connector 6p 09 38 012 2751

EAN/GTIN: 5713140056404
WEEE: DE 19469086
Manufacturer: Harting
Manufacturer no.: 09 38 012 2751
Customs tariff no.: 85366990
Similar top items: Show now & compare
101,07 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Socket insert for connector 6p Contact type Socket, Number of poles 6, Material connector of connector insert Thermoplastic, Rated current In 100A, Operation temperature -40 ... 125°C, Rated voltage 690V, Rated surge voltage 8kV, Pollution degree 3, Type of electric connection Other, Connectable conductor cross section fine-strand without cable end sleeve 16 ... 35mm², Connectable conductor cross section multi-wired 16 ... 35mm², Material of contact surface Silver, Material contact Other copper alloys, Inflammability class of insulation material acc. with UL94 V0, With protective conductor, Min. number of insertion cycles 500

More product images:

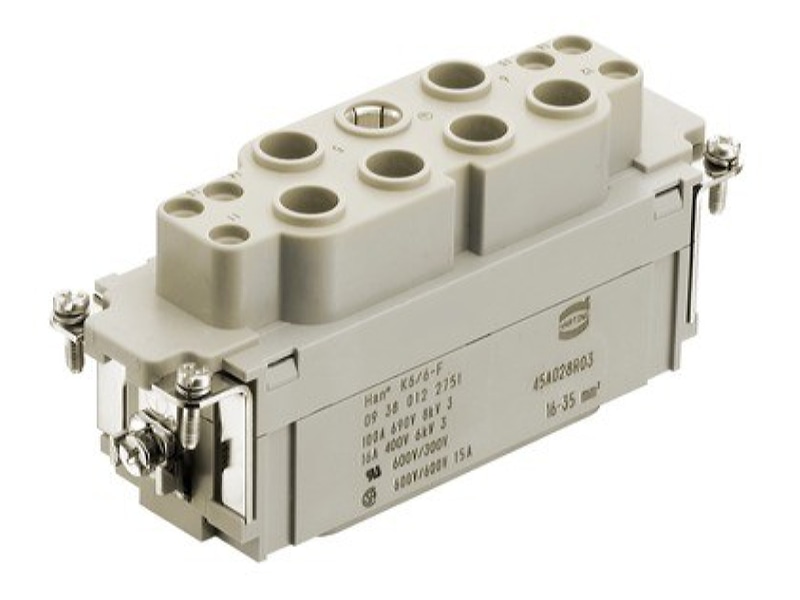

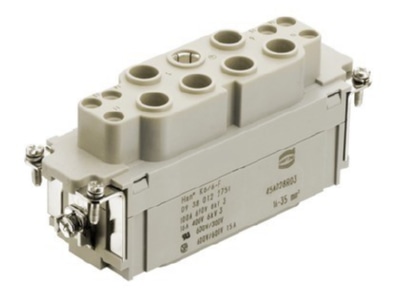

Product image 1 Harting 09 38 012 2751 Socket insert for connector 6p
Product image 1

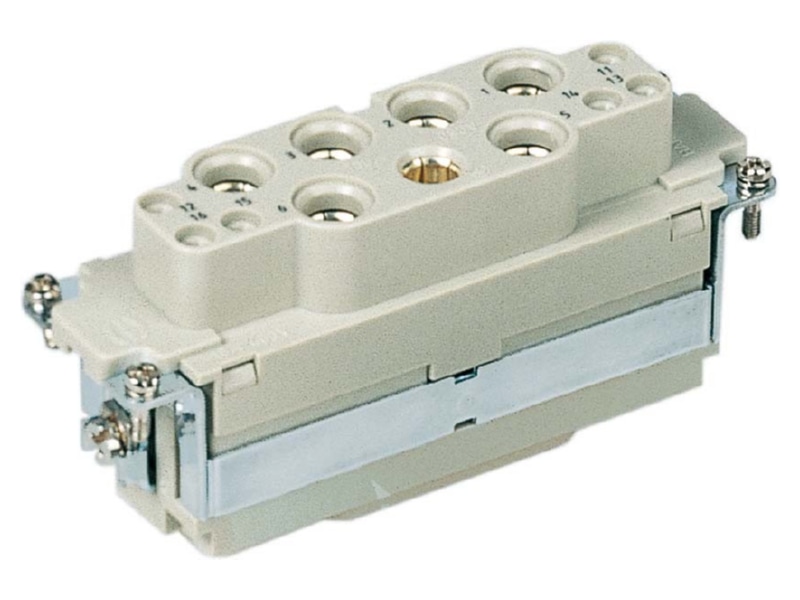

Product image 2 Harting 09 38 012 2751 Socket insert for connector 6p
Product image 2
