Surface mounted box 355x255mm KF 5050 B
Source photo:
HENSEL
(fig. might be different or similar)

Surface mounted box 355x255mm KF 5050 B

EAN/GTIN: 4012591122081
WEEE: DE 52801221
Manufacturer: HENSEL
Manufacturer no.: KF 5050 B
Manufact.-SKU: 62000080
Customs tariff no.: 85369010
Similar top items: Show now & compare
182,12 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Max. conductor cross section=50 mm², Equipped with=Clamp, Shape=Rectangular, Mounting method=Wall-/ceiling mounting, For tube diameter=Other, Inlet from the rear=yes, Length=355 mm, Width=255 mm, Depth=122 mm, Tackable=no, Number of inlets=12, Type of housing feed-through=Preembossing, Material=Plastic, Halogen free=yes, Surface protection=Untreated, Colour=Black, Degree of protection (IP)=IP66/IP67, Cover model=Other, Cover attachment=Screwed, Castable=no, With casting compound=no, Sealable=yes, Rated insulation voltage Ui=690 V, Circuit integrity=None, With screening=no, Weatherproof=yes, Operating temperature=-25..70 °C, Explosion-tested version=no, For Ex-zone gas=None, For Ex-Zone dust=None

More product images:

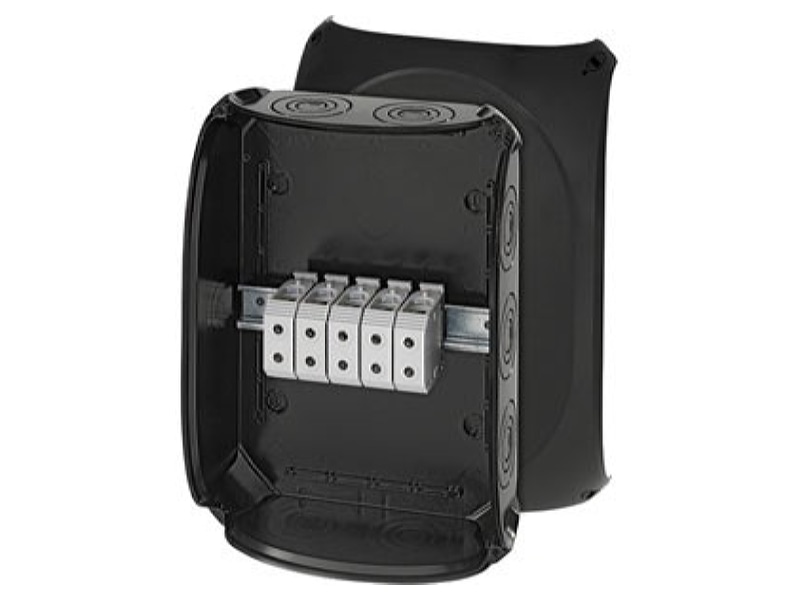

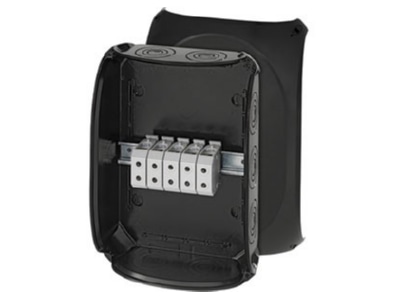

Product image Hensel KF 5050 B Surface mounted box 355x255mm
Product image

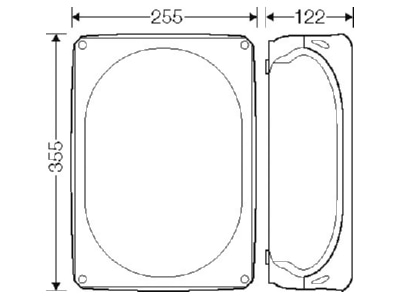

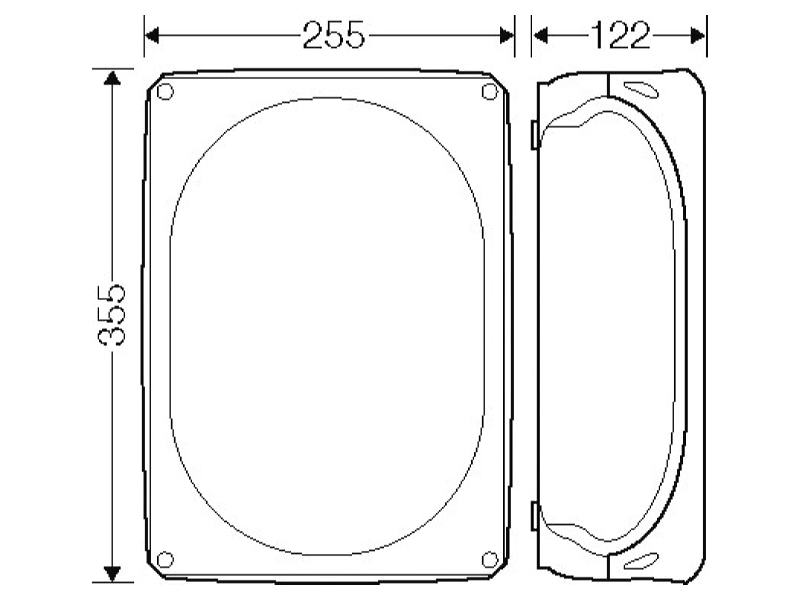

Dimensional drawing Hensel KF 5050 B Surface mounted box 355x255mm
Dimensional drawing
