Safety switch 3-p 280kW Mi 7665
Source photo:
HENSEL
(fig. might be different or similar)

Safety switch 3-p 280kW Mi 7665

EAN/GTIN: 4012591120964
WEEE: DE 52801221
Manufacturer: HENSEL
Manufacturer no.: Mi 7665
Manufact.-SKU: 20001331
Customs tariff no.: 85371098
Similar top items: Show now & compare
1.362,92 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Version as main switch=yes, Version as maintenance-/service switch=no, Version as safety switch=no, Version as emergency stop installation=no, Version as reversing switch=no, Max. rated operation voltage Ue AC=500 V, Rated operating voltage=500 V, Rated permanent current Iu=630 A, Rated permanent current at AC-21, 400 V=630 A, Rated operation power at AC-3, 400 V=280 kW, Rated short-time withstand current lcw=13 kA, Rated operation power at AC-23, 400 V=280 kW, Switching power at 400 V=280 kW, Number of poles=3, Motor drive optional=no, Motor drive integrated=no, Voltage release optional=no, Device construction=Complete device in housing, Suitable for floor mounting=no, Suitable for front mounting 4-hole=no, Suitable for front mounting centre=no, Suitable for distribution board installation=no, Suitable for intermediate mounting=no, Colour control element=Black, Type of control element=Long turning handle, Interlockable=yes, Type of electrical connection of main circuit=Bolt connection, Degree of protection (IP), front side=IP65

More product images:

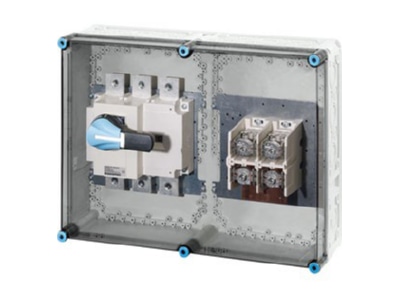

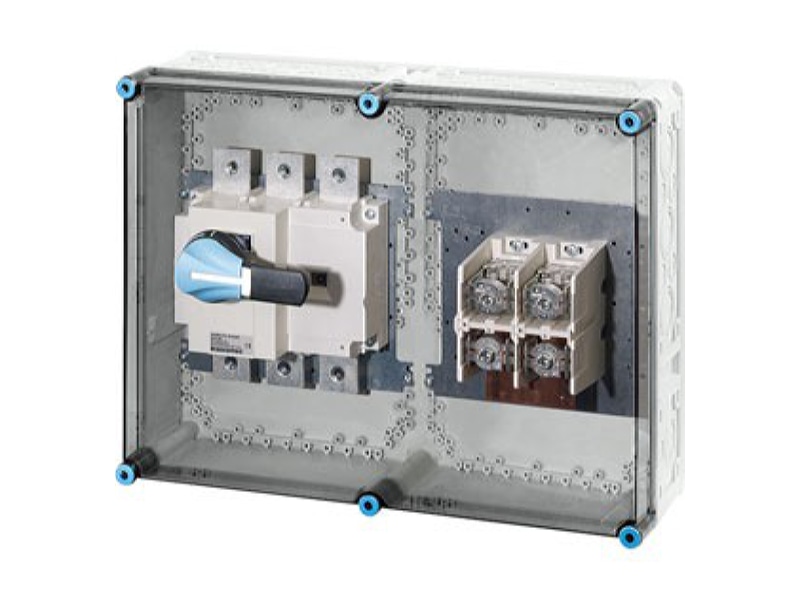

Product image Hensel Mi 7665 Safety switch 3 p 280kW
Product image

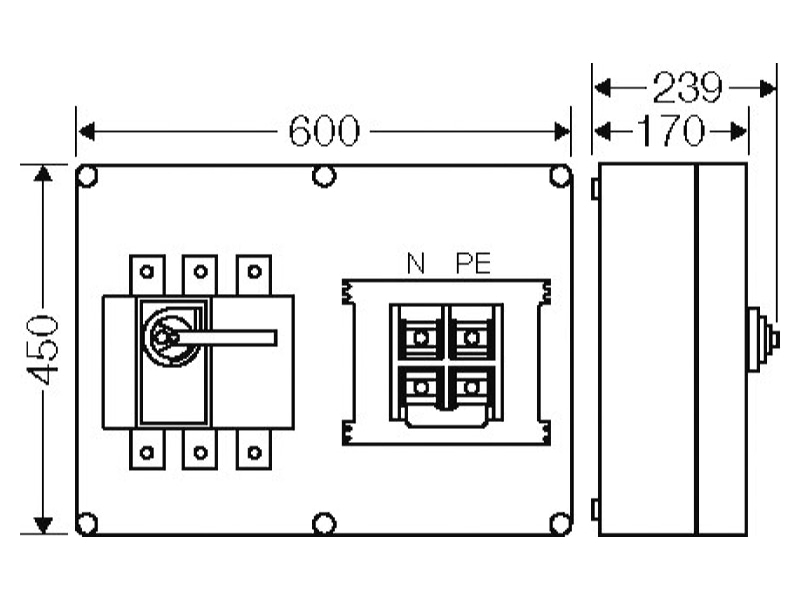

Dimensional drawing Hensel Mi 7665 Safety switch 3 p 280kW
Dimensional drawing
