Safety switch 4-p 18kW HAB404

EAN/GTIN: 3250613140359
WEEE: DE 23692311
Manufacturer: HAGER
Manufacturer no.: HAB404
Customs tariff no.: 85365080
Similar top items: Show now & compare
47,14 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Safety switch 4-p 18kW Version as main switch, Version as maintenance-/service switch, Version as safety switch, Number of switches 1, Max. rated operation voltage Ue AC 415V, Rated operating voltage 380 ... 415V, Rated permanent current Iu 40A, Rated permanent current at AC-21, 400 V 40A, Rated short-time withstand current lcw 1,26kA, Rated operation power at AC-23, 400 V 18kW, Switching power at 400 V 26kW, Conditioned rated short-circuit current Iq 50kA, Number of poles 4, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as change-over contact 0, Device construction Built-in device fixed built-in technique, Suitable for ground mounting, Suitable for distribution board installation, Colour control element Grey, Type of control element Short thumb-grip, Interlockable, Type of electrical connection of main circuit Screw connection, Degree of protection (IP), front side IP20, Degree of protection (NEMA) Other

More product images:

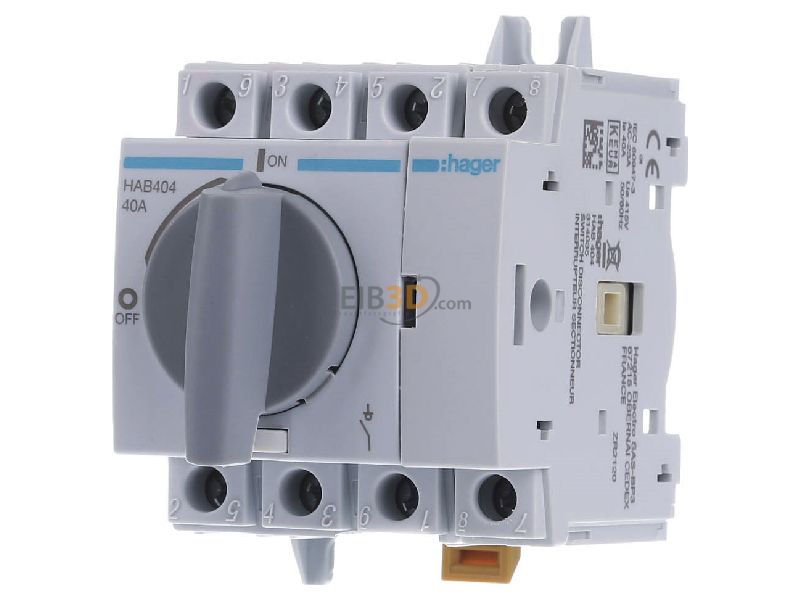

Front view Hager HAB404 Safety switch 4-p 18kW
Front view

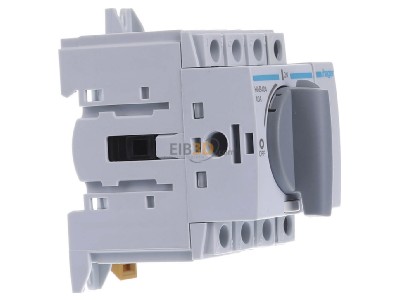

View on the left Hager HAB404 Safety switch 4-p 18kW
View on the left

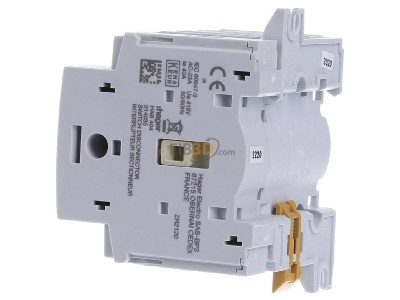

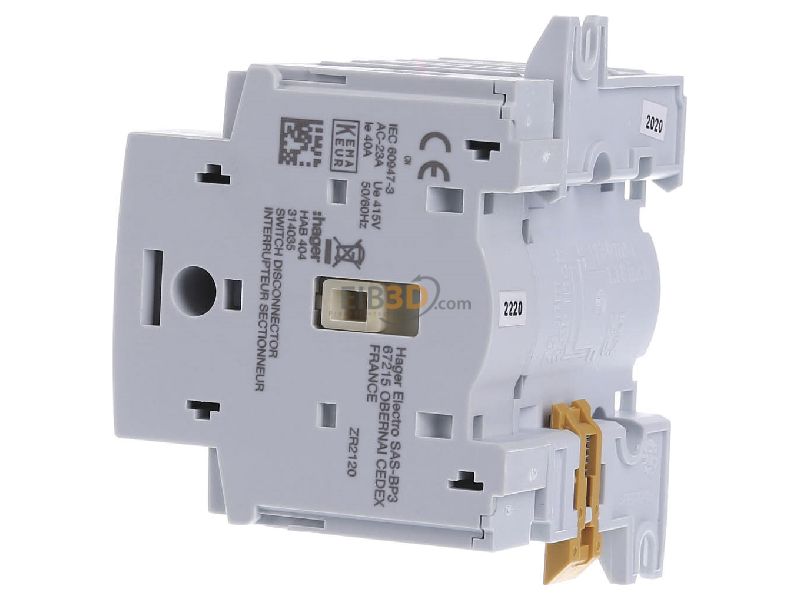

View on the right Hager HAB404 Safety switch 4-p 18kW
View on the right

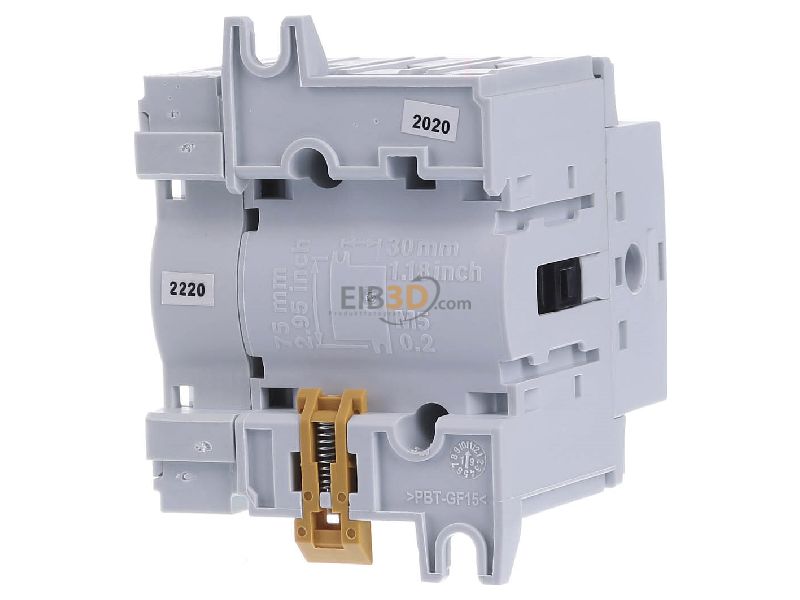

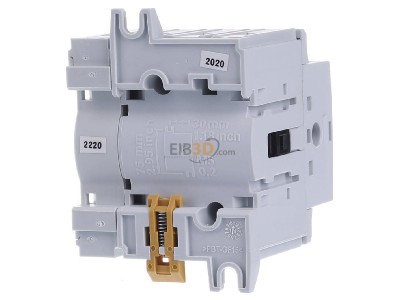

Back view Hager HAB404 Safety switch 4-p 18kW
Back view

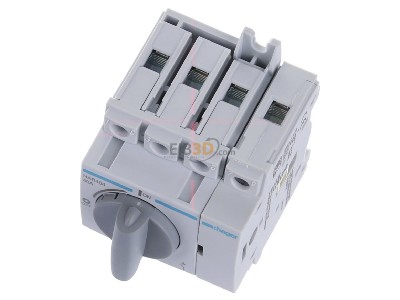

View up front Hager HAB404 Safety switch 4-p 18kW
View up front

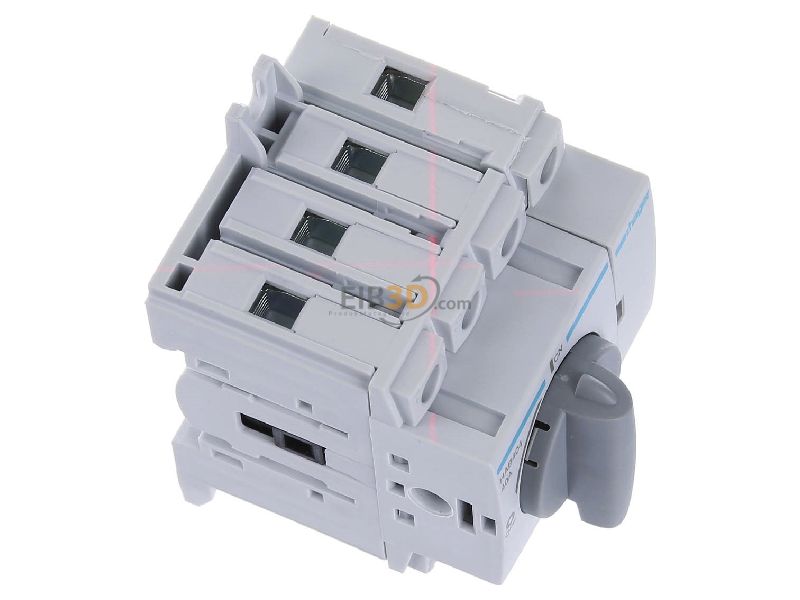

View top left Hager HAB404 Safety switch 4-p 18kW
View top left

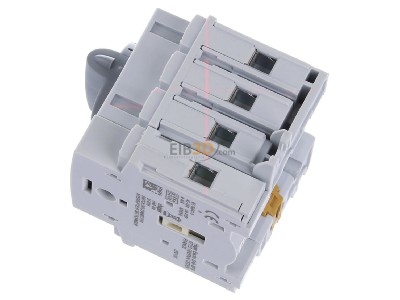

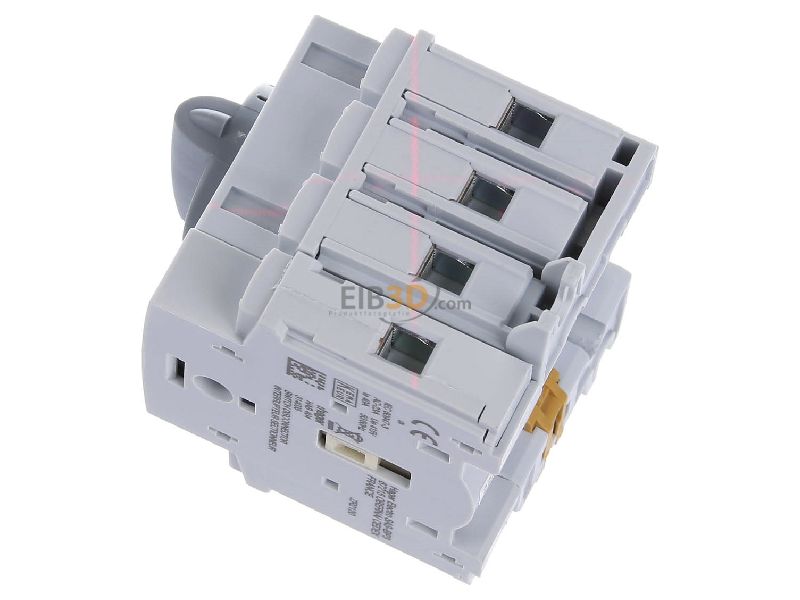

View top right Hager HAB404 Safety switch 4-p 18kW
View top right

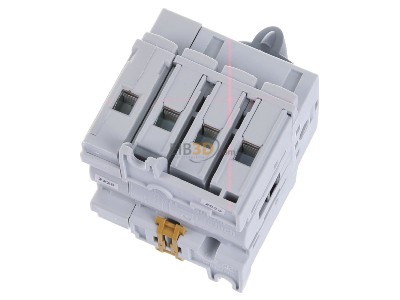

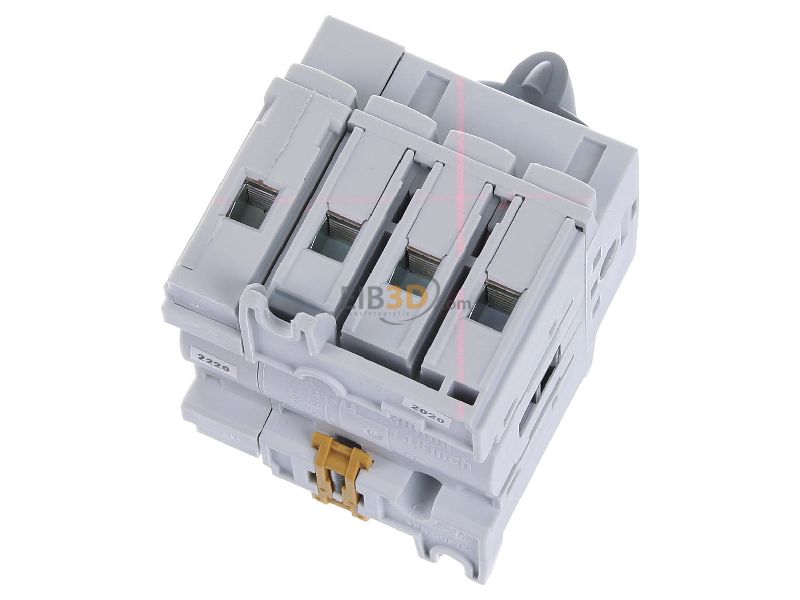

Top rear view Hager HAB404 Safety switch 4-p 18kW
Top rear view
