Safety switch 3-p HAB304

EAN/GTIN: 3250613140250
WEEE: DE 23692311
Manufacturer: HAGER
Manufacturer no.: HAB304
Customs tariff no.: 85365080
Similar top items: Show now & compare
36,85 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Safety switch 3-p Version as main switch, Version as maintenance-/service switch, Version as safety switch, Number of switches 1, Max. rated operation voltage Ue AC 415V, Rated operating voltage 380 ... 415V, Rated permanent current Iu 40A, Rated permanent current at AC-21, 400 V 40A, Rated short-time withstand current lcw 1,26kA, Rated operation power at AC-23, 400 V 18kW, Switching power at 400 V 26kW, Conditioned rated short-circuit current Iq 50kA, Number of poles 3, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as change-over contact 0, Device construction Built-in device fixed built-in technique, Suitable for ground mounting, Suitable for distribution board installation, Colour control element Grey, Type of control element Short thumb-grip, Interlockable, Type of electrical connection of main circuit Screw connection, Degree of protection (IP), front side IP20, Degree of protection (NEMA) Other

More product images:

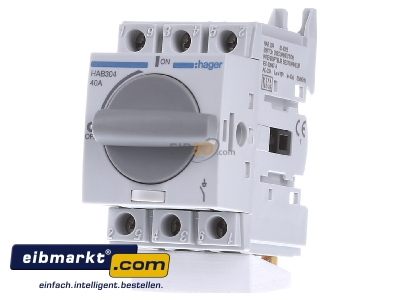

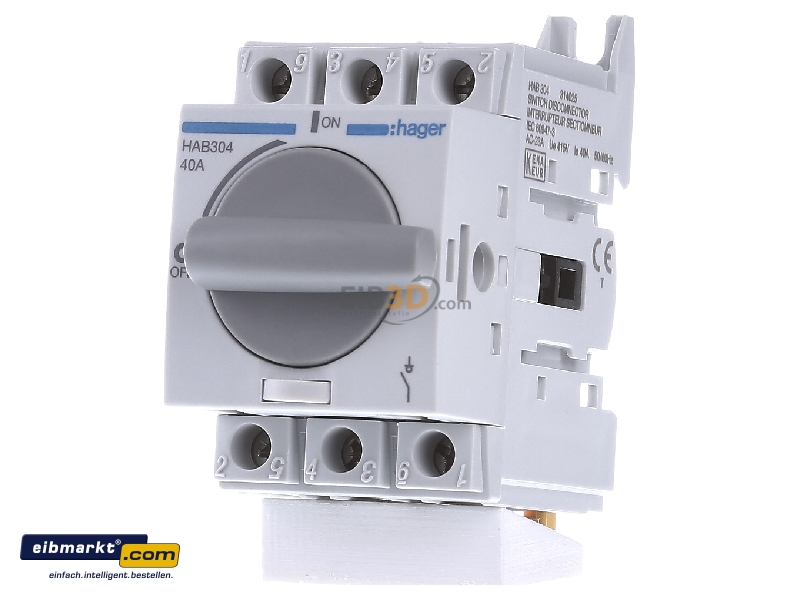

Front view Hager HAB304 Safety switch 3-p -
Front view

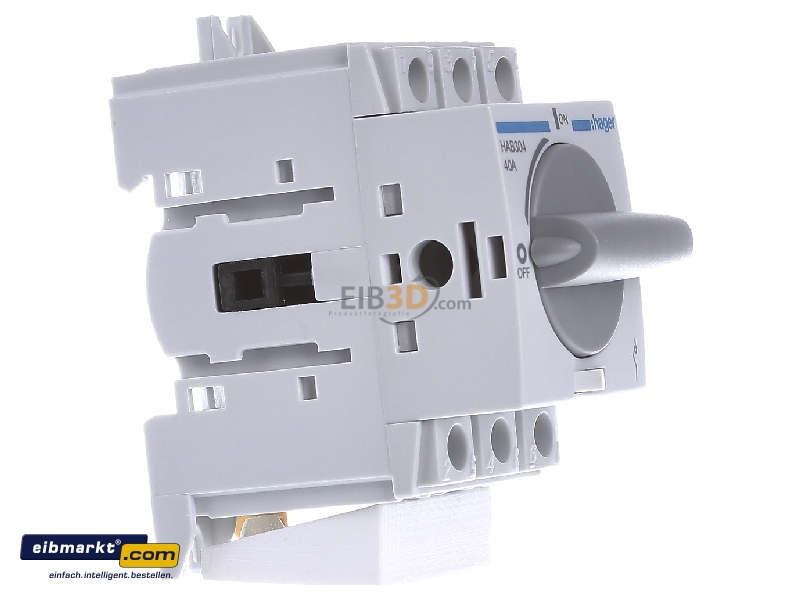

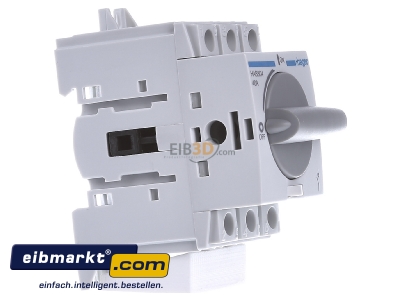

View on the left Hager HAB304 Safety switch 3-p -
View on the left

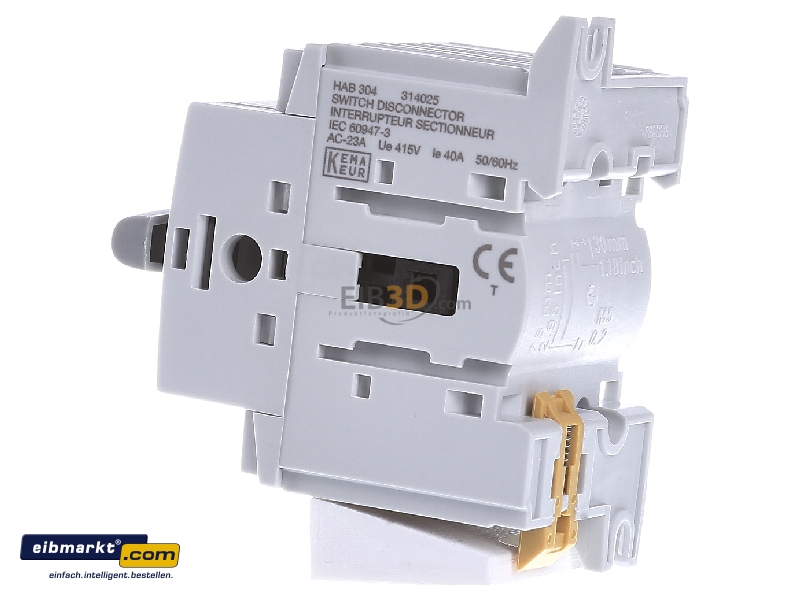

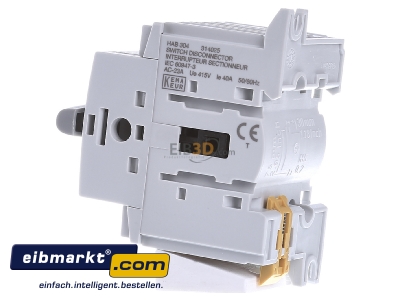

View on the right Hager HAB304 Safety switch 3-p -
View on the right

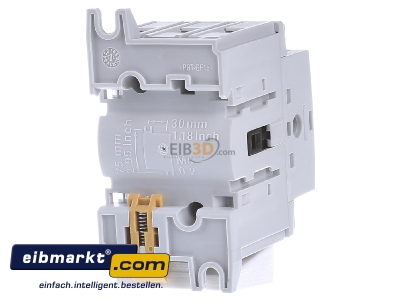

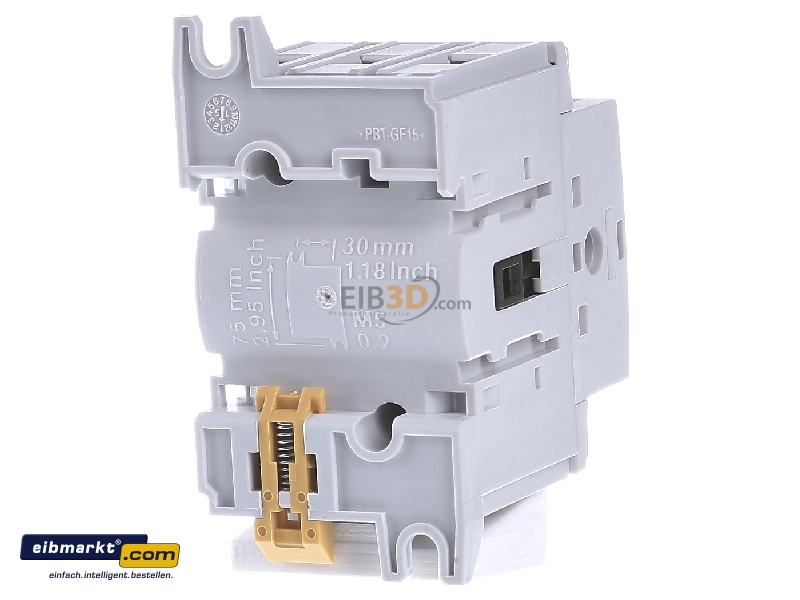

Back view Hager HAB304 Safety switch 3-p -
Back view

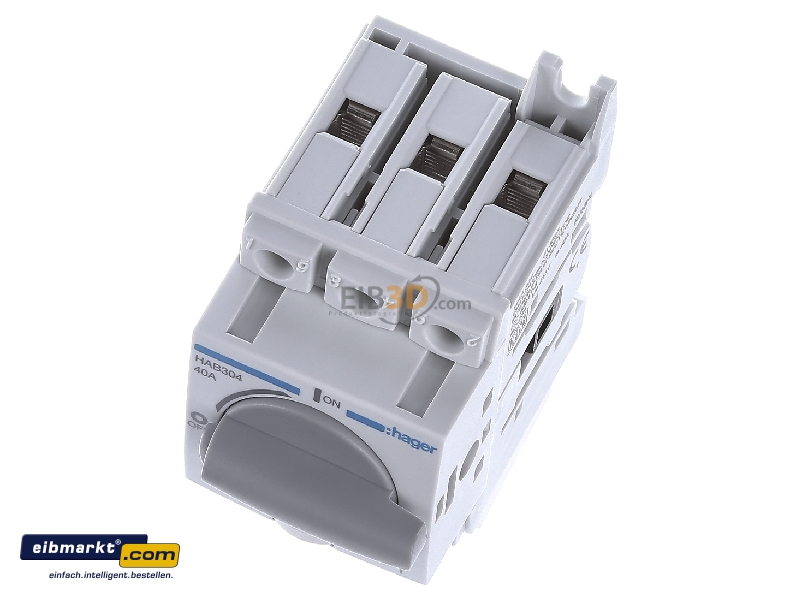

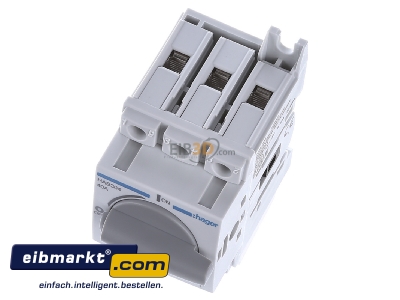

View up front Hager HAB304 Safety switch 3-p -
View up front

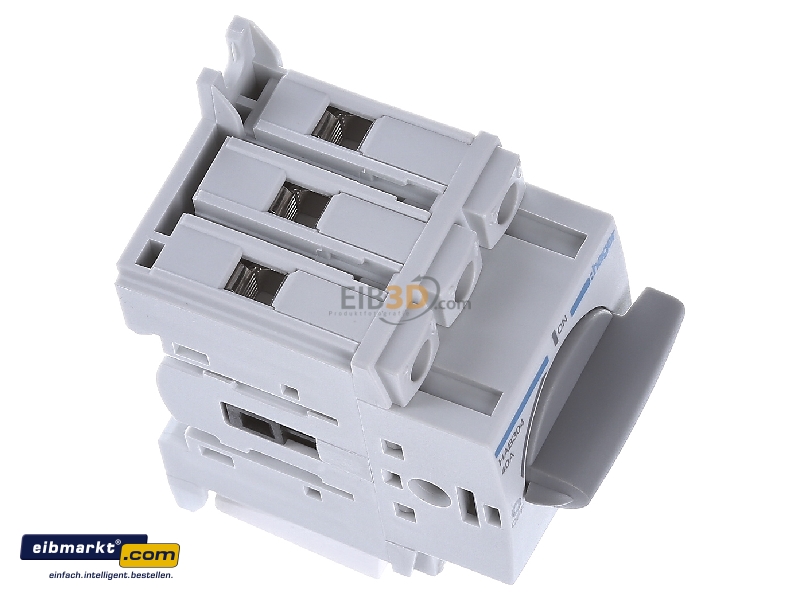

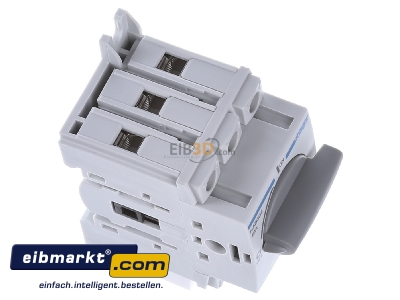

View top left Hager HAB304 Safety switch 3-p -
View top left

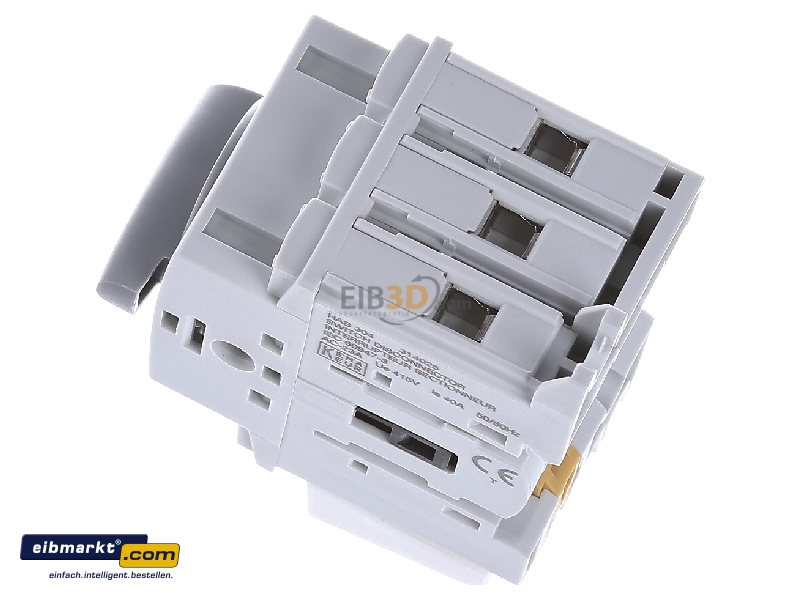

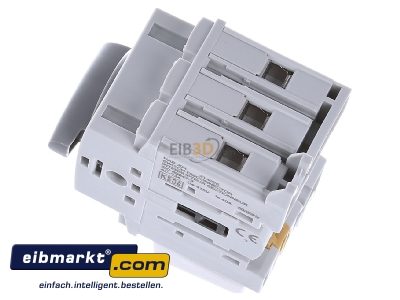

View top right Hager HAB304 Safety switch 3-p -
View top right

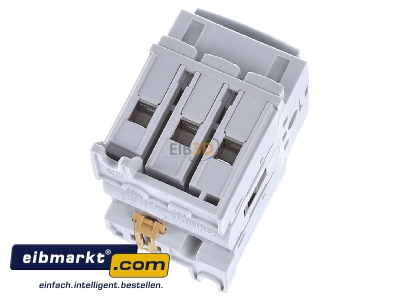

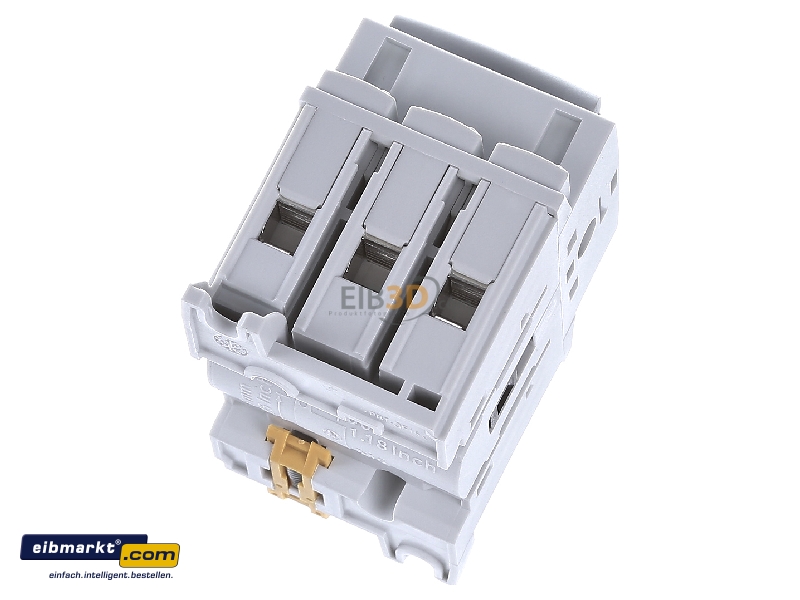

Top rear view Hager HAB304 Safety switch 3-p -
Top rear view
