Miniature circuit breaker 3-p C32A MCS332

EAN/GTIN: 3250614315367
WEEE: DE 23692311
Manufacturer: HAGER
Manufacturer no.: MCS332
Customs tariff no.: 85363030
Similar top items: Show now & compare
57,88 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Miniature circuit breaker 3-p C32A Release characteristic C, Number of poles (total) 3, Number of protected poles 3, Rated current 32A, Rated voltage 400V, Rated insulation voltage Ui 500V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10kA, Voltage type AC, Frequency 50 ... 60Hz, Current limiting class 3, Suitable for flush-mounted installation, Over voltage category 3, Pollution degree 2, Additional equipment possible, Width in number of modular spacings 3, Built-in depth 70mm, Degree of protection (IP) IP20

More product images:

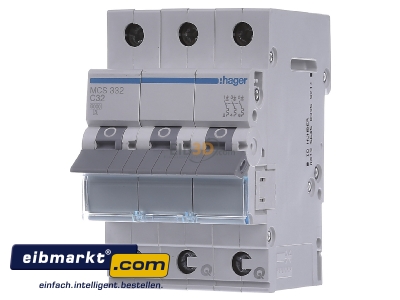

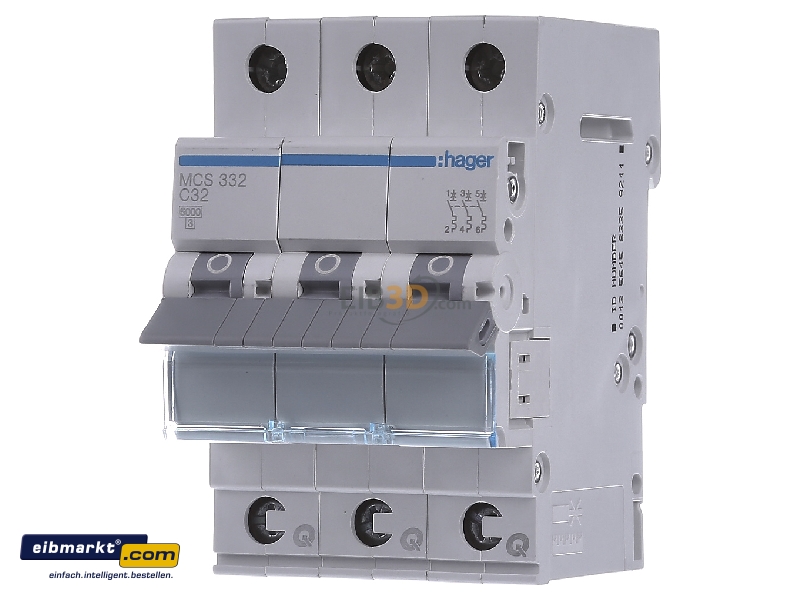

Front view Hager MCS332 Miniature circuit breaker 3-p C32A
Front view

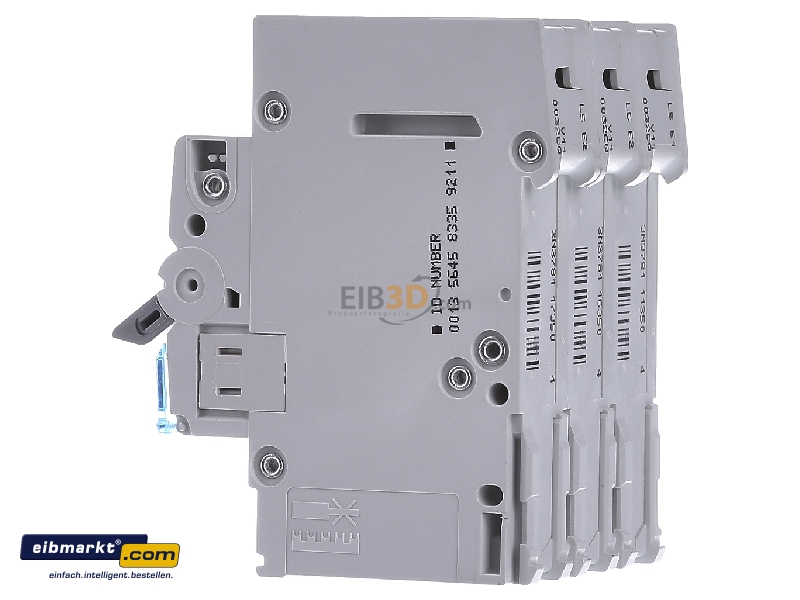

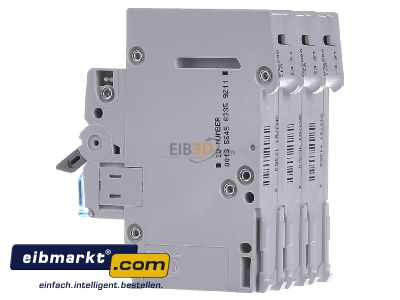

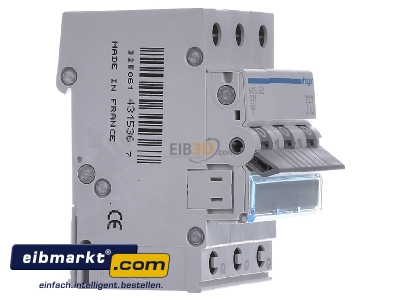

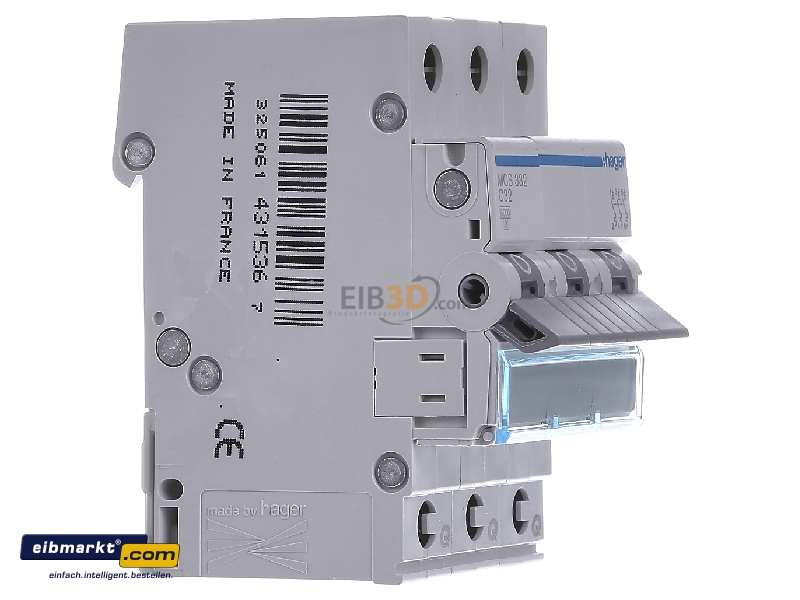

View on the left Hager MCS332 Miniature circuit breaker 3-p C32A
View on the left
View on the right Hager MCS332 Miniature circuit breaker 3-p C32A
View on the right

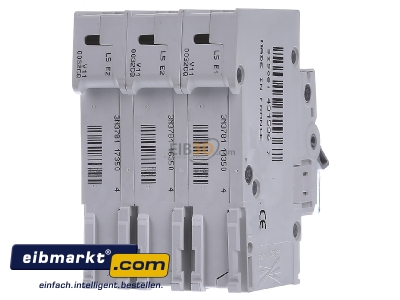

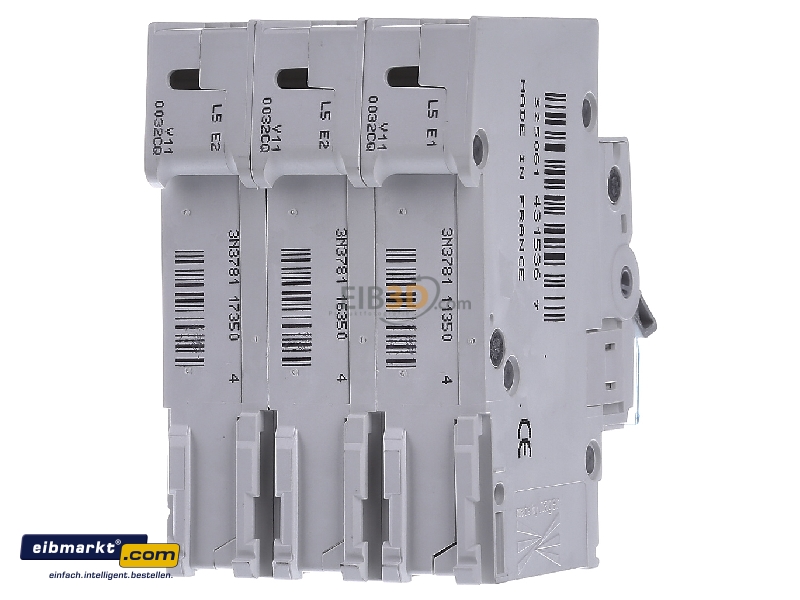

Back view Hager MCS332 Miniature circuit breaker 3-p C32A
Back view

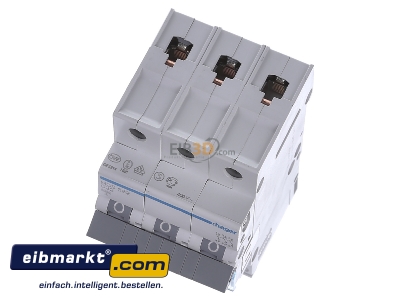

View up front Hager MCS332 Miniature circuit breaker 3-p C32A
View up front

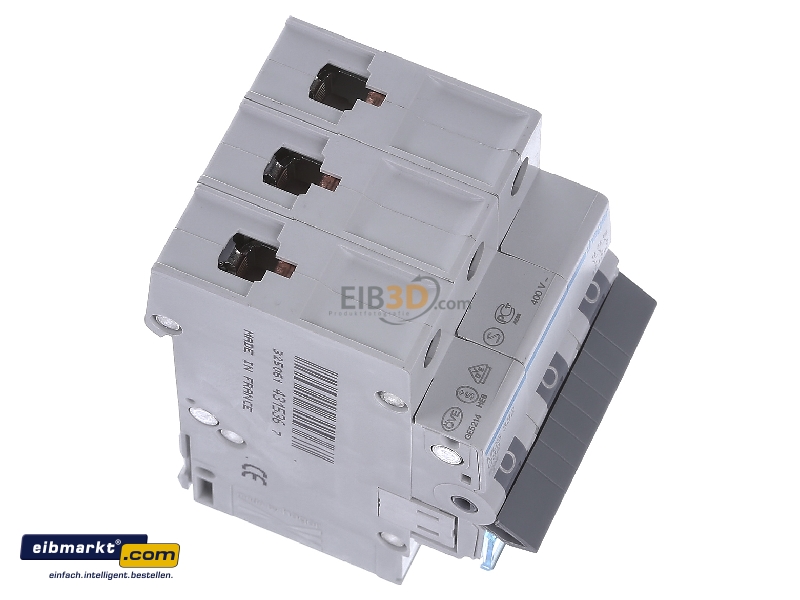

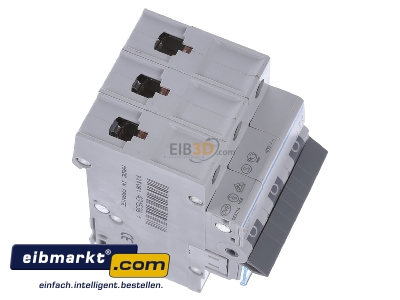

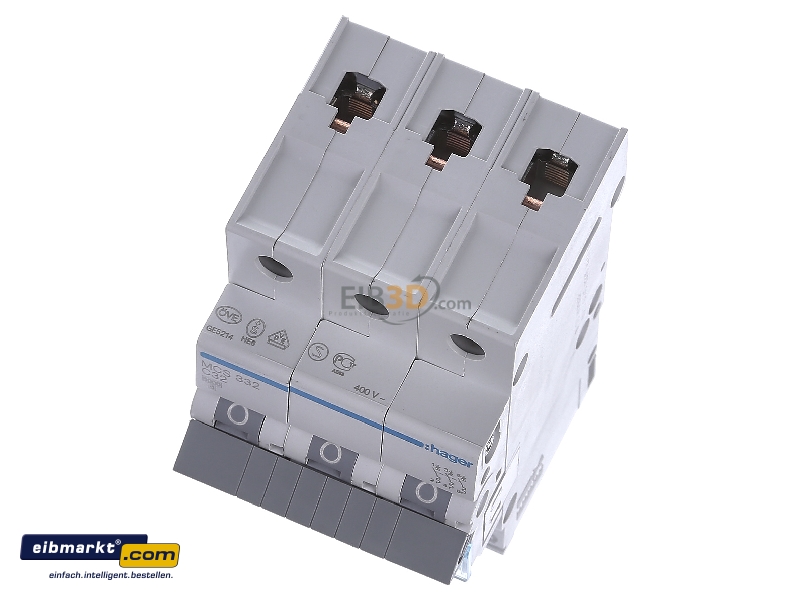

View top left Hager MCS332 Miniature circuit breaker 3-p C32A
View top left

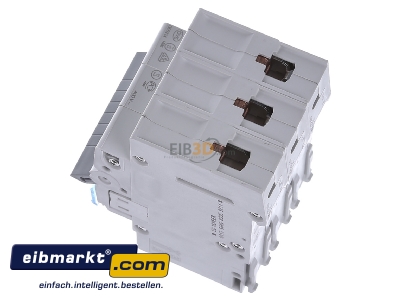

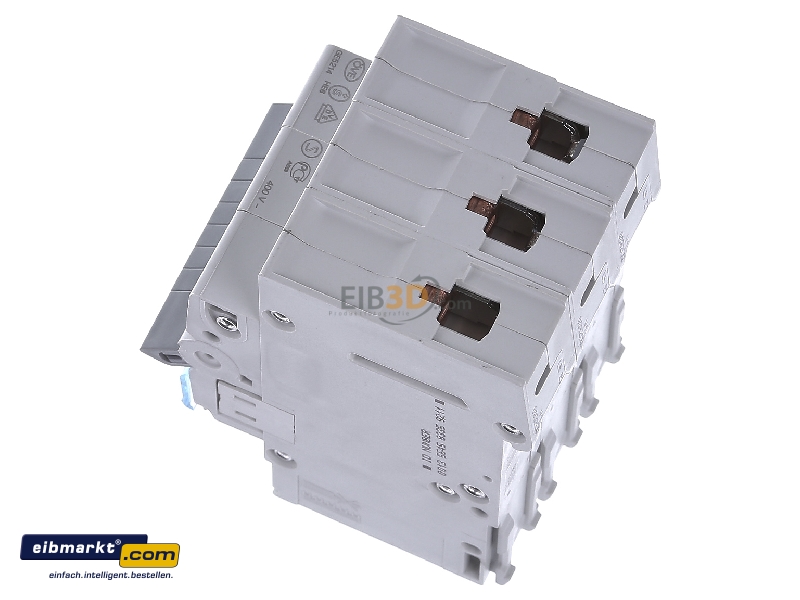

View top right Hager MCS332 Miniature circuit breaker 3-p C32A
View top right

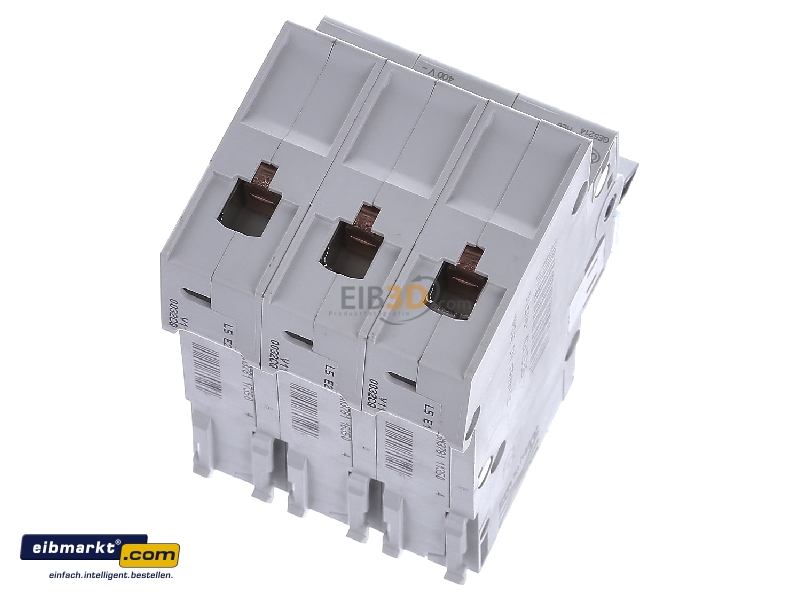

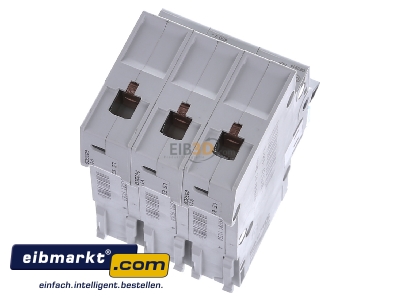

Top rear view Hager MCS332 Miniature circuit breaker 3-p C32A
Top rear view
