Miniature circuit breaker 3-p C25A MCN325

EAN/GTIN: 3250614311475
WEEE: DE 23692311
Manufacturer: HAGER
Manufacturer no.: MCN325
Customs tariff no.: 85362010
Similar top items: Show now & compare
54,06 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Miniature circuit breaker 3-p C25A Release characteristic C, Number of poles (total) 3, Number of protected poles 3, Rated current 25A, Rated voltage 400V, Rated insulation voltage Ui 500V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10kA, Voltage type AC, Frequency 50 ... 60Hz, Current limiting class 3, Suitable for flush-mounted installation, Over voltage category 3, Pollution degree 2, Additional equipment possible, Width in number of modular spacings 3, Built-in depth 70mm, Degree of protection (IP) IP20, Connectable conductor cross section multi-wired 1 ... 16mm², Connectable conductor cross section solid-core 1 ... 25mm²

More product images:

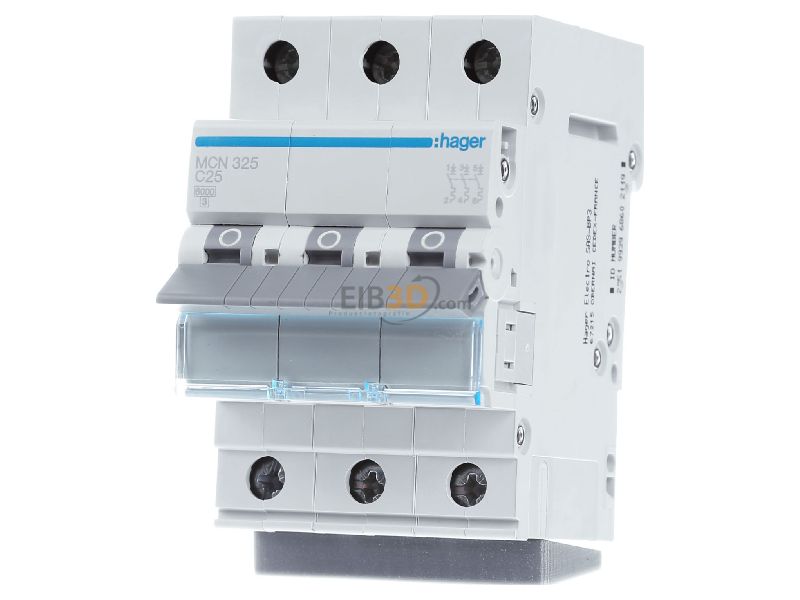

Front view Hager MCN325 Miniature circuit breaker 3-p C25A
Front view

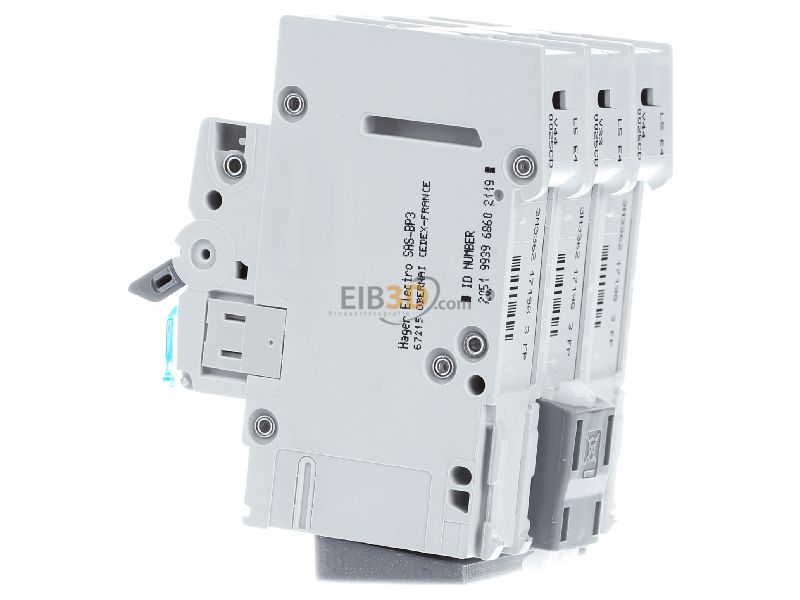

View on the left Hager MCN325 Miniature circuit breaker 3-p C25A
View on the left

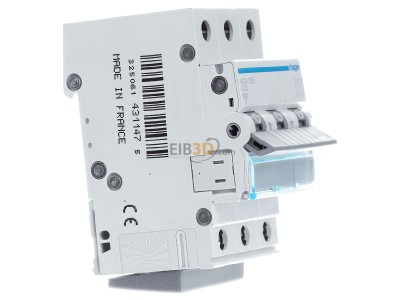

View on the right Hager MCN325 Miniature circuit breaker 3-p C25A
View on the right

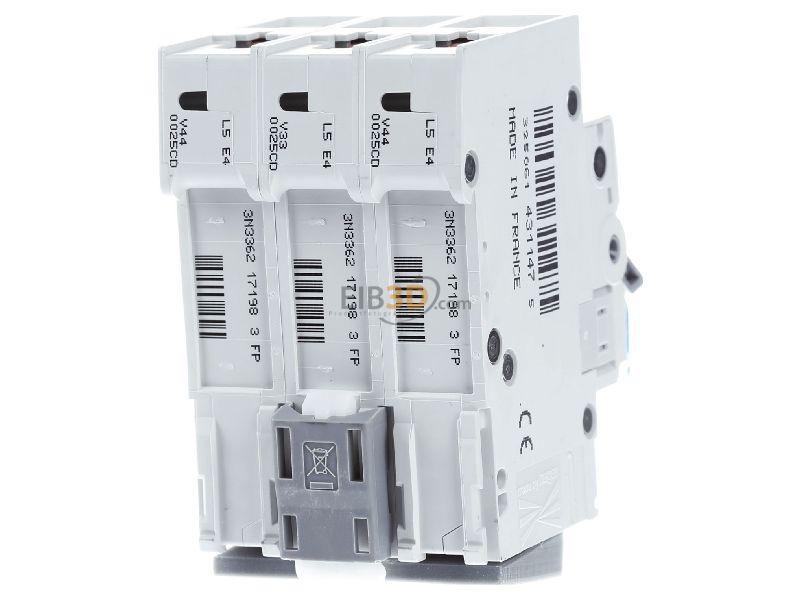

Back view Hager MCN325 Miniature circuit breaker 3-p C25A
Back view

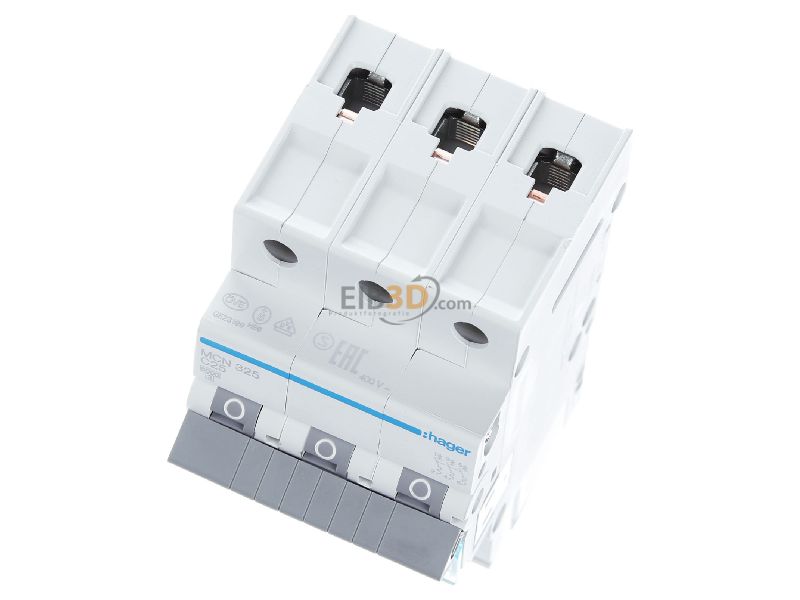

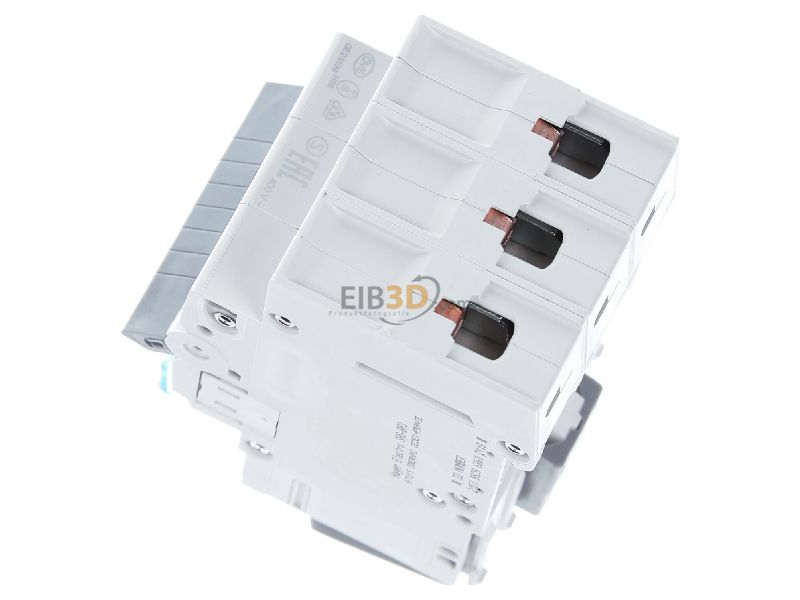

View up front Hager MCN325 Miniature circuit breaker 3-p C25A
View up front

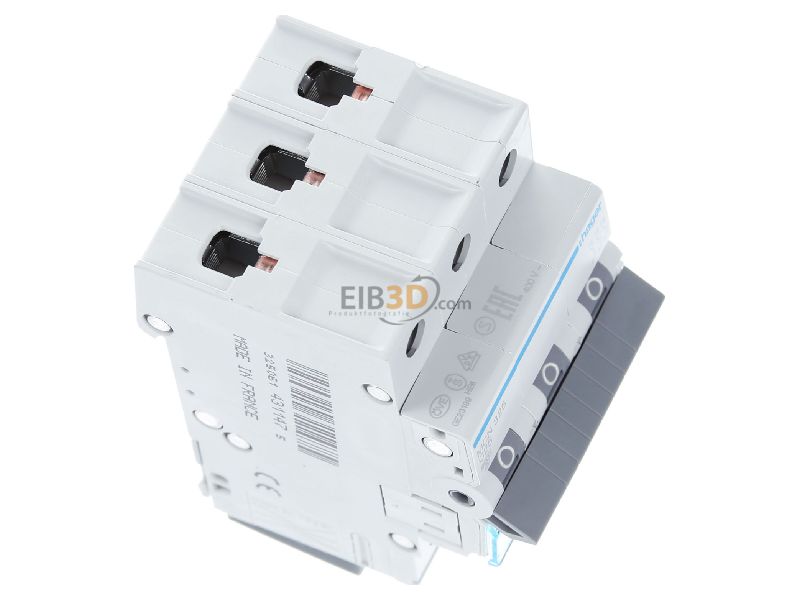

View top left Hager MCN325 Miniature circuit breaker 3-p C25A
View top left

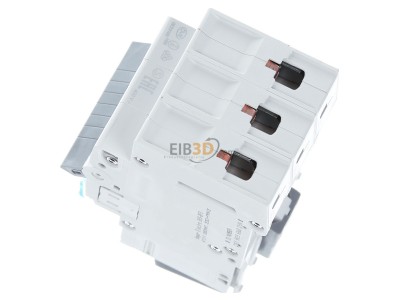

View top right Hager MCN325 Miniature circuit breaker 3-p C25A
View top right

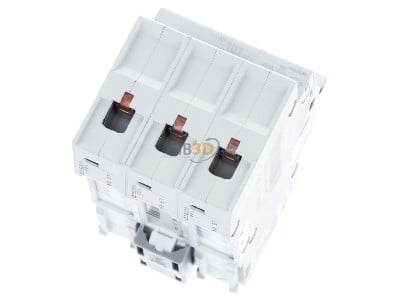

Top rear view Hager MCN325 Miniature circuit breaker 3-p C25A
Top rear view
