Miniature circuit breaker 1-p C16A MCS116

EAN/GTIN: 3250614315183
WEEE: DE 23692311
Manufacturer: HAGER
Manufacturer no.: MCS116
Customs tariff no.: 85363010
Similar top items: Show now & compare
13,98 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Miniature circuit breaker 1-p C16A Release characteristic C, Number of poles (total) 1, Number of protected poles 1, Rated current 16A, Rated voltage 400V, Rated insulation voltage Ui 500V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 6kA, Voltage type AC, Frequency 50 ... 60Hz, Current limiting class 3, Suitable for flush-mounted installation, Over voltage category 3, Pollution degree 2, Width in number of modular spacings 1, Built-in depth 70mm, Degree of protection (IP) IP20

More product images:

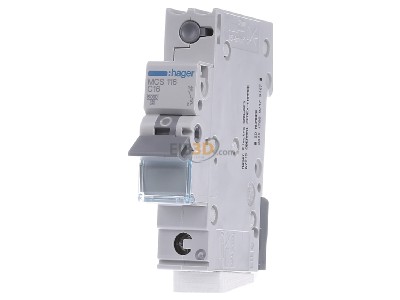

Front view Hager MCS116 Miniature circuit breaker 1-p C16A
Front view

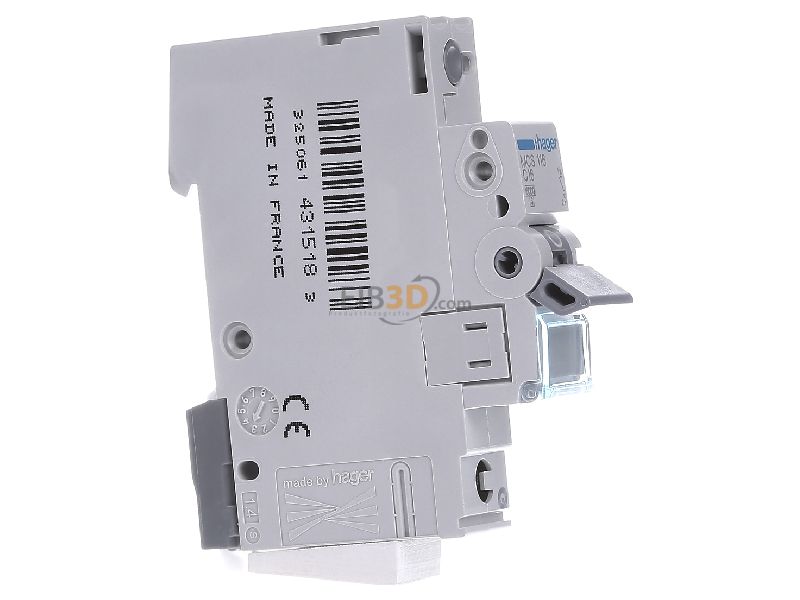

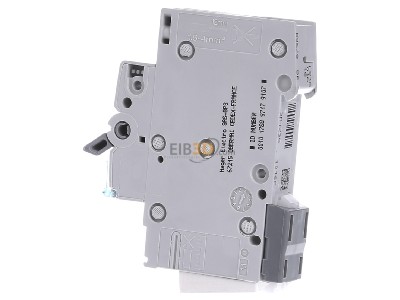

View on the left Hager MCS116 Miniature circuit breaker 1-p C16A
View on the left

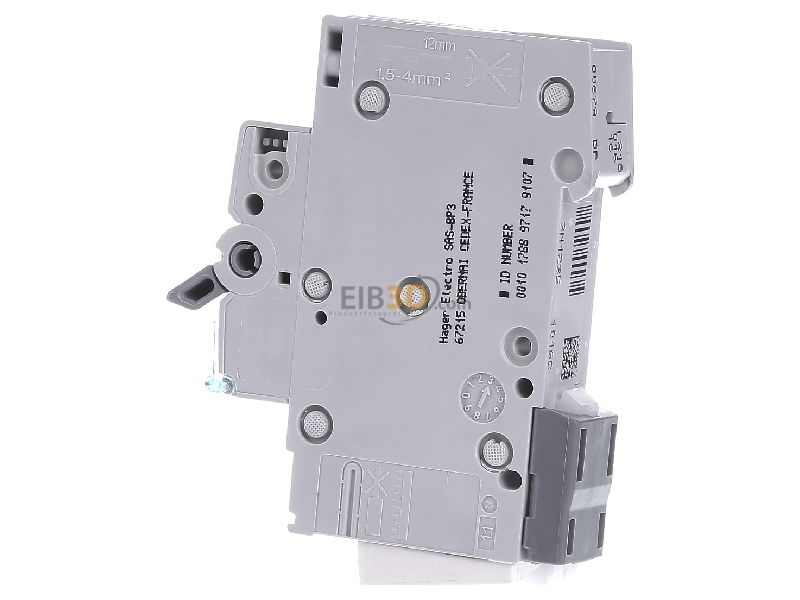

View on the right Hager MCS116 Miniature circuit breaker 1-p C16A
View on the right

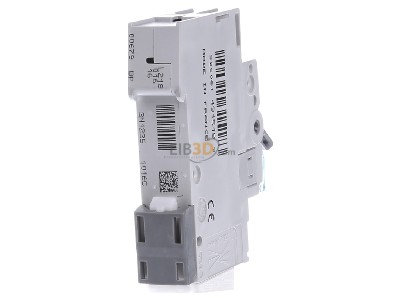

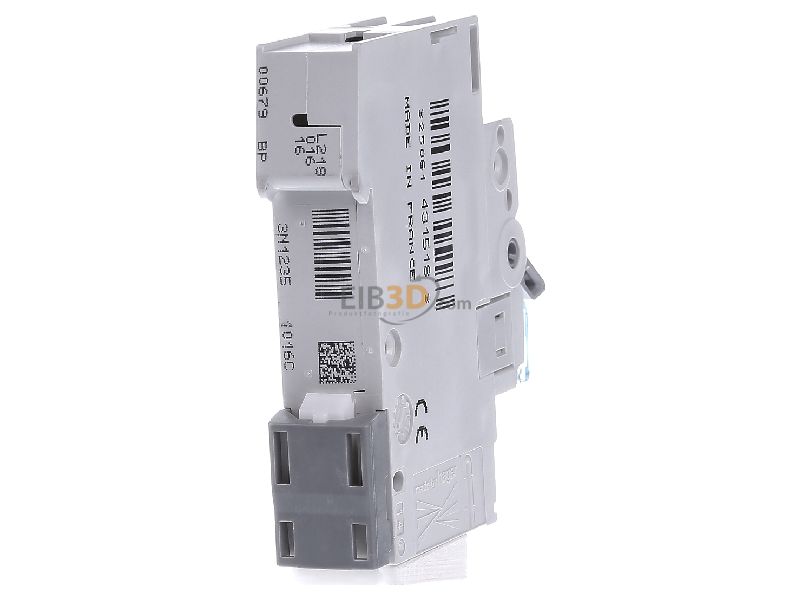

Back view Hager MCS116 Miniature circuit breaker 1-p C16A
Back view

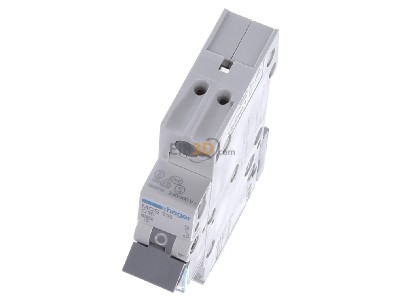

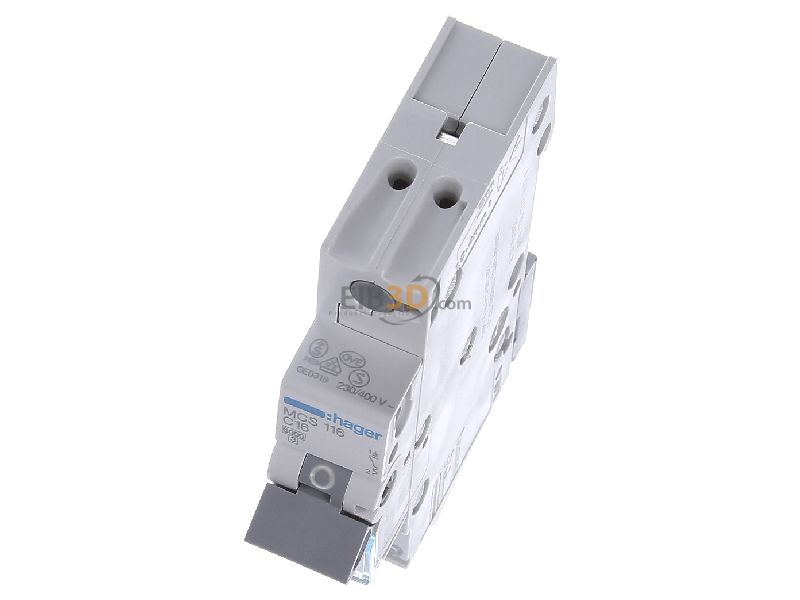

View up front Hager MCS116 Miniature circuit breaker 1-p C16A
View up front

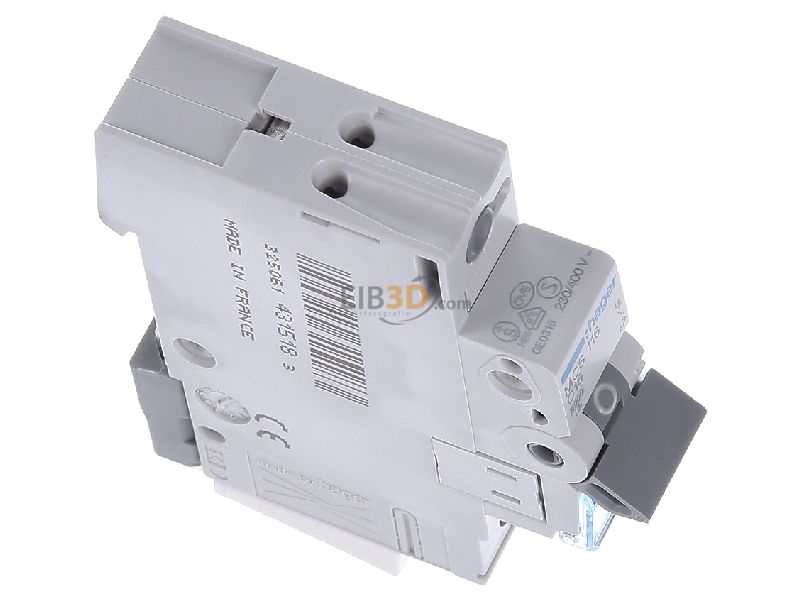

View top left Hager MCS116 Miniature circuit breaker 1-p C16A
View top left

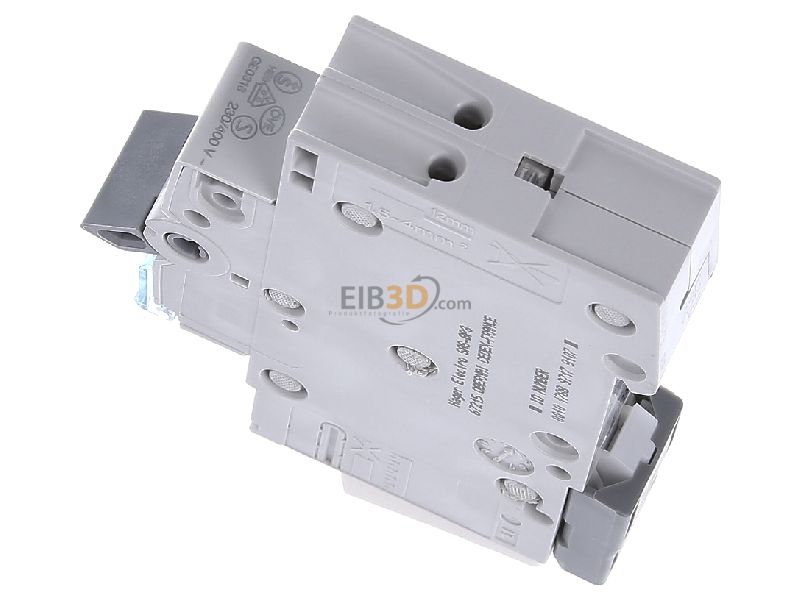

View top right Hager MCS116 Miniature circuit breaker 1-p C16A
View top right

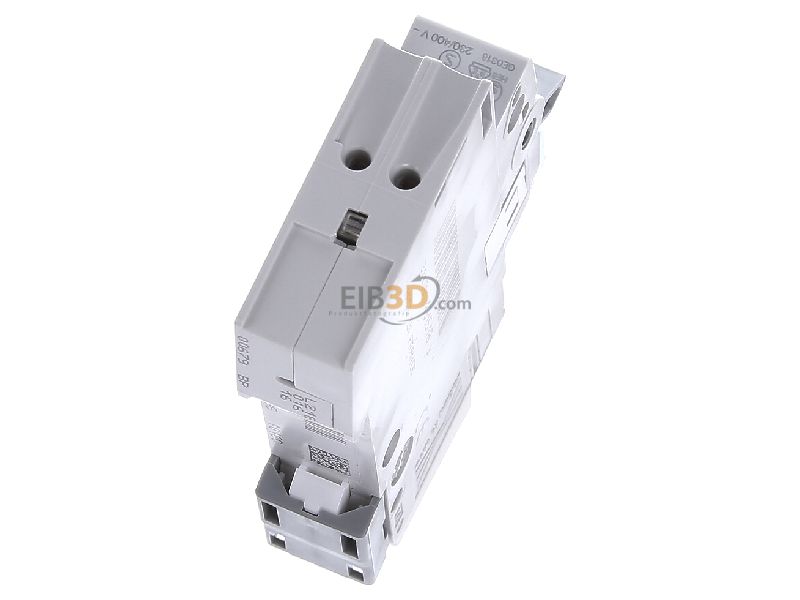

Top rear view Hager MCS116 Miniature circuit breaker 1-p C16A
Top rear view
