Source photo: www.EIB3D.com

Latching relay 24V AC EPN541

EAN/GTIN: 3250612369447
WEEE: DE 23692311
Manufacturer: HAGER
Manufacturer no.: EPN541
Customs tariff no.: 85364900
Similar top items: Show now & compare
49,58 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Latching relay 24V AC Function Mechanical switch, Mounting method DIN rail, Width in number of modular spacings 35, Built-in depth 63mm, Number of contacts as normally open contact 4, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Control voltage 1 24 ... 24V, Type of control voltage 1 AC, Frequency control voltage 1 50 ... 60Hz, Control voltage 2 12 ... 12V, Type of control voltage 2 DC, Frequency control voltage 2 50 ... 60Hz, Rated switch current 16A, Supply voltage 250 ... 400V, Voltage type of supply voltage AC, Max. switching current (cos phi = 0.6) 16A, Manual operation possible

More product images:

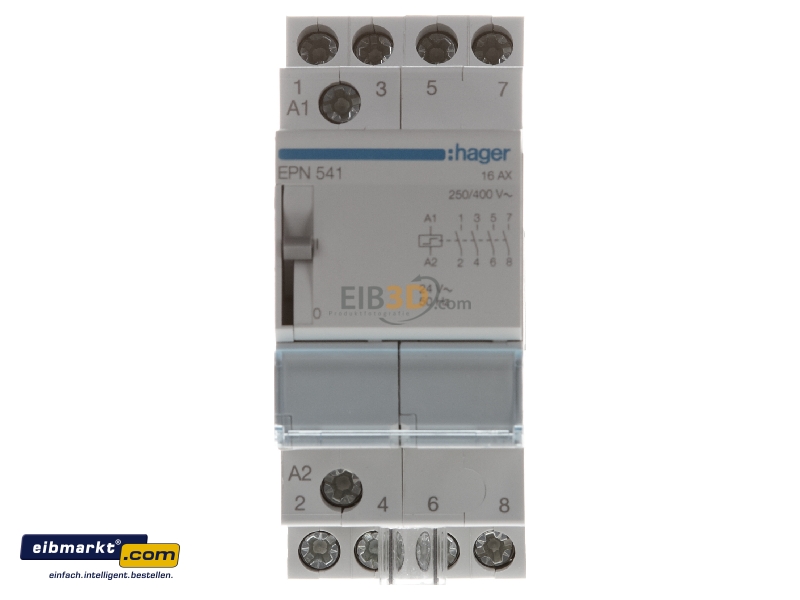

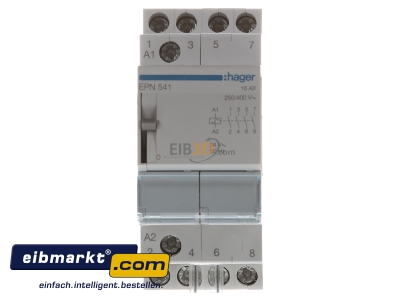

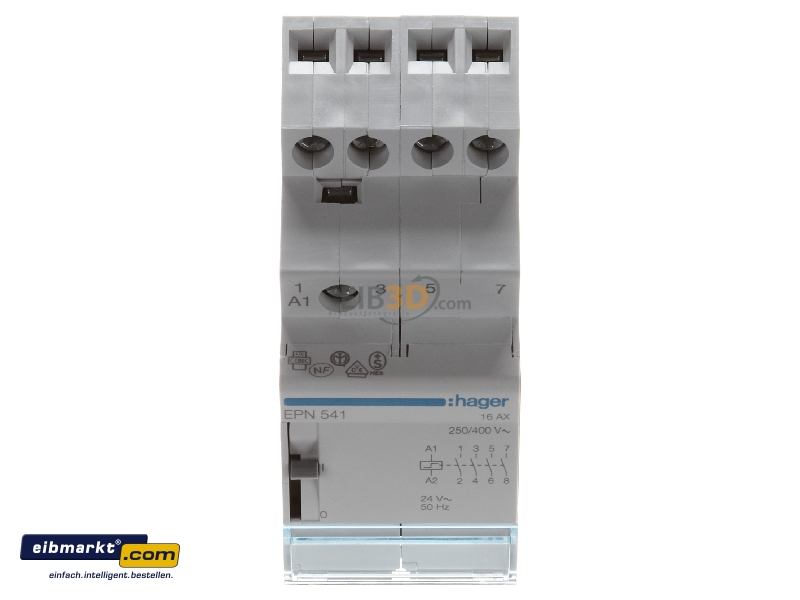

Front view Latching relay 24V AC EPN541 Hager EPN541
Front view

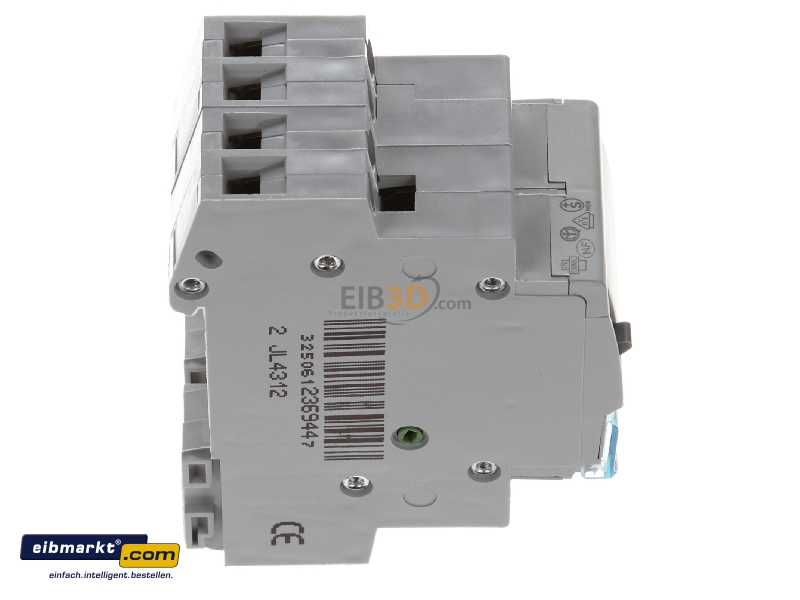

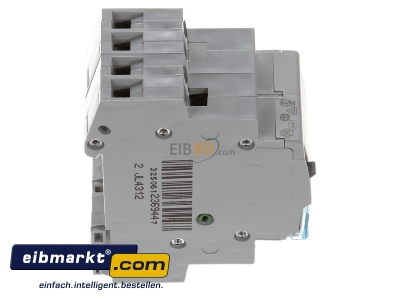

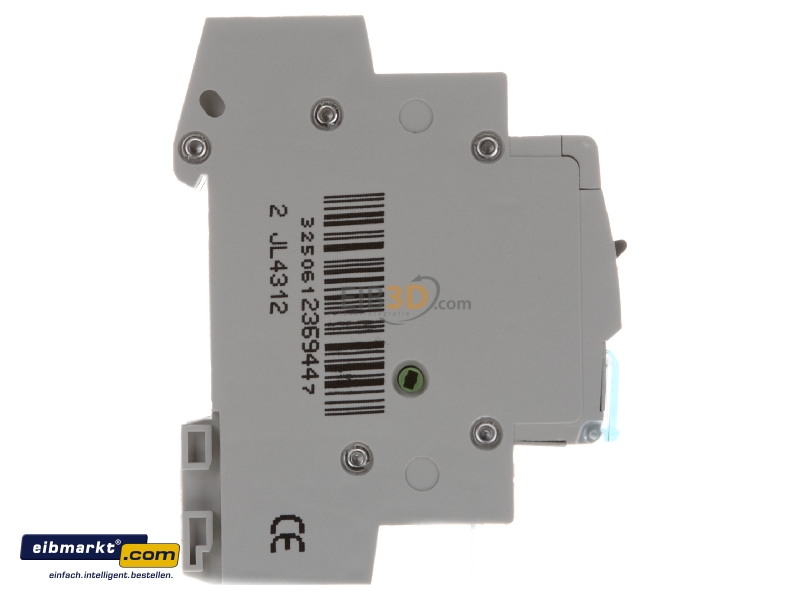

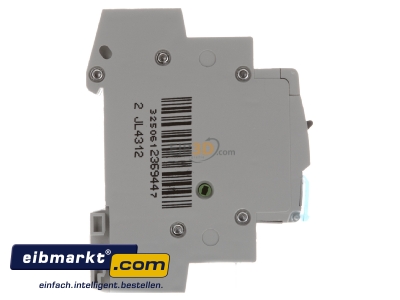

View on the left Latching relay 24V AC EPN541 Hager EPN541
View on the left

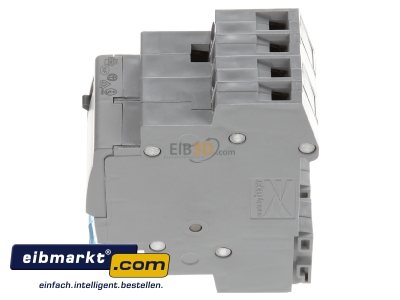

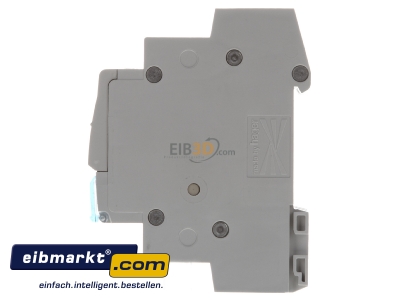

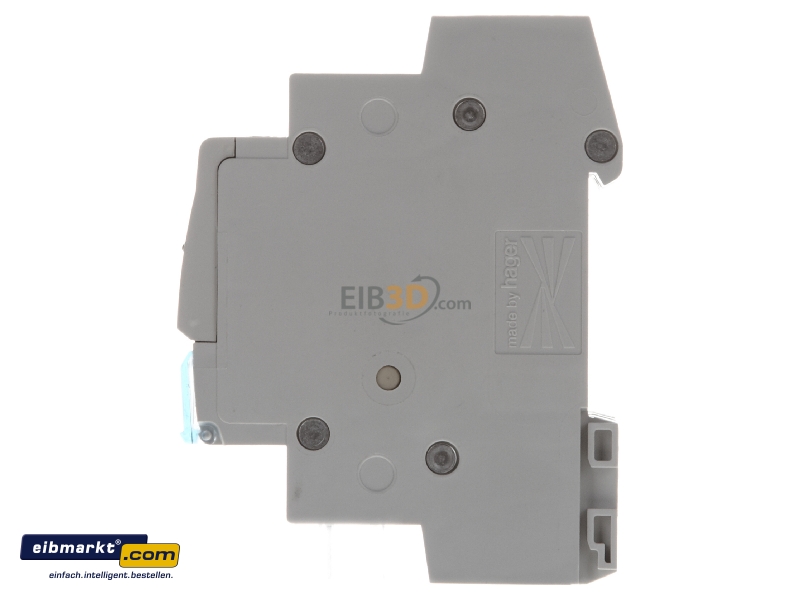

View on the right Latching relay 24V AC EPN541 Hager EPN541
View on the right

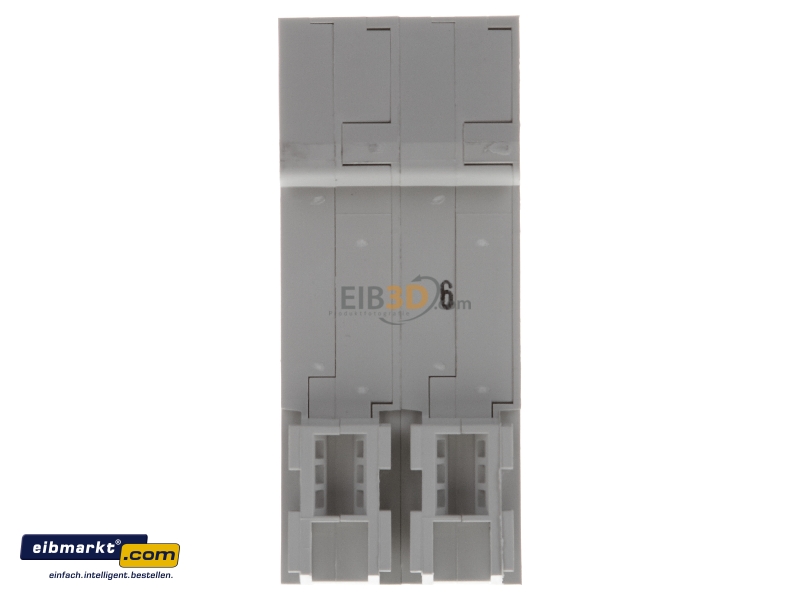

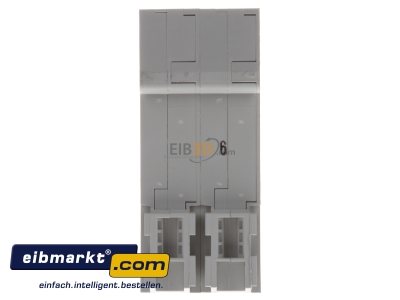

Back view Latching relay 24V AC EPN541 Hager EPN541
Back view

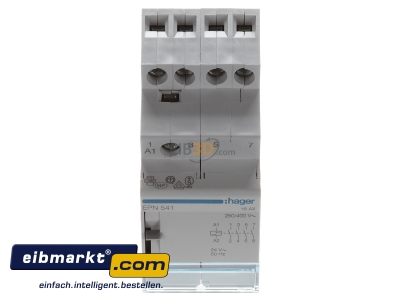

View up front Latching relay 24V AC EPN541 Hager EPN541
View up front
View top left Latching relay 24V AC EPN541 Hager EPN541
View top left

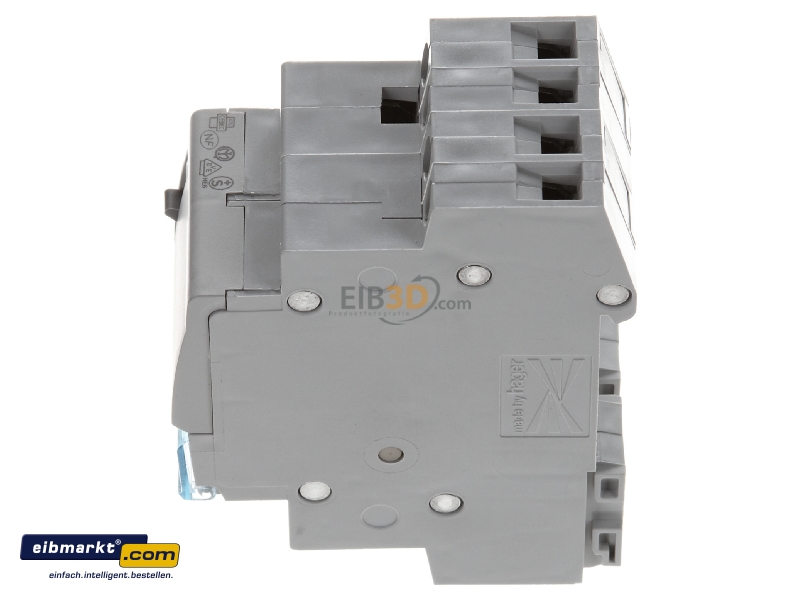

View top right Latching relay 24V AC EPN541 Hager EPN541
View top right

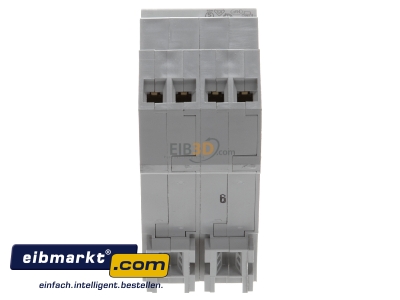

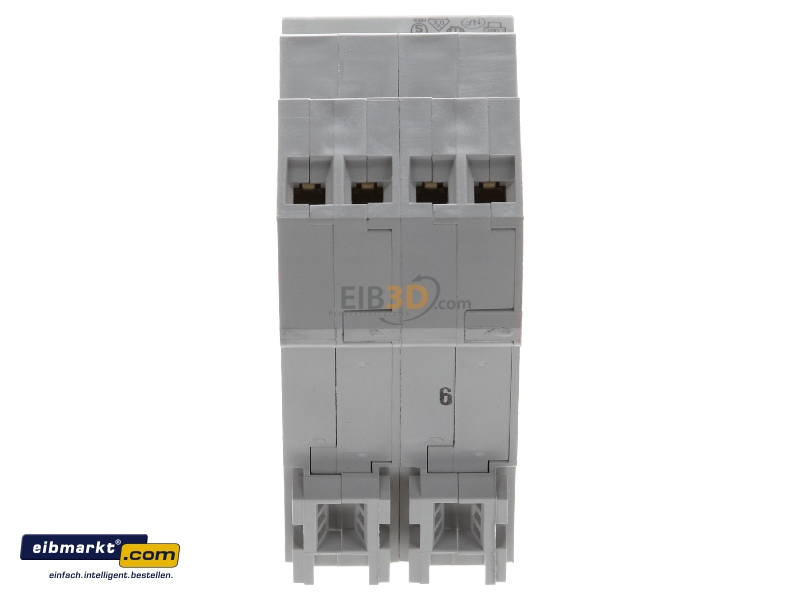

Top rear view Latching relay 24V AC EPN541 Hager EPN541
Top rear view
