Source photo: www.EIB3D.com

Installation contactor 230VAC/DC ESC263S

EAN/GTIN: 3250612400331
WEEE: DE 23692311
Manufacturer: HAGER
Manufacturer no.: ESC263S
Customs tariff no.: 85364900
Similar top items: Show now & compare
47,43 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Installation contactor 230VAC/DC Rated operating voltage 400 ... 400V, Rated operation current 63A, Utility category 7, Rated excitation voltage 230 ... 230V, Voltage type (operating voltage) AC, Voltage type (excitation voltage) AC, Number of contacts as normally open contact 2, Number of contacts as normally closed contact 0, Max. incandescent lamp load 6500W, Max. load fluorescent lamp 3000VA, Max. load fluorescent lamp (Duo circuit) 4700VA, Max. load fluorescent lamp (parallel compensated) 2100VA, Number of modular spacings 3, Built-in depth 60mm, Additional equipment possible, Degree of protection (IP) IP2X

More product images:

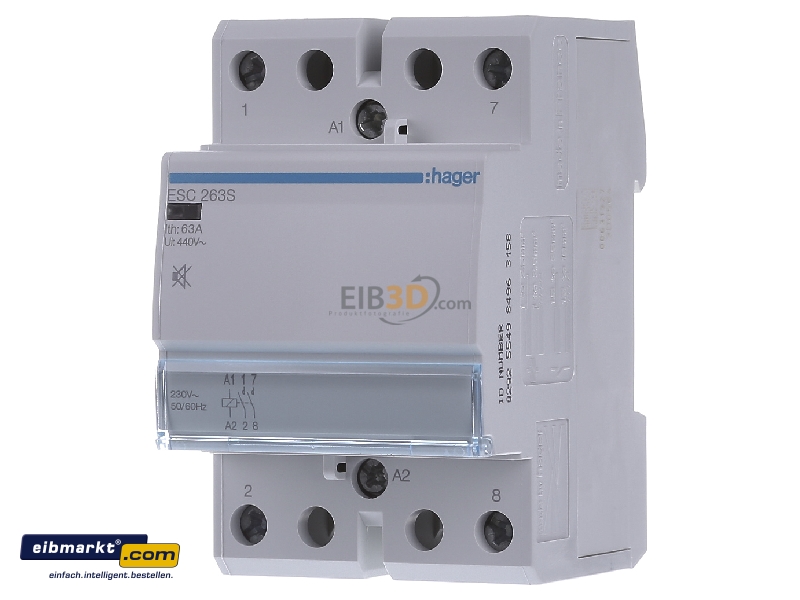

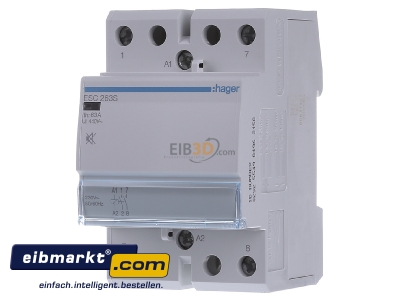

Front view Hager ESC263S Installation contactor 2 NO/ 0 NC
Front view

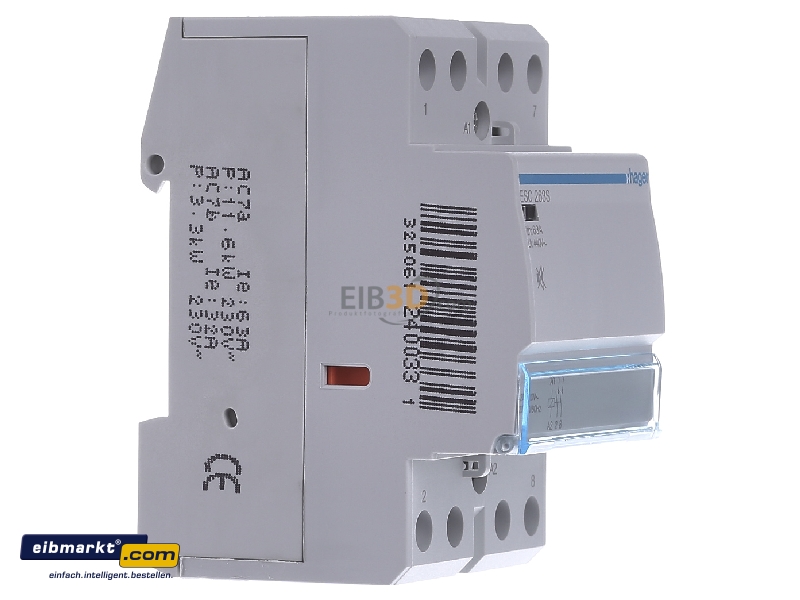

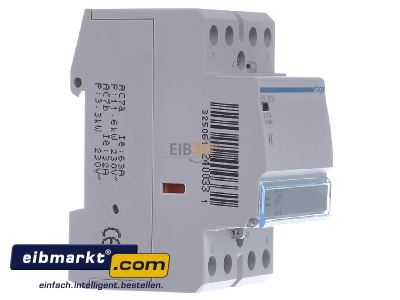

View on the left Hager ESC263S Installation contactor 2 NO/ 0 NC
View on the left

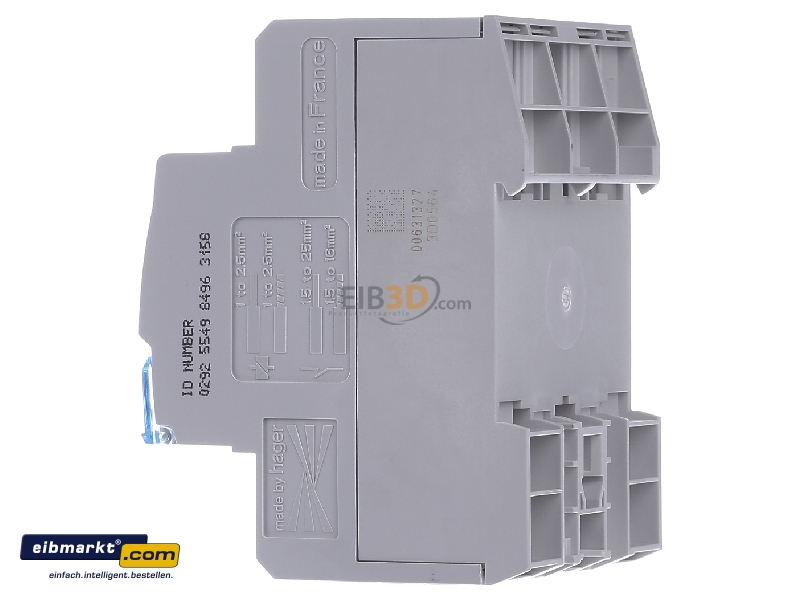

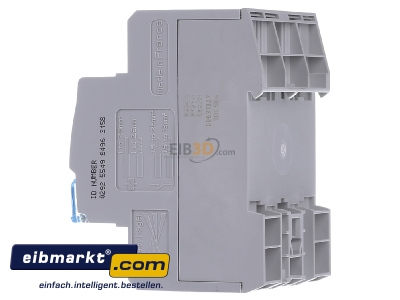

View on the right Hager ESC263S Installation contactor 2 NO/ 0 NC
View on the right

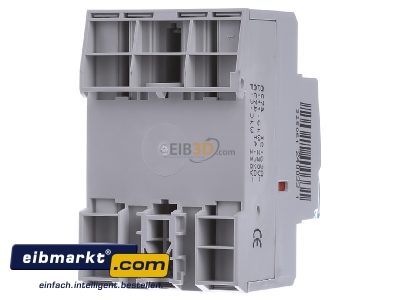

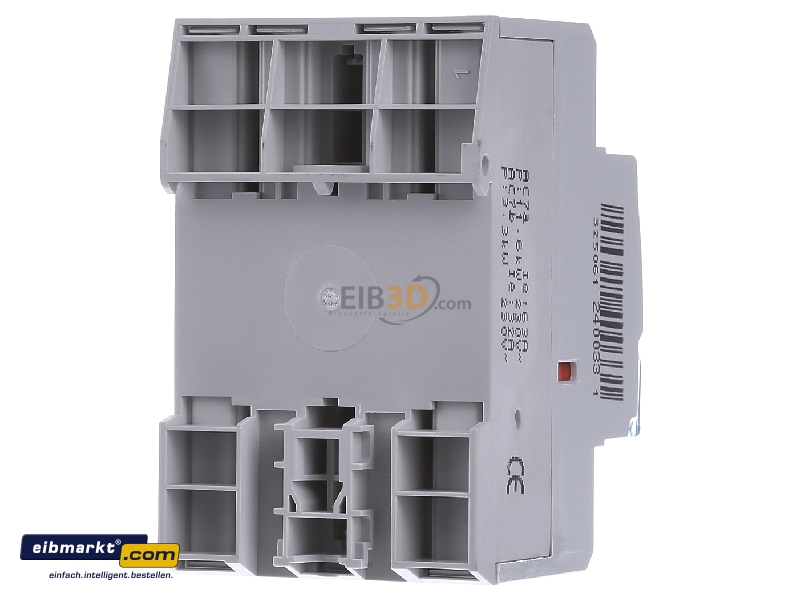

Back view Hager ESC263S Installation contactor 2 NO/ 0 NC
Back view
View up front Hager ESC263S Installation contactor 2 NO/ 0 NC
View up front

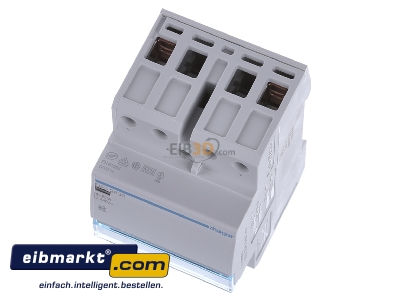

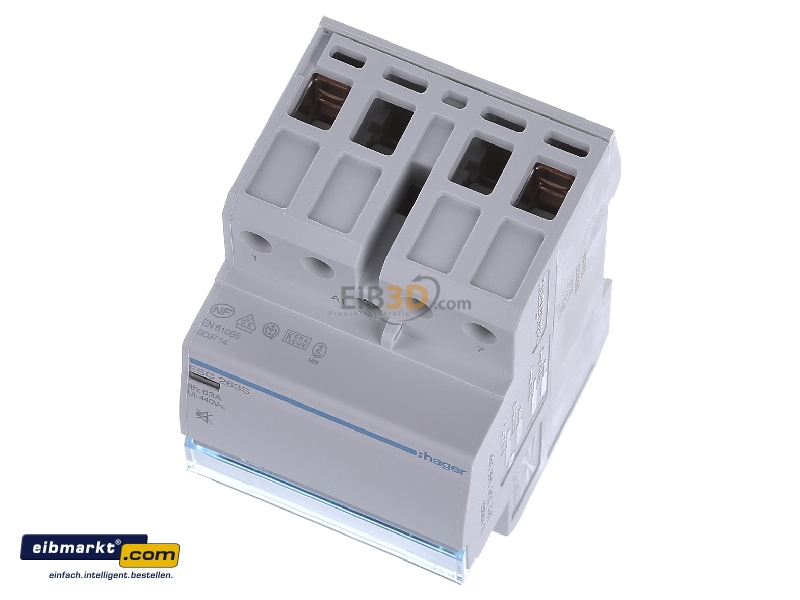

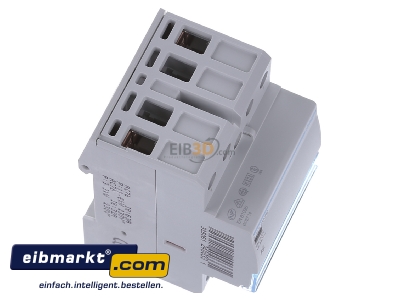

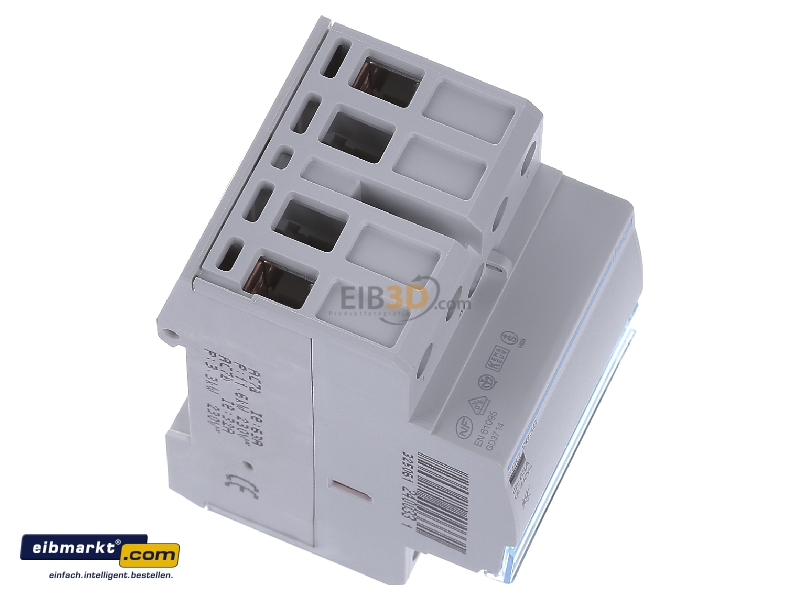

View top left Hager ESC263S Installation contactor 2 NO/ 0 NC
View top left

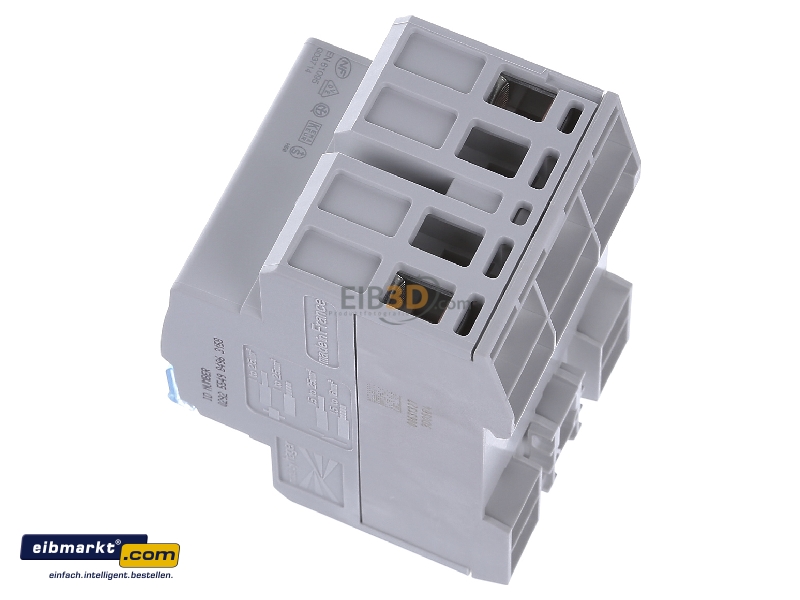

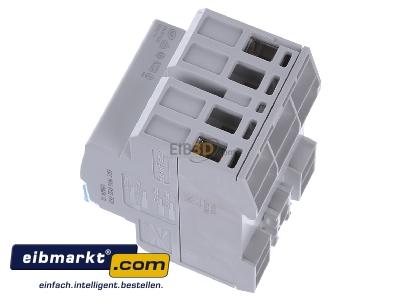

View top right Hager ESC263S Installation contactor 2 NO/ 0 NC
View top right

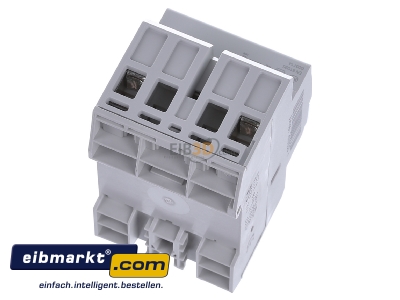

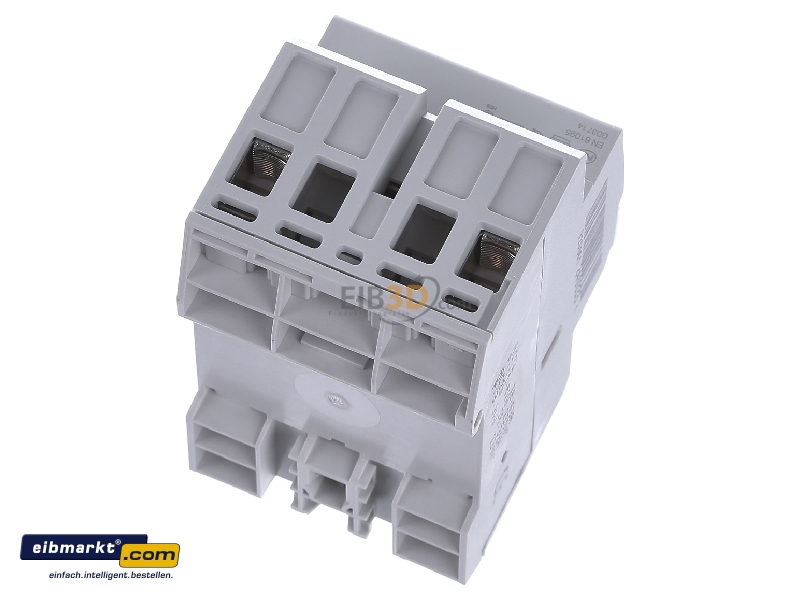

Top rear view Hager ESC263S Installation contactor 2 NO/ 0 NC
Top rear view
