PV Analyzer Multifunction FLK-SMFT-1000/LITE
Source photo:
Fluke
(fig. might be different or similar)

PV Analyzer Multifunction FLK-SMFT-1000/LITE

EAN/GTIN: 0195112127940
WEEE: DE 30202500
Manufacturer: Fluke
Manufacturer no.: FLK-SMFT-1000/LITE
Manufact.-SKU: 6008183
Customs tariff no.: 90303200
Similar top items: Show now & compare
3.631,17 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought

With display=yes, Type of interface=USB, Type of power supply=Battery, Measured value memory=yes, Continuity resistor=0,2..2000 Ohm, Continuity measurement current=200..400 mA, Compensation of measuring line resistance=Manual, Open circuit voltage measurement Uoc=5..1000 V, Short circuit current measurement Isc=0,2..20 A, Isolation resistance measuring range=0,2..999 MOhm, Insulation resistance measurement voltage=50..1000 V, External voltage detection=yes, Polarity check=yes, Earth fault measurement=yes, Measurement of solar radiation=no, Temperature measurement=no, Module database=yes, Parallel line resistor measurement Rp=no, Internal serial resistance measurement Rs=no, Measurement Maximum Power Point (MPP)=no, Peak performance measurement (Ppk)=no, Transposition to STC=no, Transposition to NOCT=no, Current voltage curve trace=no, Method of current voltage curve trace=Other, Fill factor measurement (FF)=no, Power measurement=DC, Inverter efficiency measurement=no, With remote control=no, Degree of protection (IP)=IP40, Measuring circuit category=CAT III, Max. voltage measuring circuit category=1000 V, Length=250 mm, Width=125 mm, Height=100 mm, Weight=1,4 kg, Weight including battery-pack=1,4 kg

More product images:

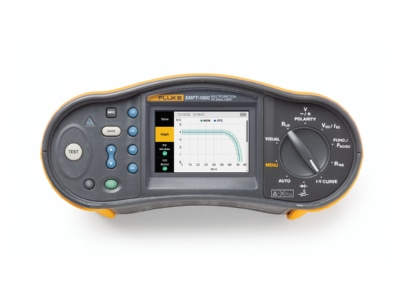

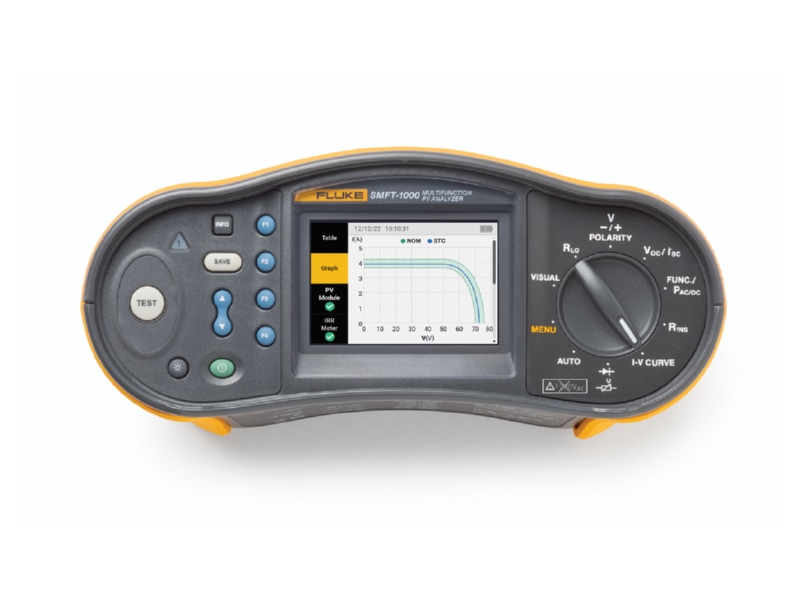

Product image 1 Fluke FLK SMFT 1000 LITE PV Analyzer Multifunction
Product image 1

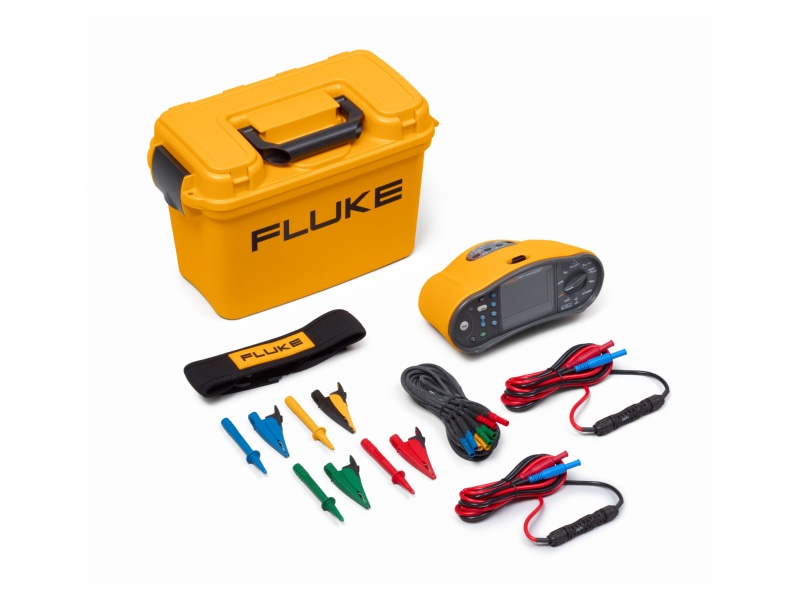

Product image 2 Fluke FLK SMFT 1000 LITE PV Analyzer Multifunction
Product image 2
