Source photo: www.EIB3D.com

Latching relay 50...60V AC 27.01.8.230.0000

EAN/GTIN: 8012823231792
WEEE: DE 43501029
Manufacturer: Finder
Manufacturer no.: 27.01.8.230.0000
Customs tariff no.: 85364900
Similar top items: Show now & compare
10,86 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Latching relay 50...60V AC Function Mechanical switch, Mounting method Flush mounted (plaster), Built-in depth 21,5mm, Number of contacts as normally open contact 1, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Control voltage 1 50 ... 60V, Type of control voltage 1 AC, Frequency control voltage 1 50 ... 60Hz, Rated switch current 10A, Supply voltage 230 ... 230V, Voltage type of supply voltage AC, Max. incandescent lamp load 1000W, Max. load fluorescent lamp 500VA, Max. load fluorescent lamp (Duo circuit) 500VA, Max. load fluorescent lamp (parallel compensated) 360VA, Max. switching current (cos phi = 0.6) 7,5A

More product images:

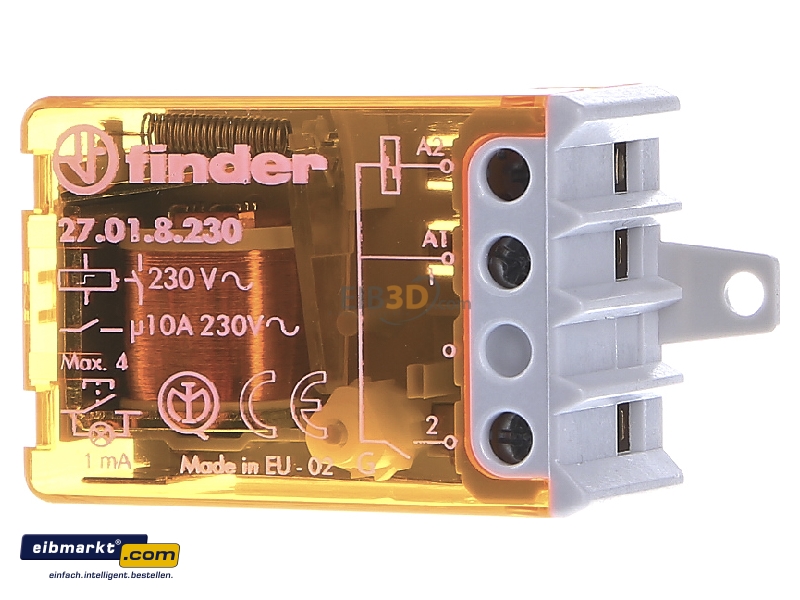

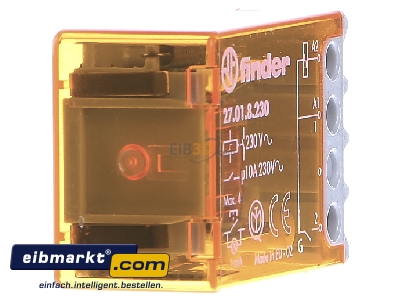

Front view Finder 27.01.8.230.0000 Latching relay 50...60V AC
Front view

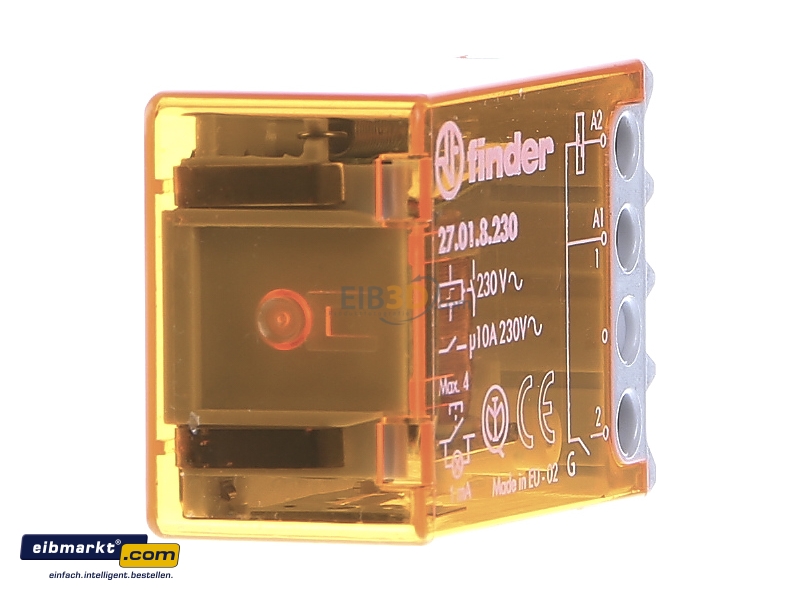

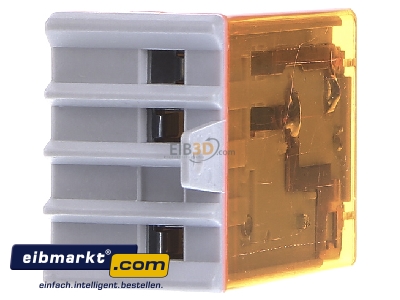

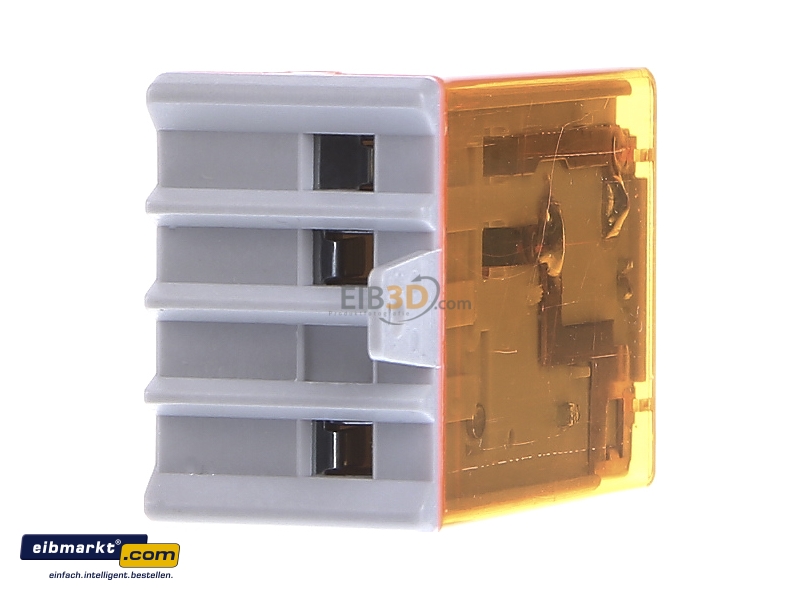

View on the left Finder 27.01.8.230.0000 Latching relay 50...60V AC
View on the left
View on the right Finder 27.01.8.230.0000 Latching relay 50...60V AC
View on the right

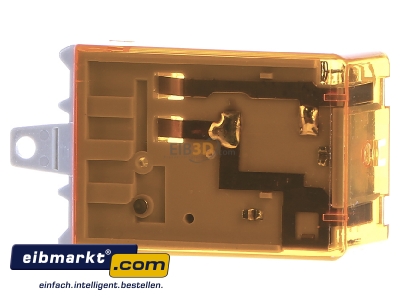

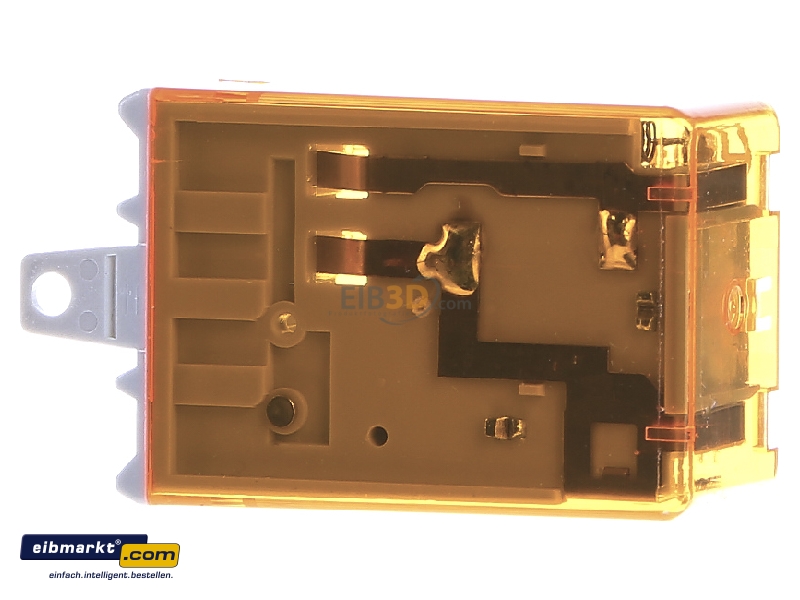

Back view Finder 27.01.8.230.0000 Latching relay 50...60V AC
Back view

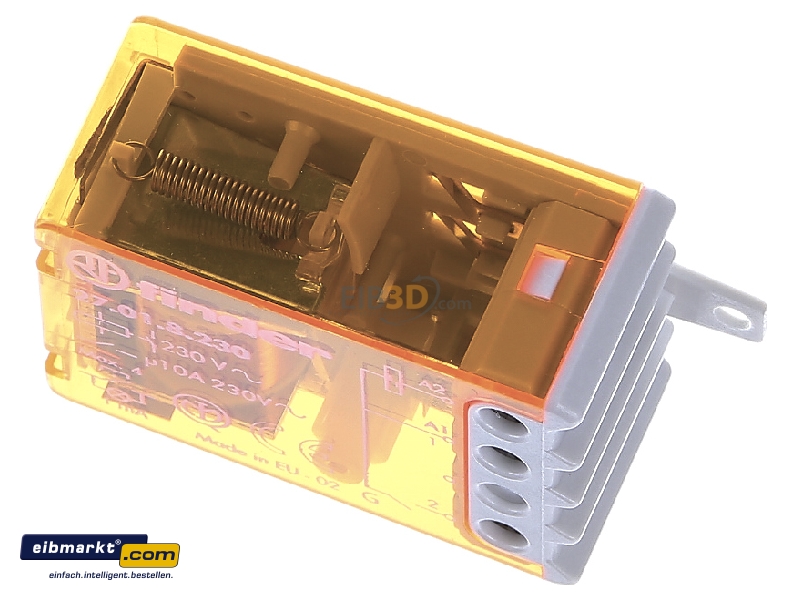

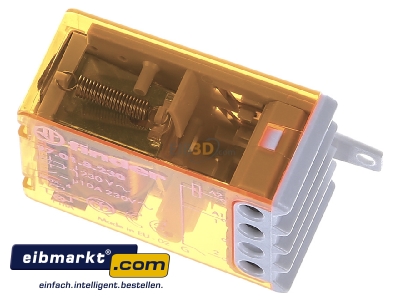

View up front Finder 27.01.8.230.0000 Latching relay 50...60V AC
View up front

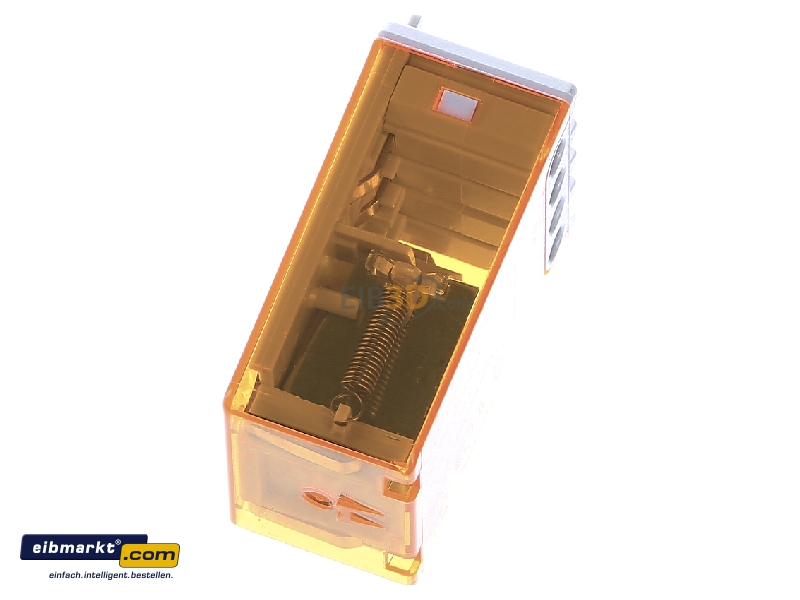

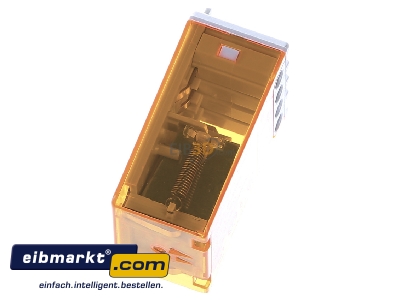

View top left Finder 27.01.8.230.0000 Latching relay 50...60V AC
View top left

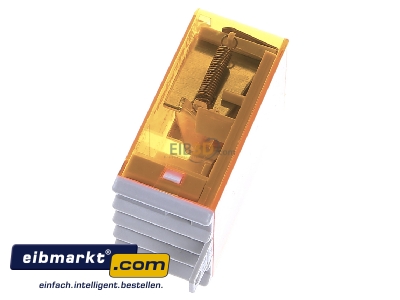

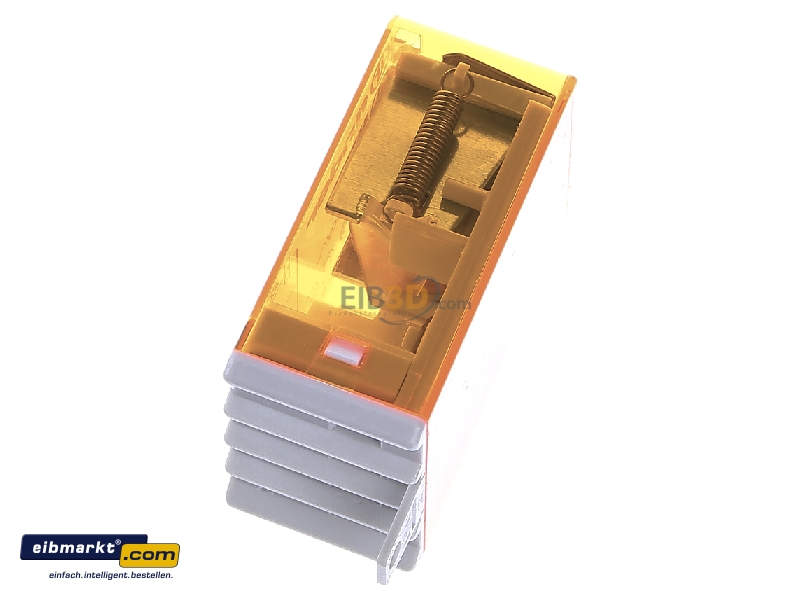

View top right Finder 27.01.8.230.0000 Latching relay 50...60V AC
View top right

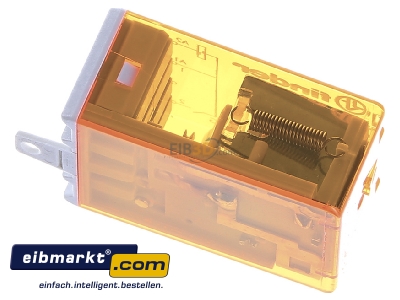

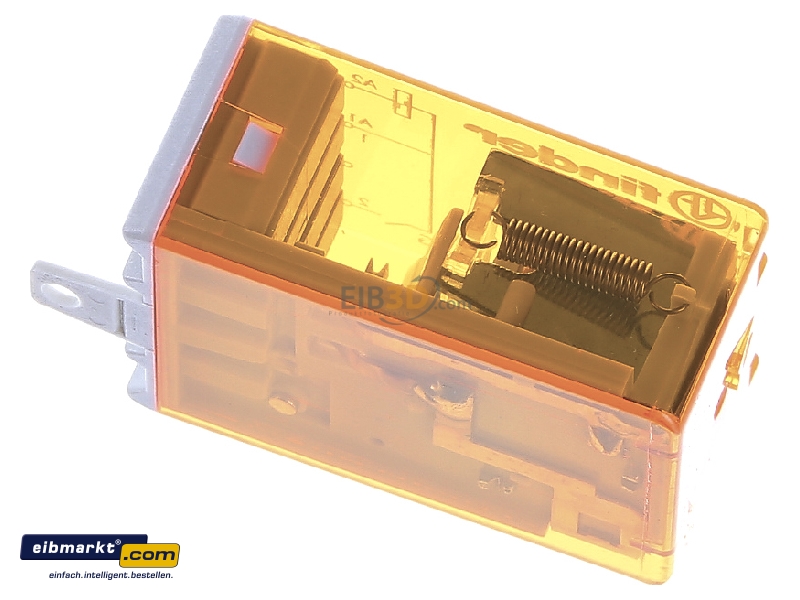

Top rear view Finder 27.01.8.230.0000 Latching relay 50...60V AC
Top rear view
