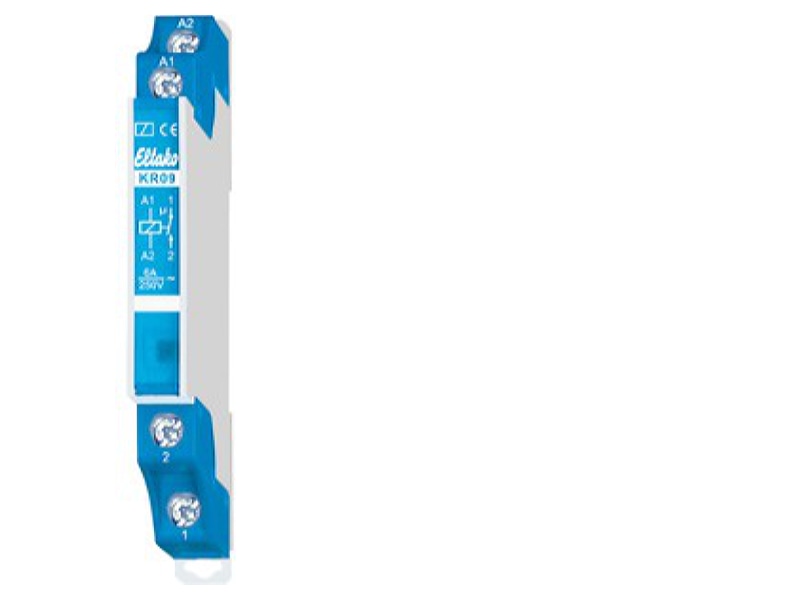

Installation relay 230VAC KR09-230V

EAN/GTIN: 4010312203378
WEEE: DE 30298319
Manufacturer: Eltako
Manufacturer no.: KR09-230V
Manufact.-SKU: 22100730
Customs tariff no.: 85364900
Similar top items: Show now & compare
27,11 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Installation relay 230VAC Function Partially electronic, Mounting method DIN rail, Width in number of modular spacings 0,5, Built-in depth 55mm, Number of contacts as normally open contact 1, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Control voltage 1 230 ... 230V, Type of control voltage 1 AC, Frequency control voltage 1 50 ... 50Hz, Rated current 6A, Max. incandescent lamp load 500W, Max. load fluorescent lamp 600VA, Max. load fluorescent lamp (Duo circuit) 600VA, Max. load fluorescent lamp (parallel compensated) 300VA, Max. switching current (cos phi = 0.6) 2A

More product images:

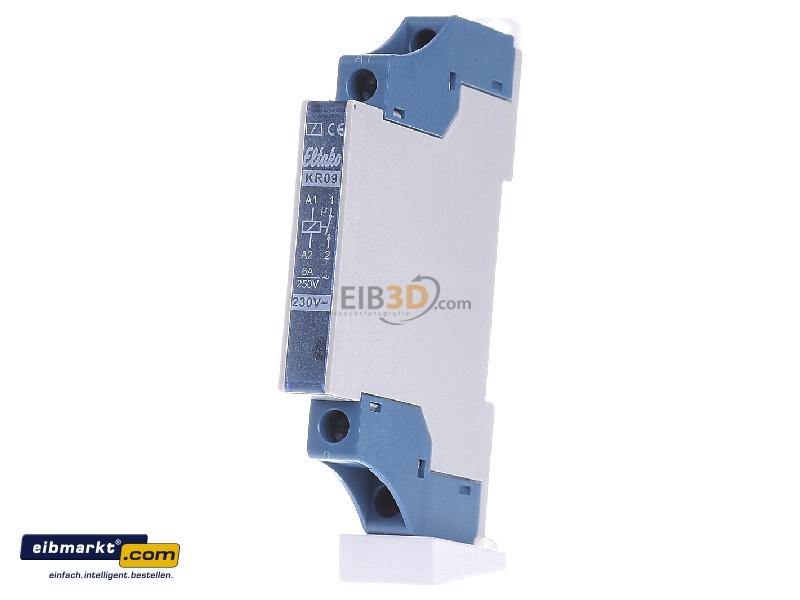

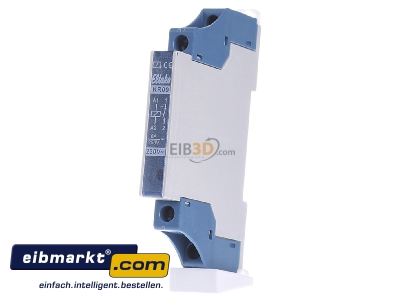

Front view Eltako KR09-230V Installation relay 230VAC -
Front view

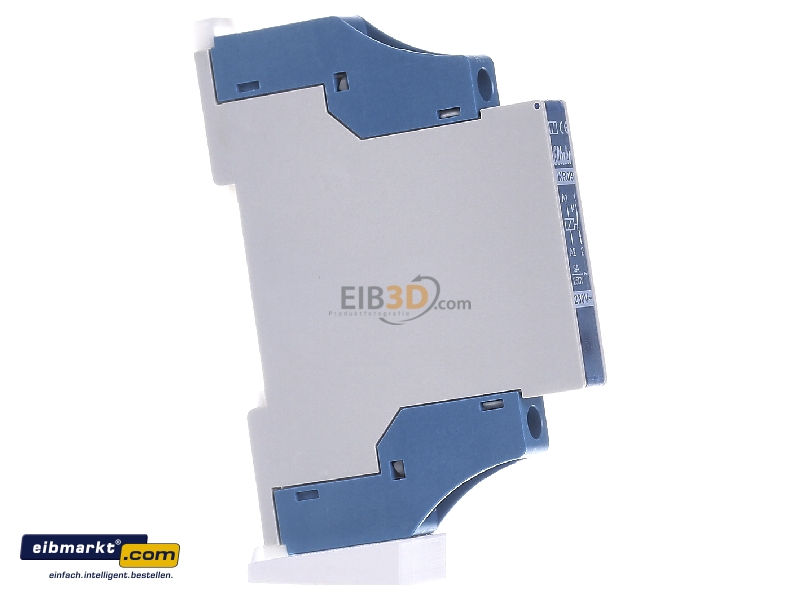

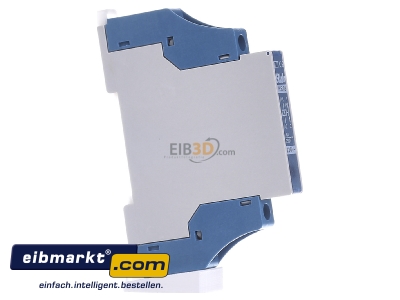

View on the left Eltako KR09-230V Installation relay 230VAC -
View on the left

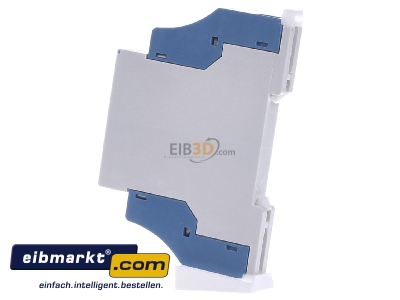

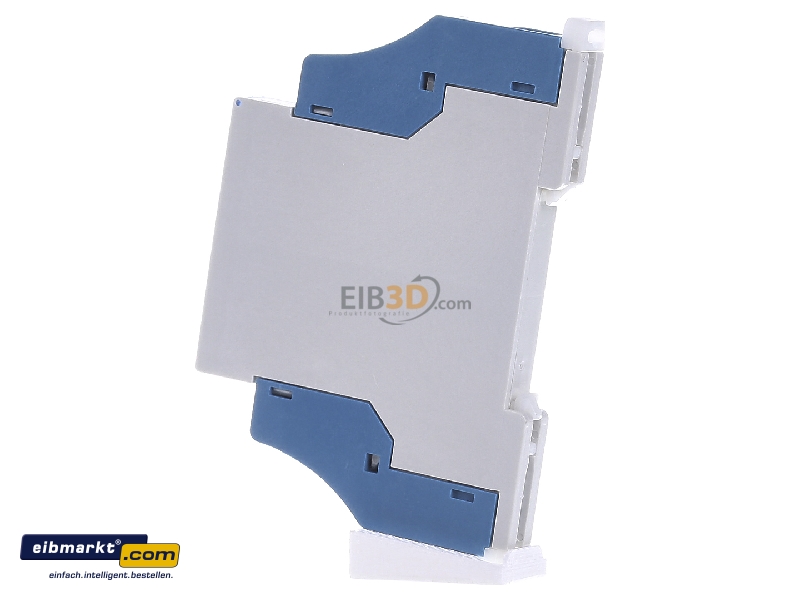

View on the right Eltako KR09-230V Installation relay 230VAC -
View on the right

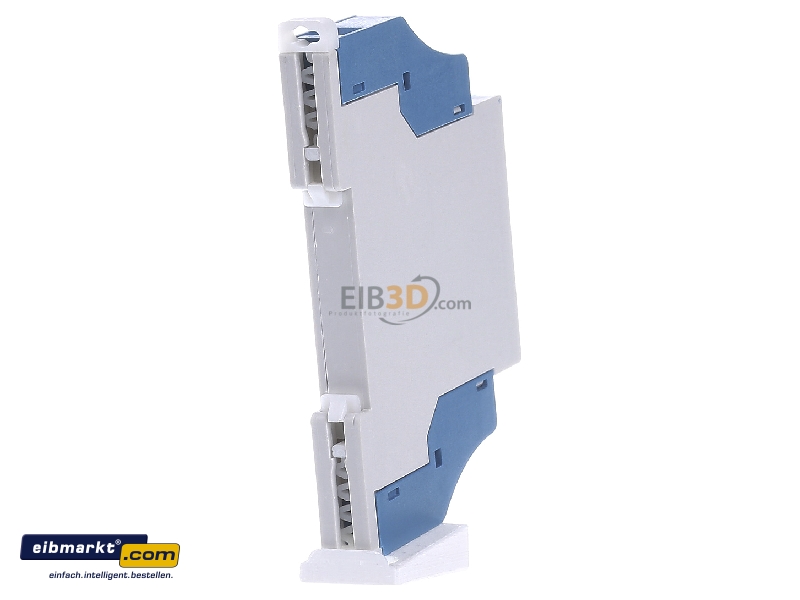

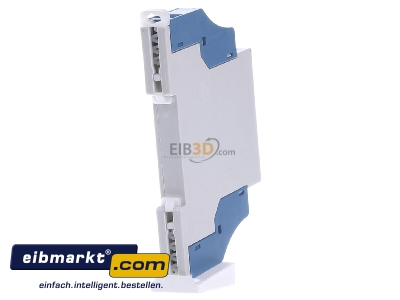

Back view Eltako KR09-230V Installation relay 230VAC -
Back view

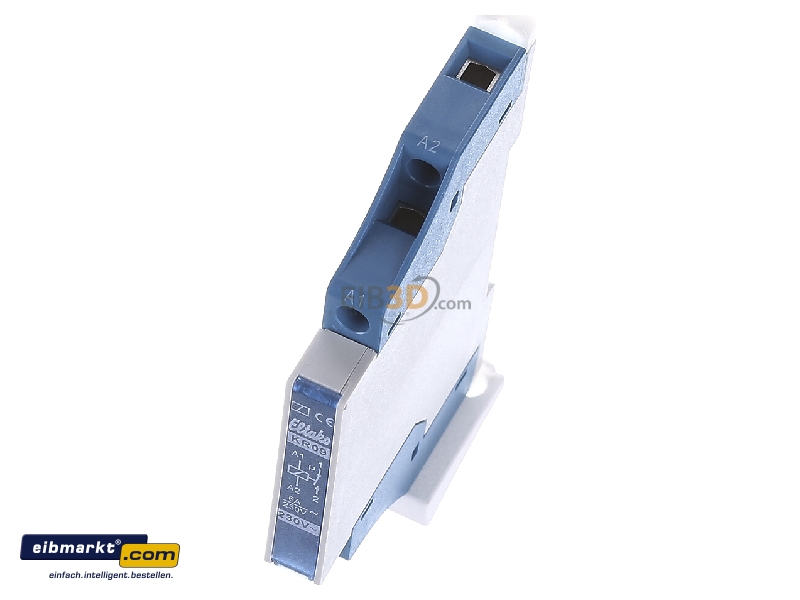

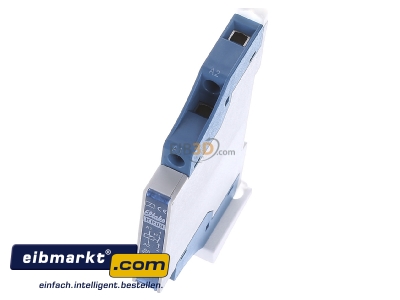

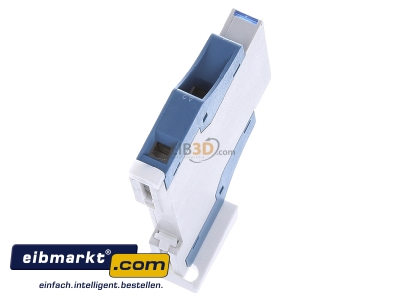

View up front Eltako KR09-230V Installation relay 230VAC -
View up front

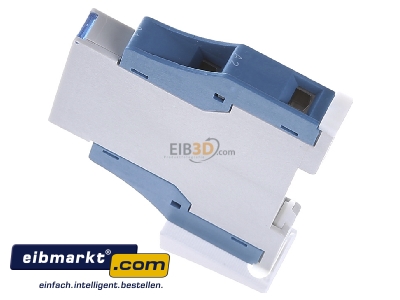

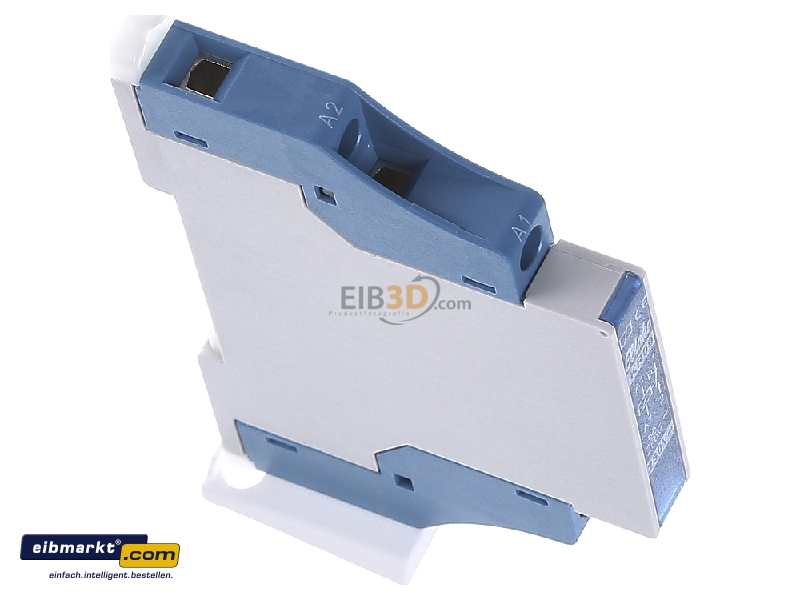

View top left Eltako KR09-230V Installation relay 230VAC -
View top left

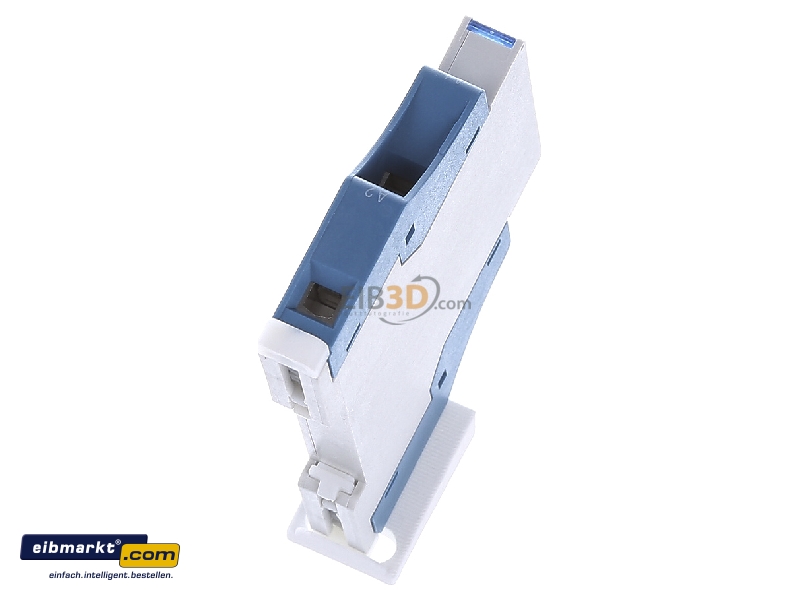

View top right Eltako KR09-230V Installation relay 230VAC -
View top right

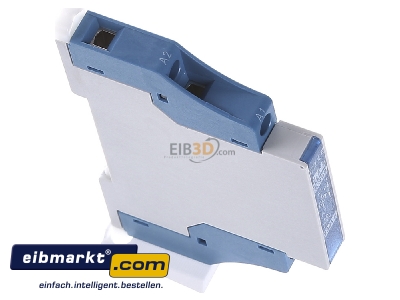

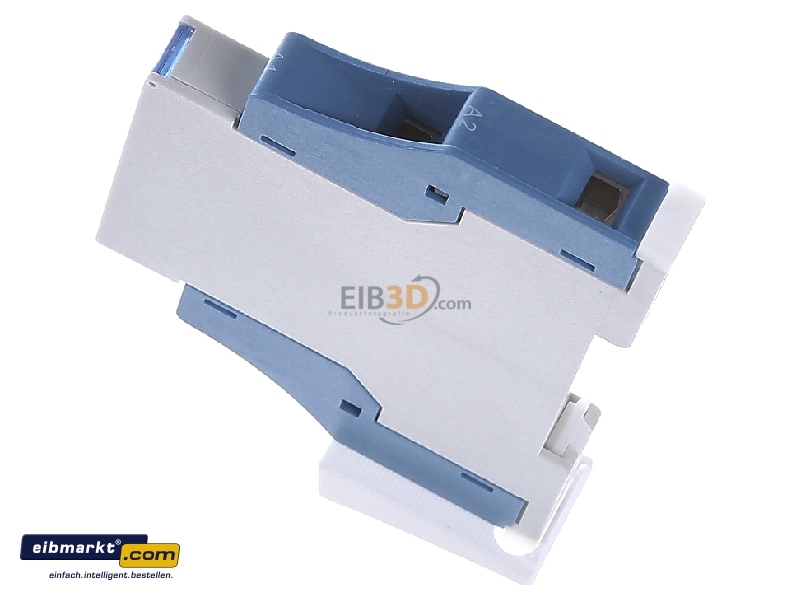

Top rear view Eltako KR09-230V Installation relay 230VAC -
Top rear view
