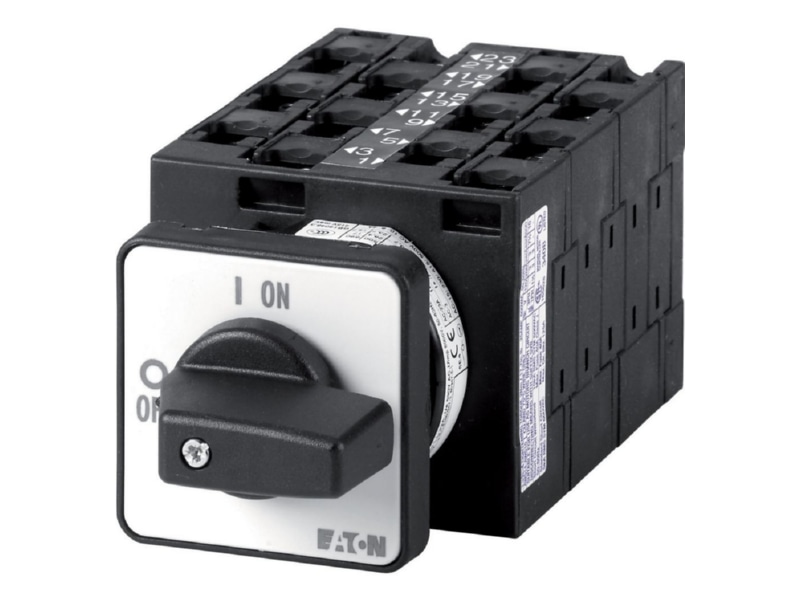

Off-load switch 3-p 32A T3-6-15877/E
Source photo:
Eaton
(fig. might be different or similar)

Off-load switch 3-p 32A T3-6-15877/E

EAN/GTIN: 4015080238959
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: T3-6-15877/E
Manufact.-SKU: 023895
Customs tariff no.: 85365080
Similar top items: Show now & compare
113,07 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Off-load switch 3-p 32A Model Turnaround star-delta switch, Number of poles 3, With 0 (off) position, Rated permanent current Iu 32A, Rated operation current Ie at AC-3, 400 V 23,7A, Rated operation power at AC-3, 400 V 18,5kW, Degree of protection (IP), front side IP65, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as change-over contact 0, Suitable for front mounting 4-hole, Type of control element Toggle, Type of electrical connection of main circuit Screw connection

More product images:

Product image Eaton T3 6 15877 E Off load switch 3 p 32A
Product image
View left Eaton T3 6 15877 E Off load switch 3 p 32A
View left
