Roller cam switch IP67 LS-11/P
Source photo:
Eaton
(fig. might be different or similar)

Roller cam switch IP67 LS-11/P

EAN/GTIN: 4015082661120
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: LS-11/P
Manufact.-SKU: 266112
Customs tariff no.: 85365080
Similar top items: Show now & compare
32,11 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Roller cam switch IP67 Width sensor 31mm, Diameter sensor 0mm, Height of sensor 61mm, Length of sensor 33,5mm, Rated operation current Ie at AC-15, 24 V 6A, Rated operation current Ie at AC-15, 125 V 6A, Rated operation current Ie at AC-15, 230 V 6A, Rated operation current Ie at DC-13, 24 V 3A, Rated operation current Ie at DC-13, 125 V 0,8A, Rated operation current Ie at DC-13, 230 V 0,3A, Switching function Slow-action switch, Forced opening, Number of safety auxiliary contacts 1, Number of contacts as normally closed contact 1, Number of contacts as normally open contact 1, Number of contacts as change-over contact 0, Type of interface None, Type of interface for safety communication None, Construction type housing Cuboid, Material housing Plastic, Coating housing Other, Type of control element Roller cam, Alignment of the control element Other, Type of electric connection Other, Suitable for safety functions, Explosion safety category for gas None, Explosion safety category for dust None, Ambient temperature during operating 25 ... 70°C, Degree of protection (IP) IP67, Degree of protection (NEMA) 4X

More product images:

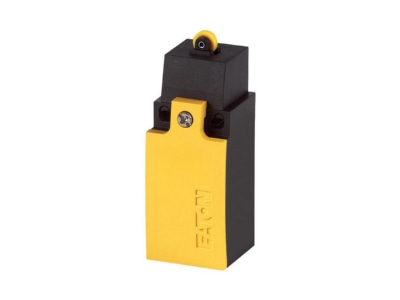

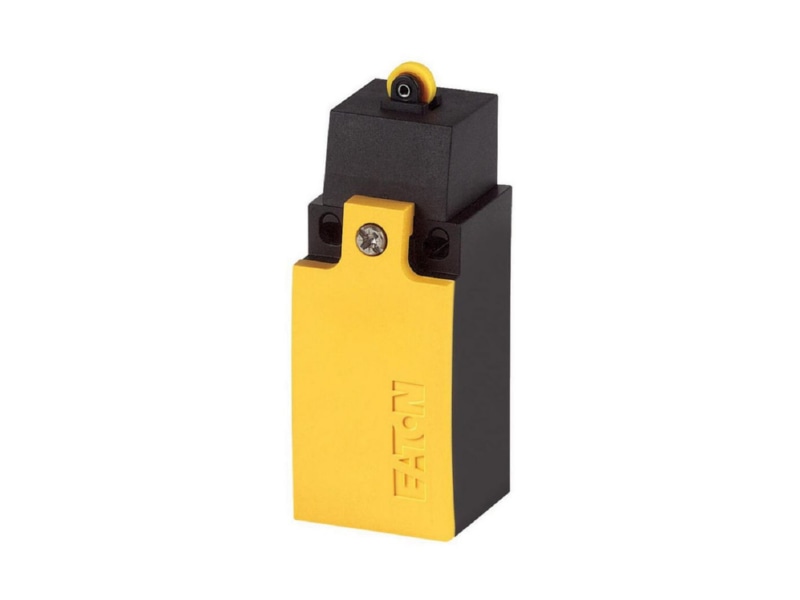

Product image Eaton LS 11 P Roller cam switch IP67
Product image
View left Eaton LS 11 P Roller cam switch IP67
View left
