Pressure switch 0...3,8bar MCSN4

EAN/GTIN: 4015080576792
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: MCSN4
Manufact.-SKU: 057679
Customs tariff no.: 85365080
Similar top items: Show now & compare
101,08 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Pressure switch 0...3,8bar Suitable as guard, Suitable as 2-point controller, Max. operation pressure 7000hPa, Engaging pressure 0 ... 3,8bar, Initial setting 0hPa, Switch off pressure 0 ... 4,5bar, End setting 0hPa, Pressure-switching differential 0bar, Max. test pressure 32bar, Bursting pressure 90bar, Medium temperature 25 ... 80°C, Connection Inner thread gas cylindrical (BSPP), Thread size 1/2 inch, Rated voltage Ue at AC 50 Hz 0 ... 400V, Rated voltage Ue at AC 60 Hz 0 ... 400V, Rated voltage Ue at DC 0 ... 250V, Initial value measuring range pressure 0Pa, End value measuring range pressure 0Pa, Rated operation power at AC-3, 400 V 5,5kW, Switching capacity at AC-3, 240 V 0kA, Rated operation current Ie at AC-1, 400 V 0A, Rated operation current Ie at AC-3, 400 V 11,5A, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as change-over contact 0, Type of electric connection Screw connection, Number of normally closed contacts as main contact 3, Number of main contacts as normally open contact 0, Adjustable current range 0A, Degree of protection (IP) IP65, Degree of protection (NEMA) Other, Height 110mm, Width 60mm, Diameter 0mm, Depth 96mm

More product images:

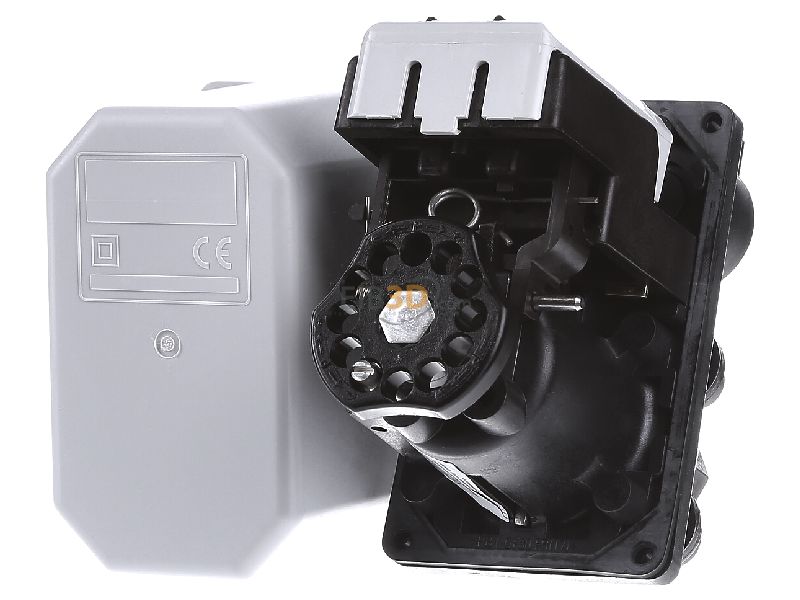

Front view Eaton MCSN4 Pressure switch 0...3,8bar
Front view

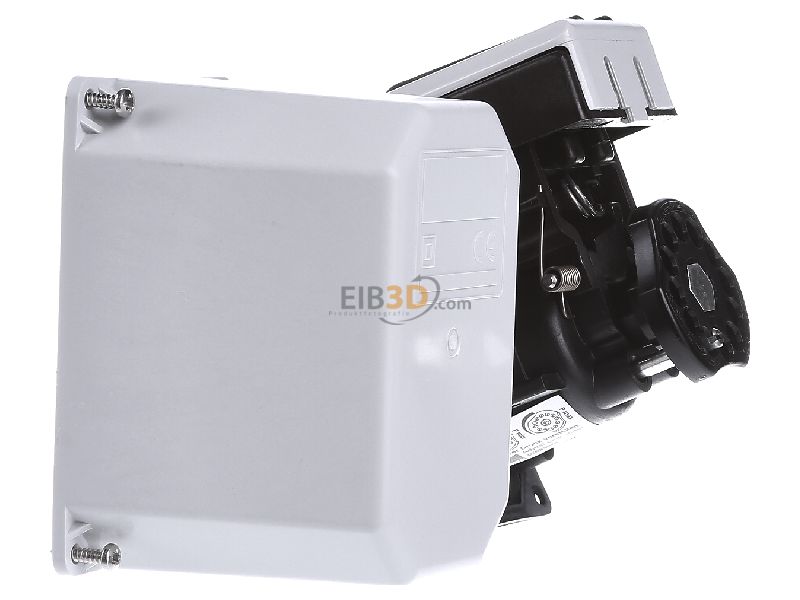

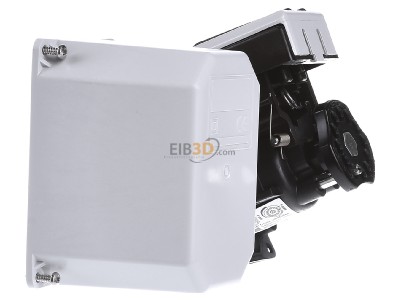

View on the left Eaton MCSN4 Pressure switch 0...3,8bar
View on the left

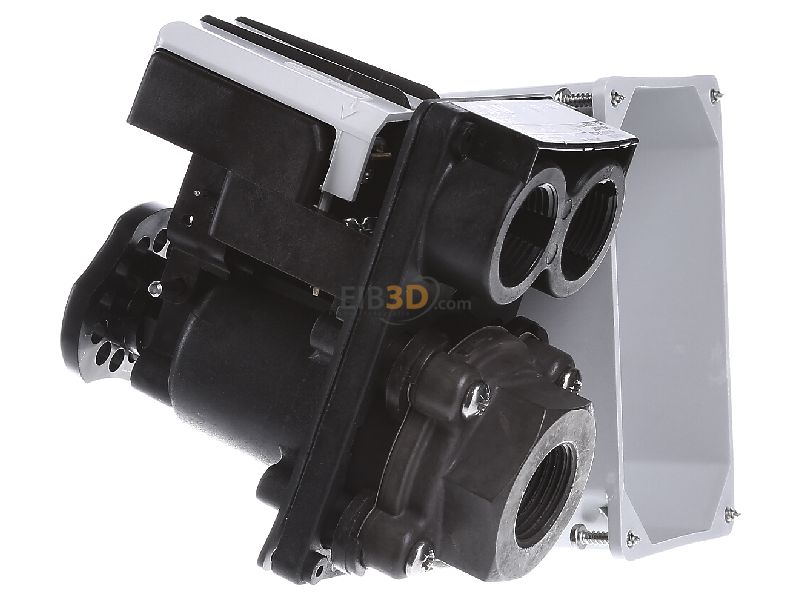

View on the right Eaton MCSN4 Pressure switch 0...3,8bar
View on the right

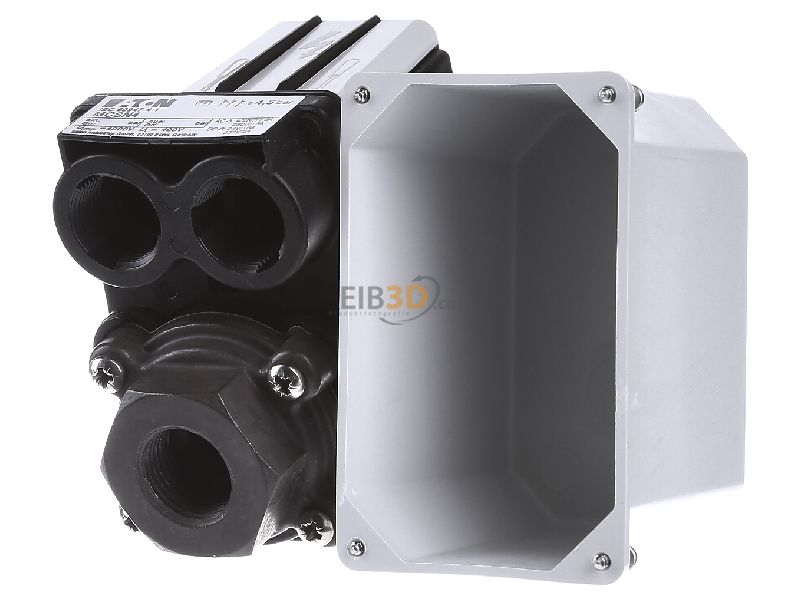

Back view Eaton MCSN4 Pressure switch 0...3,8bar
Back view
View up front Eaton MCSN4 Pressure switch 0...3,8bar
View up front

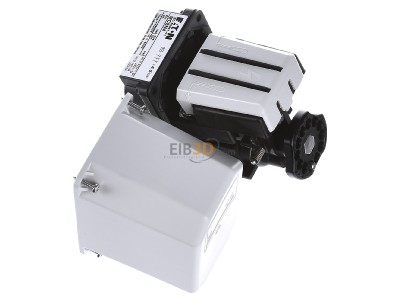

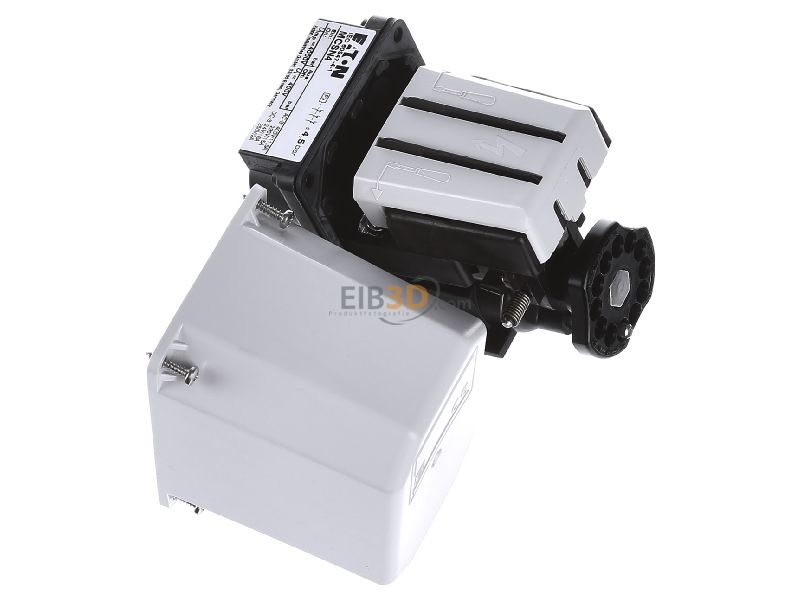

View top left Eaton MCSN4 Pressure switch 0...3,8bar
View top left

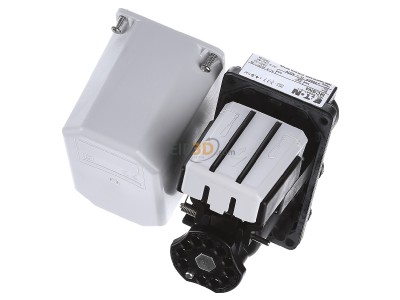

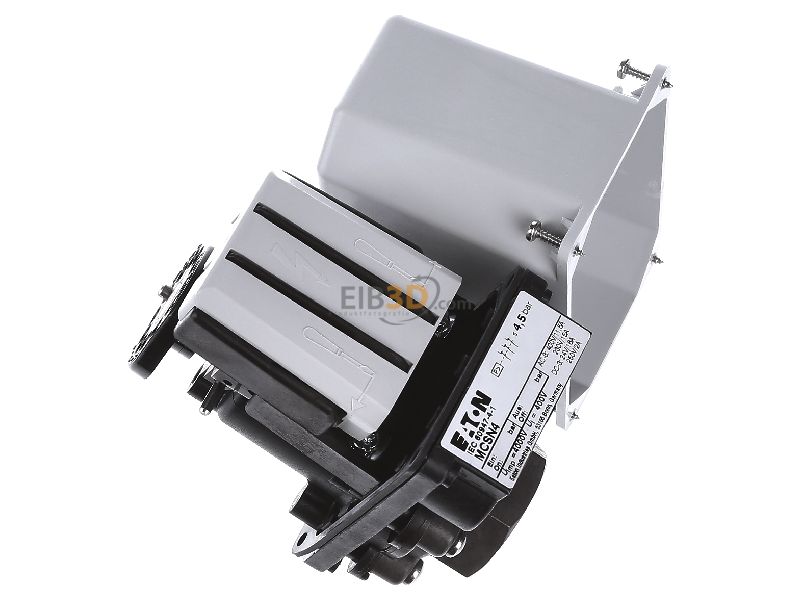

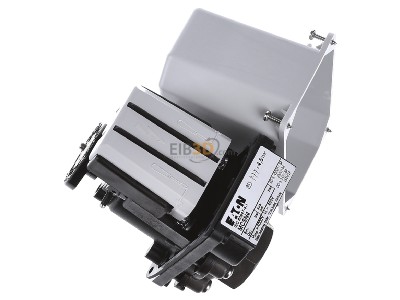

View top right Eaton MCSN4 Pressure switch 0...3,8bar
View top right

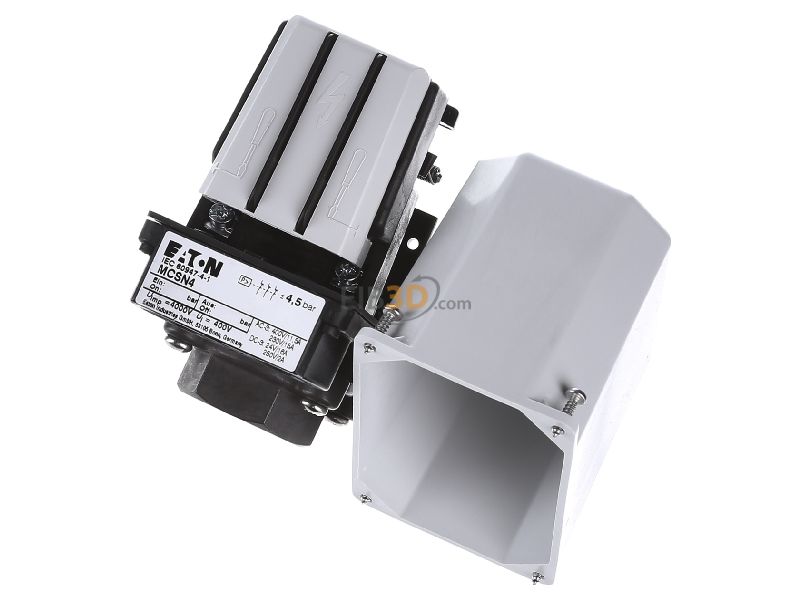

Top rear view Eaton MCSN4 Pressure switch 0...3,8bar
Top rear view

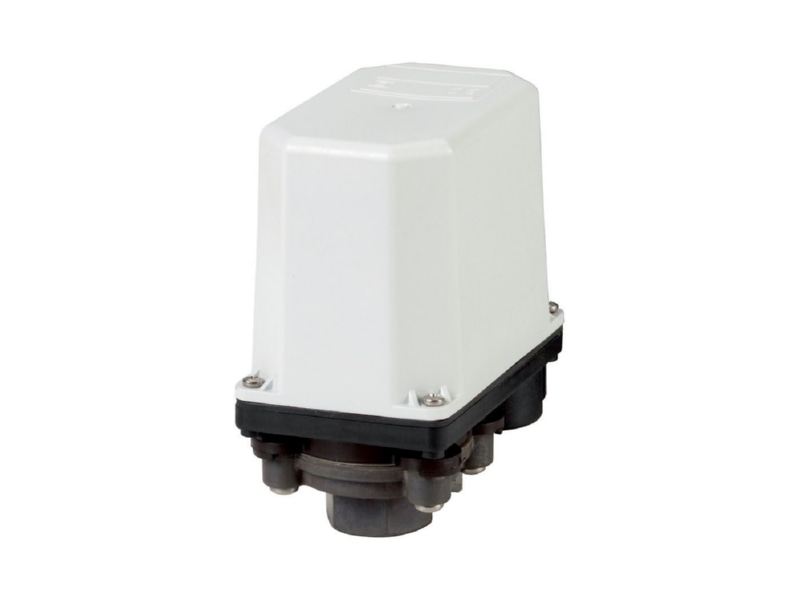

Product image 1 Eaton MCSN4 Pressure switch 0   3 8bar
Product image 1

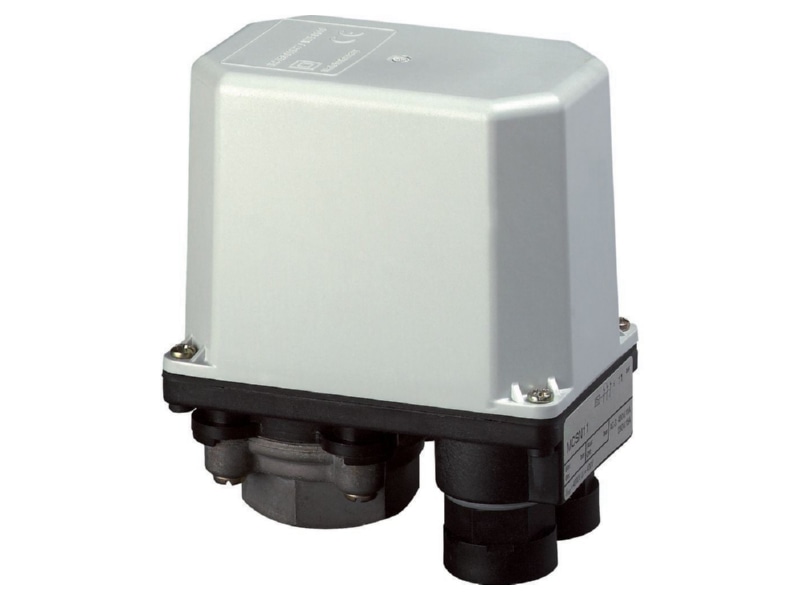

Product image 2 Eaton MCSN4 Pressure switch 0   3 8bar
Product image 2
Product image 3 Eaton MCSN4 Pressure switch 0   3 8bar
Product image 3
