Pressure switch 0...4,2bar MCS4

EAN/GTIN: 4015080197119
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: MCS4
Manufact.-SKU: 019711
Customs tariff no.: 85365019
Similar top items: Show now & compare
104,45 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Pressure switch 0...4,2bar Suitable as guard, Suitable as 2-point controller, Max. operation pressure 7000hPa, Engaging pressure 0 ... 4,2bar, Initial setting 0hPa, Switch off pressure 0 ... 4,5bar, End setting 0hPa, Pressure-switching differential 0bar, Max. test pressure 32bar, Bursting pressure 90bar, Medium temperature 25 ... 80°C, Connection Inner thread gas cylindrical (BSPP), Thread size 1/4 inch, Rated voltage Ue at AC 50 Hz 0 ... 230V, Rated voltage Ue at AC 60 Hz 0 ... 230V, Rated voltage Ue at DC 0 ... 110V, Initial value measuring range pressure 0Pa, End value measuring range pressure 0Pa, Rated operation power at AC-3, 400 V 0kW, Switching capacity at AC-3, 240 V 0kA, Rated operation current Ie at AC-1, 400 V 0A, Rated operation current Ie at AC-3, 400 V 0A, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as change-over contact 1, Type of electric connection Screw connection, Number of normally closed contacts as main contact 0, Number of main contacts as normally open contact 0, Adjustable current range 0A, Degree of protection (IP) IP65, Degree of protection (NEMA) Other, Height 110mm, Width 60mm, Diameter 0mm, Depth 96mm

More product images:

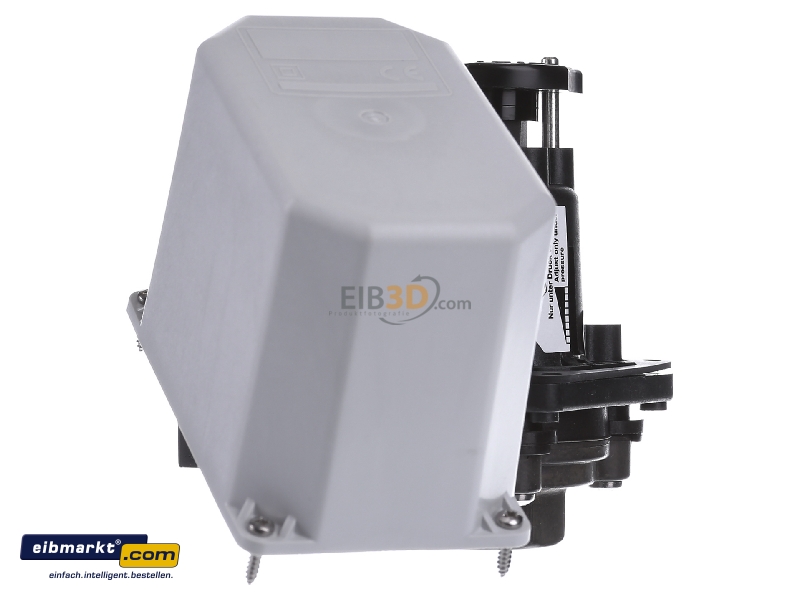

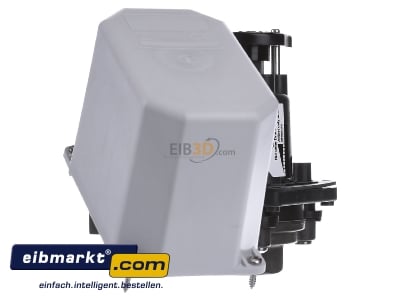

Front view Eaton (Moeller) MCS4 Pressure switch
Front view

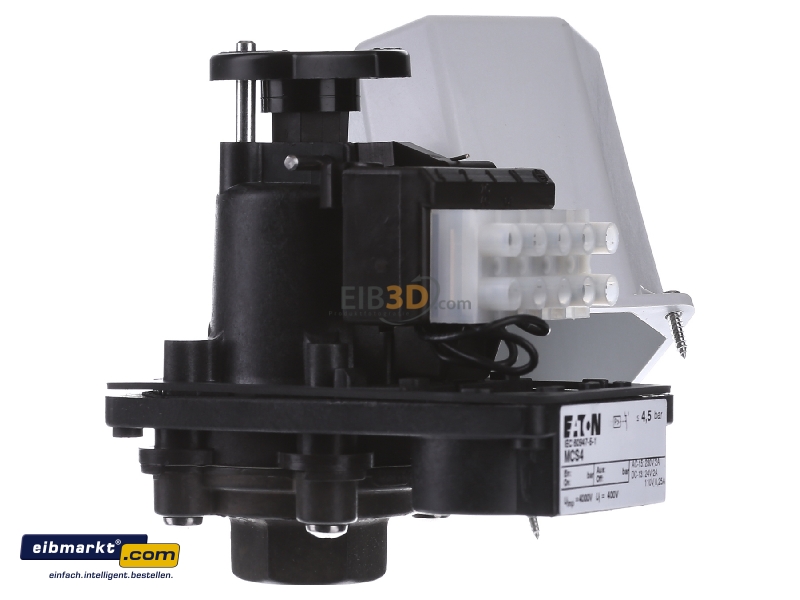

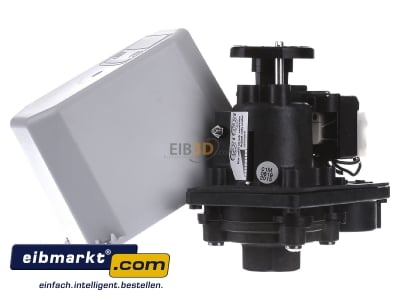

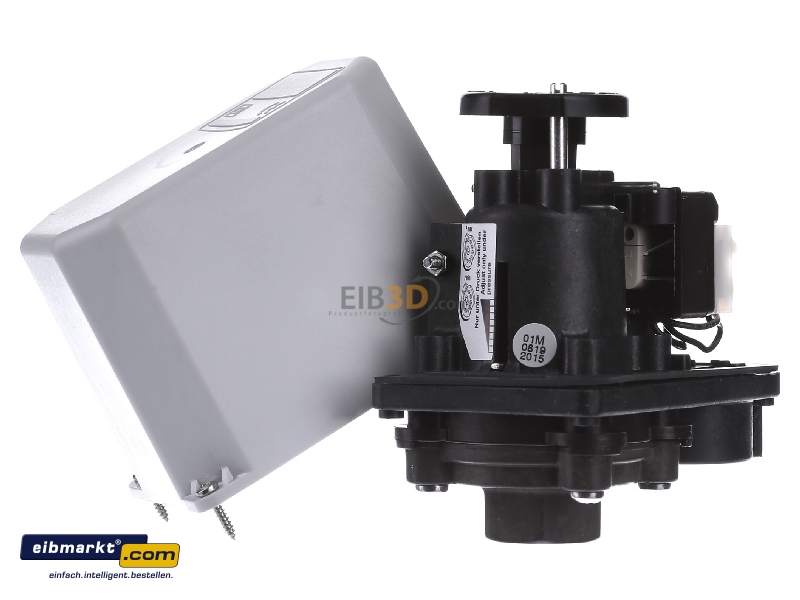

View on the left Eaton (Moeller) MCS4 Pressure switch
View on the left

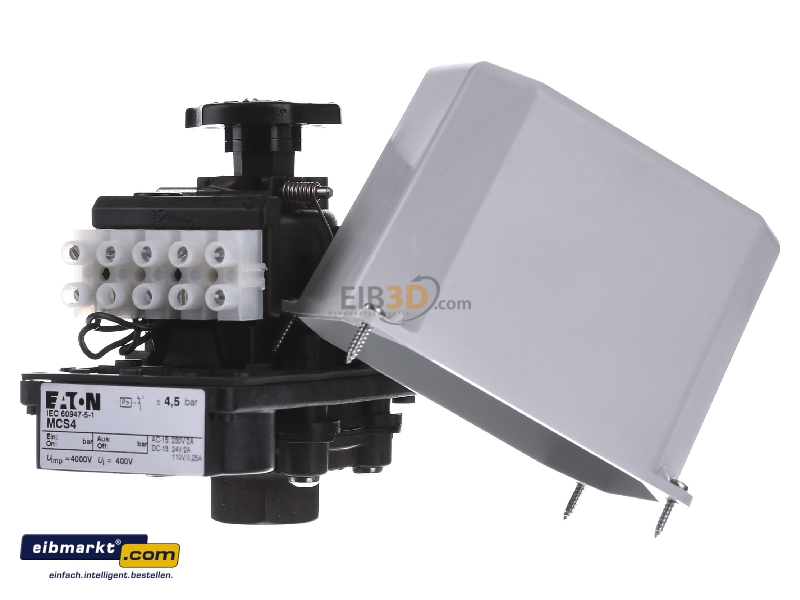

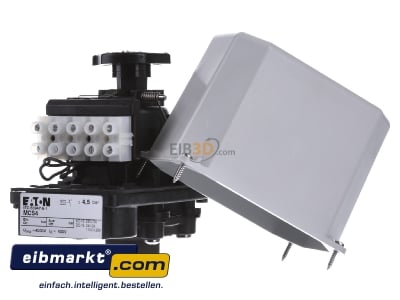

View on the right Eaton (Moeller) MCS4 Pressure switch
View on the right

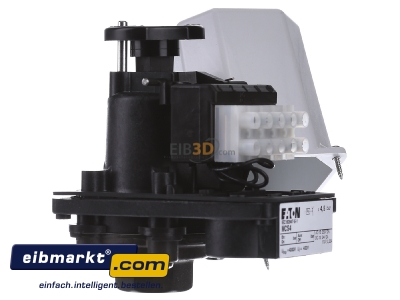

Back view Eaton (Moeller) MCS4 Pressure switch
Back view

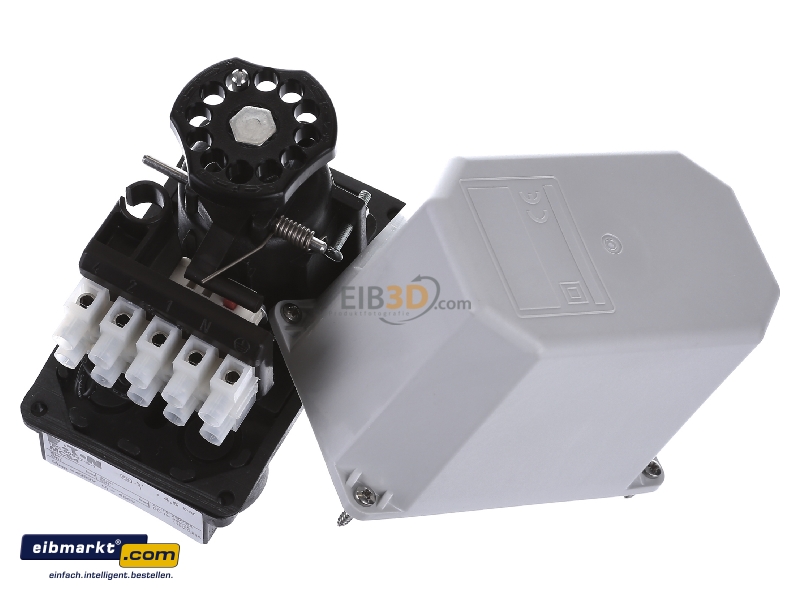

View up front Eaton (Moeller) MCS4 Pressure switch
View up front

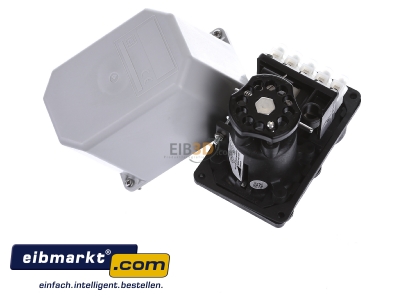

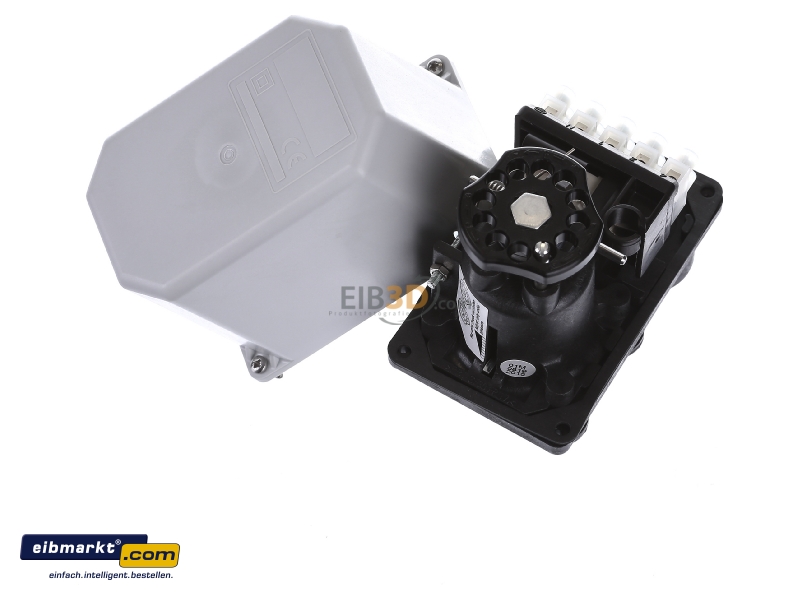

View top left Eaton (Moeller) MCS4 Pressure switch
View top left

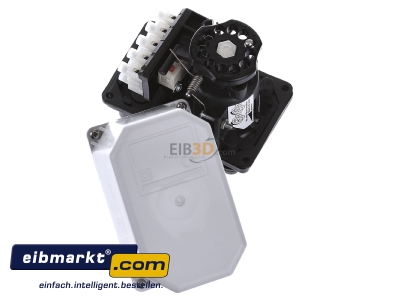

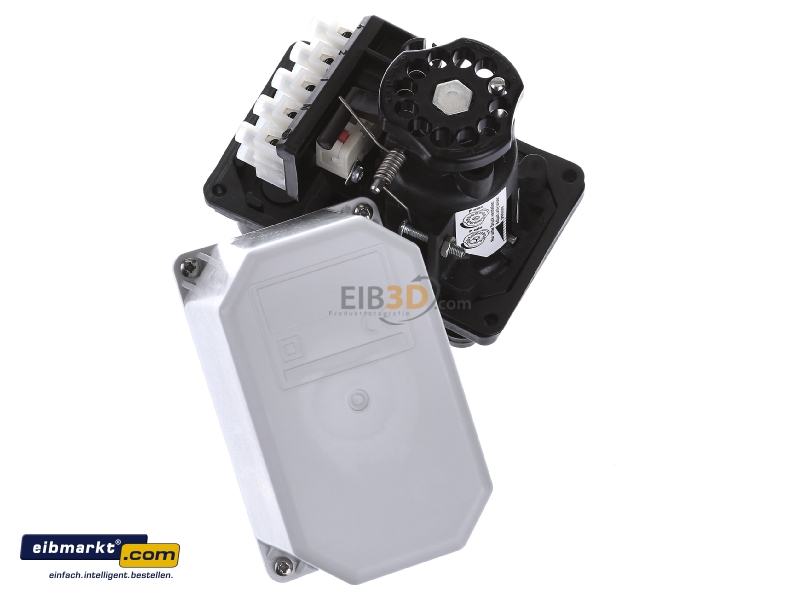

View top right Eaton (Moeller) MCS4 Pressure switch
View top right

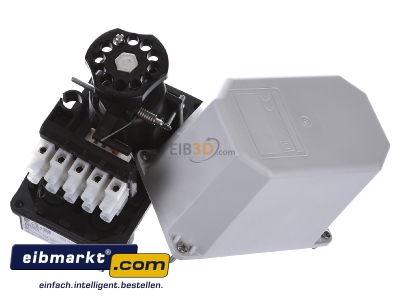

Top rear view Eaton (Moeller) MCS4 Pressure switch
Top rear view
