One-phase transformer 208...600V/115V UTI0,2-115

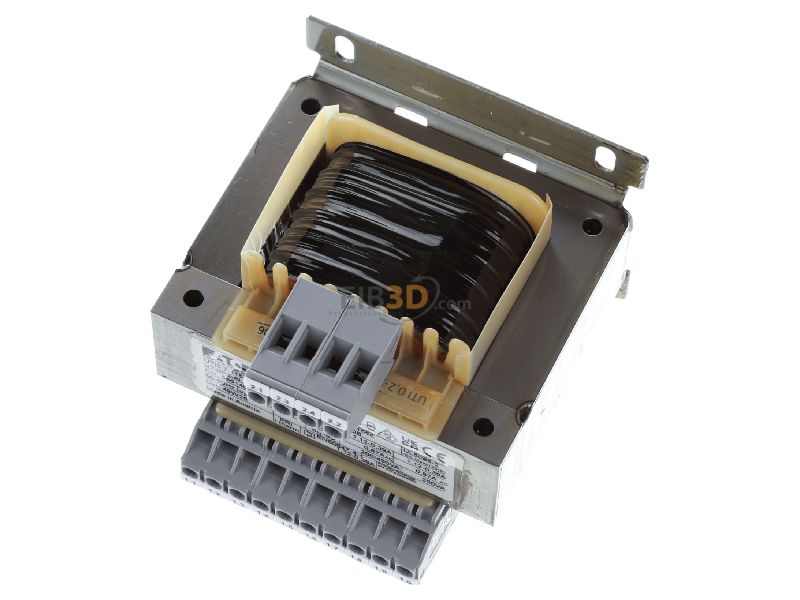

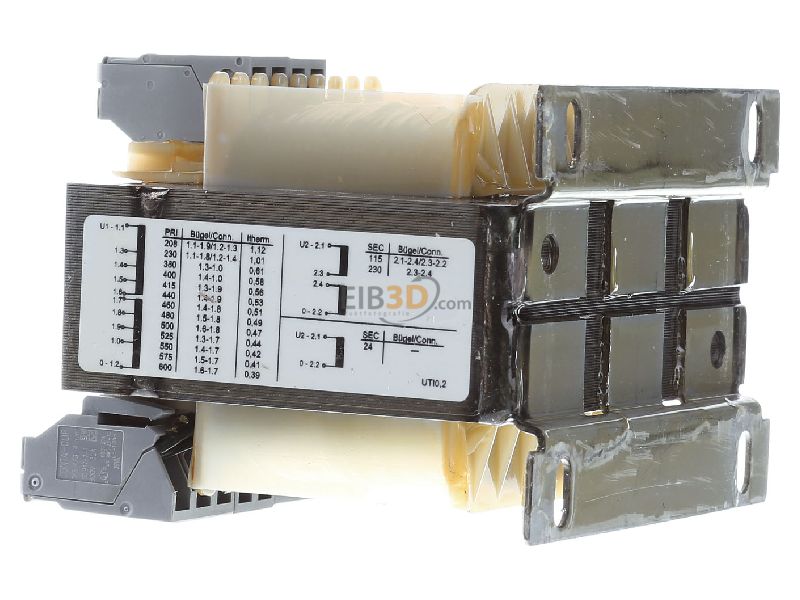

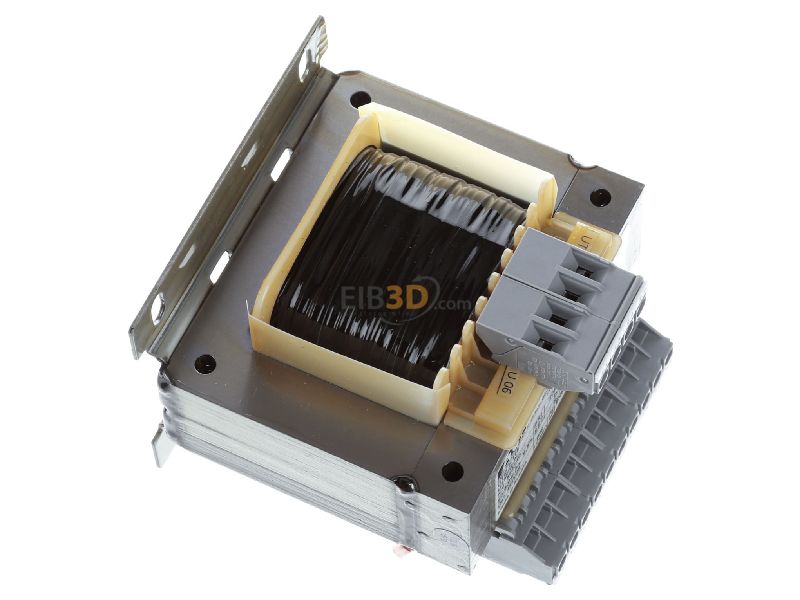

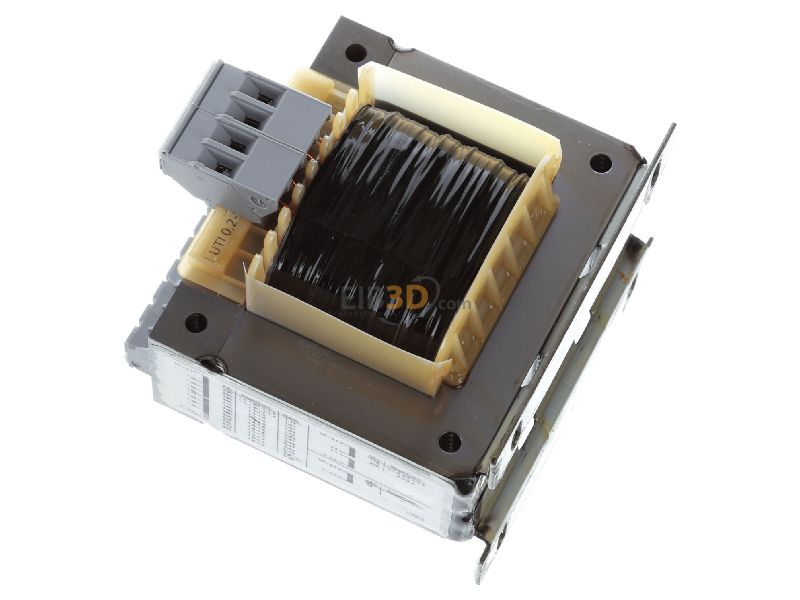

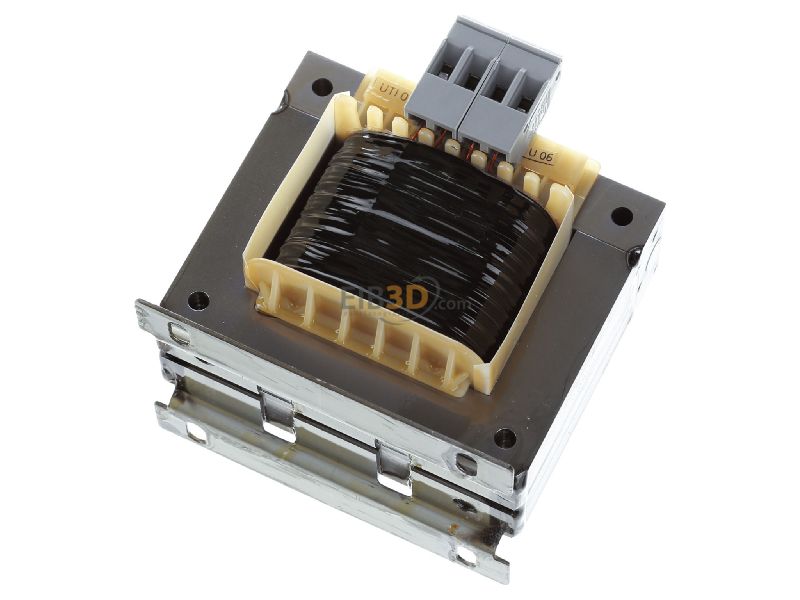

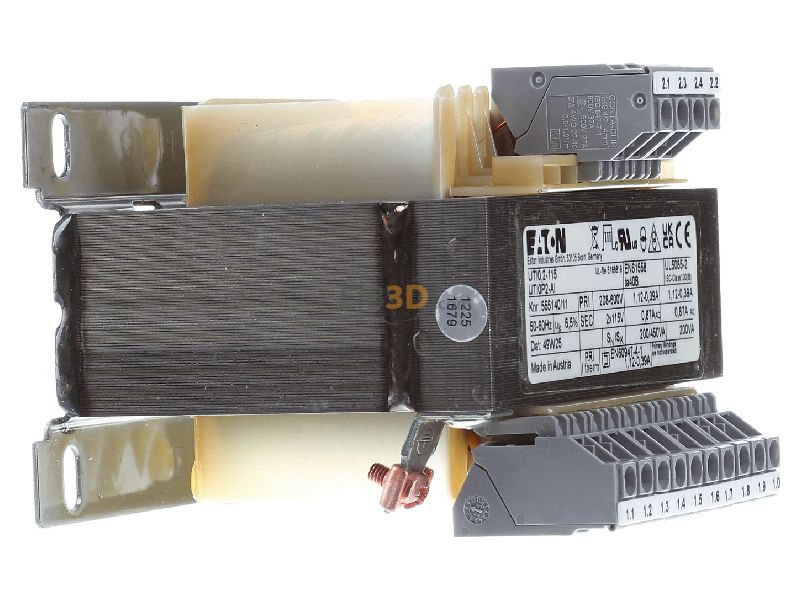

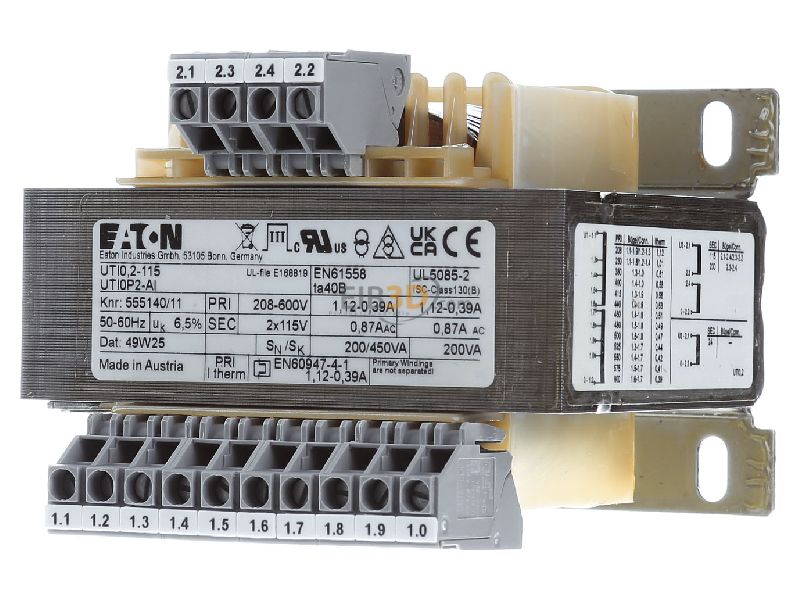

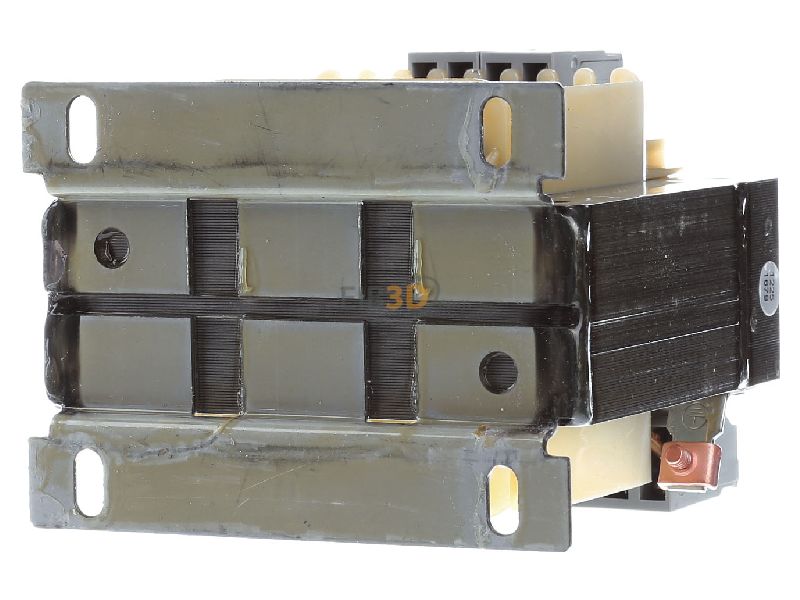

Source photo:
Eaton
(fig. might be different or similar)

One-phase transformer 208...600V/115V UTI0,2-115

EAN/GTIN: 4015082069247
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: UTI0,2-115
Manufact.-SKU: 206924
Customs tariff no.: 85043180
Similar top items: Show now & compare
126,66 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

One-phase transformer 208...600V/115V Built as safety transformer, Built as isolating transformer, Primary voltage 1 208 ... 600V, Primary voltage 2 0V, Primary voltage 3 0V, Primary voltage 4 0V, Primary voltage 5 0V, Primary voltage 6 0V, Primary voltage 7 0V, Primary voltage 8 0V, Primary voltage 9 0V, Primary voltage 10 0V, Secondary voltage 1 115 ... 115V, Secondary voltage 2 115 ... 115V, Secondary voltage 3 0V, Secondary voltage 4 0V, Secondary voltage 5 0V, Secondary voltage 6 0V, Secondary voltage 7 0V, Secondary voltage 8 0V, Secondary voltage 9 0V, Secondary voltage 10 0V, Rated apparent power 200VA, Type of insulation material acc. IEC 85 B, Relative short circuit voltage 6,5%, Width 106mm, Height 112mm, Depth 82mm, Degree of protection (IP) IP00, Conductor material Copper
