Miniature circuit breaker 2-p B13A FAZ-B13/1N
Source photo:
Eaton
(fig. might be different or similar)

Miniature circuit breaker 2-p B13A FAZ-B13/1N

EAN/GTIN: 4015082786465
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: FAZ-B13/1N
Manufact.-SKU: 278646
Customs tariff no.: 85363010
Similar top items: Show now & compare
41,65 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Miniature circuit breaker 2-p B13A Release characteristic B, Number of poles (total) 2, Number of protected poles 1, Rated current 13A, Rated voltage 230V, Rated insulation voltage Ui 440V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10kA, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15kA, Voltage type AC, Frequency 50 ... 60Hz, Current limiting class 3, Concurrently switching N-neutral, Over voltage category 3, Pollution degree 2, Additional equipment possible, Width in number of modular spacings 2, Built-in depth 70,5mm, Degree of protection (IP) IP20, Ambient temperature during operating -25 ... 75°C, Connectable conductor cross section multi-wired 1 ... 25mm², Connectable conductor cross section solid-core 1 ... 25mm²

More product images:

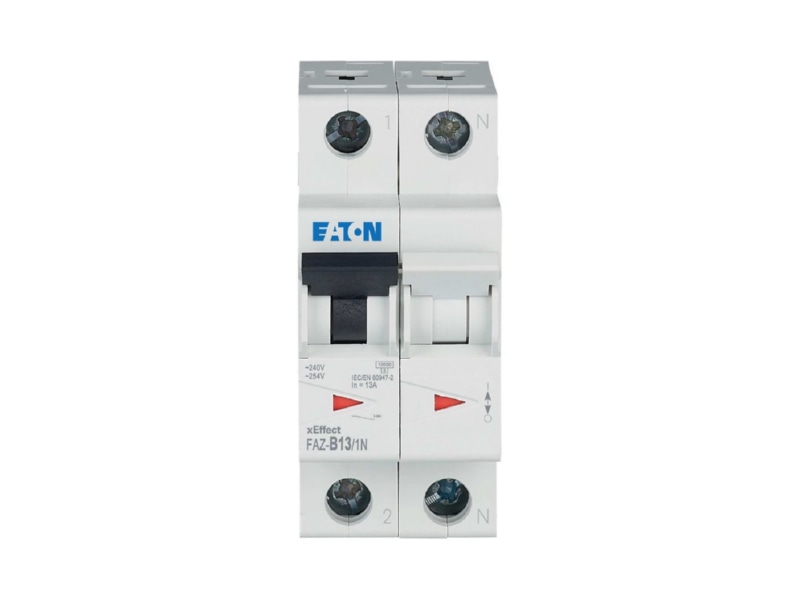

Product image 1 Eaton FAZ B13 1N Miniature circuit breaker 2 p B13A
Product image 1
Product image 2 Eaton FAZ B13 1N Miniature circuit breaker 2 p B13A
Product image 2
Product image 3 Eaton FAZ B13 1N Miniature circuit breaker 2 p B13A
Product image 3
