Miniature circuit breaker 1-p FAZ-S16/1
Source photo:
Eaton
(fig. might be different or similar)

Miniature circuit breaker 1-p FAZ-S16/1

EAN/GTIN: 4015082786120
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: FAZ-S16/1
Manufact.-SKU: 278612
Customs tariff no.: 85363010
Order level:
(minimum)
12 pce
Similar top items: Show now & compare
274,32 EUR Price incl. tax. 19,00%
(for 12 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 12 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Miniature circuit breaker 1-p Release characteristic Other, Number of poles (total) 1, Number of protected poles 1, Rated current 16A, Rated voltage 230V, Rated insulation voltage Ui 440V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 0kA, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 0kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10kA, Voltage type AC, Frequency 50 ... 60Hz, Current limiting class 3, Over voltage category 3, Pollution degree 2, Additional equipment possible, Width in number of modular spacings 1, Built-in depth 70,5mm, Degree of protection (IP) IP20, Ambient temperature during operating -25 ... 75°C, Connectable conductor cross section multi-wired 1 ... 25mm², Connectable conductor cross section solid-core 1 ... 25mm²

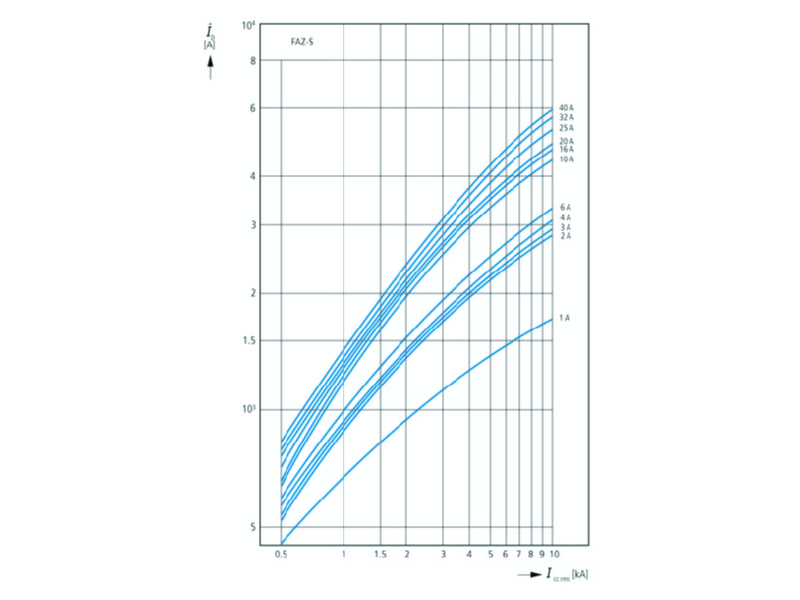

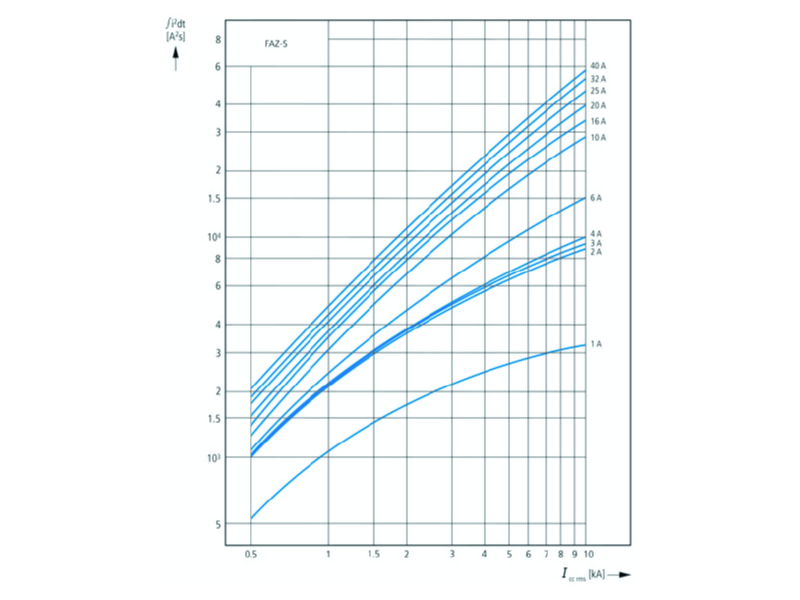

More product images:

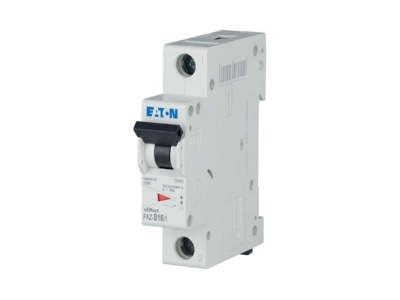

Product image Eaton FAZ S16 1 Miniature circuit breaker 1 p
Product image

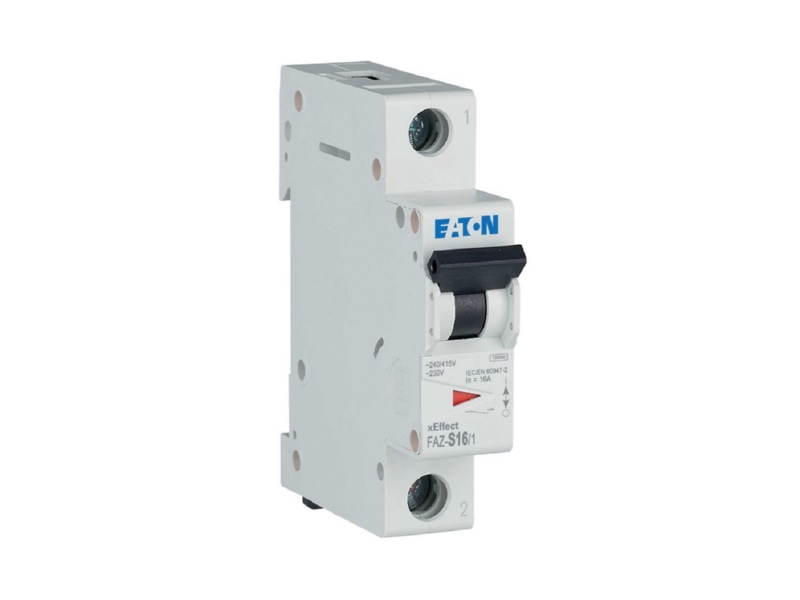

Front view 1 Eaton FAZ S16 1 Miniature circuit breaker 1 p
Front view 1

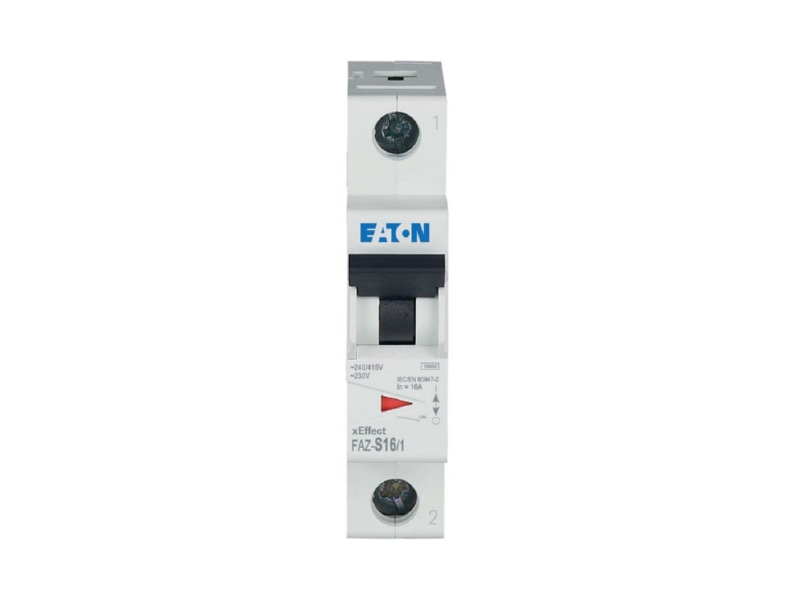

Front view 2 Eaton FAZ S16 1 Miniature circuit breaker 1 p
Front view 2

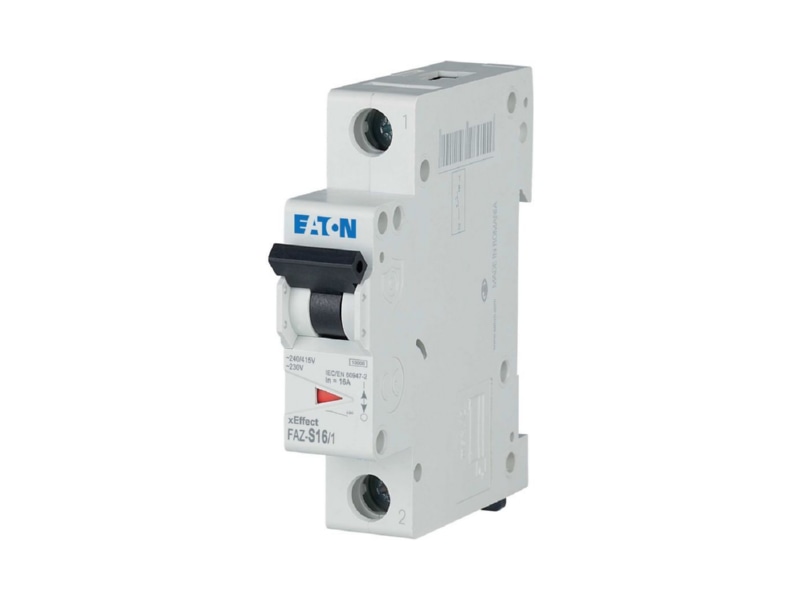

View right 1 Eaton FAZ S16 1 Miniature circuit breaker 1 p
View right 1
View right 2 Eaton FAZ S16 1 Miniature circuit breaker 1 p
View right 2
