Miniature circuit breaker 1-p B16A FAZ-B16/1

EAN/GTIN: 4015082785352
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: FAZ-B16/1
Manufact.-SKU: 278535
Customs tariff no.: 85363010
Similar top items: Show now & compare
8,76 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Miniature circuit breaker 1-p B16A Release characteristic B, Number of poles (total) 1, Number of protected poles 1, Rated current 16A, Rated voltage 230V, Rated insulation voltage Ui 440V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10kA, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15kA, Voltage type AC, Frequency 50 ... 60Hz, Current limiting class 3, Over voltage category 3, Pollution degree 2, Additional equipment possible, Width in number of modular spacings 1, Built-in depth 70,5mm, Degree of protection (IP) IP20, Ambient temperature during operating -25 ... 75°C, Connectable conductor cross section multi-wired 1 ... 25mm², Connectable conductor cross section solid-core 1 ... 25mm²

More product images:

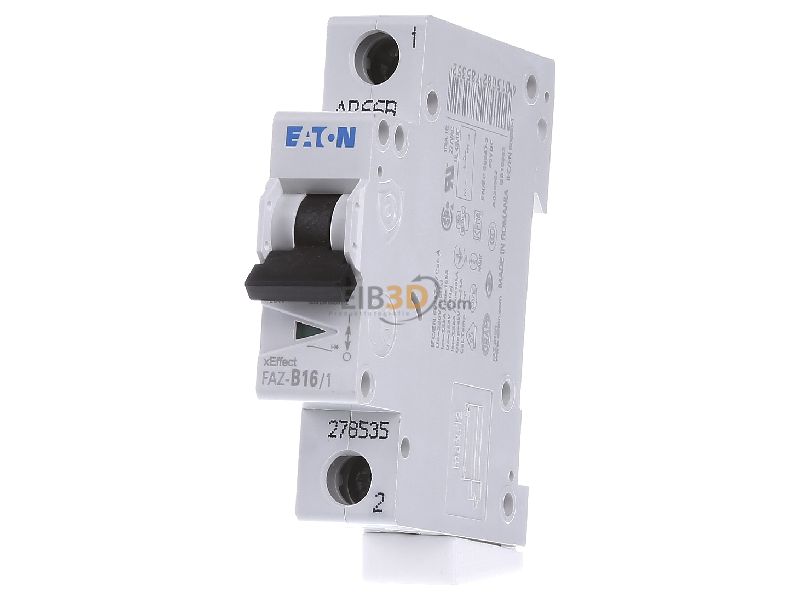

Front view Eaton FAZ-B16/1 Miniature circuit breaker 1-p B16A
Front view

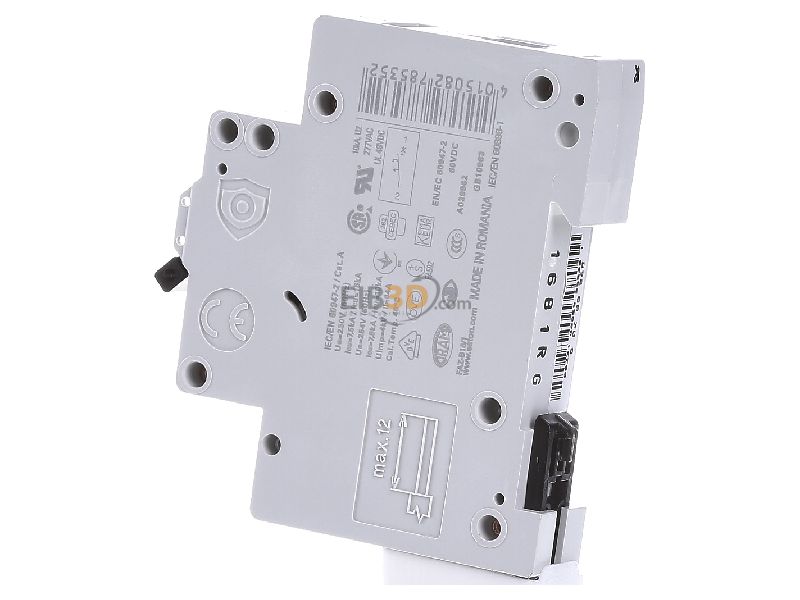

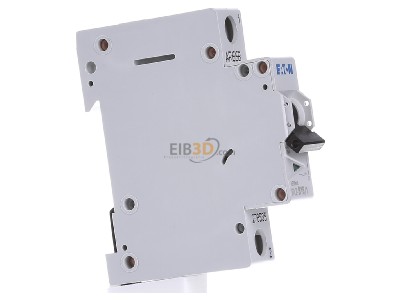

View on the left Eaton FAZ-B16/1 Miniature circuit breaker 1-p B16A
View on the left

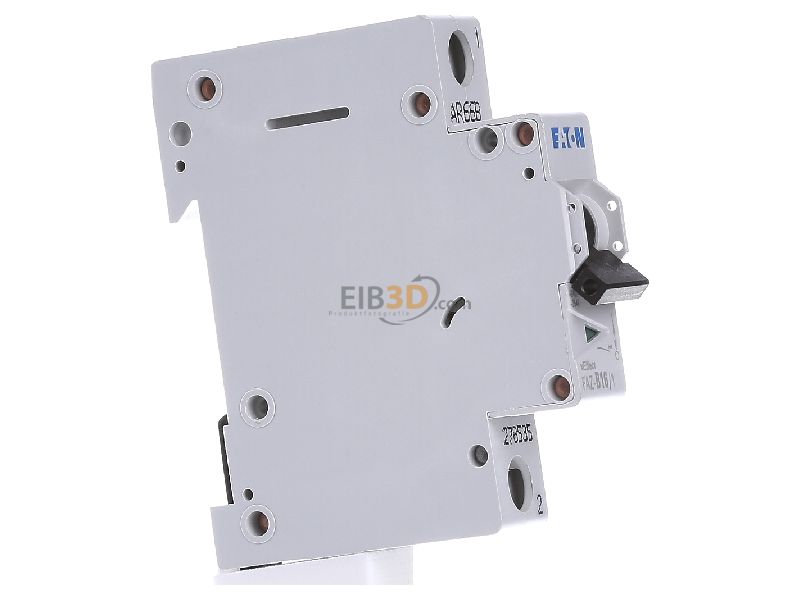

View on the right Eaton FAZ-B16/1 Miniature circuit breaker 1-p B16A
View on the right

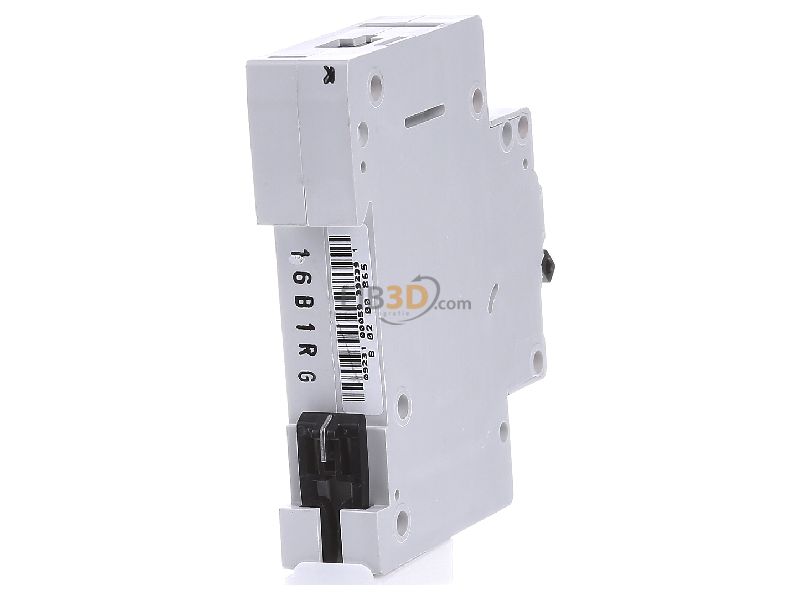

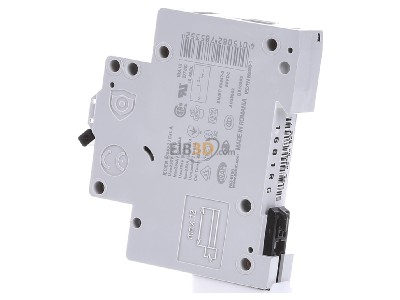

Back view Eaton FAZ-B16/1 Miniature circuit breaker 1-p B16A
Back view

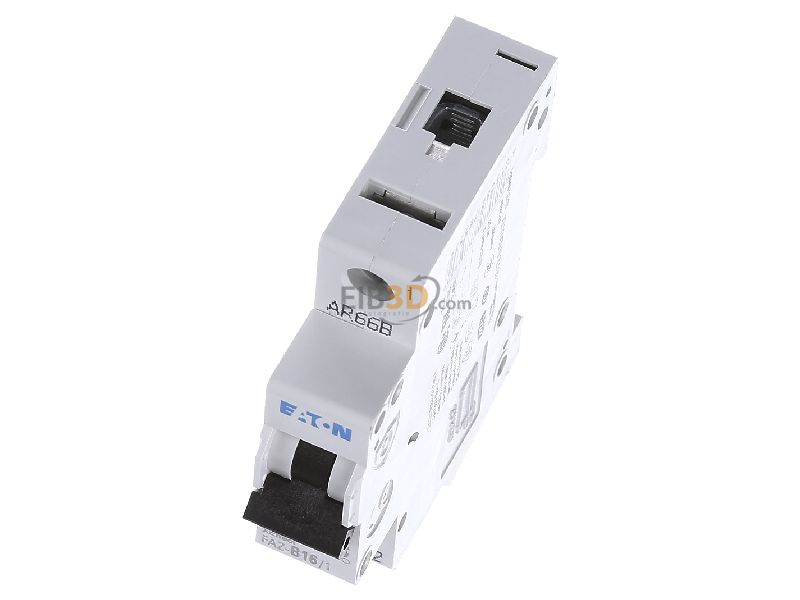

View up front Eaton FAZ-B16/1 Miniature circuit breaker 1-p B16A
View up front

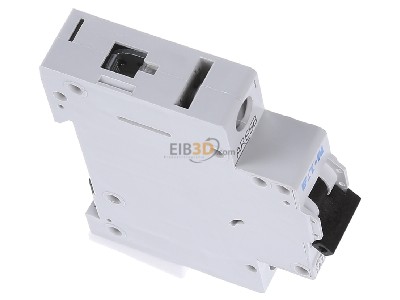

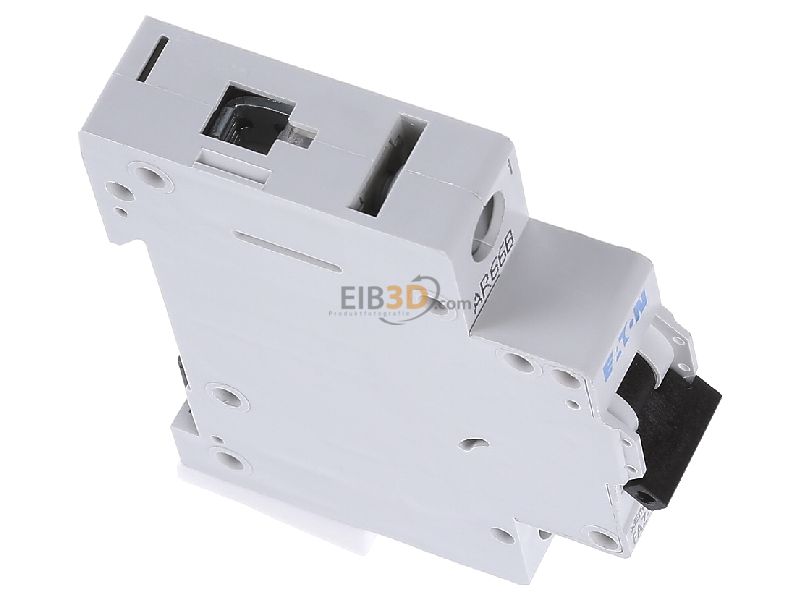

View top left Eaton FAZ-B16/1 Miniature circuit breaker 1-p B16A
View top left
View top right Eaton FAZ-B16/1 Miniature circuit breaker 1-p B16A
View top right

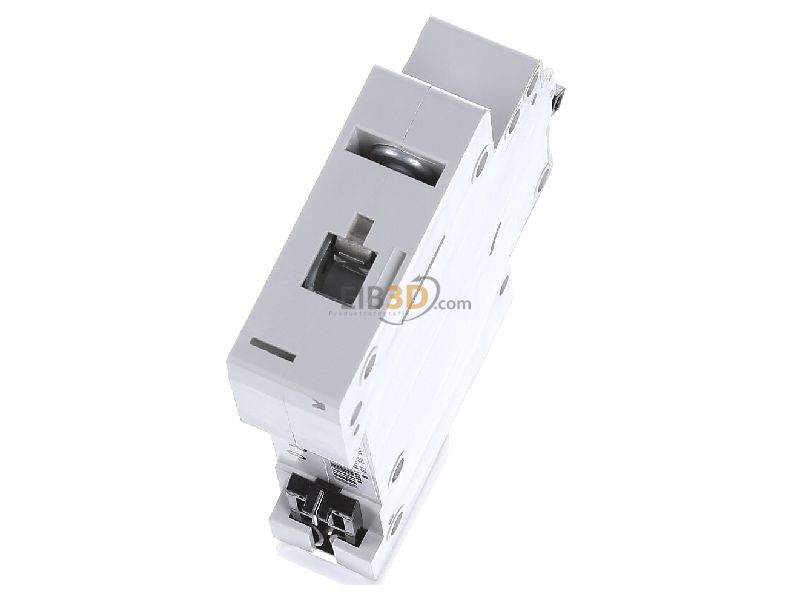

Top rear view Eaton FAZ-B16/1 Miniature circuit breaker 1-p B16A
Top rear view

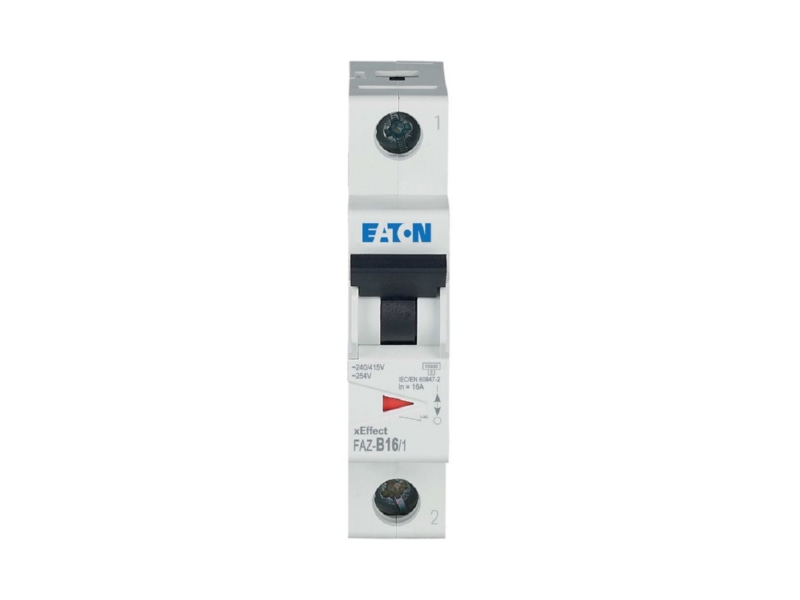

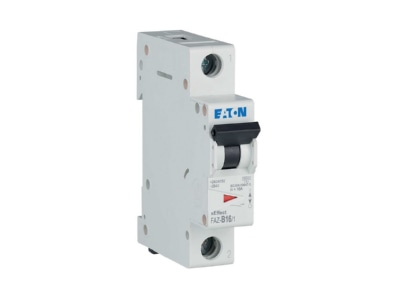

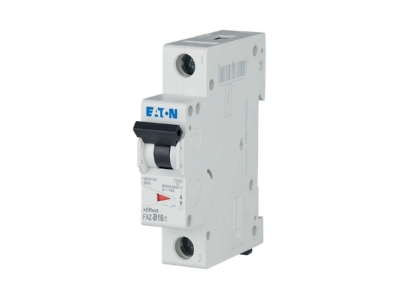

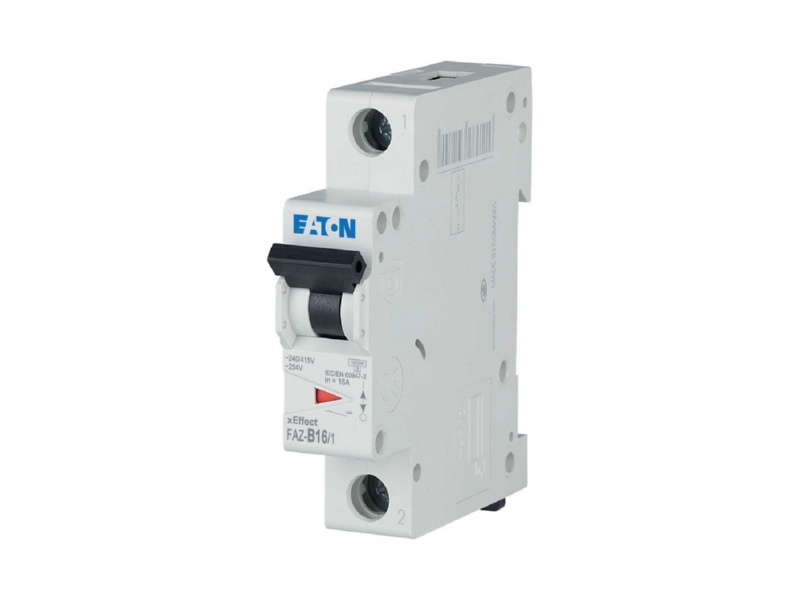

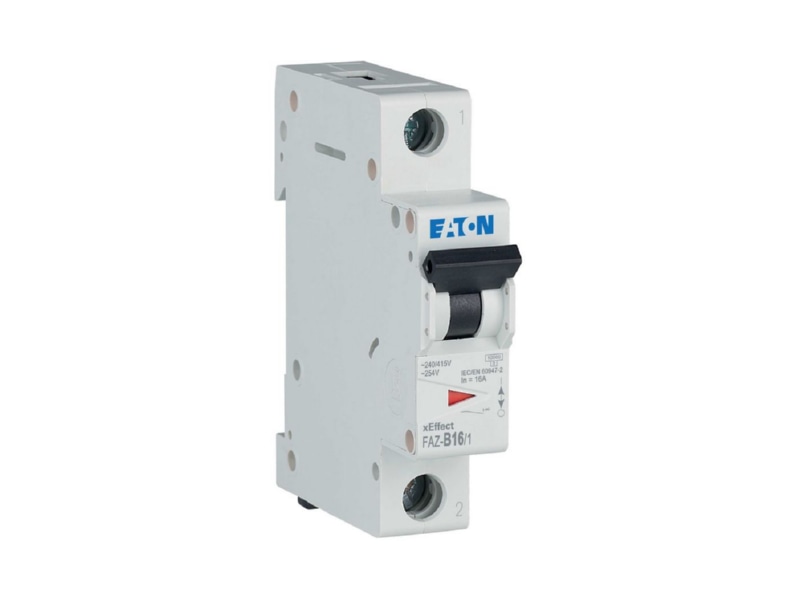

Product image 1 Eaton FAZ B16 1 Miniature circuit breaker 1 p B16A
Product image 1
Product image 2 Eaton FAZ B16 1 Miniature circuit breaker 1 p B16A
Product image 2
Product image 3 Eaton FAZ B16 1 Miniature circuit breaker 1 p B16A
Product image 3
Product image 4 Eaton FAZ B16 1 Miniature circuit breaker 1 p B16A
Product image 4
Product image 5 Eaton FAZ B16 1 Miniature circuit breaker 1 p B16A
Product image 5
