Fieldbus digital module 2 In / 1 Out DIL-SWD-32-001
Source photo:
Eaton
(fig. might be different or similar)

Fieldbus digital module 2 In / 1 Out DIL-SWD-32-001

EAN/GTIN: 4015081168309
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: DIL-SWD-32-001
Manufact.-SKU: 118560
Customs tariff no.: 85389099
Order level:
(minimum)
5 pce
Similar top items: Show now & compare
155,35 EUR Price incl. tax. 19,00%
(for 5 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 5 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Fieldbus digital module 2 In / 1 Out Supply voltage AC 50 Hz 0V, Supply voltage AC 60 Hz 0V, Supply voltage DC 15 ... 15V, Voltage type of supply voltage DC, Number of digital inputs 2, Number of digital outputs 1, Input current at signal 1 3mA, Permitted voltage at input 15 ... 15V, Type of input voltage DC, Type of digital output Other, Output current 0,5A, Permitted voltage at output 20,4 ... 28,8V, Type of output voltage DC, Number of HW-interfaces industrial Ethernet 0, Number of interfaces PROFINET 0, Number of HW-interfaces RS-232 0, Number of HW-interfaces RS-422 0, Number of HW-interfaces RS-485 0, Number of HW-interfaces serial TTY 0, Number of HW-interfaces parallel 0, Number of HW-interfaces Wireless 0, Number of HW-interfaces USB 0, Number of HW-interfaces other 1, Supporting protocol for other bus systems, System accessory, Degree of protection (IP) IP20, Type of electric connection Spring clamp connection, Signal change delay 10 ... 84ms, Fieldbus connection over separate bus coupler possible, Category according to EN 954-1 1, SIL according to IEC 61508 None, Performance level acc. EN ISO 13849-1 None, Explosion safety category for gas None, Explosion safety category for dust None, Width 45mm, Height 38mm, Depth 81mm

More product images:

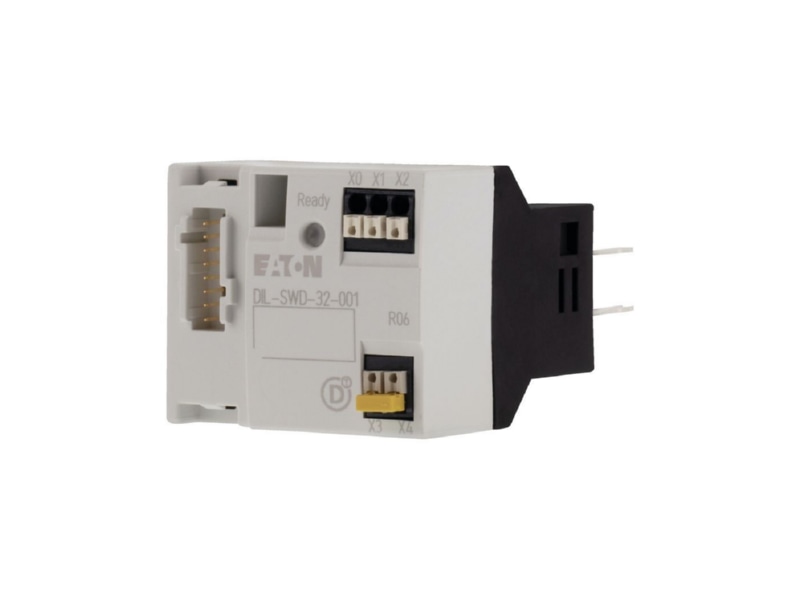

Product image Eaton DIL SWD 32 001 Fieldbus digital module 2 In   1 Out
Product image

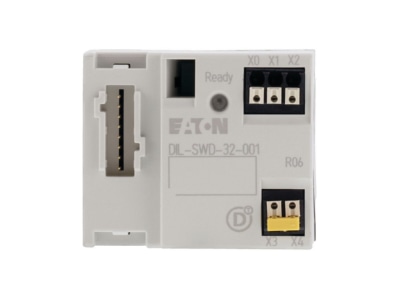

Front view 1 Eaton DIL SWD 32 001 Fieldbus digital module 2 In   1 Out
Front view 1

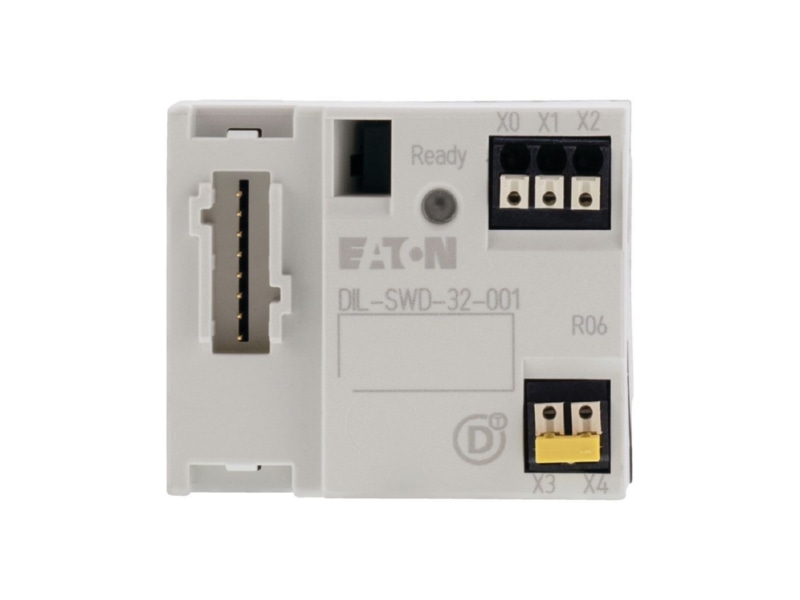

Front view 2 Eaton DIL SWD 32 001 Fieldbus digital module 2 In   1 Out
Front view 2

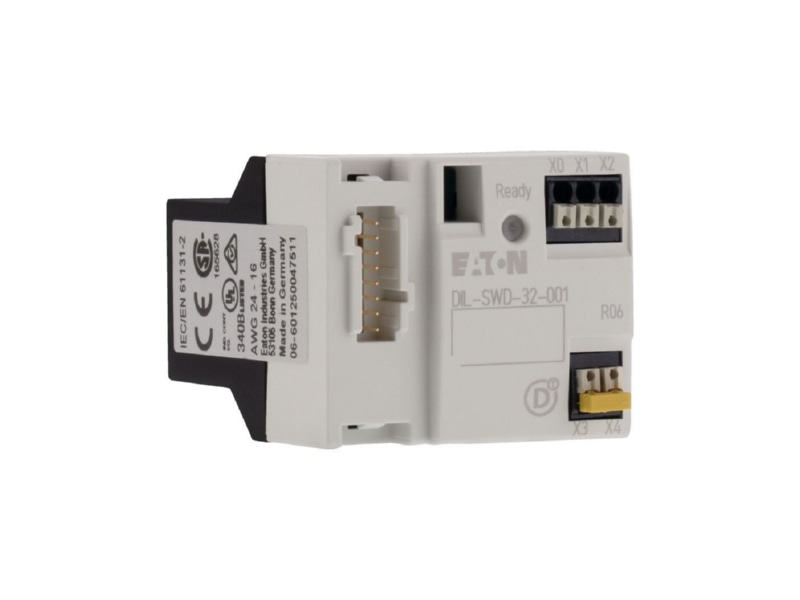

View right 1 Eaton DIL SWD 32 001 Fieldbus digital module 2 In   1 Out
View right 1

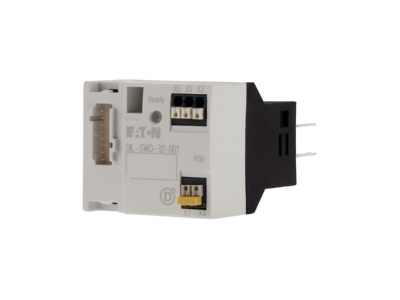

View right 2 Eaton DIL SWD 32 001 Fieldbus digital module 2 In   1 Out
View right 2
