Earth leakage circuit breaker B20/0,03A PKPM2-20/2/B/003-A
Source photo:
Eaton
(fig. might be different or similar)

Earth leakage circuit breaker B20/0,03A PKPM2-20/2/B/003-A

EAN/GTIN: 4015081077625
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: PKPM2-20/2/B/003-A
Manufact.-SKU: 108108
Customs tariff no.: 85362010
Similar top items: Show now & compare
159,57 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Earth leakage circuit breaker B20/0,03A Number of poles (total) 2, Number of protected poles 2, Rated voltage 230V, Rated current 20A, Rated fault current 0,03A, Leakage current type A, Current limiting class 3, Rated short-circuit breaking capacity IEC 60947-2 0kA, Surge current capacity 0,25kA, Voltage type AC, Frequency 50 Hz, Release characteristic B, Over voltage category 3, Pollution degree 2, Width in number of modular spacings 2, Built-in depth 70mm, Degree of protection (IP) IP20

More product images:

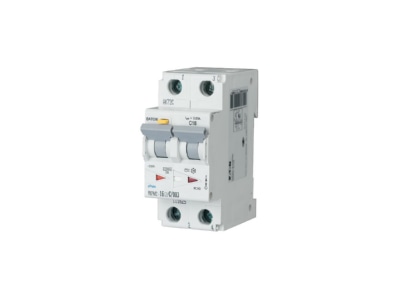

Product image Eaton PKPM2 20 2 B 003 A Earth leakage circuit breaker B20 0 03A
Product image

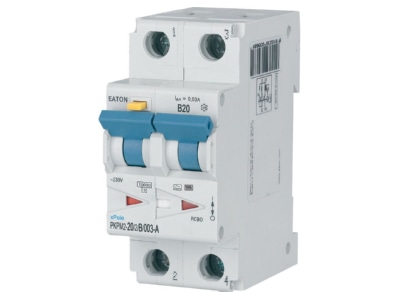

View left 1 Eaton PKPM2 20 2 B 003 A Earth leakage circuit breaker B20 0 03A
View left 1

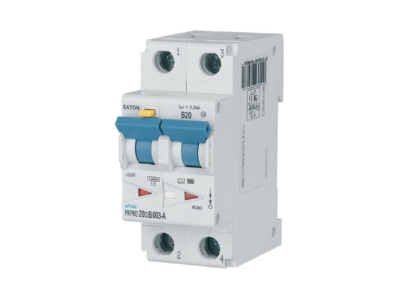

View left 2 Eaton PKPM2 20 2 B 003 A Earth leakage circuit breaker B20 0 03A
View left 2
