Direct starter combination 7,5kW MSC-D-16-M15(24VDC)
Source photo:
Eaton
(fig. might be different or similar)

Direct starter combination 7,5kW MSC-D-16-M15(24VDC)

EAN/GTIN: 4015081003921
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: MSC-D-16-M15(24VDC)
Manufact.-SKU: 100415
Customs tariff no.: 85365080
Similar top items: Show now & compare
193,05 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Direct starter combination 7,5kW Kind of motor starter Direct starter, With short-circuit release, Rated control supply voltage Us at AC 50HZ 0V, Rated control supply voltage Us at AC 60HZ 0V, Rated control supply voltage Us at DC 24 ... 24V, Voltage type for actuating DC, Rated operation power at AC-3, 230 V, 3-phase 4kW, Rated operation power at AC-3, 400 V 7,5kW, Rated power, 460 V, 60 Hz, 3-phase 0kW, Rated power, 575 V, 60 Hz, 3-phase 0kW, Rated operation current Ie 15,2A, Rated operation current at AC-3, 400 V 15A, Overload release current setting 10 ... 16A, Rated conditional short-circuit current, type 1, 480 Y/277 V 0A, Rated conditional short-circuit current, type 1, 600 Y/347 V 0A, Rated conditional short-circuit current, type 2, 230 V 0A, Rated conditional short-circuit current, type 2, 400 V 0A, Number of auxiliary contacts as normally open contact 1, Number of auxiliary contacts as normally closed contact 0, Ambient temperature, upper operating limit 60°C, Temperature compensated overload protection, Release class CLASS 10, Type of electrical connection of main circuit Screw connection, Type of electrical connection for auxiliary- and control current circuit Screw connection, Rail mounting possible, Number of command positions 0, Coordination class according to IEC 60947-4-3 Class 1, Number of indicator lights 0, Degree of protection (IP) IP20, Degree of protection (NEMA) Other, Width 45mm, Height 180mm, Depth 95mm

More product images:

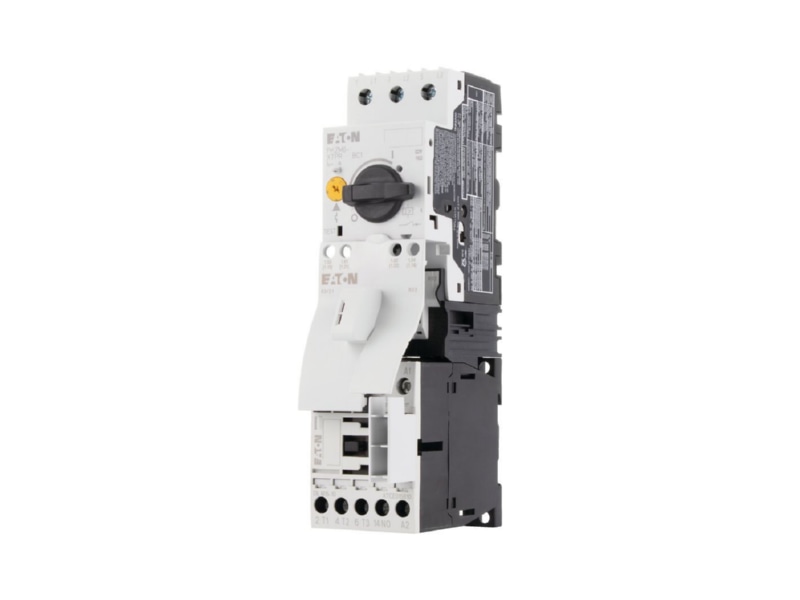

Product image Eaton MSC D 16 M15 24VDC  Direct starter combination 7 5kW
Product image

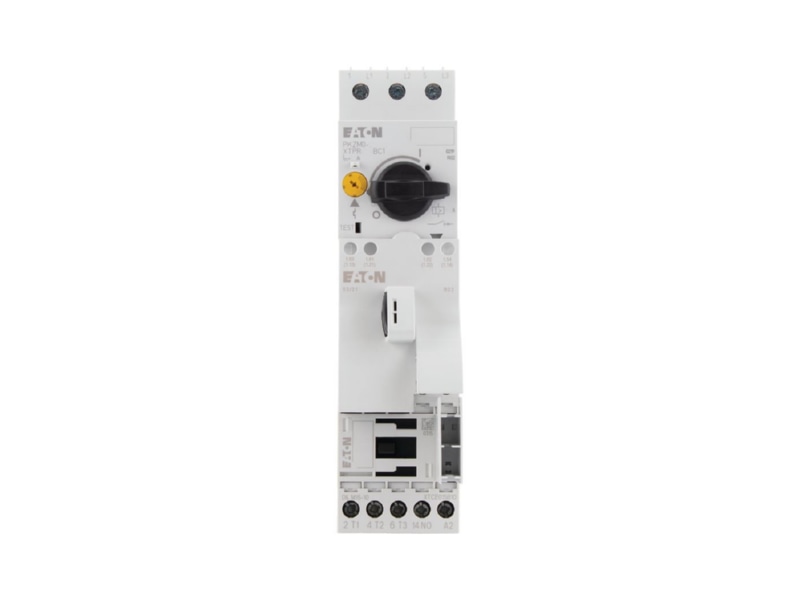

Front view 1 Eaton MSC D 16 M15 24VDC  Direct starter combination 7 5kW
Front view 1

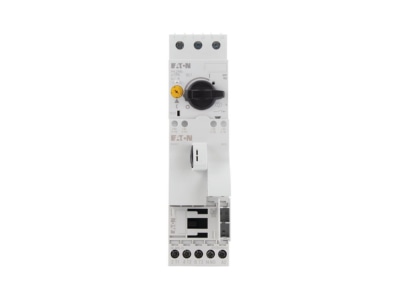

Front view 2 Eaton MSC D 16 M15 24VDC  Direct starter combination 7 5kW
Front view 2

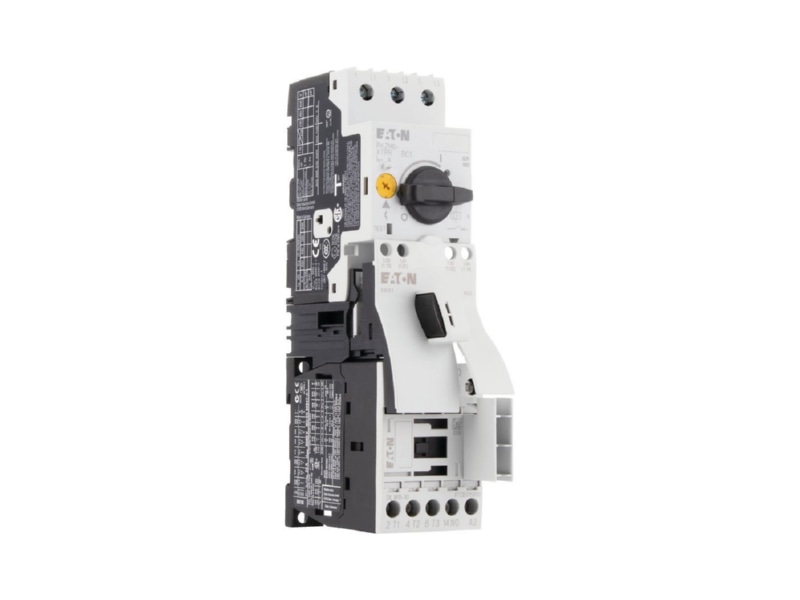

View right 1 Eaton MSC D 16 M15 24VDC  Direct starter combination 7 5kW
View right 1
View right 2 Eaton MSC D 16 M15 24VDC  Direct starter combination 7 5kW
View right 2
