Phase busbar 1-p 10mm² EVG-1PHAS/2MODUL

EAN/GTIN: 4015082156466
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: EVG-1PHAS/2MODUL
Manufact.-SKU: 215646
Customs tariff no.: 85369095
Similar top items: Show now & compare
1,32 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Phase busbar 1-p 10mm² Number of phases 1, Number of poles 1, Suitable for number of devices 2, Pitch dimensions 0mm, Cross section 10mm², Length 30mm, Number of modular spacings 2, Rated permanent current Iu 63A, Type of electric connection Fork, Insulated, Rated surge voltage 4kV, Conditioned rated short-circuit current Iq 25kA, Max. rated operation voltage Ue 500V, Rated short-time withstand current lcw 0kA

More product images:

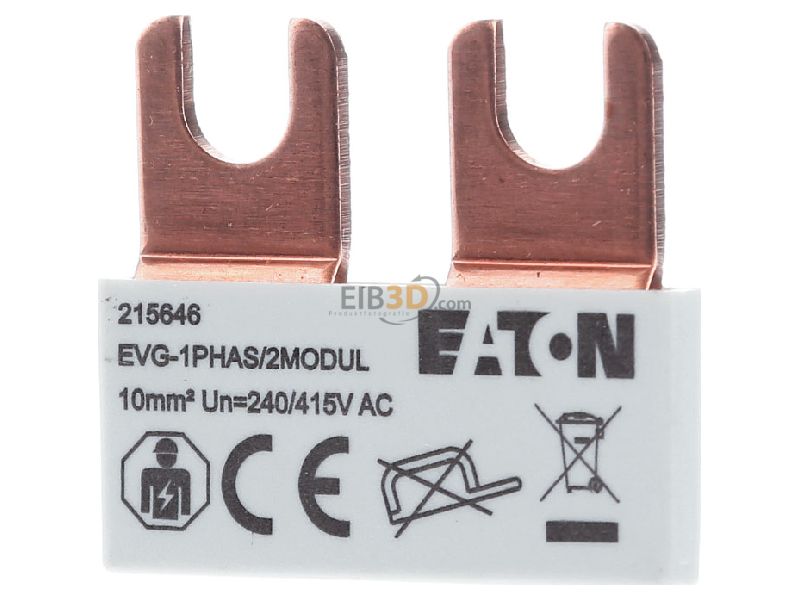

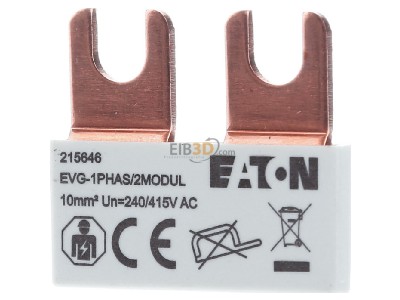

Front view Eaton EVG-1PHAS/2MODUL Phase busbar 1-p 10mm²
Front view

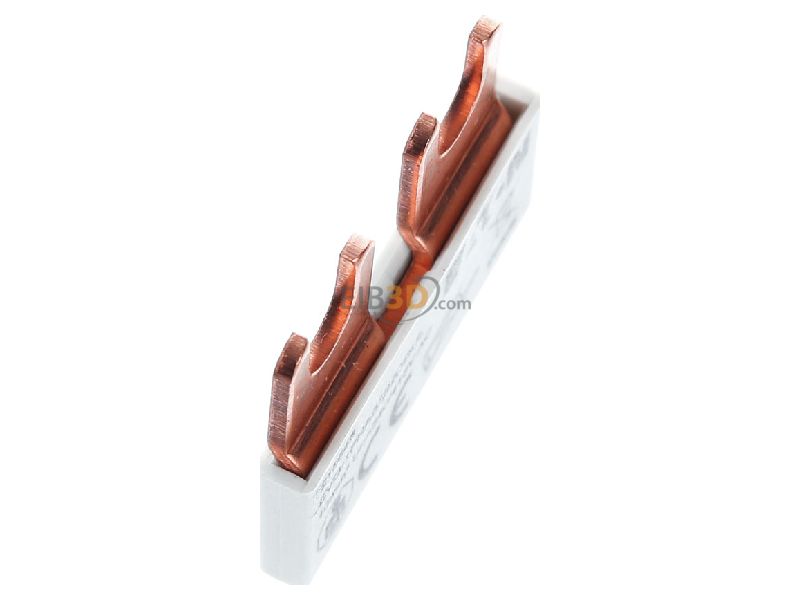

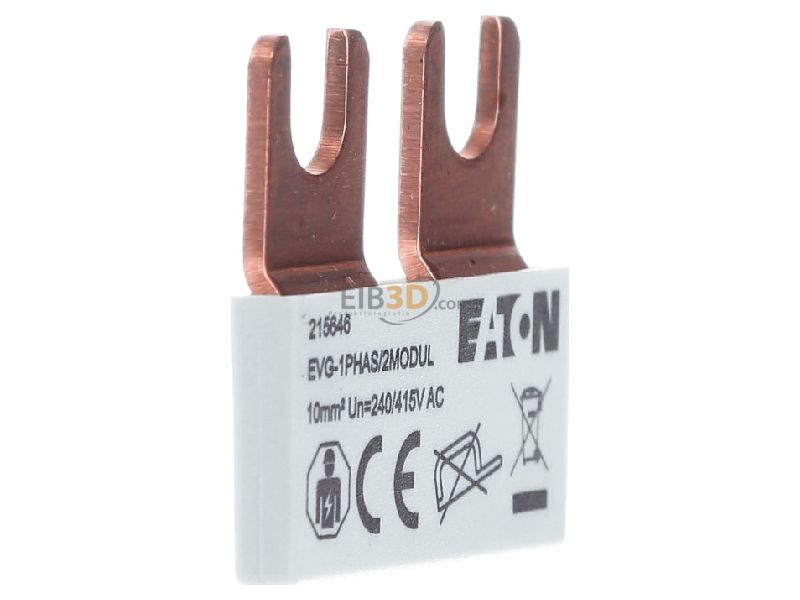

View on the left Eaton EVG-1PHAS/2MODUL Phase busbar 1-p 10mm²
View on the left

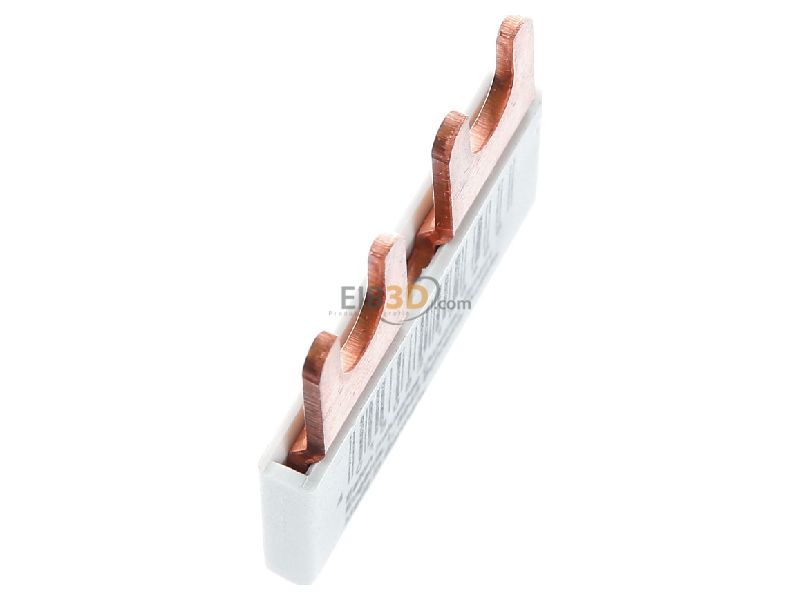

View on the right Eaton EVG-1PHAS/2MODUL Phase busbar 1-p 10mm²
View on the right

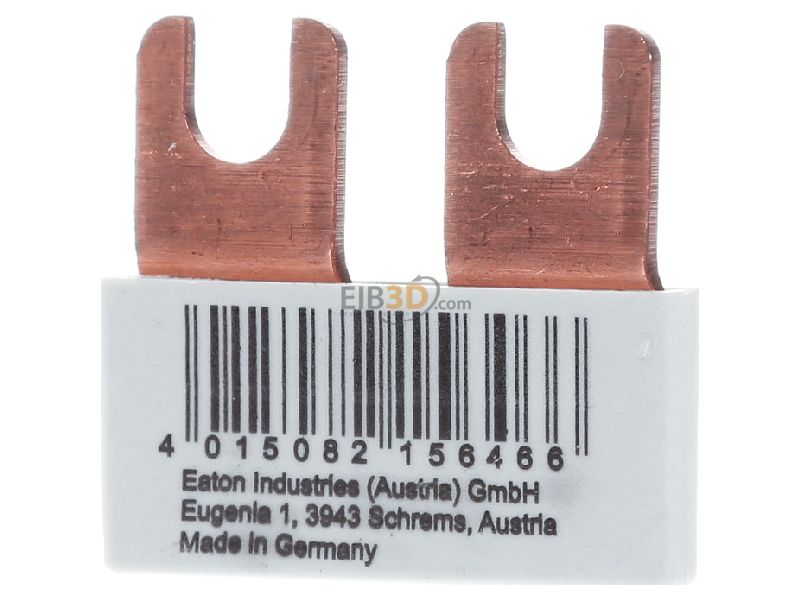

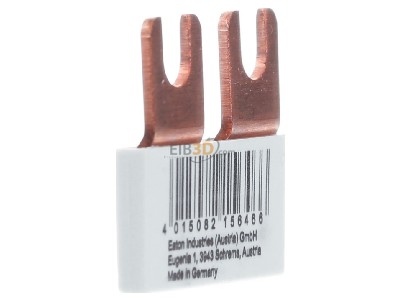

Back view Eaton EVG-1PHAS/2MODUL Phase busbar 1-p 10mm²
Back view

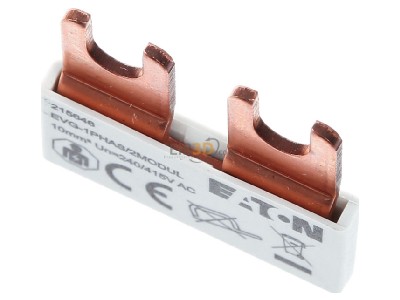

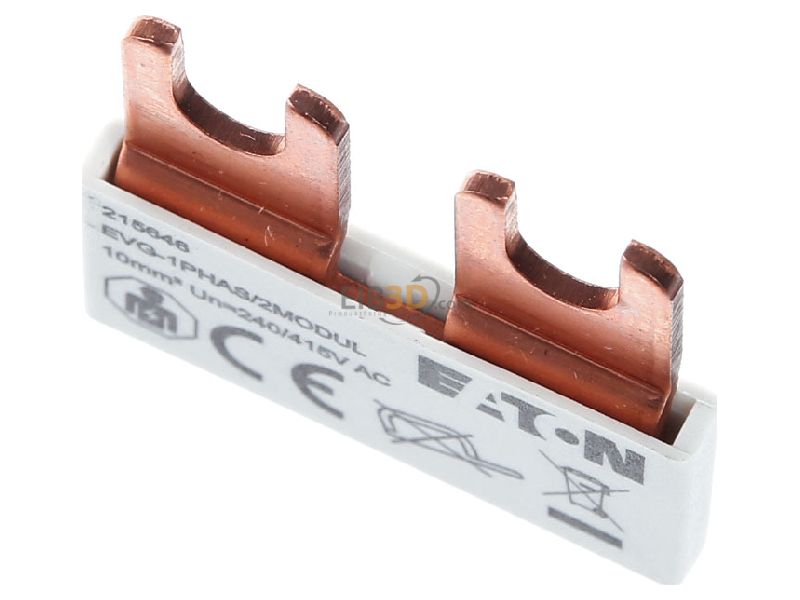

View up front Eaton EVG-1PHAS/2MODUL Phase busbar 1-p 10mm²
View up front
View top left Eaton EVG-1PHAS/2MODUL Phase busbar 1-p 10mm²
View top left

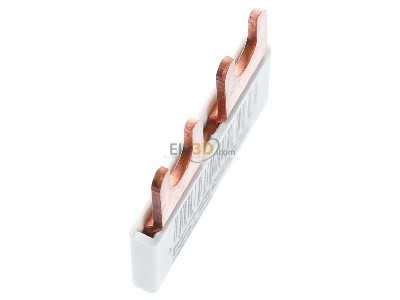

View top right Eaton EVG-1PHAS/2MODUL Phase busbar 1-p 10mm²
View top right

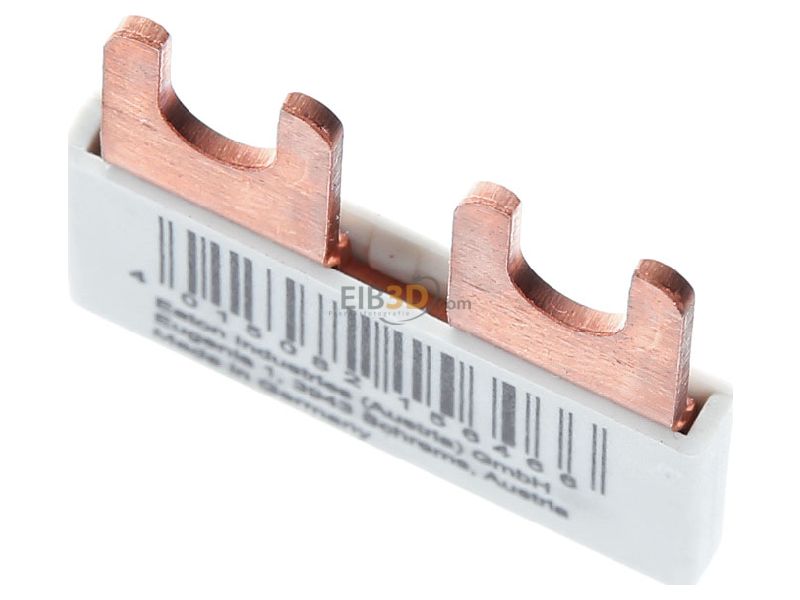

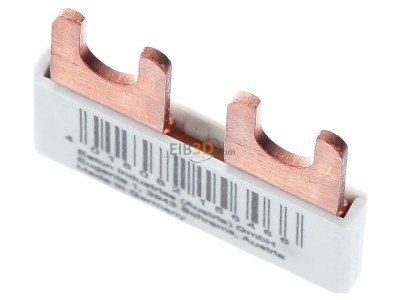

Top rear view Eaton EVG-1PHAS/2MODUL Phase busbar 1-p 10mm²
Top rear view
