Miniature circuit breaker 1-p B8A PLI-B8/1

EAN/GTIN: 4015081011834
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: PLI-B8/1
Manufact.-SKU: 101248
Customs tariff no.: 85362010
Similar top items: Show now & compare
13,48 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Miniature circuit breaker 1-p B8A Release characteristic B, Number of poles (total) 1, Number of protected poles 1, Rated current 8A, Rated voltage 230V, Rated insulation voltage Ui 440V, Rated impulse withstand voltage Uimp 4kV, Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10kA, Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0kA, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0kA, Voltage type AC, Frequency 50 ... 60Hz, Current limiting class 3, Over voltage category 3, Pollution degree 2, Additional equipment possible, Width in number of modular spacings 1, Built-in depth 70,5mm, Degree of protection (IP) IP20, Ambient temperature during operating -25 ... 55°C, Connectable conductor cross section multi-wired 1 ... 25mm², Connectable conductor cross section solid-core 1 ... 25mm²

More product images:

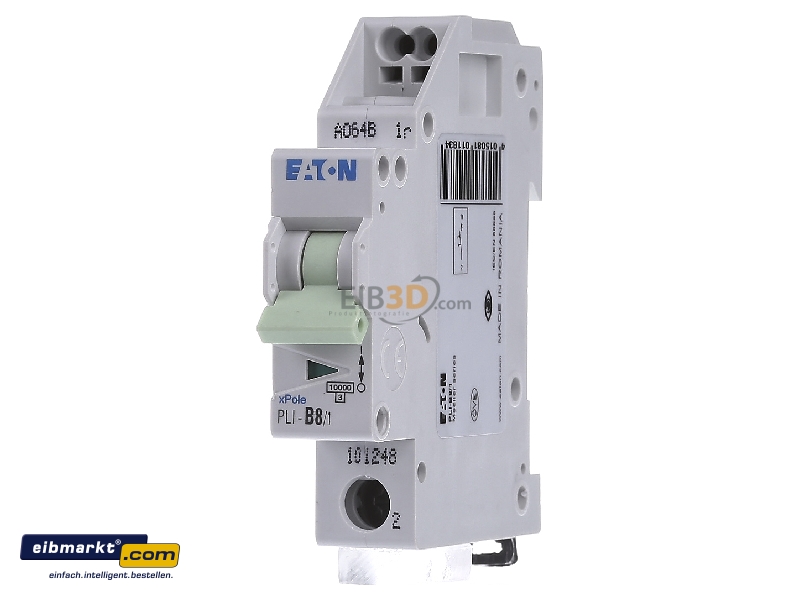

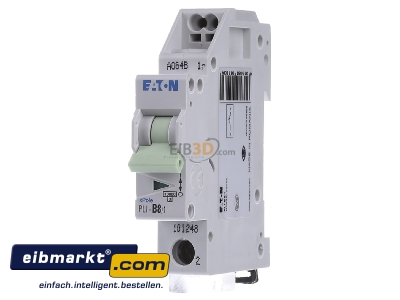

Front view Eaton (Installation) PLI-B8/1 Miniature circuit breaker 1-p B8A -
Front view

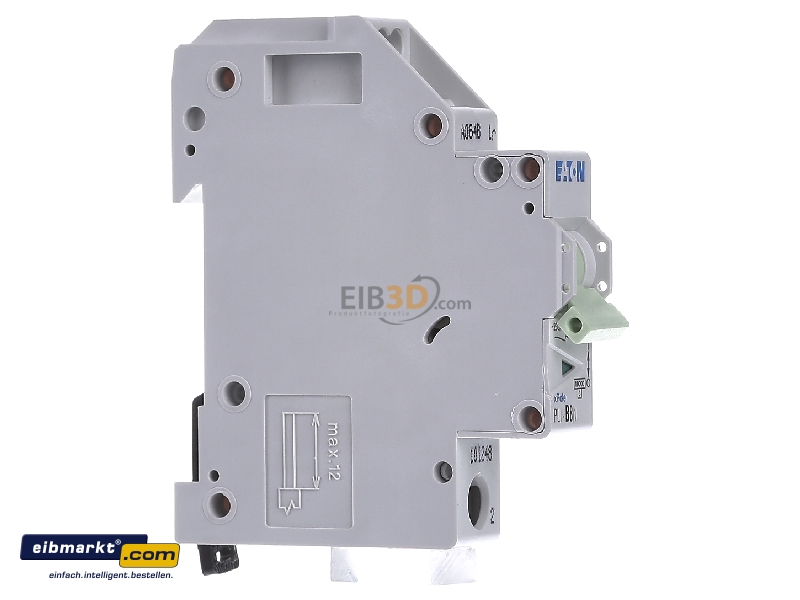

View on the left Eaton (Installation) PLI-B8/1 Miniature circuit breaker 1-p B8A -
View on the left

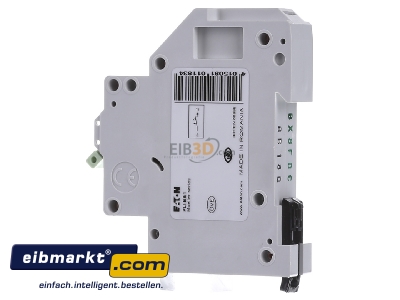

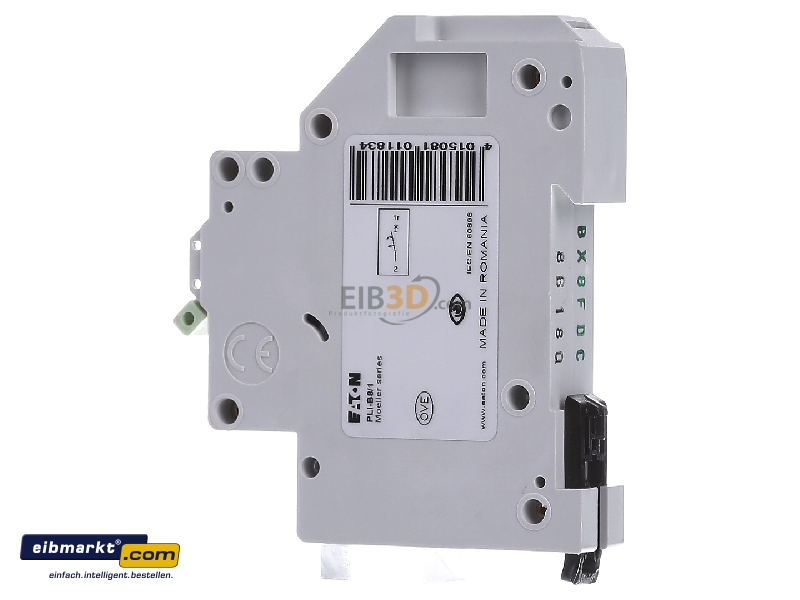

View on the right Eaton (Installation) PLI-B8/1 Miniature circuit breaker 1-p B8A -
View on the right

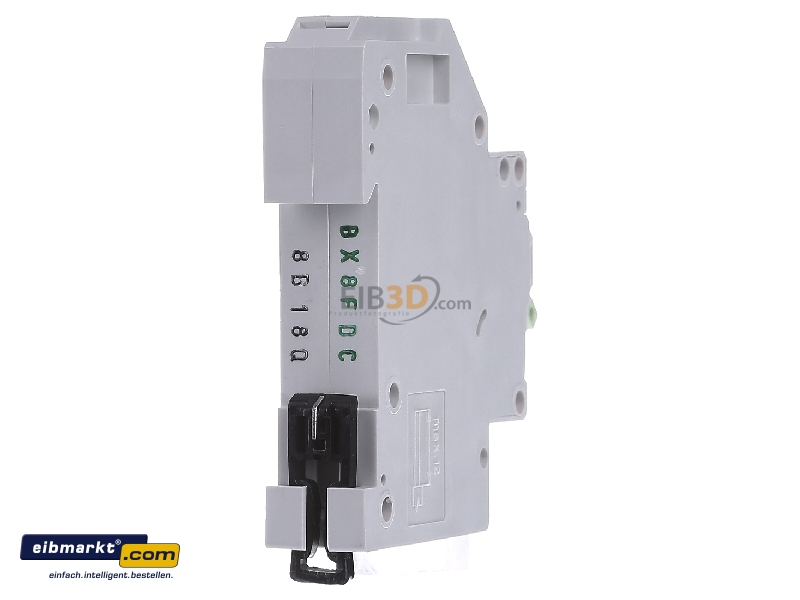

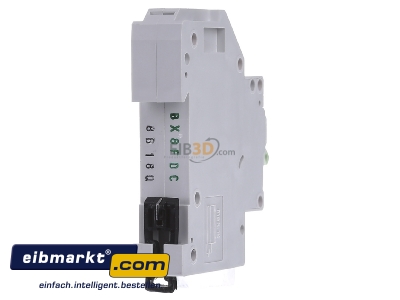

Back view Eaton (Installation) PLI-B8/1 Miniature circuit breaker 1-p B8A -
Back view

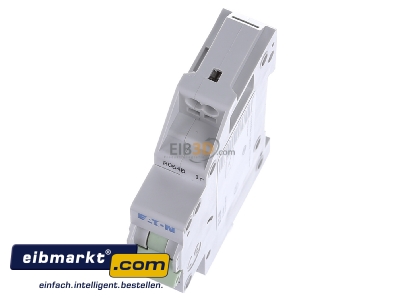

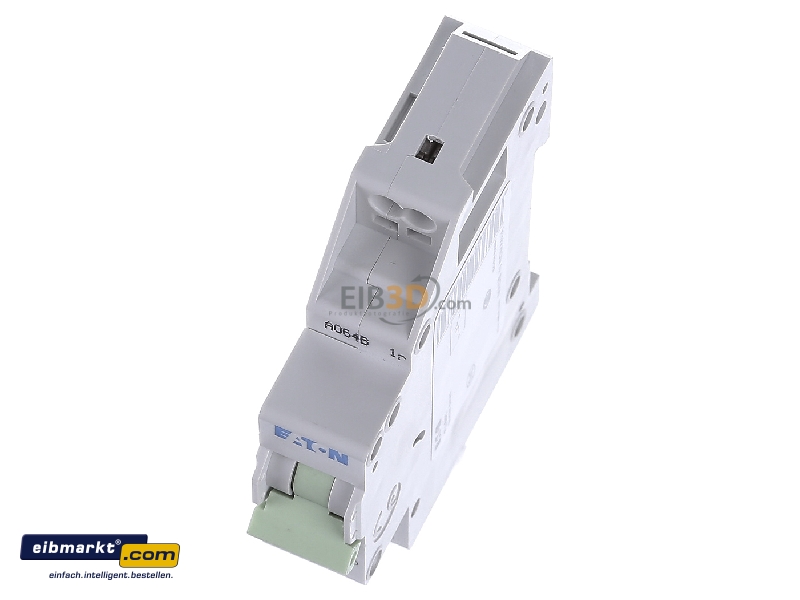

View up front Eaton (Installation) PLI-B8/1 Miniature circuit breaker 1-p B8A -
View up front

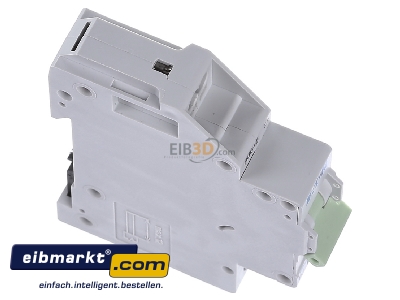

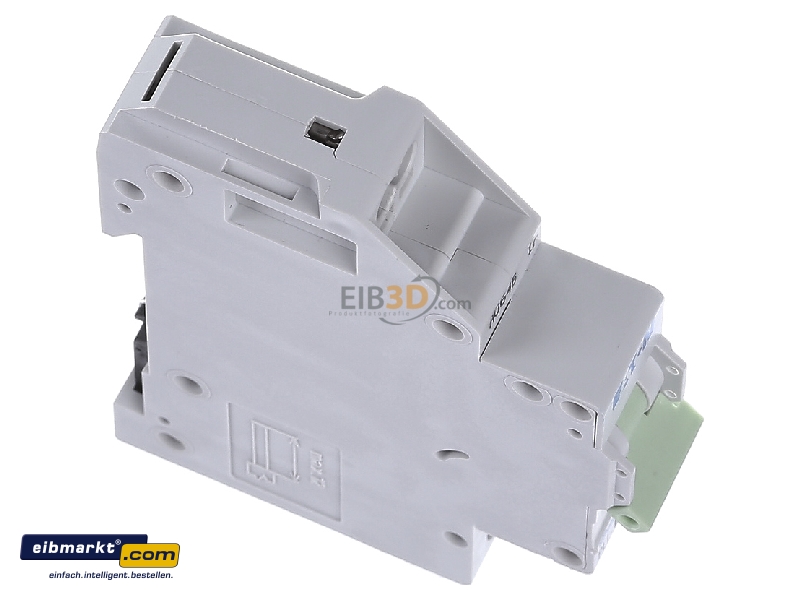

View top left Eaton (Installation) PLI-B8/1 Miniature circuit breaker 1-p B8A -
View top left

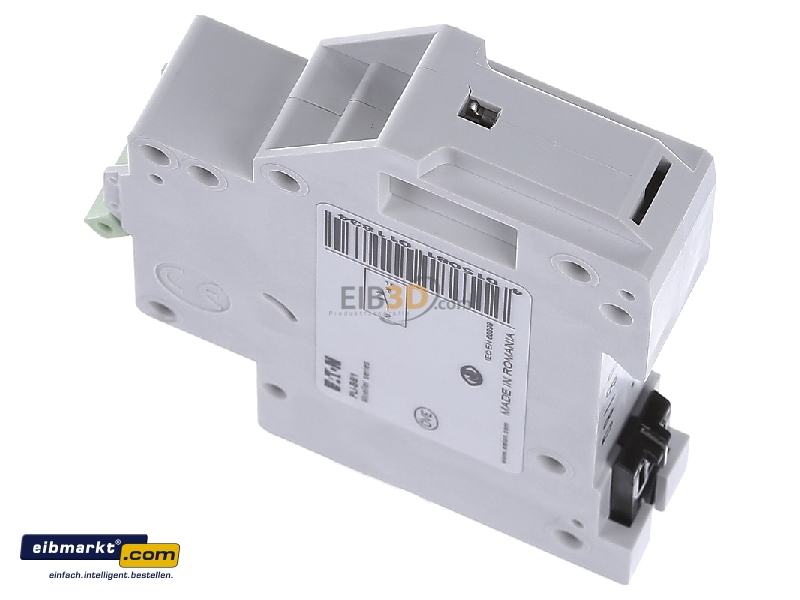

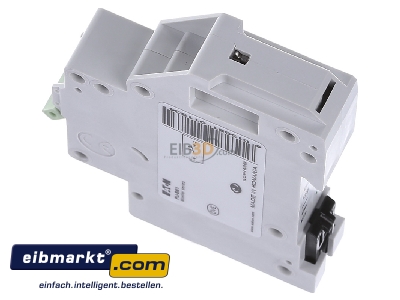

View top right Eaton (Installation) PLI-B8/1 Miniature circuit breaker 1-p B8A -
View top right

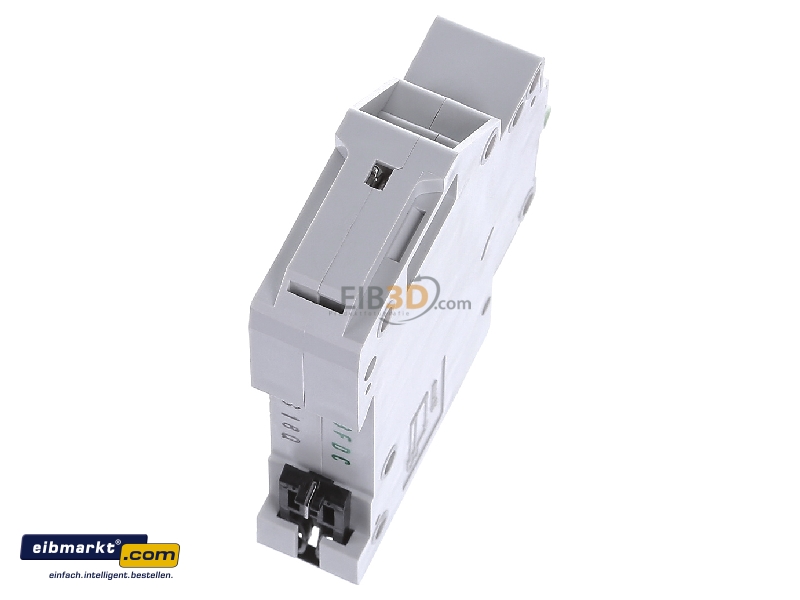

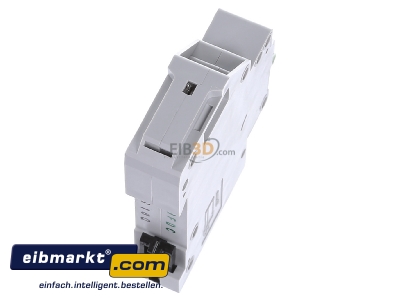

Top rear view Eaton (Installation) PLI-B8/1 Miniature circuit breaker 1-p B8A -
Top rear view
Product image 1 Eaton PLI B8 1 Miniature circuit breaker 1 p B8A
Product image 1
Product image 2 Eaton PLI B8 1 Miniature circuit breaker 1 p B8A
Product image 2
Product image 3 Eaton PLI B8 1 Miniature circuit breaker 1 p B8A
Product image 3
