Latching relay 230V AC Z-S230/SS

EAN/GTIN: 4015082652715
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: Z-S230/SS
Manufact.-SKU: 265271
Customs tariff no.: 85364900
Similar top items: Show now & compare
22,21 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Latching relay 230V AC Function Mechanical switch, Mounting method DIN rail, Width in number of modular spacings 1, Built-in depth 60mm, Number of contacts as normally open contact 2, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Control voltage 1 230 ... 230V, Type of control voltage 1 AC, Frequency control voltage 1 50 ... 50Hz, Control voltage 2 0V, Type of control voltage 2 AC, Frequency control voltage 2 0Hz, Rated switch current 16A, Supply voltage 250 ... 250V, Voltage type of supply voltage AC, Max. incandescent lamp load 0W, Max. load fluorescent lamp 0VA, Max. load fluorescent lamp (Duo circuit) 0VA, Max. load fluorescent lamp (parallel compensated) 0VA, Max. switching current (cos phi = 0.6) 0A, Manual operation possible

More product images:

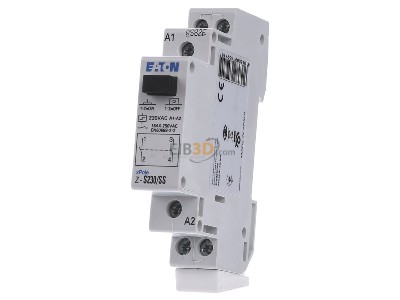

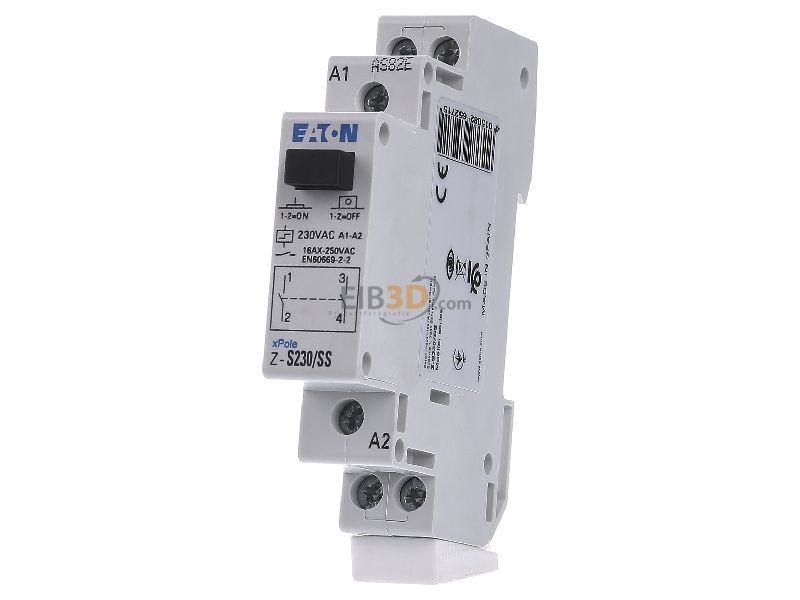

Front view Eaton Z-S230/SS Latching relay 230V AC
Front view

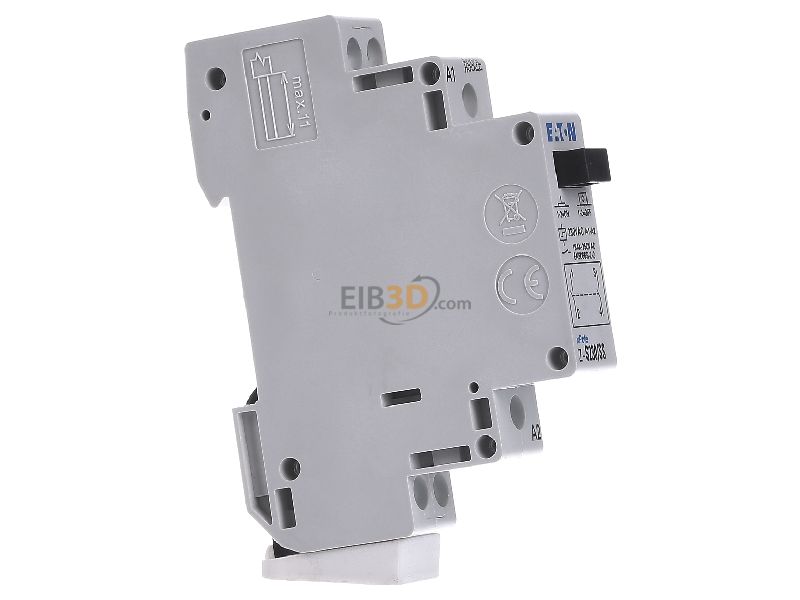

View on the left Eaton Z-S230/SS Latching relay 230V AC
View on the left

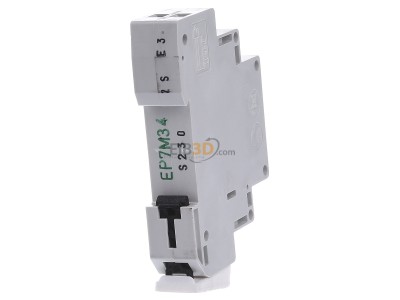

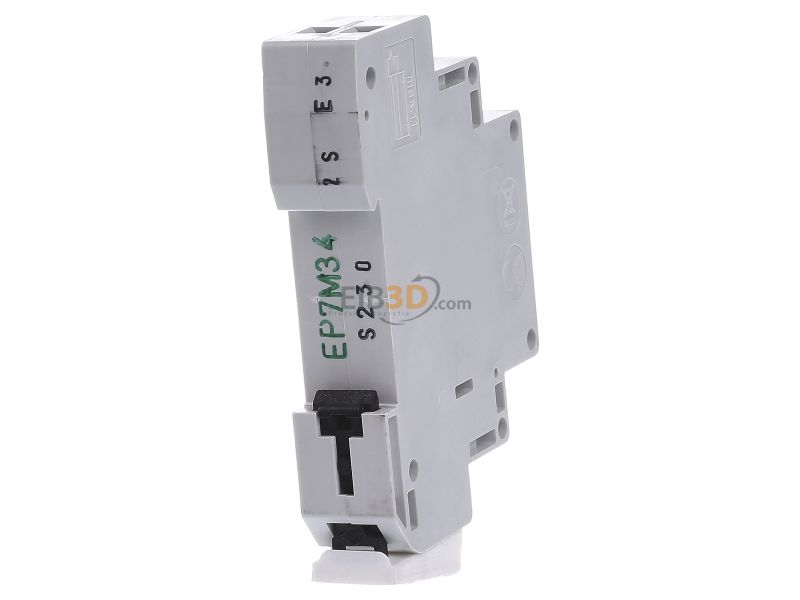

View on the right Eaton Z-S230/SS Latching relay 230V AC
View on the right

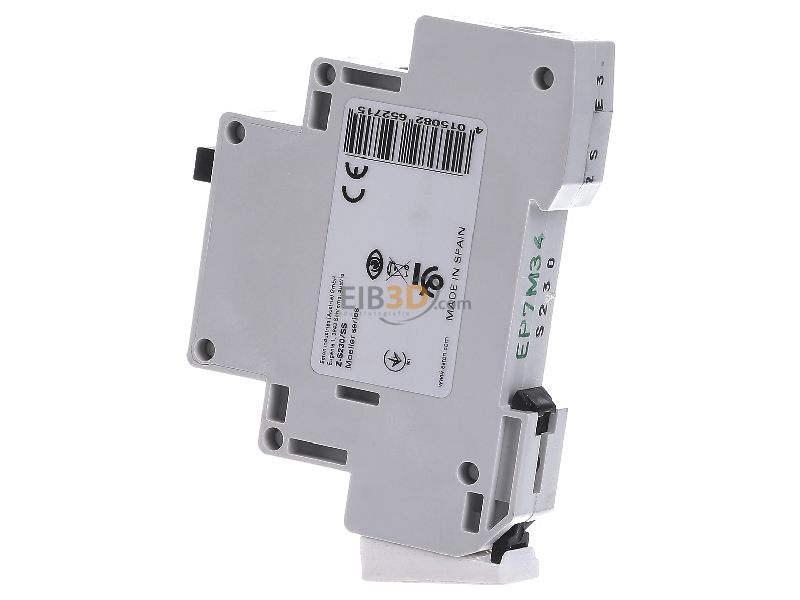

Back view Eaton Z-S230/SS Latching relay 230V AC
Back view

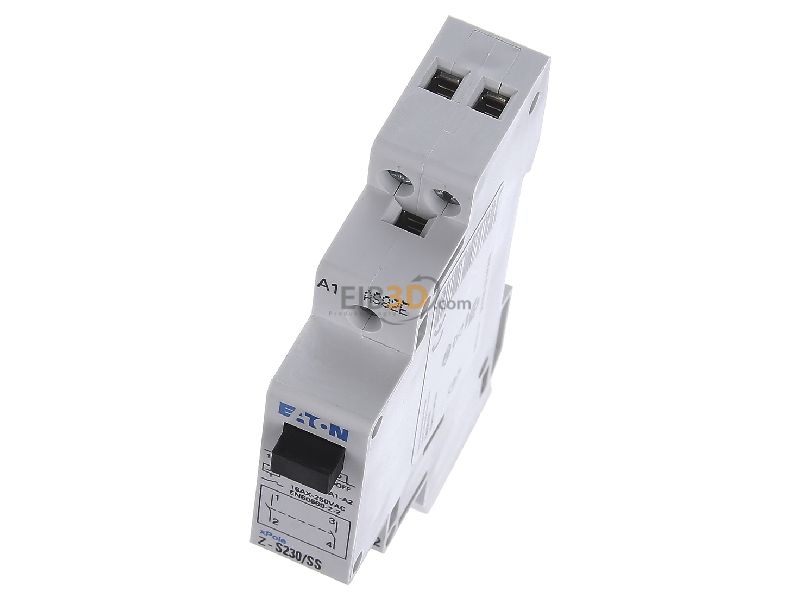

View up front Eaton Z-S230/SS Latching relay 230V AC
View up front

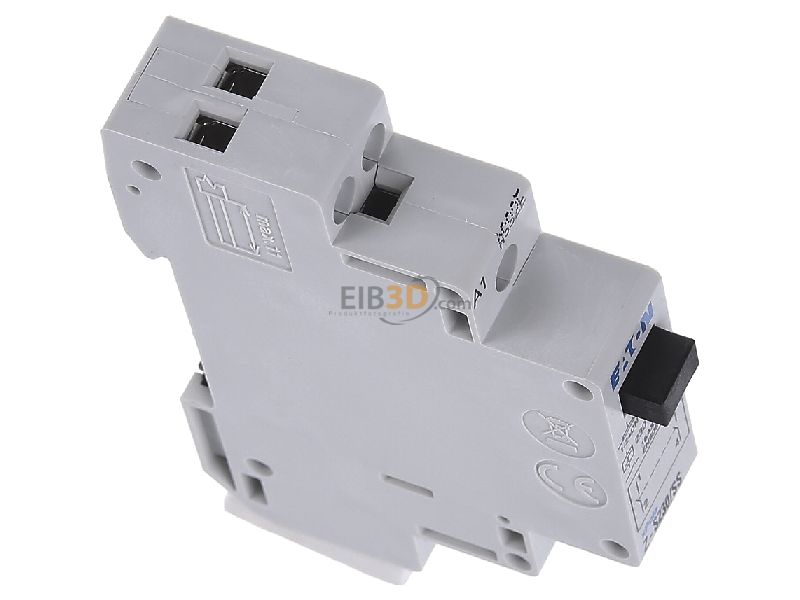

View top left Eaton Z-S230/SS Latching relay 230V AC
View top left
View top right Eaton Z-S230/SS Latching relay 230V AC
View top right

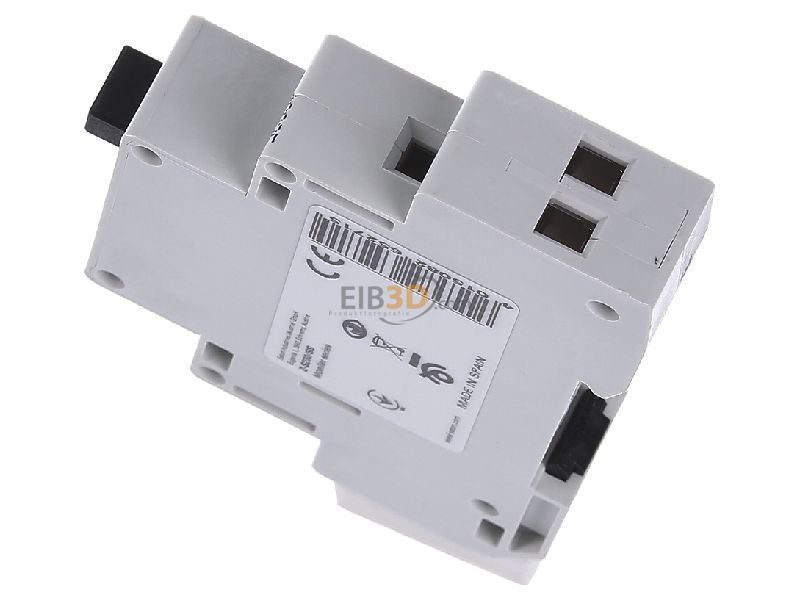

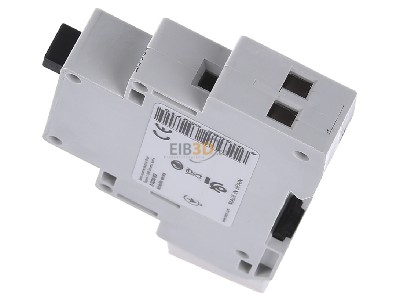

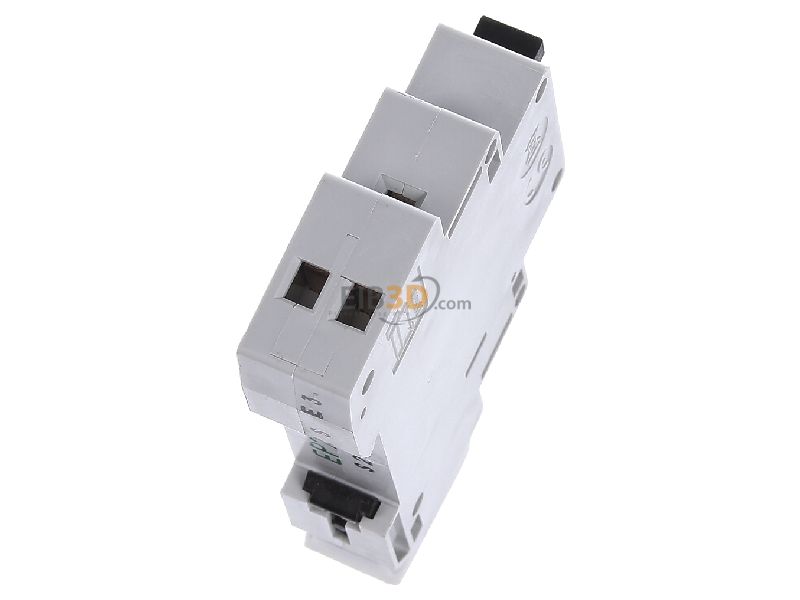

Top rear view Eaton Z-S230/SS Latching relay 230V AC
Top rear view
