Installation contactor 2 NO/ 2 NC Z-SCH230/25-22

EAN/GTIN: 4015082488499
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: Z-SCH230/25-22
Manufact.-SKU: 248849
Customs tariff no.: 85364900
Similar top items: Show now & compare
20,75 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Installation contactor 2 NO/ 2 NC Rated operating voltage 440 ... 440V, Rated operation current 25A, Utility category 1, Rated excitation voltage 230 ... 230V, Voltage type (operating voltage) AC, Voltage type (excitation voltage) AC, Number of contacts as normally open contact 2, Number of contacts as normally closed contact 2, Max. incandescent lamp load 3000W, Max. load fluorescent lamp 1160VA, Max. load fluorescent lamp (Duo circuit) 2552VA, Max. load fluorescent lamp (parallel compensated) 1044VA, Number of modular spacings 2, Built-in depth 60mm, Additional equipment possible, Degree of protection (IP) IP40

More product images:

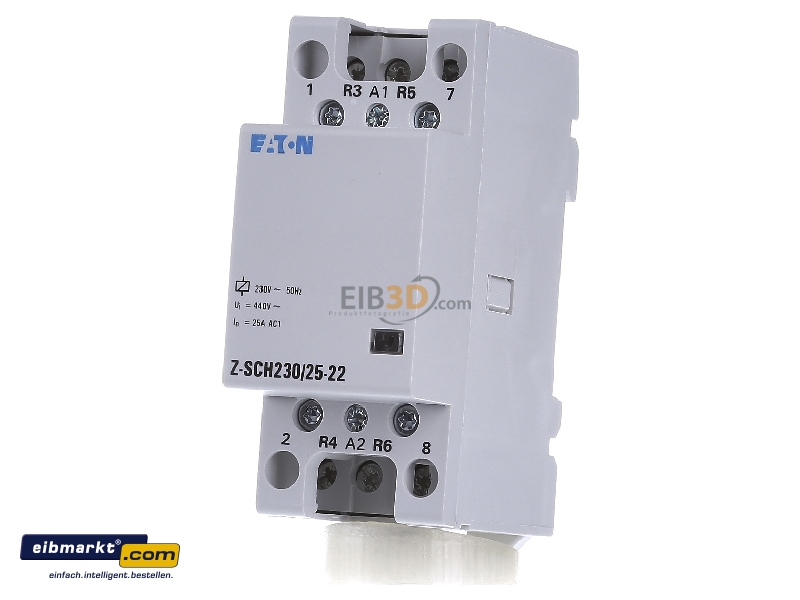

Front view Eaton (Installation) Z-SCH230/25-22 Installation contactor 2 NO/ 2 NC -
Front view
View on the left Eaton (Installation) Z-SCH230/25-22 Installation contactor 2 NO/ 2 NC -
View on the left

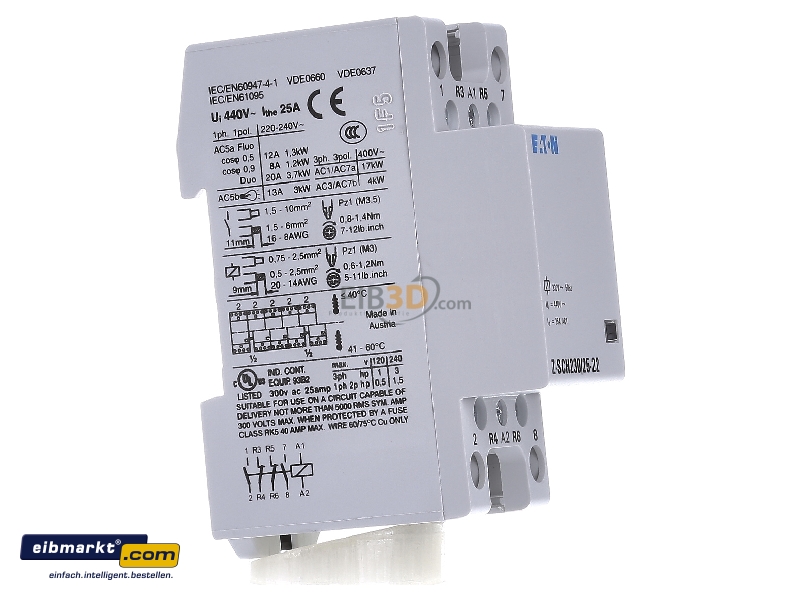

View on the right Eaton (Installation) Z-SCH230/25-22 Installation contactor 2 NO/ 2 NC -
View on the right

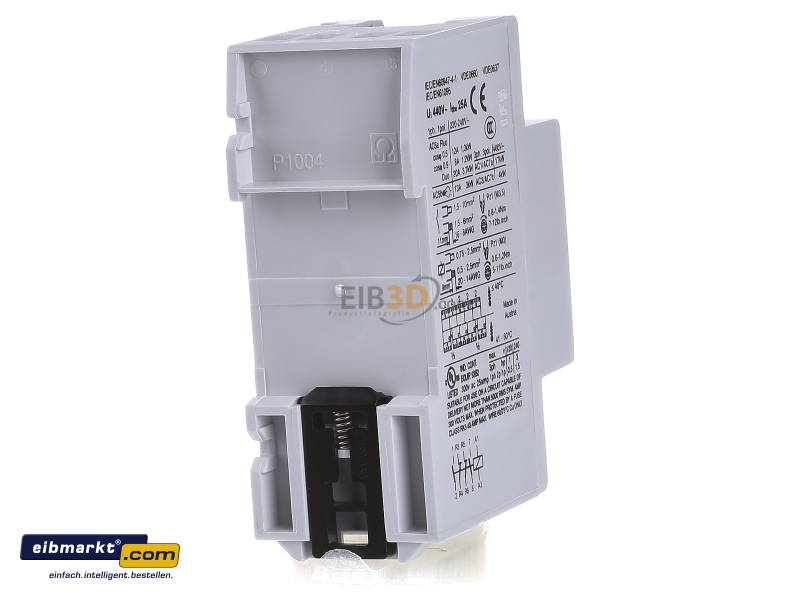

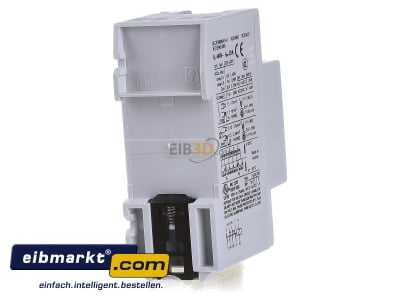

Back view Eaton (Installation) Z-SCH230/25-22 Installation contactor 2 NO/ 2 NC -
Back view

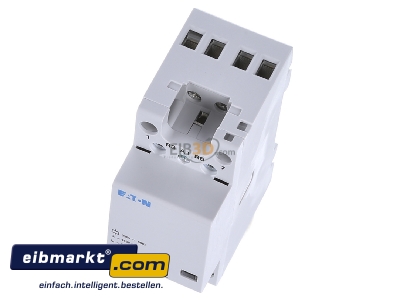

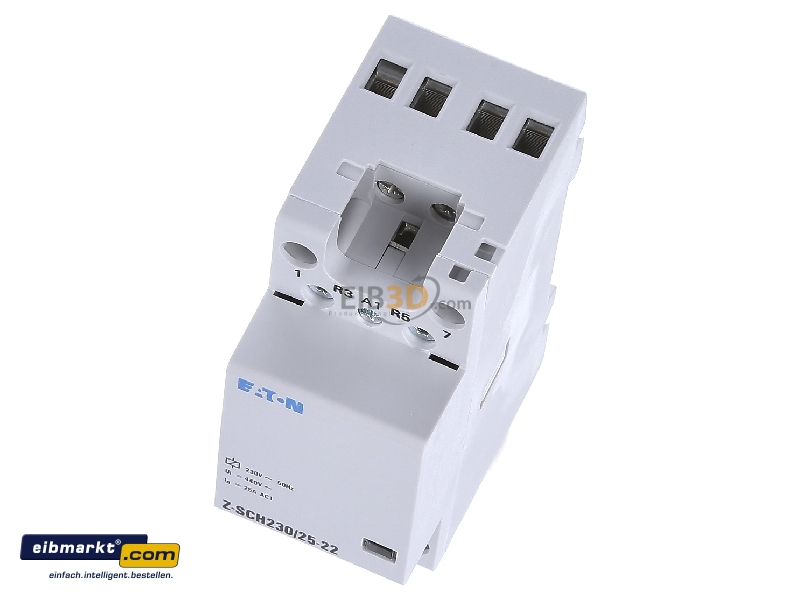

View up front Eaton (Installation) Z-SCH230/25-22 Installation contactor 2 NO/ 2 NC -
View up front

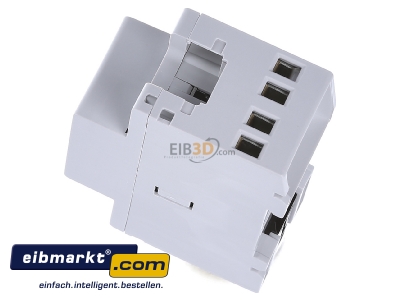

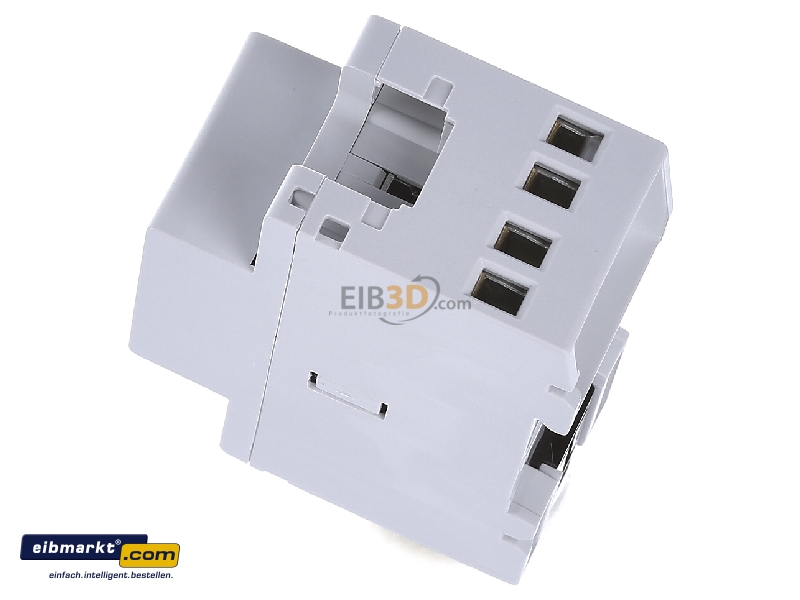

View top left Eaton (Installation) Z-SCH230/25-22 Installation contactor 2 NO/ 2 NC -
View top left

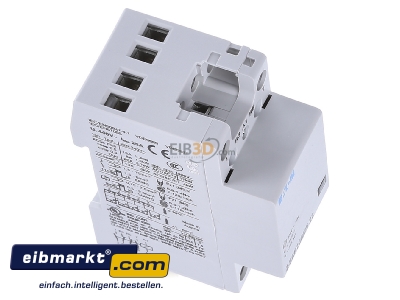

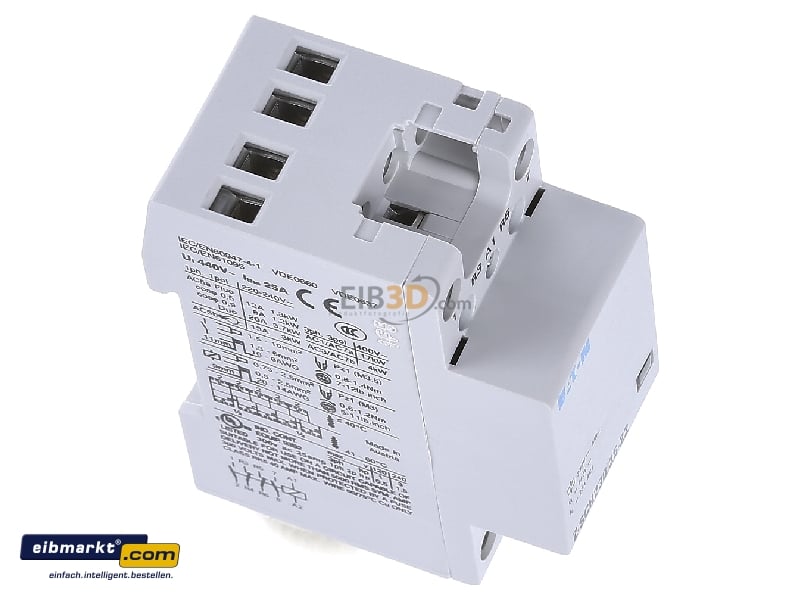

View top right Eaton (Installation) Z-SCH230/25-22 Installation contactor 2 NO/ 2 NC -
View top right

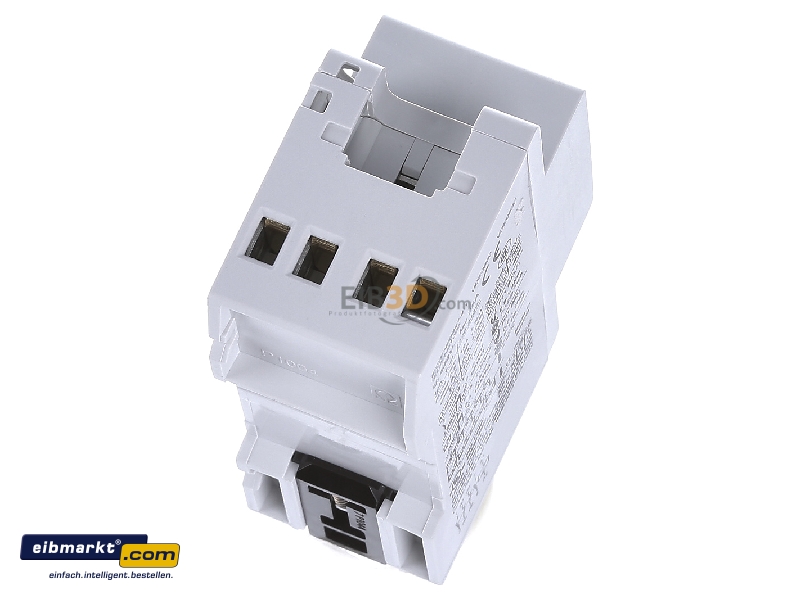

Top rear view Eaton (Installation) Z-SCH230/25-22 Installation contactor 2 NO/ 2 NC -
Top rear view
