Light ribbon-/hose/-strip 24V RGB ICSB2024305099
Source photo:
EVN
(fig. might be different or similar)

Light ribbon-/hose/-strip 24V RGB ICSB2024305099

EAN/GTIN: 4037293022934
WEEE: DE 63351424
Manufacturer: EVN
Manufacturer no.: ICSB2024305099
Customs tariff no.: 94054239
Similar top items: Show now & compare
274,84 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Model=Strip, Mounting method=Surface mounting/recessed mounting, Lamp type=LED not exchangeable, Number of nodes per meter=60, Lamp power per meter=13 W, Luminous flux per meter=455 lm, Voltage type=DC, Lamp voltage=24 V, Beam angle=120 °, Type of control gear=LED operating device voltage-controlled, Suitable for dimmer=yes, Exchangeable control gear=no, Energy efficiency class of the light source according to EU regulation 2019/2015=Not required, Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)=30 %, Degree of protection (IP)=IP20, Protection class=III, Colour of light=RGB, Constant light output (CLO)=no, Colour of light adjustable=No, Beam angle adjustable=No, Width=12 mm, Height/depth=2 mm, Length=5000 mm, Length of particular segments=100 mm, With end piece=no, With connection set=no, With protective cover=no, Self-adhesive=yes, Number of poles=4, Connection type=Solder, Compatible with Apple HomeKit=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no, IFTTT support available=no

More product images:

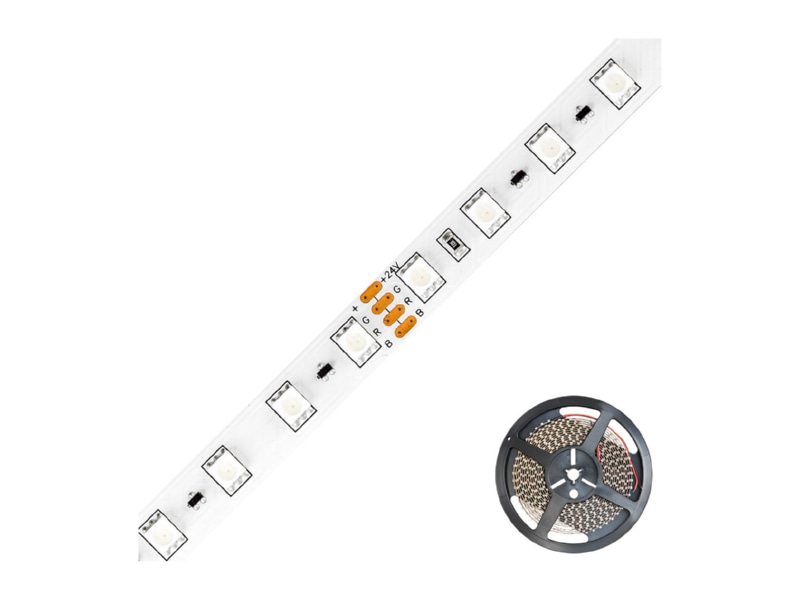

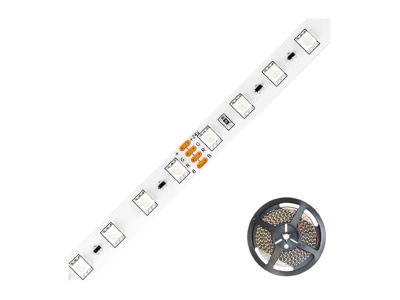

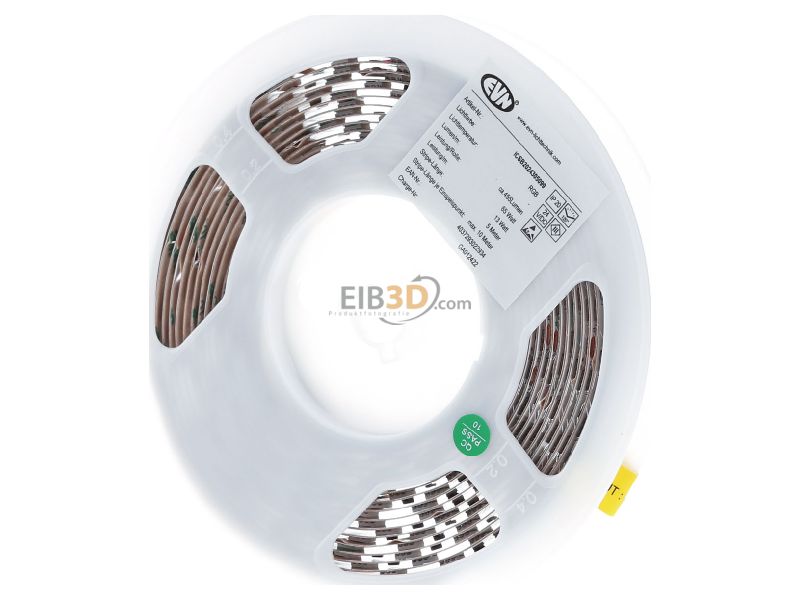

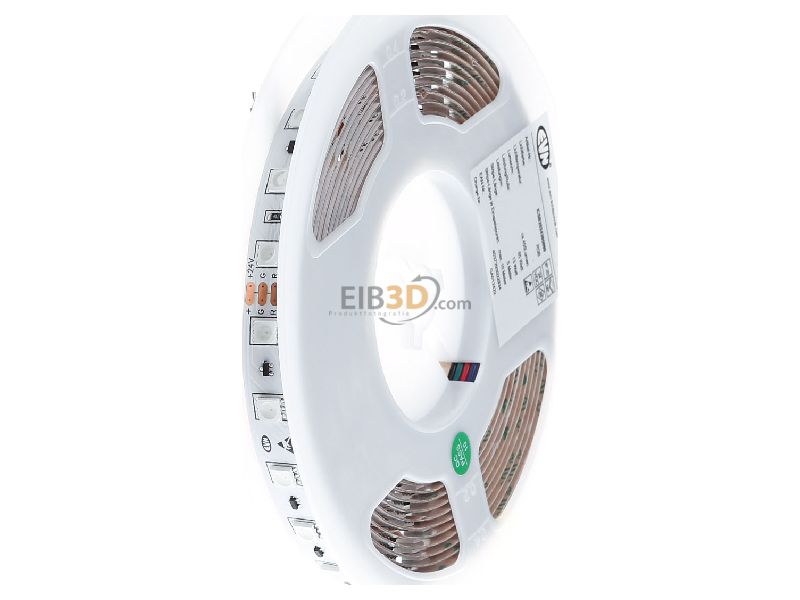

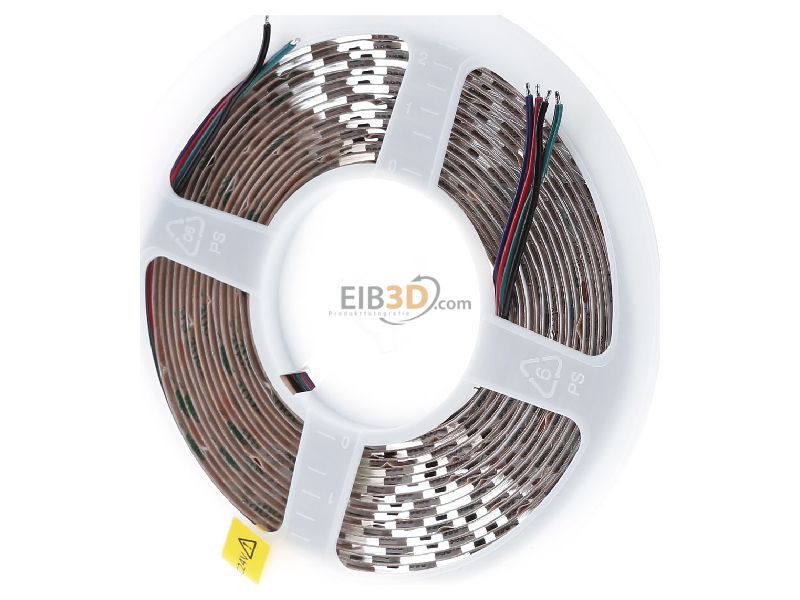

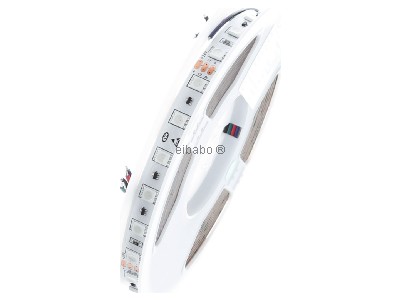

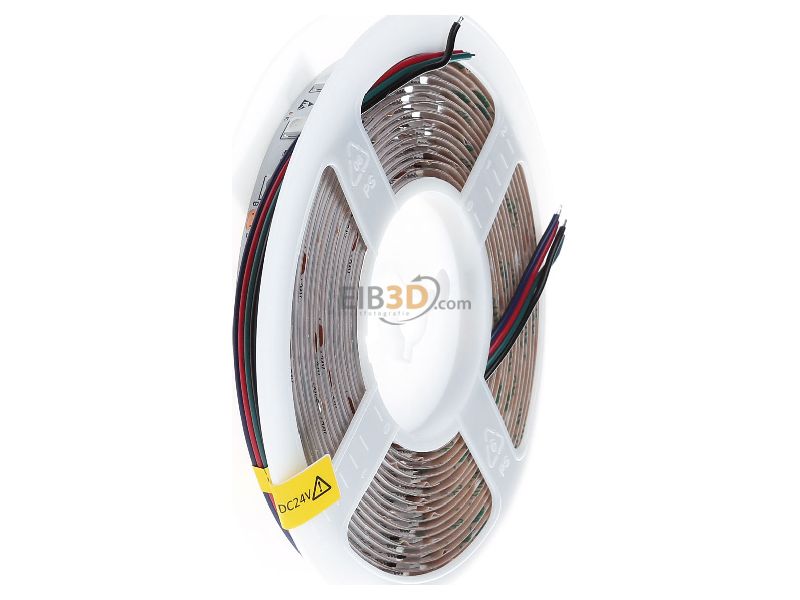

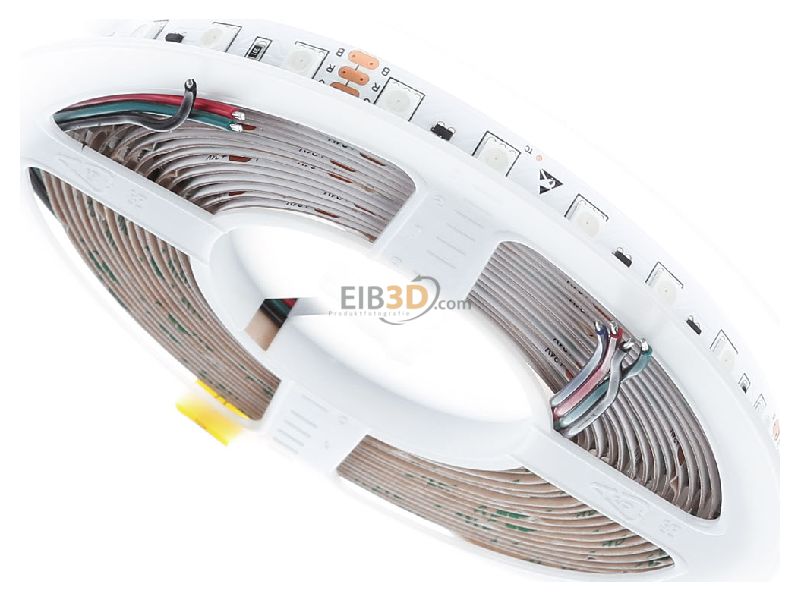

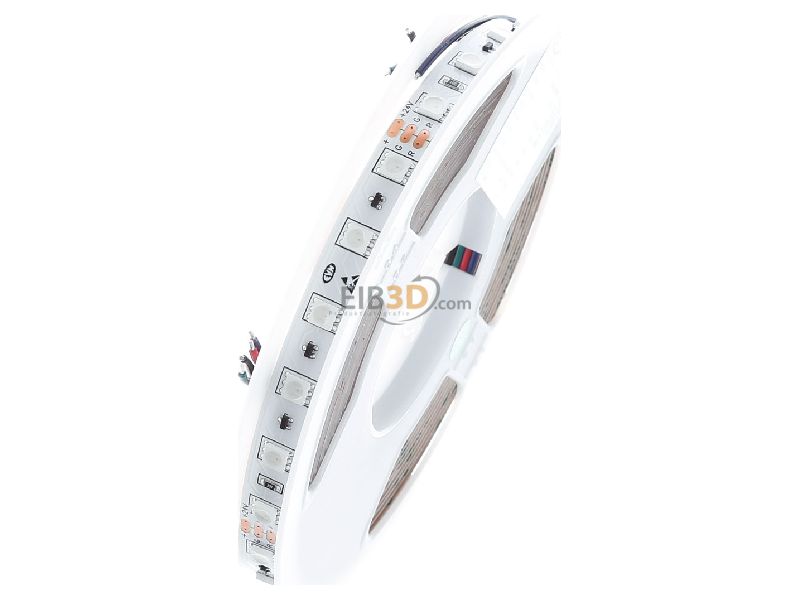

Product image EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Product image

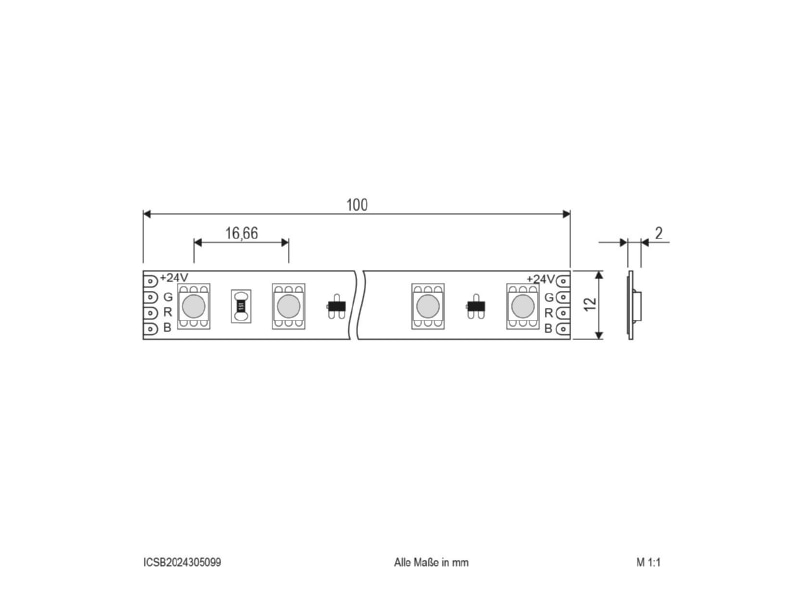

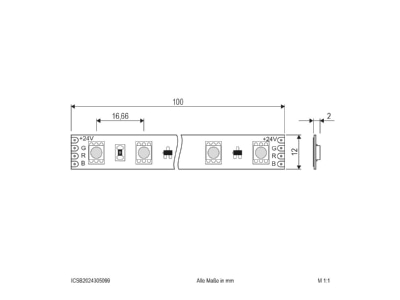

Dimensional drawing EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Dimensional drawing

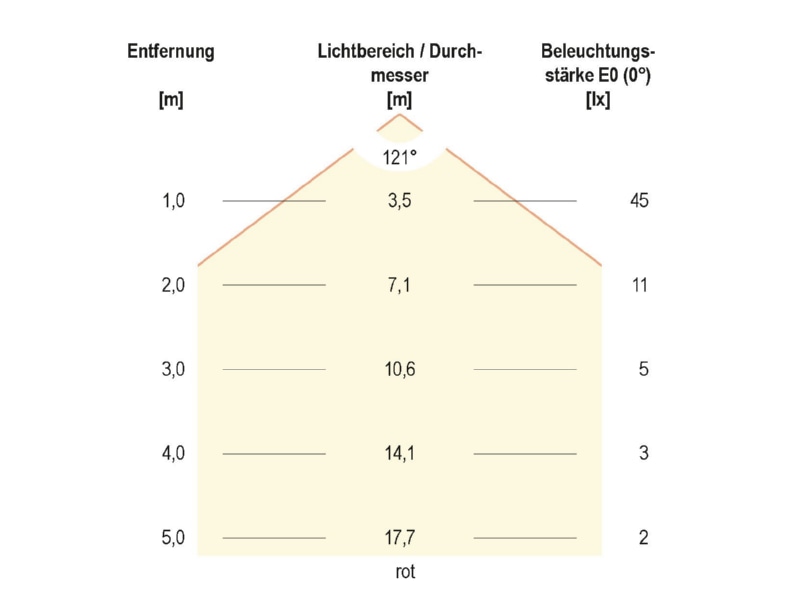

Cone diagram 1 EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Cone diagram 1
Cone diagram 2 EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Cone diagram 2
Cone diagram 3 EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Cone diagram 3
Cone diagram 4 EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Cone diagram 4
